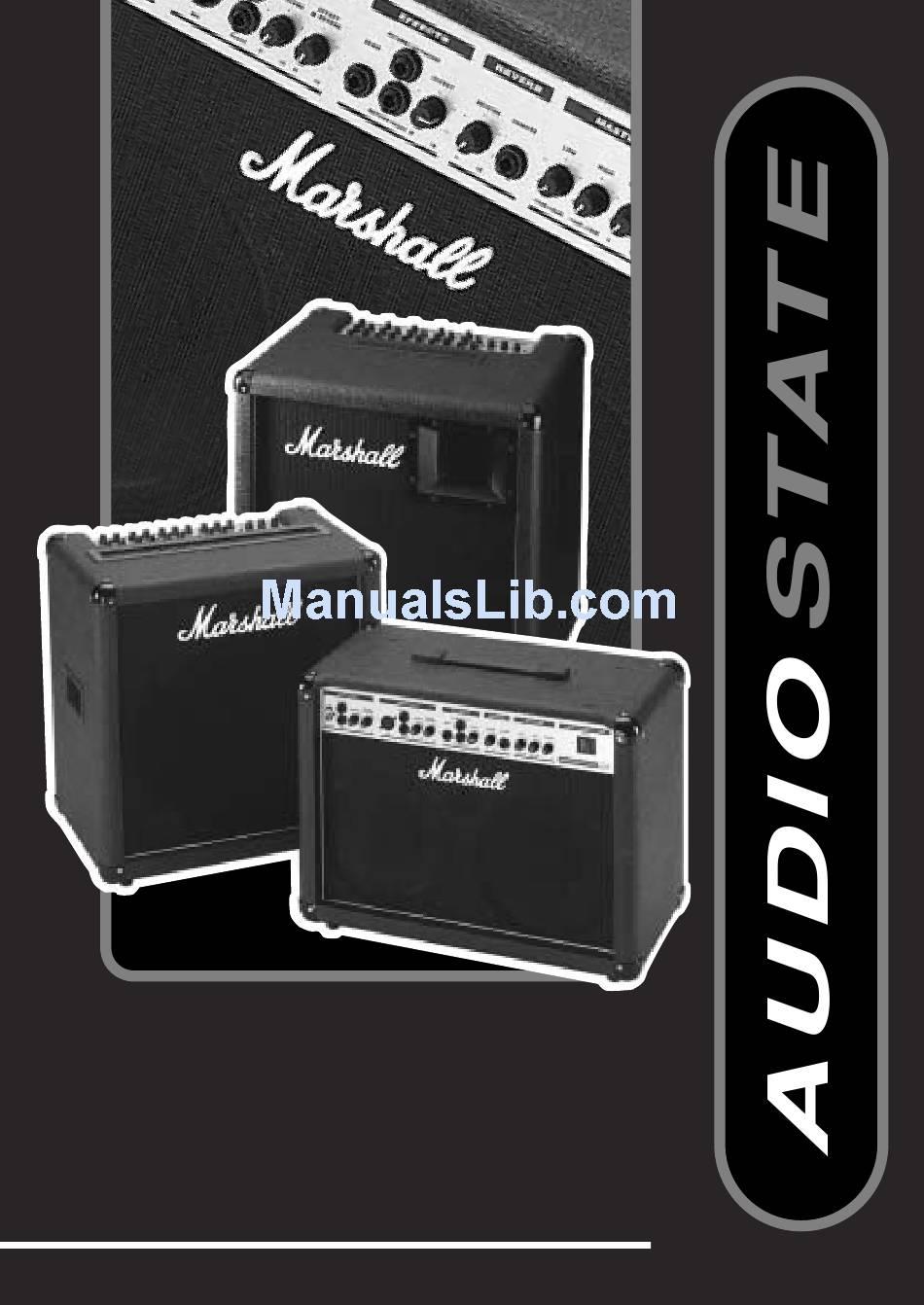

- Page 1 LR150, LR230 & LR300 Linear Response Combos...
- Page 2 From Jim Marshall I would like to thank you personally for selecting one of our Linear Response amplifiers. From my early teens right up to the present day I have spent the majority of my time around other musicians. My own musical career started as a singer and moved shortly afterwards into the world of drumming.
- Page 3 Please read the following list carefully. A. ALWAYS ensure that a good quality mains plug is fitted to your Audio State™ conforming to the latest B.S.I. standards (UK only) lead supplied. B. ALWAYS ensure that the plug is wired in accordance with the regulations of your country. C.
- Page 4 compression driven Constant Directivity high frequency horn with a pro grade crossover and horn protection circuit. Each channel has 3 band EQ, gain and FX send controls, whilst the master has a parallel FX loop, spring reverb and line outs to send the mixed signal to a larger PA system or tape recorder if required.
-
Page 5: Line Out
signal through Channel 1, as it dictates the amount of signal to the Effects Send (item 12). Note - this will be effected by the Effect Return control (item 15) and the Master Reverb control (item 16). Channel 2 7. Mic Input XLR Unbalanced low impedance for microphone input. -
Page 6: Master Section
AUDIO STATE LR150 Top Panel Features (page38) Channel 1 & Channel 2 1. & 5. Low Controls the low frequencies on Channel 1 and Channel 2 respectively. 2. & 6. High Controls the high frequencies on Channel 1 and Channel 2 respectively. 3. - Page 7 LR150 Rear Panel Features (page 38) N.B. Reads from right to left on panel. 1. Mains Input For connection to the mains. We would always recommend that your plug is wired in accordance with your country’s regulations 2. Power Switches the mains power to the combo Channel 1 3.
- Page 8 28. Effect Return This is the master Effects Return and is an effects mix control, allowing you to decide when using an external effects processor how much of your overall sound will be effected. Further control is given by the individual Effect control which features on each channel.
- Page 9 LR230 - Front Panel CHANNEL 1 LEFT/ MONO EFFECT VOLUME & REVERB LINE INPUT RIGHT LR230 - Rear Panel WARNING!: SHOCK HAZARD. DO NOT OPEN. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
- Page 10 LR150 - Top Panel CHANNEL 1 CHANNEL 2 -10dB +10dB -10dB +10dB -10dB +10dB HIGH EFFECT VOLUME EFFECT LR150 - Rear Panel OUTPUT 150 Watts RMS into 8 Ω REMOTE LINE OUT RETURN CHANNEL 3 -10dB +10dB -10dB +10dB -10dB +10dB -10dB +10dB...
- Page 11 LR300 - Top Panel HANNEL -10dB +10dB -10dB HIGH HIGH EFFECT -10dB +10dB -10dB -10dB +10dB -10dB LR300 - Rear Panel Made in England by: POWER FOOTSWITCH RETURN Marshall Amplification plc, MASTER Bletchley, Milton Keynes, England. MAINS INPUT 120V ~ 60 Hz 500 Watts HANNEL HANNEL...
