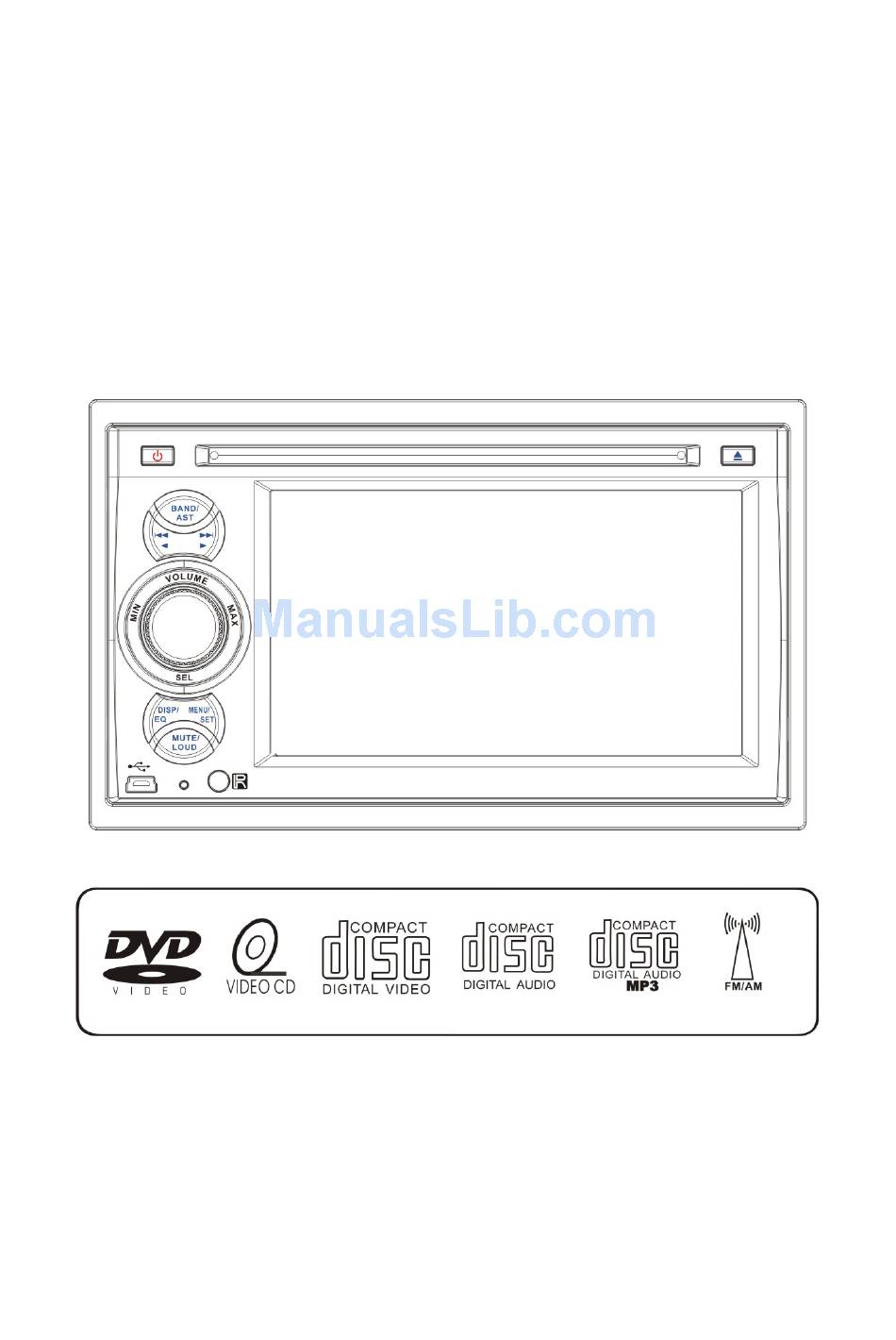

- Page 1 OWNER’S MANUAL Mobile Video System...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information ….…………………………………………………………………….2 Features …………………………………………………………………………………...3 Accessories………………………………………………………………………………..4 Front Panel …………… ………………………………………………………………….5 Rear Panel …………… ………………………………………………………………….5 Remote Control …………………………………………………………………………...6 Installation …………………………………………………………………………………8 Unit Removal ……………………………………………………………………………..9 Wire Connection …………………………………………………………………………10 Disc Notes ………………………………………………………………………………..11 Disc Operations ………………………………………………………………………….12 Basic Operations …………………………………………………………………...……13 Touch Screen Operations. …..................14 Touch Screen Calibrate ………………………………………………………………14 Main Menu ……………………………………………………………………………..15 Radio Operations ………………………………………………..……………....17... -
Page 3: Safety Information
SAFETY INFORMATION Please read the manual carefully before operating this unit and keep it for future reference. CAUTION: This unit is a class 1 laser product. To prevent direct exposure to the laser system, do not open the unit. The laser beam may hurt your eyes. If the unit requires adjustments, contact an authorized service centre. -
Page 4: Features
FEATURES - ISO/2-DIN Size - DVD/DVD-R/DVD-RW/VCD/CD/CD-R/CD-RW/MP3 Compatible - 5.8" Wide-Screen TFT/LCD Display - High Brightness: 350 cd/m - Resolution: 1440 x 234 - Color, Contrast, Brightness, Tint controls - Car DVD Slot-in Mechanism - Digital & Mechanical Anti-Shock with ESP Memory - Built-In Dolby Digital Decoder - Built-In MP4 Decoder - Last Position Memory... -
Page 5: Accessories
ACCESSORIES Bolt Steel Bar x 1 M5X5 Screws x 8 Connecter Wire x 1 Trim Bezel x 1 Remote Control x 1 Operational Manual x 1 Mounting Sleeve x 1 Keys x 2 - 4 -... -
Page 6: Front Panel
FRONT PANEL 1. BAND / AST 6. VOLUME + / - / SEL / ENTER 11. REMOTE 2. NEXT / F.FWD 7. EQ / DISP 12. MENU / SET 3. EJECT 8. MUTE / LOUD 4. POWER / SOURCE 9. MINI USB 5. -
Page 7: Remote Control
REMOTE CONTROL 1. POWER/SOURCE 13. F.FWD 25. SUBTITLE 2. MUTE 14. SLOW 26. PREVIOUS 3. NUMBER BUTTONS 15. RANDOM 27. RIGHT(Seek up) 4. MENU 16. ZOOM 28. NEXT 5. AUDIO 17. SELECT 29. D.ANGLE 6. DISPLAY 18. EJECT 30. PLAY / PAUSE 7. - Page 8 Replacing the Batteries If the remote control has no function or if the operating range is reduced, replace the old battery with new one. 1. Remove the battery cover. Follow the arrow (1) slide the tab to the right while pulling the cover away at the same time. 2.
-
Page 9: Unit Installation
UNIT INSTALLATION 1. Install the mounting sleeve to the unit from rear to front. 2. Install the trim bezel to the unit. (Arched surface toward the bottom) - 8 -... -
Page 10: Unit Removal
UNIT REMOVAL 1. Remove the trim bezel from the unit. 2. Insert the keys supplied with the unit on both sides (as illustrated) as this will release the internal locks so you can slide the unit out. - 9 -... -
Page 11: Wire Connection
WIRE CONNECTION - 10 -... -
Page 12: Disc Notes
DISC NOTES ■ Disc formats supported by this player Handling and cleaning • Dirty, dusty, scratched or warped discs may not play properly. • Do not place stickers or make scratches on discs • Do not warp discs. • Store discs in their cases when not in use. •... -
Page 13: Disc Operations
DISC OPERATIONS Repairing New Discs with Rough Spots A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. -
Page 14: Basic Operations
BASIC OPERATIONS Power Press the [POWER/SOURCE] button to turn the unit ON; Press and hold the button to turn the unit OFF. Switching Sources When the unit in turned ON, press the [POWER/SOURCE] button to toggle between the different modes as following: RADIO –... - Page 15 Telephone Mute Control Connect the telephone mute control wire ＂TEL_MUTE＂ (see Wiring Diagram). If there is a vehicle call comes in, the sound volume will mute off automatically, and TFT monitor shows: ＂PHONE…＂; When call finished, the sound volume will recover to former volume, and the words ＂PHONE…＂...
-
Page 16: Touch Screen Operations
TOUCH SCREEN OPERATIONS TOUCH SCREEN CALIBRATE When “Power Off”, press the buttons 1, 2, 3, 4, 5, [BAND] of panel or remote control to enter the CALIBRATE page: To touch the points from 1 to 5 until the points change to brighter by using a ballpoint pen or pencil. -
Page 17: Main Menu
MAIN MENU Touch the icon “MORE” to enter the 2 page of main menu. Touch the icon “MORE” to enter the 1 page of main menu. Touch the icon “EXIT” to return the previous working Mode. NOTE: The unit could be switched to DVD Mode if disc inside; The unit could be switched to USB Mode if Mini USB connected;... -
Page 18: Radio Operations
RADIO OPERATIONS Touch the icon “RADIO” to enter the RADIO Mode: 1~6. STORED CHANNEL Manual Store Radio Station Hold on touching the icon, you can store current radio frequency to the stored channel. For example, the current frequency is 98.5MHZ, by hold on touching the icon 1, you can store the radio station of 98.5MHZ to the channel 1. - Page 19 10. BAND Touch the icon to switch the FM/AM wave band as following: FM1 - FM2 - FM3 - AM1- AM2 - FM1 To press the [BAND/ENTER] button of panel or remote control performs same operation. 11. NEXT PAGE Touch the icon to enter the 2 page of RADIO Mode: 1.
- Page 20 1. ASM Seeking and store the stations 1. Hold on touching the icon to seek stations with the strongest signal from the lowest frequency point in the entire wave bands; press any button to stop seeking. After seeking, the former stored stations will be instead. 2.
-
Page 21: Dvd Operations
DVD OPERATIONS Touch the icon “DVD” to enter the DVD Mode if disc inside. The unit will switch to DVD Mode automatically if loading disc. The unit will switch to RADIO Mode automatically if ejecting disc. 1. PREV / 2. NEXT Touch the icon to go to the pervious / next chapter, track or song. - Page 22 8. NEXT PAGE Touch the icon to enter the 2 page of DVD Mode. 1~4. DOWN / UP / LEFT / RIGHT Touch the direction icons (UP / DOWN / LEFT / RIGHT) to move the cursor to the selected item. To press the direction buttons (UP / DOWN / LEFT / RIGHT arrow) of remote control performs same operation.
- Page 23 * DVD Operations on the Panel & Remote Control Ejecting Disc Press the [EJECT] button to eject the disc. Play/Pause Press the [PLAY/PAUSE] button to play or pause the disc. Stop During movie playback, press the [STOP] button once; the DVD player memorizes the location where you stopped (press PLAY button to resume playing from the memorized location).
-
Page 24: Usb Operations
Audio When playing a DVD disc, press the [AUDIO] button to select one of the available languages. Subtitle For DVD disc, press the [SUBTITLE] button to select one of the available languages. Program When playing a VCD disc (PCB off) or CD disc, press the [PROGRAM] button to enter the program status;... -
Page 25: Ipod Operations
IPOD OPERATIONS Touch the icon “IPOD” to enter the IPOD Mode if iPod connected. The unit will switch to IPOD Mode automatically if connecting iPod. The unit will switch to RADIO Mode automatically if disconnecting iPod. NOTE: It is available for iPod operations with an additional iPod cable which is optional accessory. - Page 26 11. PLAY / PAUSE Touch the icon to play or pause the disc. To press the [PLAY/PAUSE] button of panel or remote control performs the same operation. 12. VIDEO Touch the icon to switch to the VIDEO operation. 13. MENU Touch the icon to return the main menu.
-
Page 27: Av In Operations
AV IN OPERATIONS Touch the icon “AV IN” to enter the AV IN Mode: 1. MUTE Touch the icon to switch off the sound; touch it again to resume to the previous volume level. 2. EQ The user can set to adjust the audio output to your preference: USER –... -
Page 28: Cdc Operations
CDC OPERATIONS Touch the icon “CDC” to enter the CDC Mode if CD/DVD changer connected: 1. The playing DISC number 2. D-DOWN / 3. D-UP Touch the icon to change the next / previous disc to play. 4. PREV / 5. NEXT Touch the icon to go to the pervious / next chapter, track or song. - Page 29 NOTE Touch the “CDC” icon to enter the following page if the CD/DVD changer not connected. 1, INFORMATION It indicates that the unit does not connect the CD/DVD changer. 2, MENU Touch the icon to return the main menu. - 28 -...
-
Page 30: System Setup
SYSTEM SETUP Touch the icon “SETUP” or hold on pressing the [VOL / SEL] button of panel to enter the SETUP of system parameters: SYSTEM SETUP 2. VIDEO SETUP 3. AUDIO SETUP 4. CLOCK SETUP Touch the icon 1~4 to select the main menus directly. 5. - Page 31 SYSTEM SETUP RADIO AREA: EUROPE – ASIA – UAS – JAPAN – OIRT – EUROPE VIDEO TYPE: AUTO – PAL – NTSC – ATUO SUB-WOOFER: OFF – 80 HZ – 120 HZ – 160 HZ DEFAULT: the unit will restore all default settings of Sound Parameter, Picture Parameter &...
- Page 32 AUDIO SETUP BASS: - 15 ~ + 15 TREBLE: - 15 ~ + 15 BALANCE: L 15 ~ R 15 FADER: F 15 ~ R 15 SUB-WOOFER: 0 ~ 15 CLOCK SETUP CLOCK: 12H / 24H DISPLAY: ON / OFF HOUR: 00 ~ 23 MINUTE:...
-
Page 33: Dvd Setup Menu
DVD SETUP MENU SETUP MENU OPERATION Press the [SETUP] button of Remote Control to enter the SETUP MENU. Press the [<] / [>] buttons to switch the main menus as following: General – Speaker – Dolby Digital – Preference Press the [ENTER] or [∨]] buttons to enter the submenus from main menus. Press the [<] button to exit the submenus to main menus. - Page 34 Captions Select ON or OFF. Screen Saver Select ON or OFF. Last Memory Select ON or OFF. Speaker Setup Page Downmix Following options are available for the Downmix: LT / RT Stereo Dolby Digital Setup Dynamic Choose arrangement is from FULL to OFF. - 33 -...
- Page 35 Preference Page TV Type Following options are available for TV Type: Auto NTSC Audio Following options are available for the Audio Language: English French German Russia Spanish Italian Portuguese Swedish Dutch Korean Danish Norwegian Hungarian Subtitle Following options are available for the Subtitle Language: English French German...
-
Page 36: Specifications
SPECIFICATIONS GENERAL Supply Voltage : 14.4V DC (11-16V allowed) Load Impedance : 4Ω per channel Max Power Output : 50W x 4 Bass 100Hz : ≥ 10dB Treble 10KHz : ≥ 10dB Dimensions (approx.) : 181X185X110mm (d/w/h) Mounting (approx.) : 160x178x100mm (d/w/h) FM TUNER Frequency Range : 87.5 –... -
Page 37: Trouble Shooting
TROUBLE SHOOTING SYMPTOM CAUSE / SOLUTION No sound Cancel the mute function. Adjust the volume. The memory contents are lost Disconnect the power wire or battery. Press the RESET button. The disc does not play The disc might be dirty or damaged. The disc comes out automatically The temperature is outside the range of the operating temperature.
