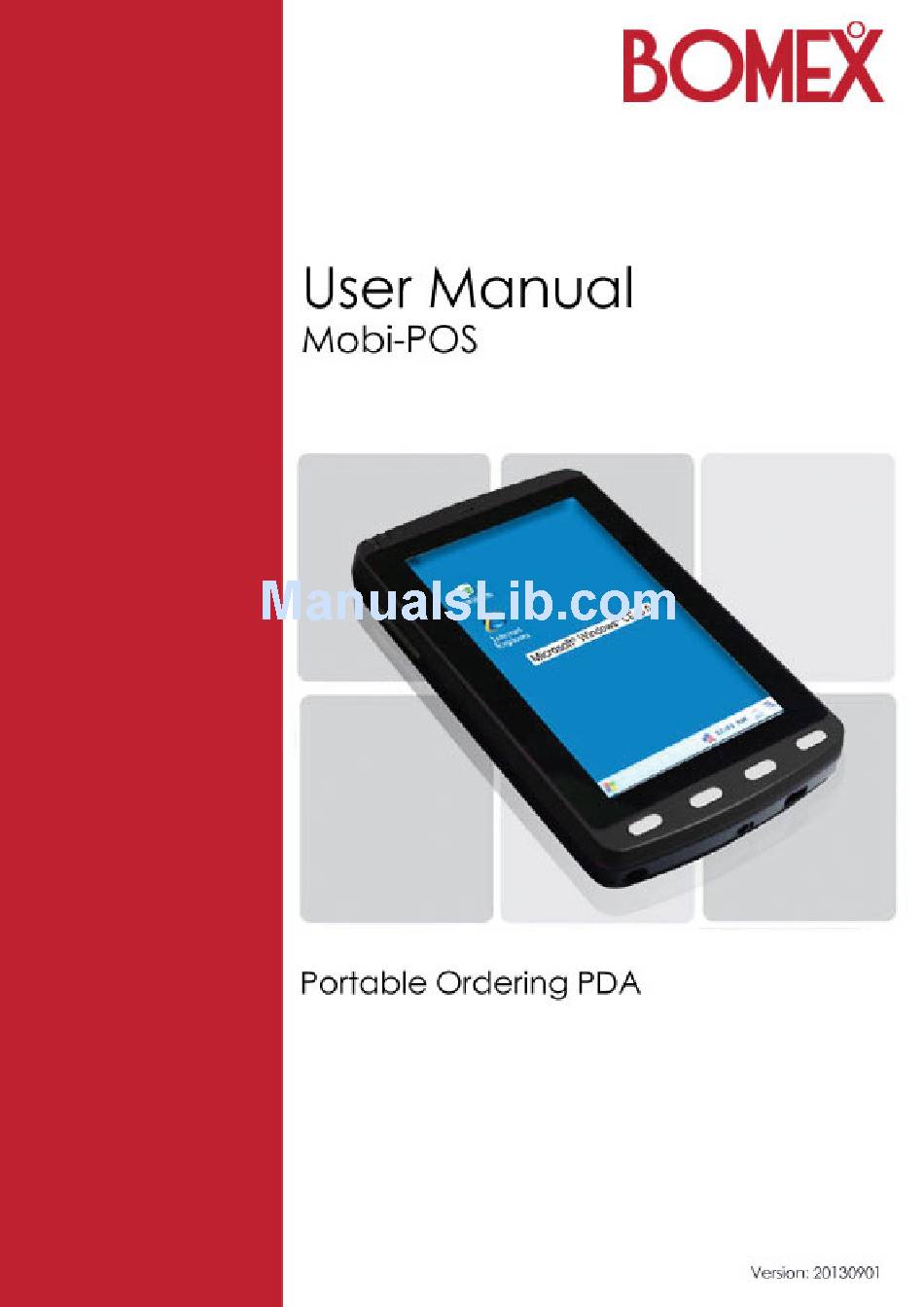

Bomex Mobi-POS User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mobi-POS and is the answer not in the manual?

Questions and answers

Summary of Contents for Bomex Mobi-POS

  • Page 2 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Table Of Contents

    Contents 1. Overview Package Content ----------------------------------------------------------------------------- Quick Tour ----------------------------------------------------------------------------- LED Status ----------------------------------------------------------------------------- 2. Product Installation Battery & Charging ----------------------------------------------------------------------------- Micro SD Card Slot ----------------------------------------------------------------------------- Power On / Off ----------------------------------------------------------------------------- Sleep Mode ----------------------------------------------------------------------------- Soft Reset ----------------------------------------------------------------------------- Hard Reset 11- 12 ----------------------------------------------------------------------------- 3.
  • Page 4 Contents 8. Administrator & User Mode Introduction ----------------------------------------------------------------------------- Change Administrator’s Passoword ----------------------------------------------------------------------------- Switch to User Mode 37 -38 ----------------------------------------------------------------------------- Switch to Administrator Mode 39 - 40 ----------------------------------------------------------------------------- Customize User Mode 40 - 41 ----------------------------------------------------------------------------- Copyright © Boyen Technology Co. Ltd.

  • Page 5: Overview

    Overview Package Content Before starting, check that all the following items have been included with your ordering terminal. Contact your dealer if anything is missing. Battery Pack Adapter Main Unit (2100 mhA) (5V) USB Cable Holster (Transmission cable) Optional Accessories Battery Charger Battery Pack Copyright...

  • Page 6: Quick Tour

    Overview Quick Tour Part Names Descriptions Front Power Indicator LED to indicate if power is on Wireless Indicator LED to indicate if WiFi is connected Speaker Built-in speaker (1W) Volume Control Volume up and down (These keys are programmable.) 4 direction sensor Resistive touch screen panel Programmable Keys F1~F4 keys...

  • Page 7: Led Status

    Overview LED Status Category LED Status Descriptions Power Green (Solid) PDA is on working mode or screen off mode after the device is not Indicator used for 1 minute. Orange (Solid) Screen off mode after the device is not used for 3 minutes. Orange (Flash) Sleep Mode (WiFi is still connected) Red (Solid)

  • Page 8: Product Installation

    Product Installation Battery & Charging At the time of purchase, the battery is not installed into the main unit. Insert the battery provided with this unit before use. Inserting the battery: 1. Slide the battery cover from top to 2. Place the battery to the compartment from bottom bottom to top.

  • Page 9: Micro Sd Card Slot

    Product Installation Micro SD Card Slot Inserting the SD card: 1. Slide the battery cover from top to bottom 2. Remove the Stylus and insert the SD card. Power On/Off Power On:  To power on the main unit, press the power button for 2 seconds. The green LED light will be on if the device is power on.

  • Page 10: Sleep Mode

    Product Installation Sleep Mode The device can be turned to sleep mode for power savings. When the device is in sleep mode, the LCD backlight, panel and CPU are off. However, the WiFi is still connected. Sleep Mode On:  Press the power button gently.
  • Page 11 Product Installation  Click the “1,2,3,4 “buttons in sequence, then click the “Reset” button. You will see the screen turn into blue, green, red, and yellow progress lines.  On the calibration screen, click the central flash point and 5 other cursers. Then randomly click on the screen.
  • Page 12 Product Installation To perform Hard Reset if the screen is totally off for some reasons:  Remove the battery and place it back to the device.  Hold the F1,F2,F3 and volume down button, the press the power button. Caution: By performing a hard reset, the product will be resumed to default factory settings.

  • Page 13: Power Management

    Power Management Battery Status View Charging Status:  Click “My Device”  Click “Control Panel”  Click “Power” Battery Levels: Good – 100%~70% Low – 69% ~ 30% Very Low – 29% ~ 10% Battery Very Low: The battery level is below 10% and the device will be forced to shut down in 10 seconds.

  • Page 14: System Utilities

    System Utilities Device Information Device information such as device name, firmware version, firmware build date and time can be found by performing the following steps.  Click “My Device” → “Control Panel” → Device Info Copyright © Boyen Technology Co. Ltd.

  • Page 15: Device Software Upgrade

    System Utilities Device Software Upgrade  Click “My Device” → “Storage Card” → “Device Upgrade”  Click “1,2,3,4” buttons in sequence, then click the “Upgrade” button. You will see the screen turn into blue, green, red, and yellow progress lines. Clearing original data Loading new data Copyright...

  • Page 16: Vibration Motor Testing

    System Utilities  On the calibration screen, click the central flash point and 5 other cursers. Then randomly click on the screen. The software upgrade is complete. Vibration Motor Testing This program is to let users feel the different levels of vibration alerts so that they can choose the alerts that they prefer.
  • Page 17 System Utilities Testing Options: Vibration Levels: a. ON – Continuos b. OFF – Vibration off c. TEST 3X – Vibrates 3 times in a row Copyright © Boyen Technology Co. Ltd.

  • Page 18: Activesync

    ActiveSync ActiveSync is developed by Microsoft that allows mobile device to be synchronized with a desktop PC. It provides for the manual transfer of files to a mobile device, along with limited backup/restore functionality, and the ability to install and uninstall mobile device applications. PC running on Windows Vista and above will synchronize the mobile device through Windows Mobile Device Center.
  • Page 19 ActiveSync  Select “No, not this time” from the option buttons, then click “Next” to continue.  Select “Install from a list or specific location” from the option buttons, then click “Next” to continue. Copyright © Boyen Technology Co. Ltd.
  • Page 20 ActiveSync  Select “Search for the best driver in these locations”  Check “Include this location in the search:” check button, then browse the desktop where you have saved the folder “ActiveSync_ USB Driver”. Click “Next” after you have selected the driver location. Copyright ©...

  • Page 21: Setup Partnership

    ActiveSync  Click “Finish” after the installation is complete. Setup Partnership  Click on “Yes”. Copyright © Boyen Technology Co. Ltd.
  • Page 22 ActiveSync  Click “Next”  Click “Finish” after the setup is complete. Copyright © Boyen Technology Co. Ltd.

  • Page 23: Install Activesync 4.5

    ActiveSync Install “Active Sync4.5”  Run Active Sync4.5, Select “Next”  Select “I accept the terms in the license agreement” from the option buttons, then click “Next”. Copyright © Boyen Technology Co. Ltd.
  • Page 24 ActiveSync  Enter your information then click “Next” to continue.  Click “Next” to continue. Copyright © Boyen Technology Co. Ltd.
  • Page 25 ActiveSync  Click “Install” Copyright © Boyen Technology Co. Ltd.
  • Page 26 ActiveSync  Click “Finish” after the setup is complete. Copyright © Boyen Technology Co. Ltd.

  • Page 27: Wifi

    WiFi Configure Static IP  Select “Start”  “Settings”  “Network and Dial-up Connections”.  Select “UFMP1”  Select “Specify an IP address” Copyright © Boyen Technology Co. Ltd.
  • Page 28 WiFi  Click on the “keyboard” icon at the bottom of the screen to display the input keyboard.  Enter the IP address and Subnet Mask. Then click “OK”. Static IP setup is complete. Copyright © Boyen Technology Co. Ltd.

  • Page 29: Configure Ssid

    WiFi Configure SSID The PDA will not automatically connect to other wireless networks unless the users purposely set the device to search for others available SSID. Thus, the PDA is locked to the SSID that is configured by users in default settings.
  • Page 30 WiFi  Switch to “Wireless Information” tab.  All the available SSID will be shown on the list. Choose the SSID you would like to connect to. Copyright © Boyen Technology Co. Ltd.
  • Page 31 WiFi  The Wireless Properties window will be displayed. Enter the Network key, then click “OK” on the top right of the Wireless Properties window.  After all the settings are done correctly, you will see the status “Connected to….”. If you would like to lock this SSID, please click on “Advanced”, then make sure the checkbox “Automatically connect to non-preferred network”...
  • Page 32 WiFi  Click on the “IP Information” tab to view the the IP address and other TCP/IP information and make sure you have setup the correct IP address. Copyright © Boyen Technology Co. Ltd.

  • Page 33: Miscellaneous Configurations

    Miscellaneous Configurations Volume Adjustment There are two ways to adjust the volume of the device. 1. Method 1:  Adjust the volume key on the upper left hand side of the device. The volume level bar will appear on the screen during volume adjustments. Volume buttons a.

  • Page 34: Screen Rotation

    Miscellaneous Configurations Screen Rotation The screen will automatically rotate to the same direction as you rotate the PDA. You may turn off the screen rotation function by performing the following steps.  Click on the “System Toolbox” icon at the bottom of the screen. (PIC 1) ...

  • Page 35: Administrator & User Mode

    Administrator & User Mode Introduction Mobi-POS offers two operation modes, which are administrator mode and user mode. The user mode is to prevent users to modify the PDA settings like system settings, programs shortcuts, etc. On the other hand, the administrator mode gives administrators full access to all settings in control panels, as well as capability in configuring system settings, creating shortcuts to desktops, and installing/un-installing programs, firmware and driver to the PDA.

  • Page 36: Change Administrator's Passoword

    Administrator & User Mode Change Administrator’s Password  Click on “Windows” icon <PIC1>  Select “Programs” → “Utlity” → “AdminUtil” <PIC2>  On the “Admin/User mode Utility” screen, enter the original password (default password is 123456) and the new password then click “OK” <PIC3> <PIC3>...

  • Page 37: Switch To User Mode

    Administrator & User Mode Switch to User Mode Mobi-POS is pre-configured to run as Administrator mode. To change the default to user mode:  Click on “Windows” icon <PIC1>  Select “Programs” → “Utlity” → “AdminUtil” <PIC2> Copyright © Boyen Technology Co. Ltd.
  • Page 38 Administrator & User Mode  On the “Admin/User mode Utility” screen <PIC3>, click on the “Enable User Mode” Tab <PIC4>  Check on the “Set User Mode as default” checkbox. <PIC5>  Click “Reboot” <PIC5>  After the PDA reboot, you will see the PDA in user mode <PIC7> Copyright ©...

  • Page 39: Switch To Administrator Mode

    Administrator & User Mode Switch to Administrator Mode To set the PDA to Administrator Mode:  Press on the “Power button” until you see the color screen <PIC1, PIC3>  When you are on the color screen, press “F1” and “F4” buttons until you see the “Administrator Login”...

  • Page 40: Customize User Mode

    Administrator & User Mode REMAKRS: Please note that after you restart the Mobi-POS, you will be back to the User Mode. If you would like to set the default to Admin mode, please refer to the instructions on “Switch to User Mode”...
  • Page 41 Administrator & User Mode Copyright © Boyen Technology Co. Ltd.
