Summary of Contents for CarBlackBox QT IR12 Wolf Eyes
-

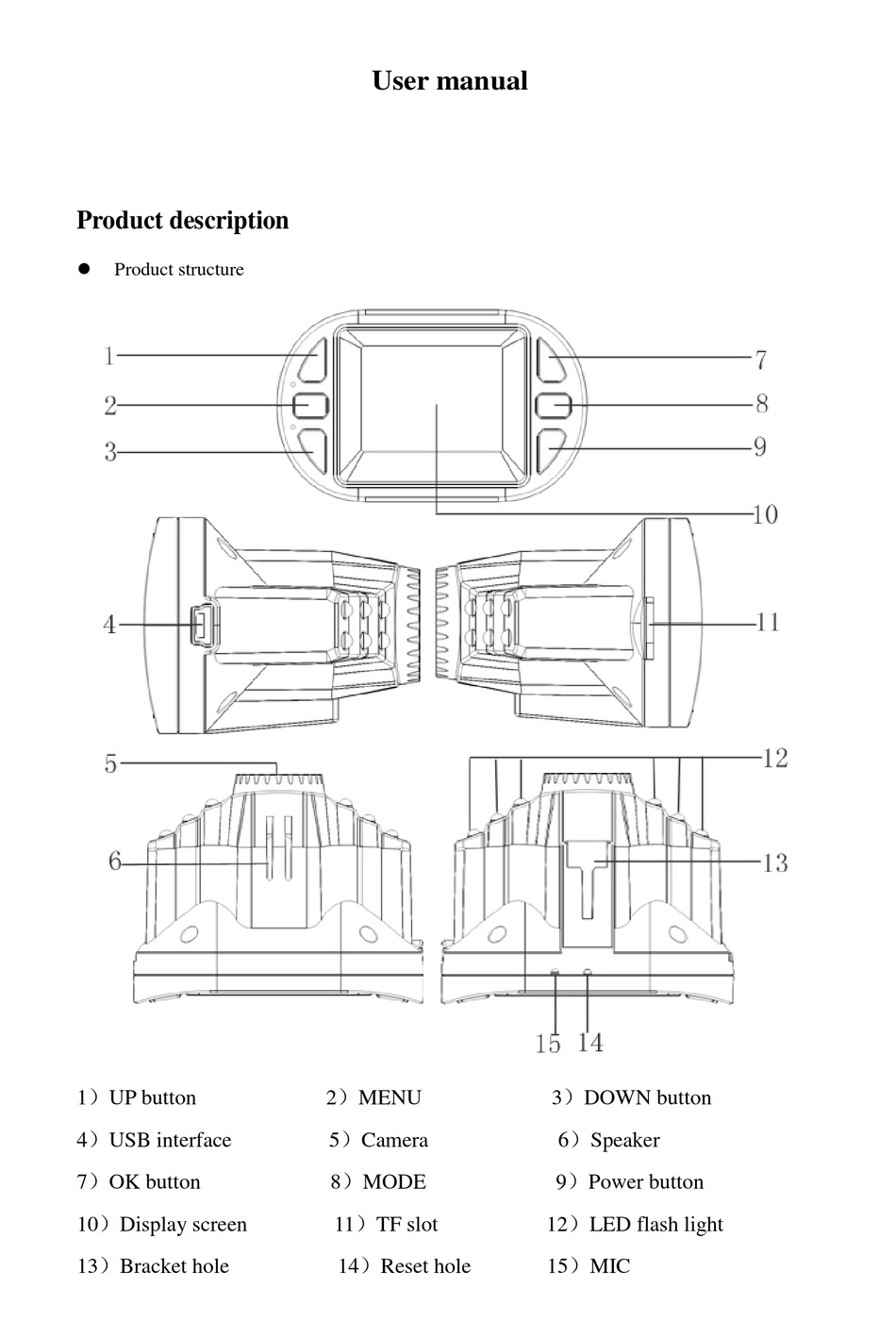

Page 1: Product Description
User manual Product description Product structure 1）UP button 2）MENU 3）DOWN button 4）USB interface 5）Camera 6）Speaker 7）OK button 8）MODE 9）Power button 10）Display screen 11）TF slot 12）LED flash light 13）Bracket hole 14）Reset hole 15）MIC... - Page 2 Button and interface function description： 1）UP button Short press on this button in standby and recording status can zoom out digital. Choose up function in MENU item 2）MENU button Short press on this button to show function setting menu. ...
- Page 3 10）Screen View window 11）TF slot Slot for memory card 12）LED flash light Night vision flash light which can be open by short press on “POWER” button. 13）Bracket hole Install vehicle bracket hole 14）Reset slot Use this to restart when crash ...
- Page 4 Notice: video instrument will automatically power off after waning of low battery REC mode Short press on “M” button shift to REC mode, REC icon is on the top left corner Short press on “OK” mode to start recording, flashing red dot on REC icon indicate the recording is on the way ...
- Page 5 Adjust figure through buttons, then press “OK” button to confirm modification. SOS short press "M" to enforce saving the current video when video recording USB mode Separate USB cable and computer, press “power on” button, car DVR will automatically show USB menu, two mode are available: 1：USB-Disk In this mode we can access video files and photo files...
- Page 6 Remark: when appear crash because of improper operation, we can remove battery or press “ reset” but t on t o r e start. Products specifications Features HD camera, HD video recording G-sensor Built-in (car accident case of emergency save, will not be deleted) LCD screen size 1.5LTPS...
-
Page 7: Trouble Shooting
Video format PAL/NTSC Current frequency 50HZ/60HZ 1：USB-Disk USB function 2：PC-Camera Power interface 5V 800mAh Battery Built-in 240mAh Trouble shooting: For problems in normal operating situation ,please try these methods below: Can’t take photo and recording Check the if the TF card has enough space or locked ...
