Summary of Contents for Corewise A370
- Page 1 2014 A370 User Manual USER MANUAL A370 Nanjing Corewise Smart Technology Inc. Support Hotline: 0086-13851413726, 13851629242 Skype: xiafan_max (software), cruise.xiao (hardware) E-mail: bi.chuanrong@corewise.cn http://www.corewise.cn...
-

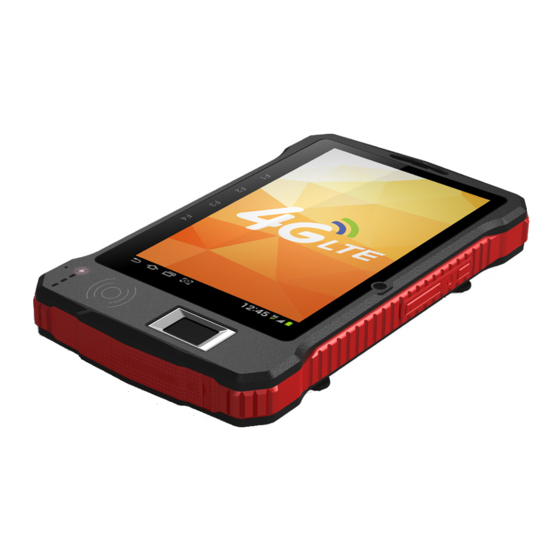

Page 2: Profile Picture
2014 A370 User Manual Profile Picture Indicator Light is used to show the device in a certain status, from left to right: (a) Charging Indicator: red in charging and green for charge saturation; (b) Power Indicator: blue for power-on status;... - Page 3 2014 A370 User Manual Dimensions 220 x 132 x 23(mm) (8.7" x 5.2" x 0.9") Weight 0.5Kg (1.1lbs) with battery GSM/GPRS/EDGE 850/900/1800/1900Mhz WCDMA 2100Mhz Qualcomm MSM 8225 Dual Core 1.2GHz Internal Memory 1GB RAM, 4GB ROM External Storage T-Flash/Micro SD card, up to 32 GB Operating System Google Android 4.0.4...
- Page 4 2014 A370 User Manual 2D Bar Codes Supported: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, Micro QR, QR Inverse, Aztec, Aztec Inverse, US Postnet, US Planet, US Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail,...
-
Page 5: Fingerprint Sensor
2014 A370 User Manual Structure Fingerprint Sensor TCS2SS TCS1ST Picture AuthenTec Inc. (On 27 July AuthenTec Inc. (On 27 July 2012, Vendor 2012, AuthenTec was acquired AuthenTec was acquired by Apple Inc. by Apple Inc. Size 10.4*14.4mm array (imaging 12.8*18.0mm array (imaging... -
Page 6: Rfid (Radio-Frequency Identification)
2014 A370 User Manual Standard IM 4.4V to 5.5V 4.4V to 5.5V Supply EIM Modes 4.5V to 4.6V 4.5V to 4.6V Supply Operating -30 ºC to +85 ºC -30 ºC to +85 ºC Temperature Storage -40 ºC to +85 ºC -40 ºC to +85 ºC... -
Page 7: Barcode Scanner
2014 A370 User Manual 902-928 MHz (North America) Range 10cm-1m 1-10m Standards ISO/IEC 14443 Type A, ISO/IEC ISO18000-6C 14443 Type B, ISO/IEC 15693 Vendor Corewise Impinj R2000 Demo Barcode Scanner Option 1 Option 2 Picture Module PL3307 SE4500 Vendor Chinese Manufacturer... - Page 8 2014 A370 User Manual Rear View (exterior) Demo Demos Step 1: Power on the Device Slightly press the “power on” button for 3 seconds to power on the device Step 2: Unlock the Screen http://www.corewise.cn...
- Page 9 2014 A370 User Manual Slightly press the lock icon and move to screen right edge to unlock the screen Step 3: Enter into Main Menu/System Settings Click this icon to enter into main menu Or click icon on the left below of the screen...
- Page 10 2014 A370 User Manual 系统设置“ Select “ enter into system settings Step 4: System Language Changing Use your finger tip to scroll down this screen Select “语言和输入法” to change language Select “语言和输入法” to change languages Select “语言” to change languages Select “语言”...
- Page 11 2014 A370 User Manual Use your finger tip to scroll down this screen Select “English (United Kingdom)” for instance Select “English (United Kingdom” for instance Step 5: Fingerprint Function Demo Click this icon to enter into main menu Select “Authentication” Icon to enter into Demo Select “Authentication”...
- Page 12 2014 A370 User Manual Click dropdown option to define baud rate, normally “460800” for int’l market by default In case “460800” does not work fine, try “115200” for a trial Then click “Fingerprint” to define fingerprint settings Click “Fingerprint” to...
- Page 13 2014 A370 User Manual Choose “small fingerprint” or “big fingerprint” depends on sensor area. Please refer to Fingerprint Sensor section for differences Click “Registering fingerprints” to register a fingerprint image/impression Gently press on the sensor, finger tips better to touch...
- Page 14 2014 A370 User Manual IO UART Port Main board: LCN UAF04-10376-1500 PIN SN: Mini USB Pin SN Pin Name Remarks VCHG/VUSB System Power UART1_RXD A370 UART Receiving UART1_TXD A370 UART Transmitting Grounding To use UART1, you need to send “D&C00040107” via UART0 to enable UART1 to work.
- Page 15 2014 A370 User Manual Fingerprint Registration Workflow PSGetImag PSGetImage PSUpImag PSUpImag PSGenCha PSGenCha PSRegModel Notice:paramete Notice:parameter PSUpChar r assignment assignment Charbuffer2 charbuffer1 Note: Process 1:PSGetImage->PSUpImage->PSGenChar1 Process 2：PSGetImage->PSUpImage->PSGenChar2 http://www.corewise.cn...
- Page 16 2014 A370 User Manual Fingerprint Verification Workflow PSGetImage PSDownChar Notice:para PSUpImage meter assignment charbuffer1 PSGenChar PSMatch Fingerprint API: detailed notes see android_serialport_api.FingerprintAPI Note: Fingerprint API class fingerprint method of operation are blocked Process 1： PSGetImage->PSUpImage->PSGenChar Process 2： PSDownChar Download the template data from the fingerprint enrollment functional flow chart in the PSUpChar method returns data.
- Page 17 Free SDK for Further Development Nanjing Corewise Smart Technology Inc. is basically a hardware manufacturer, producing various smart terminals. There handheld devices are semi-finished products, which are technically ready for miscellaneous applications in Windows Mobile OS or Google Android OS, however request further development on basis of our hardware.
-
Page 18: Packaging And Transportation
2014 A370 User Manual Best support will be provided by Corewise to help our buyers to code & program software on basis of our products. We offer free SDK to the purchasers for their purpose; programmers can take whatever they want from the software kit for secondary development. - Page 19 2014 A370 User Manual http://www.corewise.cn...
