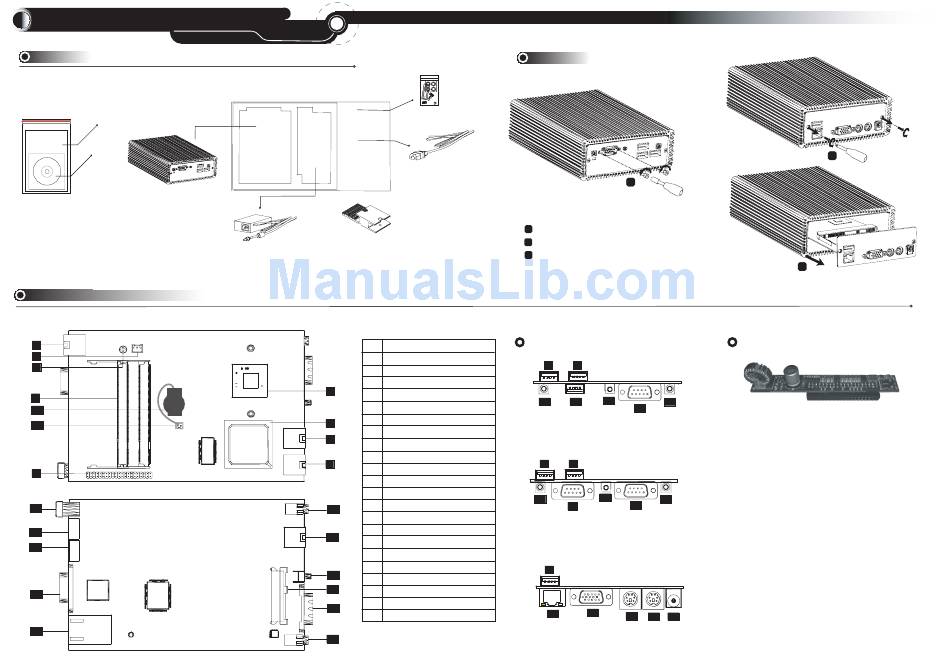

Kingyoung M1525BF Installation Manual

INSTALLATION GUIDE
Item Checklist
Installation Guide
Installation
Guide
Driver CD
System Unit
Mainboard and Optional Daughter Boards' Layout
A6
A7
A8
A9
A10
A11
A5
A18
A19
A20
A21
A22
M1525BF
Accessories Pack
CPU Heat Sink
premounted on the CPU
Power Adapter
A1 A1 ATOM D525 CPU ATOM D525 CPU
A2 A2 Intel ICH8M chip Intel ICH8M chip
A3 A3 Front USB port Front USB port
A4 A4 Front USB port Front USB port
A1
A5 A5 Wide range power adapter slot Wide range power adapter slot
A6 A6 Rear USB port Rear USB port
A7 A7 CPU cooling fan connector CPU cooling fan connector
A2
A8 A8 HDD Screw HDD Screw
A3
A9 A9 DDR3 SODIMM slots DDR3 SODIMM slots
A10 A10 CMOS battery CMOS battery
A4
A11 A11 Battery connector Battery connector
A12 A12 Line-out phone jack Line-out phone jack
A13 A13 Front USB port Front USB port
A14 A14 Power button Power button
A12
A15 A15 SATA HDD/SDD connector SATA HDD/SDD connector
A16 A16 Primary COM port Primary COM port
A13
A17 A17 Mic-in phone jack Mic-in phone jack
A18 A18 DC 10 ~ 26V power input DC 10 ~ 26V power input
A19 A19 PS/2 mouse port PS/2 mouse port
A14
A20 A20 PS/2 keyboard port PS/2 keyboard port
A15
A21 A21 VGA port VGA port
A22 A22 GigaLAN port GigaLAN port
A16
B1 B1 Optional secondary COM port Optional secondary COM port
A17
Barebone Unit Unpacking
Power Cord
1 To loose two hex head cap screws at the front panel.
2
To loose two chassis screws on the rear panel from the case.
3 Pull out the mainboard from the case.
S525BF front panel IO port alignment
A4 A3
A10 A11
S525BSF front panel dual COM ports alignment
A4 A3
A12
A10
B1
S525BF/S525BSF rear panel IO port alignment
A6
A22 A21
1 1
Wide range power adapter
A12
A15
A14
A15
A14
A19 A16
A18
Specifications are for reference only and subject to change without notice.
1 2
1 3
