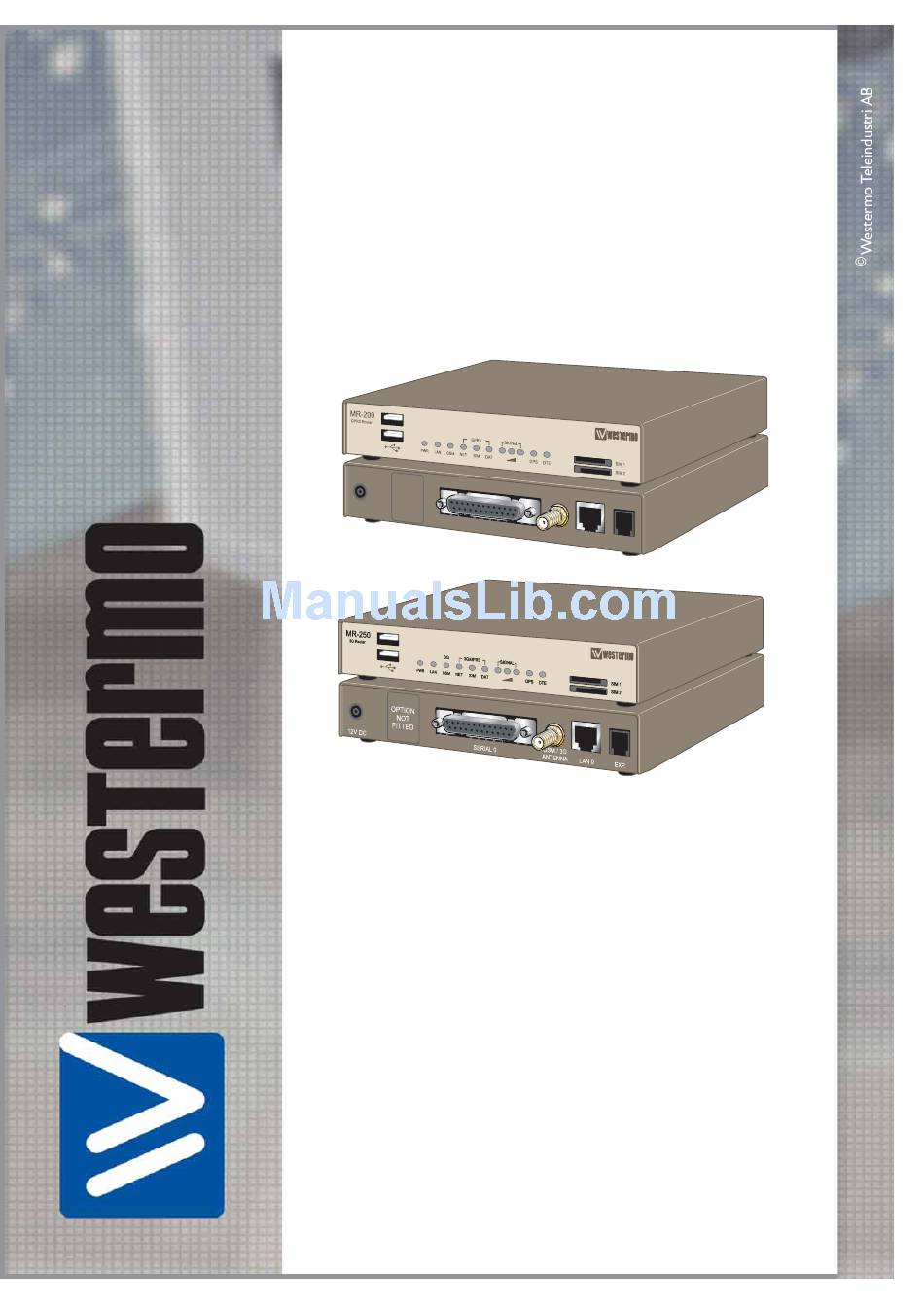

- Page 1 User Guide 6622-2202 MR-200 MR-250 O PT IO N NO T FI TT ED 12 V DC SE RI AL 0 GS M / 3G AN TE NN A LA N 0 EX P. MR-200 GPRS Router MR-250 GPRS/Edge/3G/HSDPA Router...
-
Page 2: Legal Information
Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 3: Before Installation
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical part may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support. - Page 4 General Remember to follow any special regulations and warnings in force in any area and never use the unit whenever it’s forbidden to use it. Do not use the unit when it may cause interference or danger. A wireless device exposed to interference above specified limits could result in deteriorated performance.
-
Page 5: Maintenance
RF energy The MR-200 is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. Most modern electronic equipment is shielded from RF signals. However, certain elec- tronic equipment may not be shielded against the RF signals from the wireless unit. -
Page 6: Agency Approvals And Standards Compliance
Agency approvals and standards compliance Type Approval / Compliance Safety EN 60950, IT equipment R&TTE EN 301 489-1 Article 3.1b Article 3.2 EN 301 511 6615-2202... -
Page 7: Declaration Of Conformity
Declaration of Conformity Westermo Teleindustri AB Declaration of conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Model Art no GPRS/Edge/3G/HSDPA Router MR-200/ 3622-0101 / MR-250 3622-0110 is in conformity with the following EC directive(s). -
Page 8: Type Tests And Environmental Conditions
Type tests and environmental conditions Environmental Temperature Operating –20 to +50°C Packaging Enclosure Pressed steel Dimension W x H x D 160 x 120 x 32 mm Weight 0.53 kg Mounting Horizontal on 35 mm DIN-rail or flat on level surface 6615-2202... - Page 9 An optional license for 50 VPN terminations is also available. The MR-200 can also be used for remote sites access, allowing the user to browse WEB pages, monitor / edit PLCs or access any device connected to the LAN. The MR-200 will allow devices connected on the LAN side to send emails or connect to FTP servers for transferring files.
-
Page 10: Interface Specifications
Interface specifications Power Rated voltage 12 VDC MR-200 11 – 28 VDC MR-250 Rated current 250 mA @ 12 VDC MR-200 450 mA @ 12 VDC MR-250 Rated frequency RS-232 Electrical specification RS-232 V.24 Data rate 300 bit/s – 115.2 kbit/s... - Page 11 Connections SIM Card Sockets The two sockets at the right side of the front panel are for the GSM SIM card(s) that you will receive from your service providers. Details of how to insert these correctly are given in section 2 below. LED Indicators (for details see next page)
-
Page 12: Led Indicators
LED Indicators Status Description In service Out of service Network connection on LAN port No connection on LAN port Flash Transmit or recive data on LAN port This indicator is connected directly to the GSM module within the router and operates as described in the GSM Status Indicator Functions table below. -
Page 13: Installation
Installation Mounting / Removal The router should be positioned on a smooth, level surface making sure that there is adequate ventilation. Do not expose the router to extremes of heat or cold, strong magnetic fields or liquids. It is important to remember that these products are wireless devices just like a mobile phone, so they will only operate reliably over the GSM network if there is a good signal. - Page 14 Step 4 – Connecting the serial cable For connection to a serial terminal device, connect the 25-way D plug on the serial cable provided to the SERIAL connector on the rear of the unit. Connect the other end of the cable (9-way D socket) to the terminal.
-
Page 15: Getting Started
Getting started IP Address The default IP address of the MR-2xx when delivered is 192.168.0.99. IP address configuration The IP address is configurable by the Web tool and/or by using a terminal program. Below is an description of how to configure the IP address by using a terminal program. 1. -
Page 16: Network Status
Configuration by Web Tool The MR-2xx includes an easy-to-use Web configuration tool. The Web tool is very intuitive and includes useful help information for the configurable parameters. Connect and login to the MR-2xx on the default IP address and with default username and password combination (or your customized if configured) using a standard Web browser. - Page 17 Convenient configuration Basic IP Address • Static IP To change the default IP-address 192.168.0.99 and subnet mask to something else. Basic IP Address • DHCP Minimum assigned IP address: eg 192.168.0.2 IP address range: eg 20 (highest address will then be 192.168.0.22) DNS server address: Address of router (192.168.0.99 default setting) Gateway address: Address of router (192.168.0.99 default setting)
- Page 20 Phone +65 6743 9801 • Fax +65 6745 0670 E-Mail: sales@westermo.co.uk E-Mail: sales@westermo.com.sg Westermo Data Communications GmbH Goethestraße 67, 68753 Waghäusel Tel.: +49(0)7254-95400-0 • Fax.:+49(0)7254-95400-9 E-Mail: info@westermo.de Westermo Teleindustri AB have distributors in several countries, contact us for further information.
