Genex Audio Inc
GX9000 User Manual

Advertisement

Table of Contents
loading

Summary of Contents for Genex GX9000

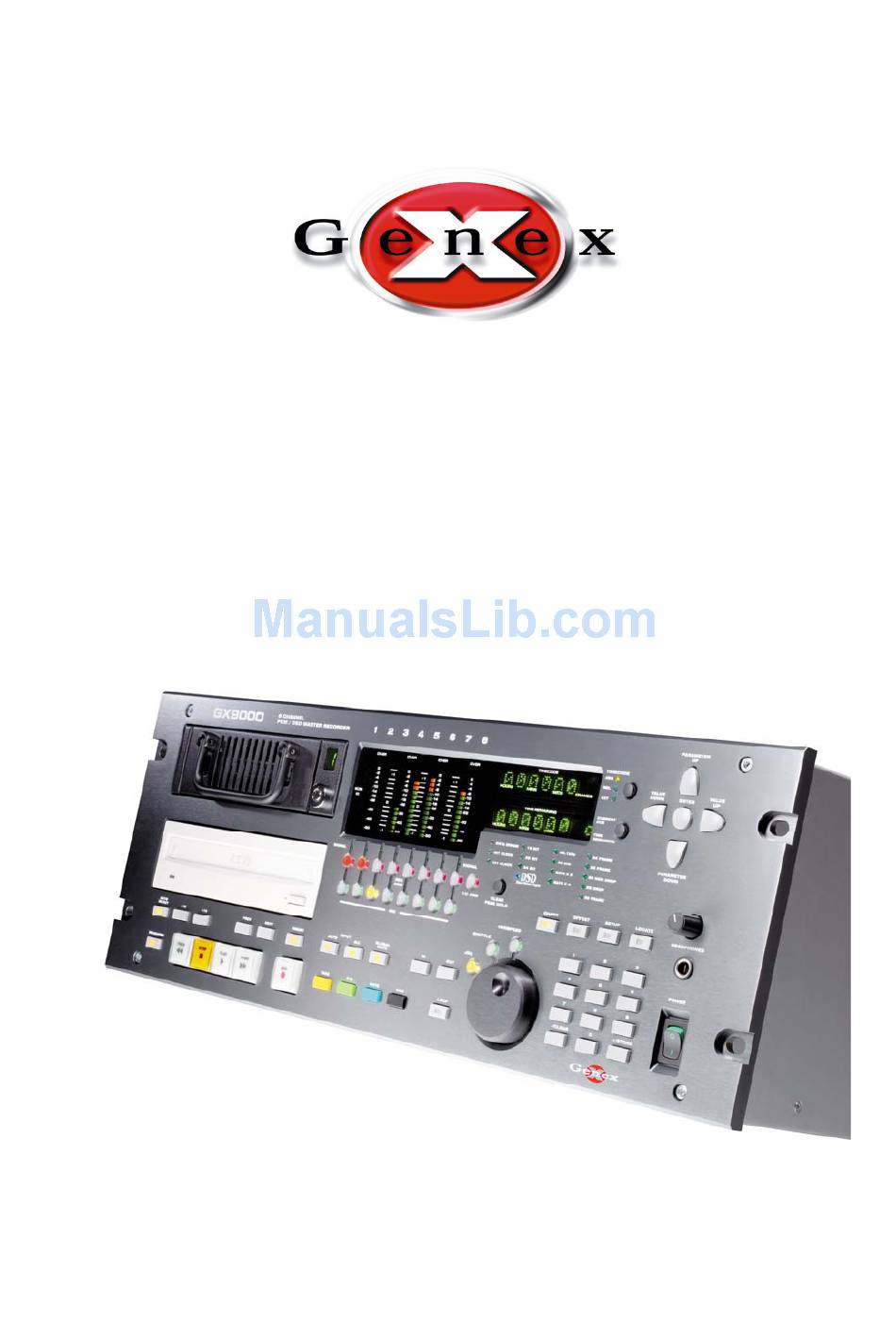

  • Page 1 Genex Audio Inc GX9000 User Manual...
  • Page 2: Table Of Contents

    Timecode Display ..........................9 Absolute vs. Relative Timecode in FAT32 Disk Format..............10 Setting the Relative Reference Point ....................10 Absolute vs. Relative Timecode in Genex Disk Format ..............10 Time Remaining / Cue Point Display....................11 Menu Operation ............................ 12 Displaying and Navigating the Menu....................
  • Page 3 Presetting Cue Point Counters......................56 Metering and the Display ........................59 System ..............................61 Upgrading the GX9000 with New Software ..................63 Rear Panel Connections ........................65 RS422 Connector Pinout........................65 I/O Card 25 Way D' Type Pinouts ..................... 66...
  • Page 4: Transport Controls

    GX9000 User Manual Rev 2.1 Transport Controls Transport Controls Play Press the Play button to start forward play at x1 speed. The upper alphanumeric display shows the current time-code. Stop Press the Stop button to cancel the current transport mode.
  • Page 5: Jog

    Varispeed The Varispeed range of the GX9000 is +/-24%. The rate can be adjusted in increments of 0.06%. Press the Varispeed button to enable Varispeed mode. The Varispeed LED will light to confirm the mode.
  • Page 6: Front Panel Displays

    GX9000 User Manual Rev 2.1 Front Panel Displays Front Panel Displays The two alphanumeric displays provide information about the configuration of the unit as well as timecode information relating to the currently selected project and media. Timecode Display In basic mode the upper alpha-numeric display shows timecode information. The source and format of the timecode can be adjusted.
  • Page 7: Absolute Vs. Relative Timecode In Fat32 Disk Format

    00:00:00:00 corresponding to the first cluster on the disk. The ABS timecode is a measure of how far through the disk you are. The Genex format makes a provision for a timecode a measure of how far through the disk you are. The Genex format makes a provision for a timecode track embedded as a sub-code in the recorded audio.
  • Page 8: Time Remaining / Cue Point Display

    Cue points are records of events that happened during a recording. An event could be music starting, a wrong note, the start of a new page, a false start, etc. The GX9000 allows you to log each type of event as it happens, as a cue point, so that you can quickly and easily find it again. See chapter 12 for a more detailed description of The Take Logging System.
  • Page 9: Menu Operation

    Rev 2.1 Menu Operation Menu Operation Many of the features of the GX9000 are configured using the menu system accessible from the front panel. While the menu structure is being accessed the Transport, Chase and Monitoring buttons are available as normal.
  • Page 10: Changing The Value Of A Menu Option

    GX9000 User Manual Rev 2.1 Menu Operation Changing the Value of a Menu Option To select each of the available values for a chosen menu heading use the Value Up and Value Down[ ] buttons. For some menu headings you can enter values using the numeric keypad.
  • Page 11: Working With Media

    The GX9000 is supplied with one Front Panel blanking plate as standard, fitted to the lower drive bay. If only external drives are to be used with the GX9000 a second blanking plate must be fitted to ensure adequate cooling of the unit. If only one SCSI device is to be fitted, mount the device in the upper drive bay.
  • Page 12 GX9000 User Manual Rev 2.1 Working with Media These pictures show how to connect the SCSI ID cable supplied with the Kingston caddy to a Hard Drive so that the SCSI ID information is passed all of the way to the drive.
  • Page 13: Magneto-Optical And Dvd Drives

    Compatible MO Drives Sony SMO-F551/S: 5.2GB MO-drive 2. Sony SMO-F561/S: 9.1GB MO-drive 3. Panasonic DVD-RAM drives Note that both of these drives require a special “audio” version of firmware loaded. Contact Genex for more details. Installing a Drive Inserting a Disk...
  • Page 14: Configuring Storage Devices

    More complex backup and file handling is accessible from the GXR Remote Control Software. The internal SCSI bus of the GX9000 can be connected to the two front panel drive bays and is also accessible via a 68 way connector at the rear of the unit.
  • Page 15 - - 2 - - - - I If the GX9000 is in the Current record mode the original ADL on the Primary If the GX9000 is in the Current record mode the original ADL on the Primary Drive will not be updated. Only the Expansion Drive will contain the full ADL.
  • Page 16 GX9000’s internal data buffers become dangerously full and a data error can result (the red LED on the front panel latches on). The GX9000 has a result (the red LED on the front panel latches on). The GX9000 has a technique to insure against this problem called Insurance Drive Mode.
  • Page 17 • • Press the Enter button to log the drive as a Mirror Drive. The GX9000 Press the Enter button to log the drive as a Mirror Drive. The GX9000 first asks if you wish to Sync the Mirror Drive with the Primary Drive. This first asks if you wish to Sync the Mirror Drive with the Primary Drive.
  • Page 18: Formatting Media

    Press the Value Left and Right buttons to select a Disk Format. FAT32 and Genex are the two choices. Currently it is not possible to write the and Genex are the two choices. Currently it is not possible to write the...
  • Page 19: Projects And File Handling (Fat32 Format Only)

    Projects and File Handling (FAT32 Format Only) The GX9000 uses the term Project to describe a file that contains information that can be used to configure the unit and to control playback. Most commonly the file will be an AES31 style Audio Decision List (ADL).
  • Page 20: How Are Project Files Named

    Rev 2.1 Projects and File Handling How are Project Files Named? Files generated during record are automatically named by the GX9000. The naming convention will depend on the selected file format and is described in the table below; File Format...
  • Page 21: Navigating Through Folders

    Large File Handling A high resolution recorder like the GX9000 can easily generate very large files. This presents a problem because the largest file size that can be generated on a FAT32 disk is 4GBytes. As an Genex Audio Inc...
  • Page 22: Delete Project

    If, during recording, a DSD IFF file exceeds 4GBytes in size a new file is automatically created to store the extra information. The first file will have the extension DF0 (the 0 tells the GX9000 to look for more audio files to append on playback). The new file will have the same root but will be given the extension DF1.
  • Page 23: Setting The Date And Time

    Projects and File Handling Setting the Date and Time The GX9000 has a real time clock chip which is used to time stamp all recorded project and audio files. The GX9000 can also be programmed to generate Time of Day timecode using the clock. It is therefore important to...
  • Page 24 GX9000 User Manual Rev 2.1 Projects and File Handling as can be seen from the last two time columns which represent the Destination In and Destination Out points on the 24 hour timeline. <ADL> <VERSION> (ADL_ID) (ADL_UID) (VER_ADL_VERSION) 01.01.00.00.03 (VER_CREATOR) "Genex Audio ADL"...
  • Page 25 GX9000 User Manual Rev 2.1 Projects and File Handling (Index) 0045 (F) "URL:file://localhost/Disk Dri/TC990049.WAV" _ _ _ _ N (Index) 0046 (F) "URL:file://localhost/Disk Dri/TD92171C.WAV" _ _ _ _ N (Index) 0047 (F) "URL:file://localhost/Disk Dri/TE81028D.WAV" _ _ _ _ N (Index) 0048 (F) "URL:file://localhost/Disk Dri/TF281782.WAV"...
  • Page 26 GX9000 User Manual Rev 2.1 Projects and File Handling The following example is for an AES31DSD ADL. It shows a 30 channel DSD recording. There are only a couple of subtle differences to the AES31 style ADL. The Codec now lists DFF files instead of BWF files, and the sample rate is shown as 117600 which is the number of 24 bit chunks per channel per second in DSD mode.
  • Page 27 GX9000 User Manual Rev 2.1 Projects and File Handling (Entry) 0008 (Cut) I 0008 08 08 00|00|00|00|0000 00|00|00|00|0387 01|21|06|16|0955 _ (Entry) 0009 (Cut) I 0009 09 09 00|00|00|00|0000 00|00|00|00|0387 01|21|06|17|1292 _ (Entry) 0010 (Cut) I 0010 10 10 00|00|00|00|0000 00|00|00|00|0387 01|21|06|17|1292 _...
  • Page 28: Audio

    GX9000 User Manual Rev 2.1 Audio Audio Audio Formats This section describes how to select the audio input source and audio format. The available selections will depend on which of the three models of I/O card fitted. • Press the Setup button.
  • Page 29 GX9000 User Manual Rev 2.1 Audio DSD I/O Card DSD I/O Card Audio .Inp Src Selects the 25 way D ‘Type on the rear of the I/O card and DT-AES3id expects to see AES3id formatted data. The Analog audio data is converted into PCM for recording to disk.
  • Page 30 GX9000 User Manual Rev 2.1 Audio Analog I/O Card Analog I/O Card Audio .Inp Src Selects the 25 way D ‘Type on the rear of the I/O card and Anal-PCM expects to see balanced analog signals. Selects the 25 way D ‘Type on the rear of the I/O card and Anal-DSD expects to see balanced analog signals.
  • Page 31: Digital Clocks

    GX9000 User manual Rev 2.1 Clocks Digital Clocks Clock Source When transferring digital data to and from an external device, it is essential to synchronize the source and destination devices. The choices are different for PCM and DSD modes. PCM and DSD •...
  • Page 32: Genex Format

    Clock (Sample) Rate (PCM Only) Clock (Sample) Rate (PCM Only) In PCM mode it’s also necessary to match the clock rate of the GX9000 to In PCM mode it’s also necessary to match the clock rate of the GX9000 to the incoming clock rate.
  • Page 33: Sample Rate Conversion

    GX9000 User manual Rev 2.1 Clocks s Clock (Sample Rate) Modifiers Clock (Sample Rate) Modifiers These settings allow you to adjust the selected sample rate by a fixed ratio. These settings allow you to adjust the selected sample rate by a fixed ratio.
  • Page 34 GX9000 User manual Rev 2.1 Clocks s Playback Sample Rate Playback Sample Rate To adjust the playback clock rate of the unit, To adjust the playback clock rate of the unit, • • Press the Setup Button Press the Setup Button •...
  • Page 35 GX9000 User manual Rev 2.1 Clocks Word Clock Output The word clock output rate at the rear of the GX9000 follows the output sample-rate of the unit, set from the . SmplRte sub-menu. Genex Audio Inc Page 38...
  • Page 36: Playback

    GX9048 User manual Rev 2.1 Playback Playback Audio Playback Genex File Format • Press the Play button. AES31 Audio File First, it is necessary to open an ADL project if one isn’t open already • Press the Setup button. •...
  • Page 37: Loop Playback

    Out Points. If the Out Point time code is less than the In Point time code, playback will continue until the end of the disk for a Genex formatted disk or until 24:00:00:00 is reached for a FAT32 disk •...
  • Page 38: Storing A Timecode In A Locate Memory

    Press the -10 Secs button to subtract ten seconds from the current position. If the recorder is in play when the button is pressed, playback continues at the new timecode, otherwise the recorder is parked at the new timecode. Genex Audio Inc Page 41...
  • Page 39 The diagram below shows the effect of the cross-fade when switch between off disk and input monitoring. off disk and input monitoring. LINEAR CROSS FADE PLAYBACK INPUT AUDIO AUDIO LENGTH CROSS OVER POINT IN ms Genex Audio Inc Genex Audio Inc Page 42 Page 42...
  • Page 40: Using Headphones

    GX9000 User manual Rev 2.1 Headphones and the Mixer Using Headphones Setting up the Internal Monitor Mixer An 8 into 2 digital mixer feeds the headphone output and is sent as a digital AES3 formatted data stream to the rear of the unit. At present the internal mixer is not available at PCM sample-rates of 176.4kHz and 192kHz.
  • Page 41 GX9000 User manual Rev 2.1 Headphones hones and the Mixer and the Mixer Removing a Track from the Mix Bus Removing a Track from the Mix Bus • • Press the Mix button so that the Led goes out. Press the Mix button so that the Led goes out.
  • Page 42: Audio Recording

    Recording Audio Recording Making Initial Recordings These simple instructions guide you through a process of preparing the GX9000 to record audio. The instructions assume a disk is connected to the recorder and is spun up and ready. Audio Source •...
  • Page 43: Record Modes

    Delete File command or the Format drive command. Pressing the Insert button while the LED is off will put the GX9000 into Insert mode. Pressing the Insert button while the LED is on puts the GX9000 into Assemble mode.
  • Page 44 The audio files will still exist on disk but the Audio Decision List (ADL) will instruct the GX9000 to play the new files instead. Insert Off...
  • Page 45 GX9000 User manual Rev 2.1 Recording audio files. This mode is the equivalent to manually closing all ADL Project Files before dropping into Record. • Press the Setup button. • Use the Rotary Wheel to select the Projects menu. •...
  • Page 46: Punch In Recording

    Rehearsal Rehearsal If the Rehearse button is pressed while the unit is stopped, the GX9000 If the Rehearse button is pressed while the unit is stopped, the GX9000 plays from the In Point minus the Pre Roll timecode, and plays to the Out...
  • Page 47: Auto Punch

    GX9000 User manual Rev 2.1 Recording ding Point plus the Post roll timecode. Between the In and Out points the recorder Point plus the Post roll timecode. Between the In and Out points the recorder behaves as if it were in Record but no data is written to disk.
  • Page 48: Timecode

    Rev 2.1 Timecode Timecode The GX9000 supports all standard timecode rates, 24, 25, 29.97drop, 29.97non-drop and 30 frame. For AES31 formats the timecode rate is stored as part of the ADL (Audio Decision List) and is recalled when opening the file.
  • Page 49 Input Timecode Frequency Input Timecode Frequency The GX9000 can detect the rate of the incoming timecode by measuring the The GX9000 can detect the rate of the incoming timecode by measuring the distance between frame boundaries. You can use this measurement to check distance between frame boundaries.
  • Page 50 Flywheel Flywheel The GX9000 will “Flywheel” if the input timecode that it is chasing drops out. The GX9000 will “Flywheel” if the input timecode that it is chasing drops out. Timecode This means that playback will continue at the current rate until the timecode This means that playback will continue at the current rate until the timecode reappears.
  • Page 51 Chase Record Modes Chase Record Modes The GX9000 can operate in two different Chase modes to suit different The GX9000 can operate in two different Chase modes to suit different applications. The modes are differentiated by how the GX9048 behaves applications.
  • Page 52: The Take Logging System

    Cue points are records of events that happened during a recording. An event could be music starting, a wrong note, a false start, etc. The GX9000 allows you to log each type of event as it happens, as a cue point, so that you can quickly and easily find it again.
  • Page 53: Entering Cue Points

    Press the Enter button to make the change. Auto Cue Auto Cue The GX9000 can be programmed to automatically add cue points while The GX9000 can be programmed to automatically add cue points while Take Log recording. Two modes are available.
  • Page 54 Points Adjusting the Cue Point Timecode Using the Jog Wheel You can audibly trim cue points using the Jog mode of the GX9000. This is useful when it is necessary to accurately trim a point to a particular attack or phrase in the audio.
  • Page 55 GX9000 User manual Rev 2.1 The Take Logging System Reference Cue Menu Heading Reference Cue Menu Heading The Reference Cue selects the Cue Point type used by the Current Cue The Reference Cue selects the Cue Point type used by the Current Cue Take Log display and the Previous and Next buttons.
  • Page 56: Metering And The Display

    GX9000 User manual Rev 2.1 Metering and the Display Metering and the Display The configuration of the meters can be customized for personal preference. The timecode display also has some level of customization. All of these Setup | Display parameter are accessible through the menu.
  • Page 57 GX9000 User manual Rev 2.1 Metering and the Display ing and the Display PPM Scale PPM Scale You can expand the PPM scale to cover just 2dB from the top to the bottom, You can expand the PPM scale to cover just 2dB from the top to the bottom, Display for the purposes of calibration of internal and external ADC’s.
  • Page 58: System

    GX9000 User manual Rev 2.1 System System Serial Number Each GX9000 has a unique serial number. The serial number is accessible for reference purposes in the System menu. System Software / FPGA .Serial # nnnnn Revision You can use this setting to identify what revisions of software System are currently installed in your GX9000.
  • Page 59 GX9000 User manual Rev 2.1 System m Sine Wave Generation Sine Wave Generation These two menu settings will configure the internal digital These two menu settings will configure the internal digital sine wave generator. The generator can be used for sine wave generator.
  • Page 60: Upgrading The Gx9000 With New Software

    To download a new release of GX9000 firmware: • Connect a PC running the GDU download utility to the GX9000 using a USB cable • Unzip the supplied gx9000.zip to extract a file called gx9000.p •...
  • Page 61 What to do if the Download Procedure Fails! • If the download is stopped before completion for any reason, for example the USB cable is accidentally removed, switch the GX9000 off and after a short interval turn it back on. •...
  • Page 62: Rear Panel Connections

    GX9000 User manual GX9000 User manual Rev 2.1 Rev 2.1 Rear Panel Connections Rear Panel Connections Rear Panel Connections Rear Panel Connections • Before setting up this unit with other devices, turn this unit and all other units off. •...
  • Page 63: I/O Card 25 Way D' Type Pinouts

    GX9000 User manual Rev 2.1 Rear Panel Connections Panel Connections I/O Card 25 Way D' Type Pinouts I/O Card 25 Way D' Type Pinouts DSD INPUT DSD INPUT 1...DSD INPUT 1 1...DSD INPUT 1 14...GND 14...GND 2...DSD INPUT 2 2...DSD INPUT 2 15...GND...
  • Page 64 GX9000 User manual Rev 2.1 Rear Panel Connections Analog 1...CHAN 8 HOT 14...CHAN 8 COLD 2...CHAN 8 GND 15...CHAN 7 HOT 3...CHAN 7 COLD 16...CHAN 7 GND 4...CHAN 6 HOT 17...CHAN 6 COLD 5...CHAN 6 GND 18...CHAN 5 HOT 6...CHAN 5 COLD 19...CHAN 5 GND...
