- Page 1 ZENMUSE X5 User Manual V1.0 2015.10...
-
Page 2: Using This Manual
DJI website and read the Disclaimer and Safety Guidelines before you fly. Refer to the User Manual for more detailed information. Watch the video tutorials Please watch the tutorial videos at the link below, which demonstrates how to use Zenmuse X5 safely: http://www.dji.com/product/zenmuse-x5s/video ©... -
Page 3: Table Of Contents
Product Profile Overview In the Box Optional Accessories Components Getting Started Read the information below before setting up your Zenmuse X5 Supported Devices Supported Lenses for the Inspire 1 Supported Filters Supported Micro SD Cards Installing the Camera Lens Mounting the Zenmuse X5 to the Inspire 1... -

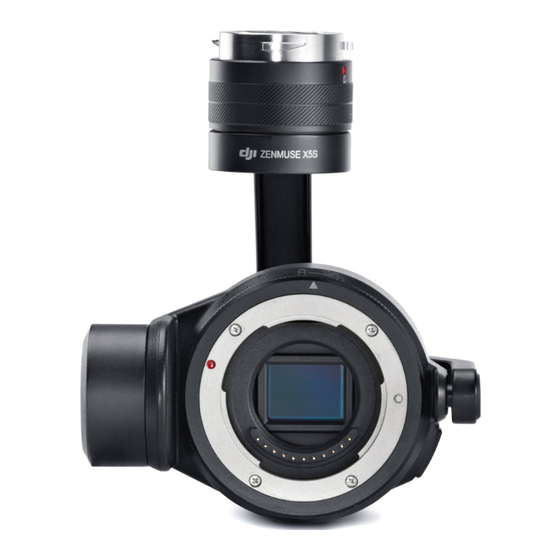

Page 4: Product Profile
4K and 16MP still photos. It can be mounted onto designated DJI devices such as the Inspire 1. The Zenmuse X5 lens kit comes with the DJI MFT 15mm f/1.7 ASPH that provides a 72 degree field of view and a manually adjustable f/1.7-f/16 aperture range. The camera can shoot burst, AEB or time-lapse in JPEG and DNG RAW, and output video in MP4 and MOV formats. -
Page 5: In The Box
ZENMUSE X5 In the Box ZENMUSE X5 Disclaimer and Safety Guidelines * The original lens, balancing ring and lens hood are only included in the Zenmuse X5 lens kit. Accessories for other supported lenses can be purchased separately on the DJI Store. -
Page 6: Components
ZENMUSE X5 User Manual Components Zenmuse X5 Gimbal and Camera Pan Motor Gimbal Connector Micro SD Card Slot/Micro USB Port Roll Motor Lens Lock Lens Mount Index Lens Mount Tilt Motor Lens Release Button Status LED DJI MFT 15mm f/1.7 ASPH Lens... -
Page 7: Getting Started
The Balancing Ring must be installed on the camera lens when a filter is not used. Supported Micro SD Cards The Zenmuse X5 comes with a 16GB Micro SD card, but also supports Micro SD cards with a capacity of up to 64GB. We recommend using a UHS-1 Micro SD card to minimize the delay when reading and writing high resolution video data. - Page 8 ZENMUSE X5 User Manual 4. Align the two Lens Mount Indexes on the camera body and camera lens, and insert the camera lens into the body of the camera. 5. Rotate the camera lens clockwise until you hear a click.
-
Page 9: Mounting The Zenmuse X5 To The Inspire 1
Be sure to set the lens to AF mode. Always hold down the Lens Release Button before rotating the Lens Lock to unlock it. Mounting the Zenmuse X5 to the Inspire 1 (Watch Video: http://www.dji.com/product/inspire-1/video) Ensure the aircraft is installed with Landing Gear Risers. -
Page 10: Attach The Zenmuse X5
-320° -90° + 320° Ground Level DO NOT attach or detach the Zenmuse X5 when the aircraft is powered on. Take off from a flat, open area and protect the gimbal after powering up. © 2015 DJI. All Rights Reserved. -
Page 11: Operating The Camera
Operating the Camera Camera Panel All camera operations are done on the Camera Panel in Camera View of the DJI GO app. [1] Menu [2] Photo/Video Switch [3] Shutter/Record Button [4] Playback [5] Settings Always set the camera lens to AF mode. The focus and aperture will be controlled by the DJI GO app digitally. -
Page 12: Advanced Settings
ZENMUSE X5 User Manual Advanced Settings Exposure Modes to choose from the following exposure modes: 1. AUTO The shutter speed and aperture are set automatically to obtain the correct exposure. 2. S (Shutter Priority) Set your desired shutter speed, while the camera chooses the aperture automatically. This mode is ideal for freezing action, creating motion blur or low-light shots. -
Page 13: List Of Settings
ZENMUSE X5 User Manual List of Settings Photo Shooting Modes Single shoot, Burst Mode, AEB(3/5 bracketed frames), Time-lapse Image Format JPEG, DNG, JPEG+DNG Image Size 4:3, 16:9 White Balance Auto, Sunny, Cloudy, Incandescent, Neon, Custom (2000K~10000K) Style Standard, Landscape, Soft, Custom (Sharpness/Contrast/ Saturation) -
Page 14: Managing Your Photos And Videos
ZENMUSE X5 User Manual Managing your Photos and Videos Playback in the DJI GO app or press the Playback Button on the remote controller to review photos and videos that you have captured. Press the same button again to return to capturing images. - Page 15 ZENMUSE X5 User Manual DJI MFT 15mm f/1.7 ASPH Panasonic Lumix G Leica DG Summilux 15mm f/1.7 ASPH Supported Lenses Olympus M.Zuiko Digital ED 12mm f/2.0 Olympus M.Zuiko 17mm f1.8 Sensor Type 4/3 CMOS sensor Effective Pixels 16 M Max Resolution...
-
Page 16: Status Led
ZENMUSE X5 User Manual Gimbal Angular Vibration Range ±0.02° Mount Detachable Pitch:-90° to +30° Controllable Range Pan:±320° Pitch:120°/s Max Controllable Speed Pan:180°/s Status LED The Status LED describes the working status of the camera. Status LED Camera Status Solid Green Powered on;... -
Page 17: 2015 Dji. All Rights Reserved
This content is subject to change. Download the latest version from www.dji.com/support If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. © 2015 DJI. All Rights Reserved.
