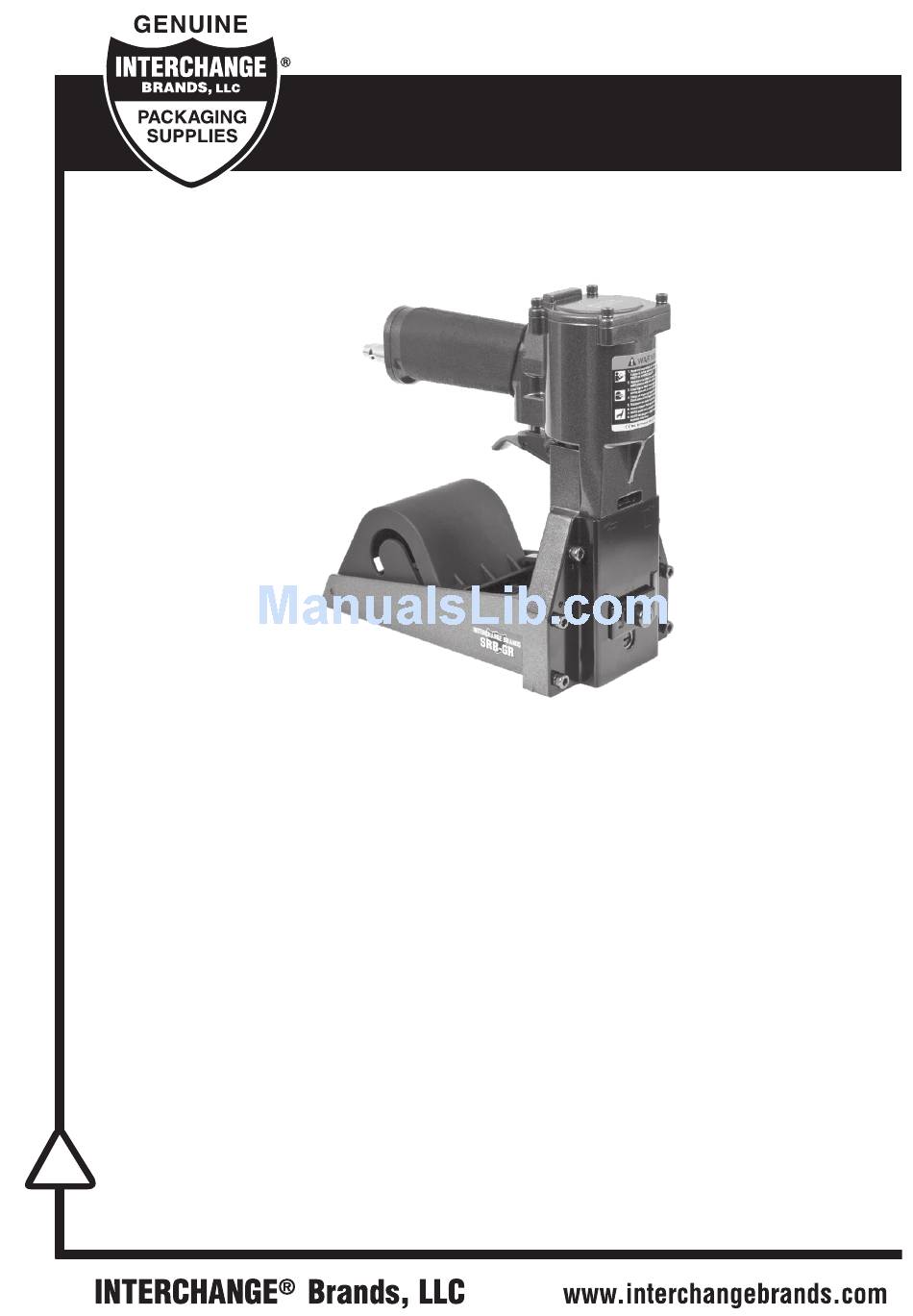

Operator's Manual

Pneumatic Roll

Carton Closing Stapler

SRB-GR

Item No. 64340

Roll Carton Closing Stapler

5/8" and 3/4"

(15mm and 18mm)

Ask for

Genuine

INTERCHANGE

GR-158 and GR-134

Staples

NOTE:

Please read and fully understand the instructions in this manual before

operating the stapler. Carefully read through this OPERATOR'S MANUAL to ensure efficient, safe

operation. It is recommended that the MANUAL be kept readily available as an important reference

when using this tool.

Table of Contents

Need help?

Do you have a question about the SRB-GR and is the answer not in the manual?

Questions and answers

Summary of Contents for Interchange SRB-GR

Page 1 Operator’s Manual Pneumatic Roll Carton Closing Stapler SRB-GR Item No. 64340 Roll Carton Closing Stapler 5/8" and 3/4" (15mm and 18mm) Ask for Genuine INTERCHANGE ® GR-158 and GR-134 Staples NOTE: Please read and fully understand the instructions in this manual before operating the stapler.
Page 2: Table Of Contents
Pneumatic Roll Carton Closing Stapler Model No. SRB-GR Index Information Page Tool and fastener specifications . . . . . . . . . . . . . . . . . . . . . . . .3 Safety instructions .
Page 3: Tool And Fastener Specifications
Pneumatic Roll Carton Closing Stapler Model No. SRB-GR Tool & Fastener Information Stapler Specifications: SRB-GR Tool Dimensions - 9 .17" x 4 .53 x 9 .06" Length x Width x Height ﹙233mm x 115mm x 230mm﹚ Weight ﹙without fasteners﹚ 5 .22 lbs . ﹙2 .37 kgs .﹚...
Page 4: Safety Instructions
Pneumatic Roll Carton Closing Stapler Model No. SRB-GR Safety Instructions Important Safety Instructions for Operating Staplers READ ALL INSTRUCTIONS DANGER NEVER USE IN PRESENCE OF FLAMMABLE LIQUIDS OR COMBUSTIBLES. Never use any type of flammable gases or oxygen as a power source for the tool . Use filtered, lubricated, and regulated compressed air only .
Page 5: Lubrication And Maintenance
Disconnect the air supply from the tool before lubricating . Turn the tool so the inlet is facing up and put one drop of Interchange Tool Oil or 3-in-1 oil into air inlet . Never use detergent oil or additives . Operate the tool briefly after adding oil .
Page 6: Loading The Tool
Pneumatic Roll Carton Closing Stapler Model No. SRB-GR Operating Instructions Loading the Tool Disconnect the air supply Slightly squeeze cover back then pull to open cover . Place roll staples in magazine . Feed front end of roll staples into right coil guide, left coil guide, and top guide .
Page 7: Clinch Adjustment
Pneumatic Roll Carton Closing Stapler Model No. SRB-GR Operating Instructions Clinch Adjustment Disconnect the air supply . Use rod diameter 3mm or 2 .5mm hexagon wrench key . Turn collar through window clockwise to tighten clinch and counter-clockwise to loosen clinch .
Page 8: Operating The Tool
Check and replace any damaged or worn components on the tool. Disconnect the air supply Add a few drops of Interchange Tool Oil or 3-in-1 oil into the air inlet . Install a quick connect fitting to the tool .
Page 9: Cleaning The Tool
Pneumatic Roll Carton Closing Stapler Model No. SRB-GR Operating Instructions Cleaning the Tool DANGER: Never use gasoline or other flammable liquids to clean the tool. Vapors in the tool may ignite a spark and cause the tool to explode and may result in death or serious personal injury.
Page 10: Trouble Shooting
Pneumatic Roll Carton Closing Stapler Model No. SRB-GR Trouble Shooting WARNING: Stop using the tool immediately if any of the following problems occur. Serious personal injury could occur. A qualified person or an authorized service center must do any repairs or replacements.
Page 11: Teeth Replacement
Pneumatic Roll Carton Closing Stapler Model No. SRB-GR Tool Maintenance Teeth Replacement Disconnect the air supply . Loosen screws with 4mm hexagon wrench key . Remove the magazine assembly . Loosen screws with 3mm hexagon wrench key . Change teeth one at a time to prevent reversing the direction of the teeth .
Page 12: Valve And Tube O-Ring Replacement
Pneumatic Roll Carton Closing Stapler Model No. SRB-GR Tool Maintenance Valve and Tube O-Ring Replacement Disconnect the air supply . Loosen screws with flat screw driver . Remove spring with a long nose pliers . Remove c-ring with a c-ring pliers .
Page 13: Piston Replacement
Pneumatic Roll Carton Closing Stapler Model No. SRB-GR Tool Maintenance Piston Replacement Disconnect the air supply . Remove screws with 4mm hexagon wrench key . Remove the magazine assembly . Loosen set screw with 3mm hexagon wrench key to unlock adjusting rod .
Page 14: Parts List
Pneumatic Roll Carton Closing Stapler Model No. SRB-GR Parts List CODE QTY Description NO. CODE QTY Description A01200113 053 A01202301 SHAFT A02800201 PISTON 501 BAC0604142 HEX.SOC. HEAD BOLT A02800301 PISTON ROD 503 BAB019028 O-RING A00100401 BLOCK 504 BAD02061 HEX.NUT A00100501...
Page 15: Parts Drawing
Pneumatic Roll Carton Closing Stapler Model No. SRB-GR Parts Drawing SRB-GR Parts Drawing ﹙09-30-14﹚ Interchange Brands, LLC...
Page 16 This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. Interchange Brands Operator’s Manual Models: SRB-GR Made In Taiwan (11-10-14)
