®Copyright 2011 April All Rights Reserved Version1.0
The information contained in this document is subject to change without notice. We make no
warranty of any kind with regard to this material, including, but not limited to, the
implied warranties of merchantability and fitness for a particular purpose. We shall not be
liable for errors contained herein or for incidental or consequential damages in connection
with the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by copy right. All rights are
reserved. No part of this document may be photocopied, reproduced or translated to another
language without the prior written consent of the manufacturer.
TRADEMARK
Intel®, Pentium® and MMX are registered trademarks of Intel® Corporation. Microsoft®
and Windows® are registered trademarks of Microsoft Corporation.
Advertisement
Table of Contents
Related Manuals for Birch Carisma N2800
Summary of Contents for Birch Carisma N2800
- Page 1 ®Copyright 2011 April All Rights Reserved Version1.0 The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. We shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
-
Page 2: Main Board
Main Board PP7000CQ-T15 Intel® Atom™ processor N2800 (1M Cache, 1.86 GHz) Chipset Intel® NM10 Express Chipset System Memory Socket-type RAM device, 204PIN SO-DIMM DDR3 RAM, up to 4GB Graphic Memory Shared system memory up to 256MB LCD Panel PP7000CQ-T15 Panel Size 15”... -
Page 3: Optional Peripherals

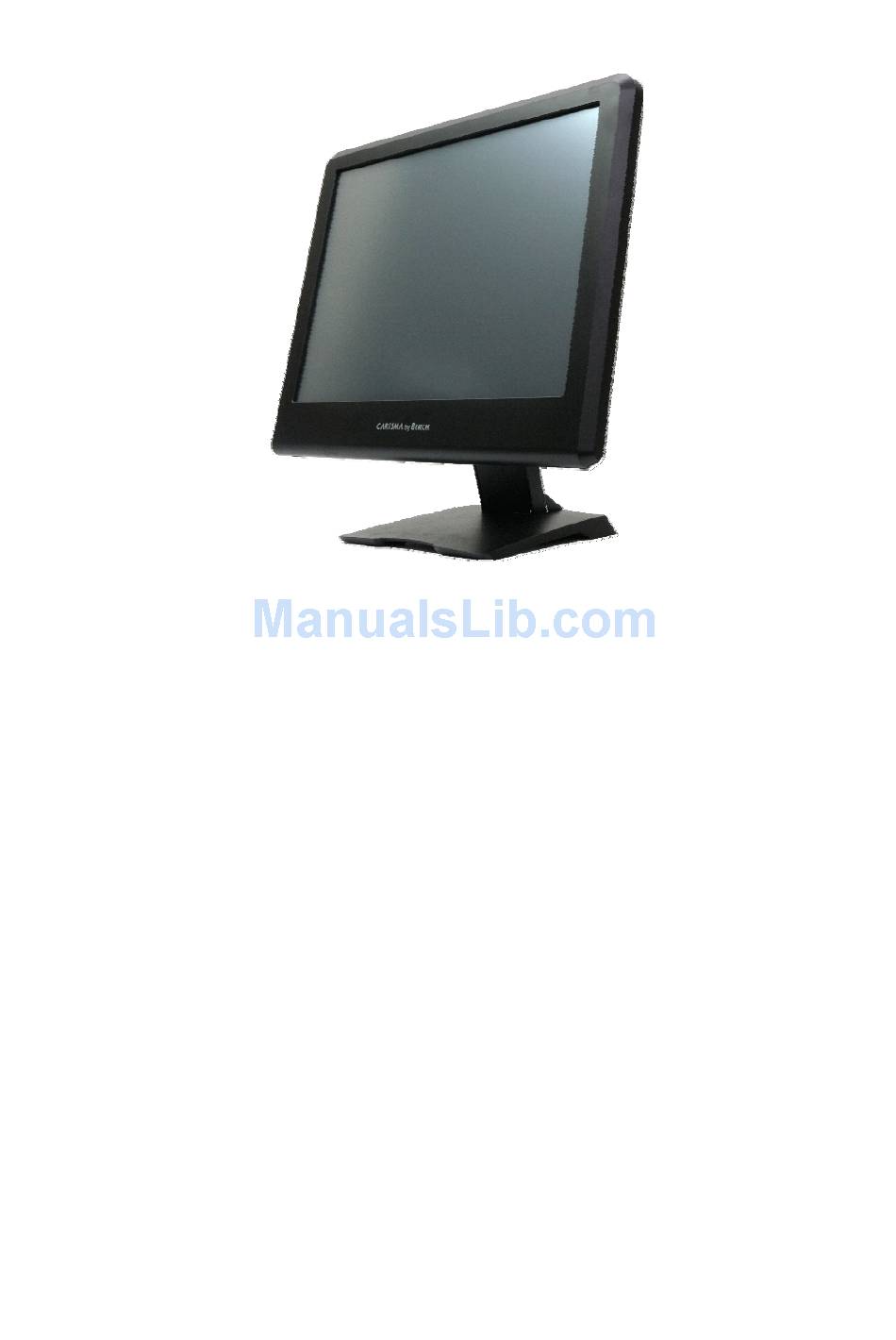

Power Adaptor Input AC 100-240V 2.5A 50/60Hz, Output DC 12V 6.66A I / O Serial Four COM ports with RJ-45 Connector Pin 9 with 5V / 12V power selectable Parallel One LPT with adaptor cable 2nd VGA Output One with optional adaptor cable PS/2 Audio One Earphone &... - Page 4 Model Number PP7000CQ – 15 15＂TFT LCD Intel® Atom™ processor N2800 (1M Cache, 1.86 GHz)
- Page 5 If any item is missing, please contact your sale agent immediately. Take the system unit out from the carton. Remove the unit by carefully holding the foam inserts and remove slowly to protect the system. The following items should be found in the carton: 1.
- Page 6 . Power Adaptor 4. AC Power Cord 5. Printer Port conversion cable 6. Two RS-232 port conversion cables 7. Second Display cable (Optional)
- Page 7 Please unplug the AC power of the adapter before opening any part of the system. Since the standby power is always on after the adapter is plugged in. It may cause permanent damage to your system when you open any part of it. MSR (Optional) ...
-
Page 8: The Connector Panel
The connector panel Please notice that all Four COM ports using RJ-45 connector and two RJ-45 to DB-9 conversion cables are provided in the package. Please notice that the Printer and VGA connectors in the second level, using JST PHD pitch 1.25 type connectors. -
Page 9: Introducing Bios
Introducing BIOS Notice! BIOS options this manual reference only. Different configurations lead difference BIOS screen BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website. -
Page 10: Bios Menu Screen
BIOS Menu Screen The following diagram show a general BIOS menu screen: Menu Bar General Help Items Current Setting Value Menu Items Function Keys BIOS Menu Screen Function Key In the above BIOS Setup main menu of, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here: ... -
Page 11: Getting Help
Press ↑↓ (up, down) to choose, in the main menu, the option you want to confirm or to modify. Press <Enter> to select. Press <+>/<–> keys when you want to modify the BIOS parameters for the active option. -
Page 12: Main Menu
User can press the right or left arrow key on the keyboard to switch from menu bar. The selected one is highlighted. Main Menu Main menu screen includes some basic system information. Highlight the item and then use the <+> or <-> and numerical keyboard keys to select the value you want in each item. -
Page 13: Advanced Menu
Advanced Menu Launch PXE OpROM/ Use this item to enable or disable boot option for legacy network devices. Launch Storage OpROM Use this item to enable or disable boot option for legacy mass storage devices with option ROM. PCI Subsystem Settings Press [Enter] to enter and make settings for PCI Express Settings and PCI Express PCI ROM Priority In case of multiple Option ROMs (Legacy and EFI Compatible), specifies what PCI... - Page 14 Enables or Disables BIOS ACPI Auto Configuration ACPI Sleep State Use this item to select the highest ACPI sleep state the system will enter when the suspend button is pressed. The optional settings are: [S1(CPU Stop Clock)]; [S3(Suspend to RAM)]. Lock Legacy Resources Enable or Disable Lock of Legacy Resources PCI Express Wake...
- Page 15 EHCI Hand-off The optional settings are: [Disabled]; [Enabled]. F81866 Super IO Configuration Serial Port 0 Configuration Press [Enter] to make settings for the following items: Serial Port Use this item to enable or disable serial port. Change Settings Use this item to select an optimal setting for super IO device. Serial Port 1 Configuration Press [enter] to make settings for the following items: Serial Port...
- Page 16 Change Settings Use this item to select an optimal setting for super IO device. Parallel Port Configuration Press [Enter] to make settings for the following items: Parallel Port Use this item to enable or disable parallel port(LPT/LPE). Change Settings Use this item to change the printer port mode. Device Mode Use this item to set serial port as RS232 or RS422/485.
-
Page 17: Chipset Menu
3-8 Chipset Menu North Bridge Memory Frequency and Timing Config Memory Frequency and Timing Settings MRC Fast Boot Enable or Disable MRC fast boot Intel IGD Configuration Config Intel IGD Settings Auto Disable IGD Auto disable IGD upon external GFX detected South Bridge TPT Devices... - Page 18 Enable / Disable Intel® IO controller Hub (TPT) devices Azalia Controller Azalia Controller Select USB Mode Select USB mode to control USB ports. UHCI #1 (ports 0 and 1) Control the USB UHCI (USB1.1) functions. Disable from highest to lowest controller UHCI #2 (ports 2 and 3) Control the USB UHCI (USB1.1) functions.
- Page 19 Boot Menu Boot Configuration Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. Bootup Numlock State Use this item to select keyboard numlock state.The optional settings are: [On]; [Off]. Quiet Boot The optional settings are: [Enabled]; [Disabled]. Gate A20 Active The optional settings are: [Upon Request];...
-
Page 20: Security Menu
Option ROM Message Use this item to set display mode for option ROM. The optional settings are: [Force BIOS]; [Keep Current]. Interrupt 19 Capture The optional settings are: [Enabled]; [Disabled]. Boot Option Priorities Boot Option #1 The optional settings are: [Windows Boot Manager]; [Disabled]. Security Menu... -
Page 21: Save & Exit Menu
Security menu allow users to change administrator password and user password settings. Save & Exit Menu Save Changes and Reset This item allows user to reset the system after saving the changes. Discard changes and Reset This item allows user to reset the system without saving any changes. Restore Defaults Use this item to restore /Load default values for all the setup options. - Page 22 Save as User Defaults Use this item to save the changes done so far as user defaults. Restore User Defaults Use this item to restore defaults to all the setup options. Launch EFI Shell from filesystem device This item is used for attempts to launch EFI shell application from one of the available file system devices.
- Page 23 Character Font Table A. Control code set B. U.S.A. font set...
- Page 24 C. International character selection ASCII CODE 3DH: Standard Europe international font set...
- Page 25 3EH: Multingual international font set 3FH: Portuguese international font set...
- Page 26 40H: Canadian French international font set 41H: NORDIC internatinal font set...
- Page 27 42H: RUSSIA font set 43H: SLAVONIC Font set...
- Page 28 44H: Katakana font set System Commands Command Format Command List A. Set Baud Rate COMMAND: B COMPUTER:EOT SOH 'B' 'BAUD RATE' 'N' ETB ASCII (04H) (01H)(42H) (31H~37H)(4EH)(17H) Byte 1 DISPLAY: ACK (or NACK if failed) ASCII (06H) (15H) Byte...
- Page 29 Baud rates Note: 31H: 9600 32H: 4800 33H: 2400 34H: 1200 35H: 600 36H: 300 37H:19200 B. Select international code table COMMAND: I COMPUTER:EOT SOH 'I' 'CHAR' ETB ASCII(04H)(01H)(49H)(30H~44H)(17H) Byte DISPLAY: ACK (or NACK if failed) ASCII (06H) (15H) Byte Note : International Character Code C.
- Page 30 D. Set cursor position COMMAND: P COMPUTER: EOT SOH 'P' 'Position' ETB ASCII (04H) (01H) (50H) (31H~58H) (17H) Byte 1 DISPLAY: ACK (or NACK if failed) ASCII (06H) (15H) Byte 1 The cursor can be set to the position from 1 to 40 Note: Position 1 means the upper left corner position.
- Page 31 select 31H means display the message saved on layer 1. select 32H means display the message saved on layer 2. select 33H means display the message saved on layer 1+ layer2. select 34H means display the message saved on layer 3. select 35H means display the two messages saved on layer 1 + layer 3.
-
Page 32: Command Modes
Transmission method Each ASCII character is transmitted with 1 start bit 8 data bits 1 stop bit No parity You may generate your own application software to run the display according to the standard Note: RS-232C communication protocols and the SOFTWARE CONTROL information listed on this chapter. Command Modes The command modes can be selected with the Demo Software. - Page 33 Mode 1: EPSON Esc/POS mode...
- Page 34 Mode 2: UTC Standard mode Mode 3: UTC enhanced mode Mode 4: AEDEX mode...
- Page 35 Mode 5: ICD 2002 mode REMARK)* Using command "ESC E r Φ", the value of parameter: r 58= all rows 55= upper row 44= lower row Φspecial function, the value is one of 30= shift mode (default) 31= rotation mode 32= blink mode 33= clear this row and switch to shift mode 34= overwrite mode...
- Page 36 Mode 6: CD 5220 standard mode...
- Page 37 Mode 7: DSP-800 mode Mode 8: ADM 787/788 mode...
-
Page 38: Caution On Lithium Batteries
CE MARK This device compiles with the requirements of the EEC directive 89/336/EEC with regard to “Electromagnetic compatibility” and 73/23/EEC “Low Voltage Directive” This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference.
