Summary of Contents for ESN WR72 Alpha

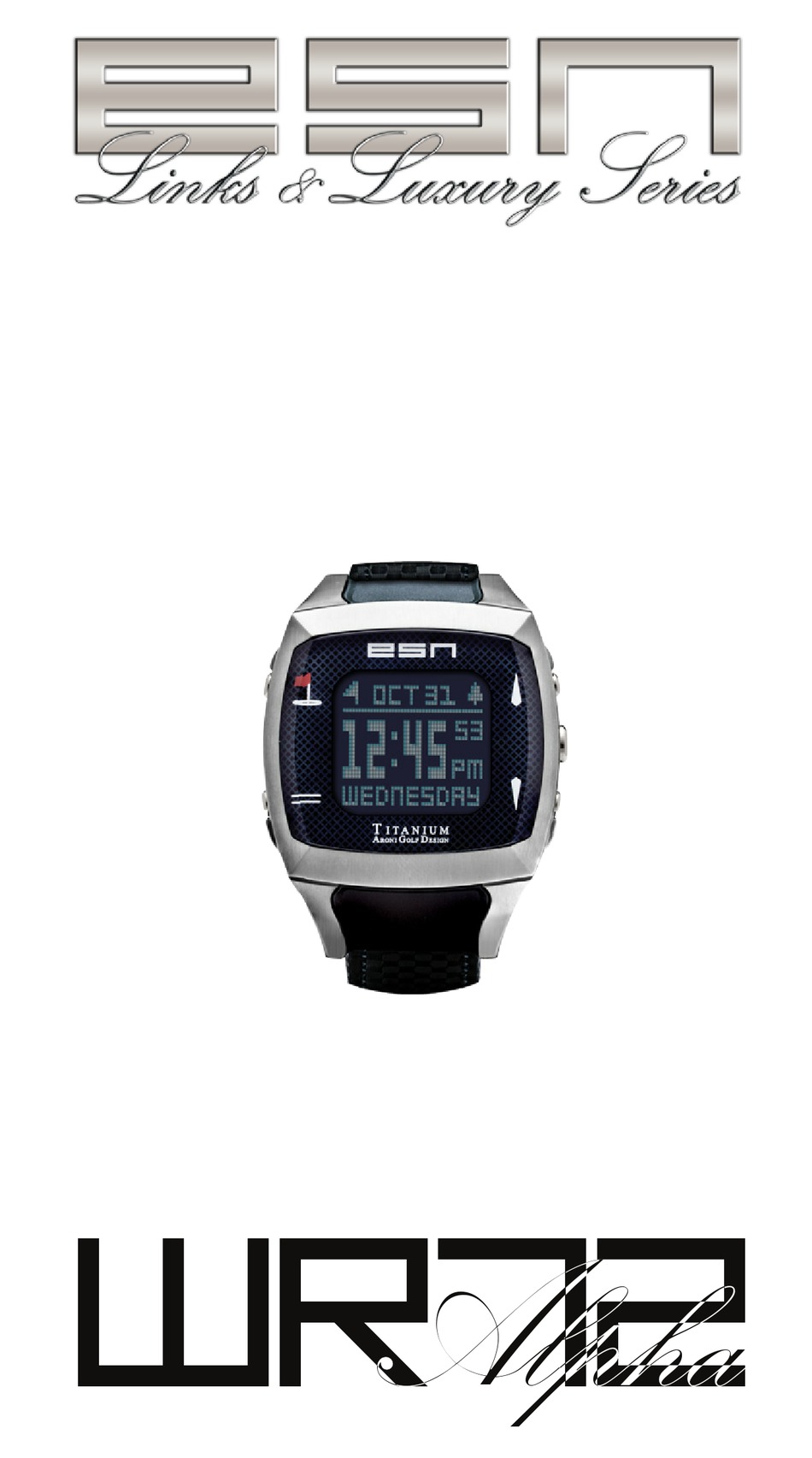

  • Page 1 WR72 Alpha...
  • Page 2 Care and Maintenance The WR72 Alpha watch is durable and waterproof. To help ensure reliable operation, the following care and maintenance guidelines are recommended: • Avoid exposing the watch to extreme environmental conditions for a prolonged period of time. • Avoid severe impacts on the watch.

  • Page 3: Table Of Contents

    Table of Contents Page Title Page # Charging the Battery Package Contents / Computer Requirements / Updates Buttons and Functions Power On and Basic Operation Using Play Golf Mode Button Functions in Play Golf Mode Golf Menu Options 8-10 Registering and Updating Course Data iGolf Hazard Glossary Main Menu Options 13-18...

  • Page 4: Charging The Battery

    Guide Holes Guide Pins P a c k a g e C o n t e n t s Fig. 4 WR72 Alpha Watch 1 - USB/Charging Cable 1 - Contact Cleaning Brush 1 - Q u i c k S t a r t G u i d e C omputer Requirements U SB ( 1 .

  • Page 5: Buttons And Functions

    Buttons and Functions Golf Menu ▲ Select ◄ www.expresso.igolf.com Down ▼ Menu 1. Golf Menu Button: View Golf Menu 2. MENU Button: View Main Menu Options. ▲ 3. UP Button: Scrolls up through Menu items. ◄ 4. SELECT Button: Selects from menu items. ▼...

  • Page 6: Power On And Basic Operation

    ◄ Alpha Watch will search for GPS satellite signal. Once satellite lock has been acquired, the WR72 Alpha Watch will display a list of up to 10 of the closest local courses. 2. Scroll the course list with the DOWN button (3) and UP button ▼...

  • Page 7: Button Functions In Play Golf Mode

    Press the SHOT button (1) to set Point A (where you are standing) to “0”. After walking to your ball (Point B), the WR72 Alpha Watch will display the distance between Point A and Point B in a straight line.

  • Page 8: Golf Menu Options

    GOLF MENU Options TEE TIME Tee Time is a useful feature that allows you to set a tee time up to 1 week (6 days, 23 hours, 59 minutes) in advance. When a Tee Time is set, the WR72 Alpha watch will automatically enter Play Golf mode, and search for local courses 7 minutes prior to the set time.
  • Page 9 GOLF MENU Options SETUP The Setup menu allows you to set your preferences for units of measurement in Play Golf mode (Yards or Meters), set the Auto-Off time, or view Battery life. To access the Setup Menu, select Setup from the Golf Menu. Use the UP Button (3) and the Down Button (5) to scroll between options.
  • Page 10 1.5 hour. Select Exit Game to immediately exit the round and return to the Home (Time) screen. If no selection is made for 10 minutes, the WR72 Alpha will automatically exit the round and return to the Home (Time) screen, and power down the GPS module to preserve battery.

  • Page 11: Registering And Updating Course Data

    1) Go to www.expresso.igolf.com and fill in your info to register your WR72 Alpha Watch and create an account. The serial # (Product ID) of your Watch can be found on the back of the unit. Click “Next” at the end of Step 1 to go to Step 2 and complete your registration.

  • Page 12: Igolf Hazard Glossary

    iGolf Hazard Glossary Hazards within the iGolf application are shown as abbreviations. These abbreviations are defined as follows: 1. LFB- Left Fairway Bunker 2. MFB- Middle Fairway Bunker 3. RFB- Right Fairway Bunker 4. LFW- Left Fairway Water Layup 5. LFWC- Left Fairway Water Carry 6.
  • Page 13 MAIN MENU Options To access the Main Menu (Fig. 1), select the MENU Button (2). There are 6 Menu options on 2 menu pages: Battery, Odometer, Alarm, Stopwatch, Timer, and Settings. Golf Menu ▲ Select ◄ Down ▼ Menu BATTERY S elec t Batter y (Fig.

  • Page 14: Main Menu Options

    The Odometer is a GPS function that tracks speed, distance travelled, and activity time. To access the Odometer, select Odometer from Menu 1 (fig. 1). The WR72 Alpha will search for satellite signal, and will access the Odometer page upon GPS Lock. The Odometer timer will automatically begin counting, and the speed and distance fields will yield results as you move along.
  • Page 15 MAIN MENU Options ALARM The WR72 Alpha is equipped with a standard Alarm feature. To access the Alarm, select Alarm from Menu 1 (Fig. 1). To set the Alarm, press the ◄ ▲ SELECT Button (4) to activate the Hours field. Use the UP Button and the DOWN Button (5) to toggle the time up and down.
  • Page 16 MAIN MENU Options STOPWATCH The WR72 Alpha features a useful Stopwatch function. To access the Stopwatch, select Stopwatch from Menu 2 (Fig. 1). Press the SELECT Button (4) to start/pause the Stopwatch. When the Stopwatch is paused, ◄ use the UP Button (3) to reset the Stopwatch.
  • Page 17 MAIN MENU Options TIMER The WR72 Alpha also comes with a Timer feature. To access the Timer, select Timer from Menu 2 (Fig. 1). To set the Timer, press the SELECT Button (4) to activate the Hours field. Minutes will automatically ◄...

  • Page 18: Settings Menu Options: Time Options

    MAIN MENU Options SETTINGS The Settings Menu allows you to set the Time, as well as preferences for Time, the Odometer, and Sounds. You can also view your latitude/longitude coordinates, the current firmware version, or reset the default settings. To access the Settings Menu, select Settings from Menu 2 (Fig.

  • Page 19: Setting The Time And Date

    Set Time (Fig. 1), then select By GPS from the Set Time Menu (Fig. 2). The WR72 Alpha will acquire GPS signal, and upon GPS Lock, will return to the Home (Time) screen, where the time and the date will be set via your longitude position.
  • Page 20 When daylight savings time ends for late autumn and the winter season, simply turn the daylight setting to OFF (-1), and the WR72 Alpha will automatically adjust the time one hour back. To access Daylight Savings Time, select Daylight from the Time Options Menu (Fig.

  • Page 21: Settings Menu Options

    Fig. 1 Fig. 2 LANGUAGE SETTINGS The WR72 Alpha features 5 language settings (English, Deutsch, Francais, Espanol, and Italiano). By default, the user interface is in English. To change the language setting, press the MENU Button, then use the UP Button ▲...
  • Page 22 This feature also shows your location by providing latitude and longitude coordinates. To access GPS Status, Select GPS Status from the Settings 2 Menu (Fig. 3). The WR72 Alpha will then search for satellite signal, and upon GPS Lock will display the GPS Status screen (Fig. 4).

  • Page 23: Faqs & Troubleshooting

    • Each WR72 Alpha watch is marked with a unique product ID number that is necessary for setting up your free account at http://expresso.igolf.com. You can find this number on the sticker affixed to the back of your WR72 Alpha watch. The number begins with “WR72ER. ” What courses are preloaded on the WR72 Alpha? • The WR72 Alpha is preloaded with over 33,000 courses in North America...
  • Page 24 • If you are registering on your home network, your computer security may block the registration process. Disable the security on your computer and try again. For any question not covered in this manual, please contact ESN Customer Ser vice at (866) 691-1350.

  • Page 25: Warranty Information

    Warranty All EXPRESSO SATELLITE NAVIGATION, INC. SYSTEMS (GPS) are navigation aids, and are not intended to replace other methods of navigation. The purchaser is advised to perform careful position charting and use good judgment. READ THE USER GUIDE CAREFULLY BEFORE USING THE PRODUCT.

  • Page 26: Fcc Statement

    The device does not contain any user-serviceable parts. Repairs should only be made by an Authorized ESN repair center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and will void your warranty and your authority to operate this device under Part 15 regulations.
