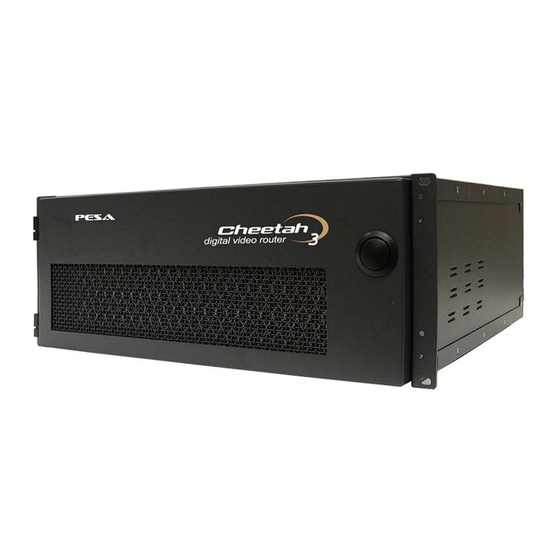

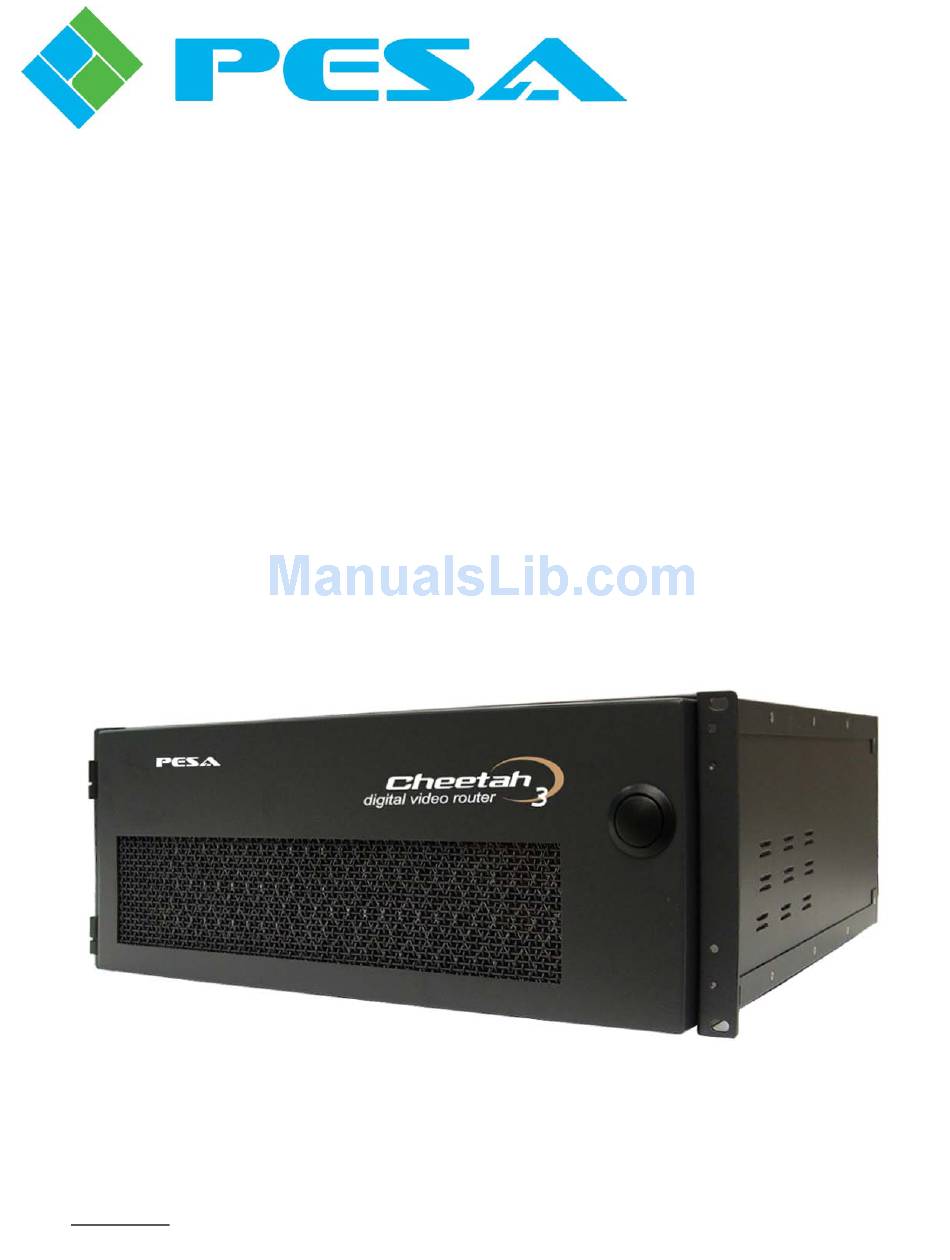

PESA CHEETAH 144NE Uesr Manual

Fiber digital video matrix switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

U
G
SER
UIDE
C
HEETAH
144NE F
IBER
D
V
M
S
IGITAL
IDEO
ATRIX
WITCHER
www.pesa.com
Publication: 81-9059-0676-0, Rev. A
Phone: 256.726.9200
July, 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHEETAH 144NE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PESA CHEETAH 144NE

Summary of Contents for PESA CHEETAH 144NE

  • Page 1 UIDE HEETAH 144NE F IBER IGITAL IDEO ATRIX WITCHER www.pesa.com Publication: 81-9059-0676-0, Rev. A Phone: 256.726.9200 July, 2010...
  • Page 2 We want you to know that if you ever have a concern or problem with a PESA product, we have a team of engineers, technicians and customer service professionals available 24/7/365 to help resolve the issue.

  • Page 3: Table Of Contents
