HeathCo 6600 Series Installation Manual

This package includes (Style of push button and chime may vary from illustration):
• Wireless chime cover
• Wireless push button w/battery
This chime requires 3 "D" alkaline batteries (not included). In typical use, alkaline batteries
will last up to three years.

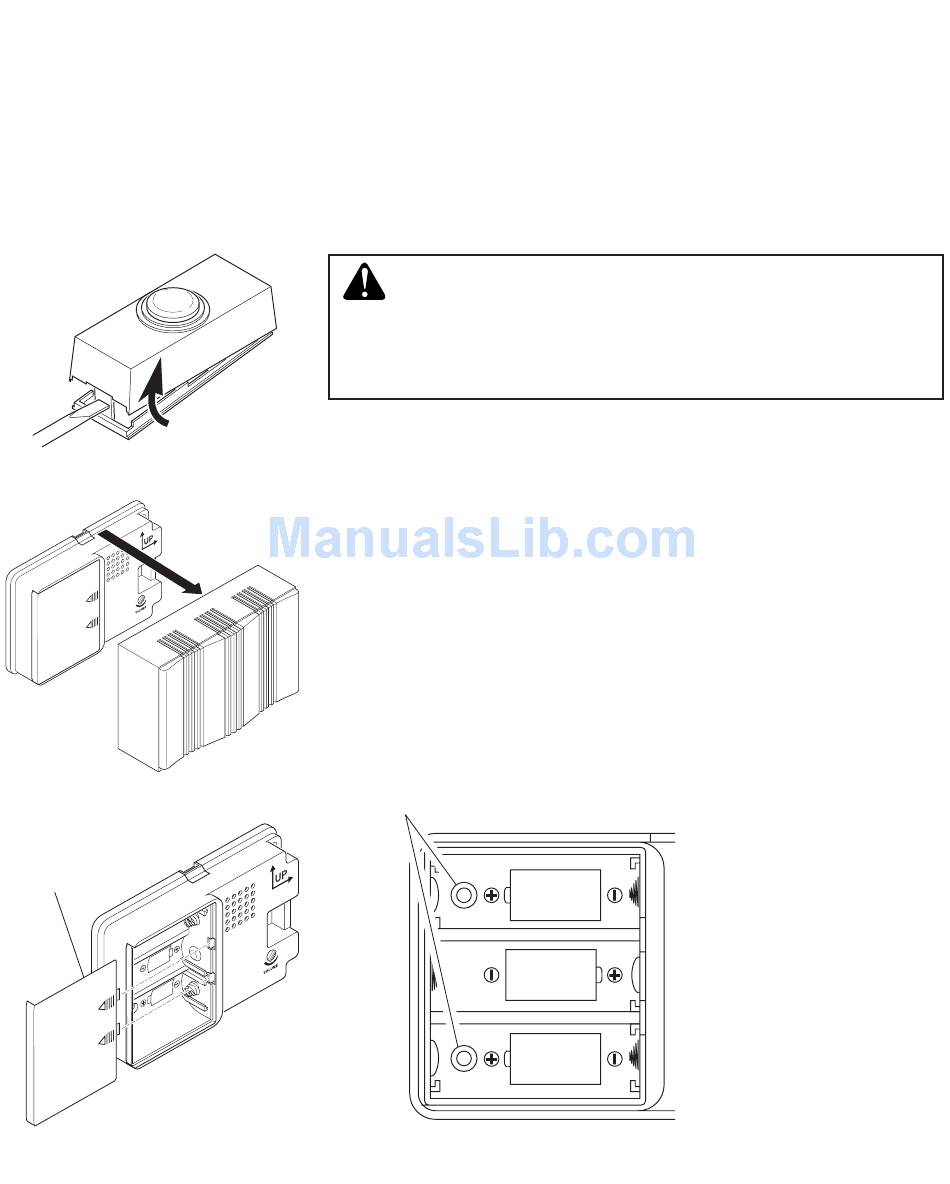

Figure 1
'D '
P E
T Y 2 0
L R
X
- R
3 5
- 0 0
T R
'D '
P E
T Y 2 0
L R
Figure 2
Battery Cover
'D '
P E
T Y
2 0
L R
'D '
P E
T Y
2 0
L R
Figure 3
© 2007 HeathCo LLC
Wireless Chime
• Wireless chime base
• Hardware pack
WARNING: To prevent possible SERIOUS INJURY
or DEATH:
• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify doctor.
1. Install alkaline type A23 12 volt push button battery
(included). Remove back of case by pushing in tab on
bottom with a small screwdriver. See diagram inside push
button for correct battery orientation.
2. Remove Chime Cover.
3. Install 3 alkaline "D" batteries. Press down on imprinted
arrows and slide battery cover to remove. Make sure bat-
teries are oriented properly.
4. Test range. Temporarily position chime and push button
where you want them mounted. Press push button to verify
chime and push button work properly. If chime does not
sound, see Troubleshooting.
Mounting Holes
X
- R
3 5
- 0 0
T R
TYPE 'D'
LR20
TYPE 'D'
LR20
TYPE 'D'
LR20
Figure 4
VOLUME
598-1172-03
