Steepletone SMC1033 Instruction Manual

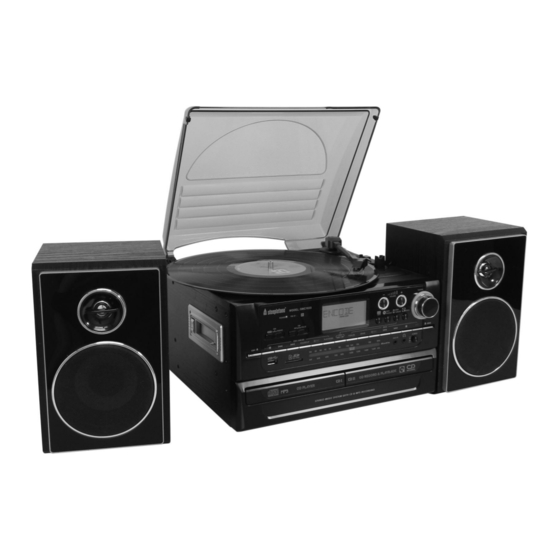

Music system with twin cd player & recorder, mp3 to usb/sd encoding, 3-speed turntable, radio, cassette and aux-in playback
Hide thumbs Also See for SMC1033:

Advertisement

Table of Contents

MODEL: SMC1033
MUSIC SYSTEM
WITH TWIN CD PLAYER & RECORDER,
MP3 TO USB/SD ENCODING,
3-SPEED TURNTABLE, RADIO,
CASSETTE AND AUX-IN PLAYBACK
INSTRUCTION MANUAL
PLEASE READ BEFORE USE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMC1033 and is the answer not in the manual?

Questions and answers

Michael Cross
April 9, 2025

Phono says full how can I delete

0

Subscribe to Our Youtube Channel

Related Manuals for Steepletone SMC1033

Summary of Contents for Steepletone SMC1033

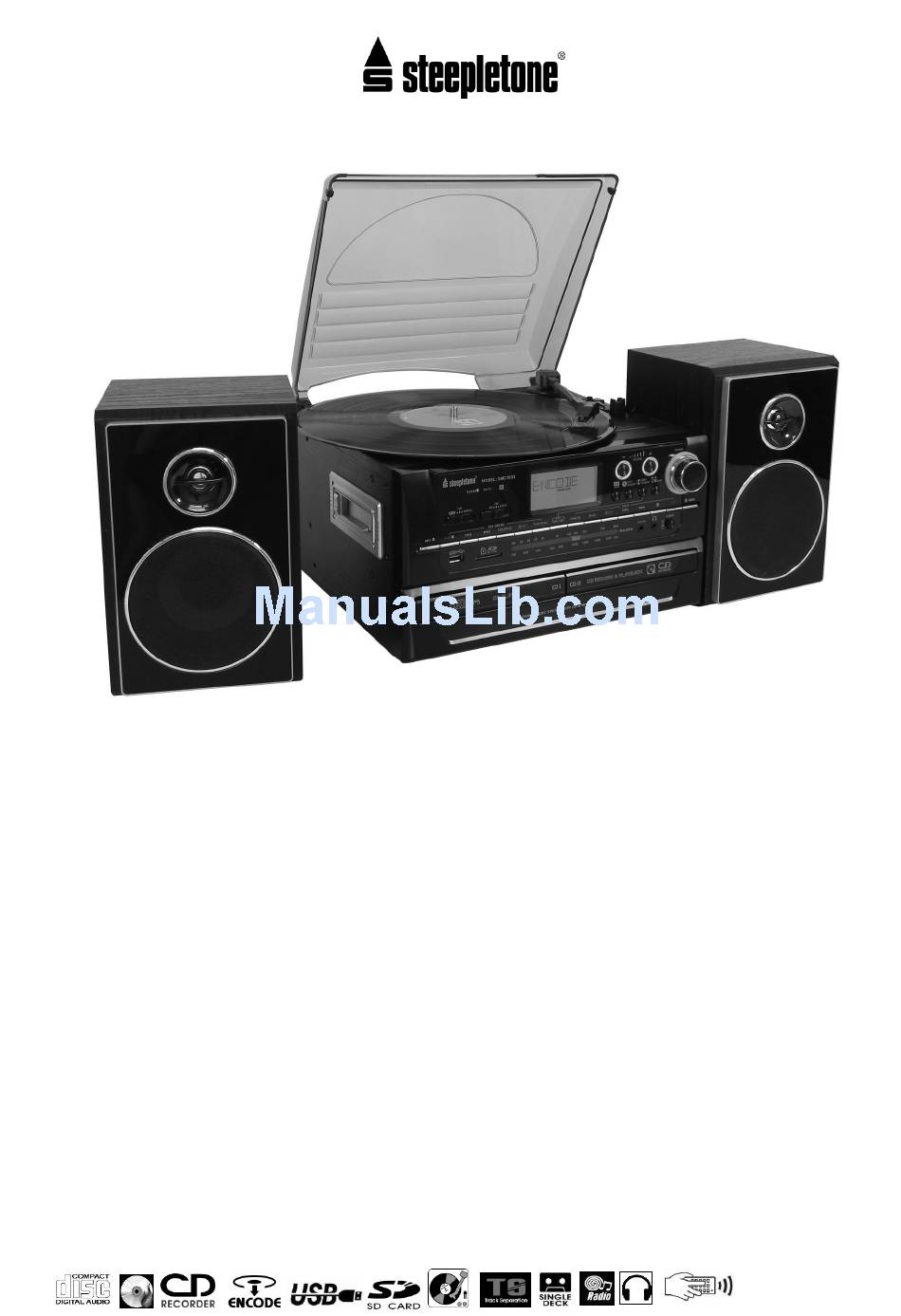

  • Page 1 MODEL: SMC1033 MUSIC SYSTEM WITH TWIN CD PLAYER & RECORDER, MP3 TO USB/SD ENCODING, 3-SPEED TURNTABLE, RADIO, CASSETTE AND AUX-IN PLAYBACK INSTRUCTION MANUAL PLEASE READ BEFORE USE...

  • Page 2: Location Of Controls

    LOCATION OF CONTROLS Dust Cover 24. Finalize Button – Open/Close Button LCD Display CD II Remote Sensor – CD Play/Pause CD II Button FM Stereo LED Indicator – CD Door CD II Power LED Indicator 28. X-BASS On/Off Button BAND Selector –...
  • Page 3 Connection Connect the speaker wires to the speaker terminals (R + L) (42) located on the rear of the unit. Push the red right hand side socket switch upwards to expose the hole in which to insert the red speaker cable – insert the wire and release the switch. Push down the right hand side black socket switch and insert the black cable wire.
  • Page 4 ID3 (track/album title) function (by remote handset) Press the “ Info/Delete “ button during playback of MP3 file, the song title is being displayed. Press the “ Info/Delete ” button again to disable the function. Song title/folder name search function (by remote handset) You can search the track by the title/folder name in disc during stop mode:- Press the “...
  • Page 5 before programming:- CD I Set in mode & stop the playback. Press the “Program” button, “ PROG “ will appear on USB/SD operation display area (2). Moreover, it will indicate program no. and digits for track no. to be programmed. Select a desired track by pressing USB/SD skip buttons.

  • Page 6: Recording Function

    (1) repeat all track (2) repeat 1 (3) off mode Indicator on CD/CD Recorder Play mode operation display area Repeat all Repeat 1 Off mode -------------- Random play mode (by remote control) Press the Random button at remote control will active the shuffle play function and the random indicator “ RAN “ will show on CD Recorder operation display area (2).

  • Page 7: Recording Setting

    Press “ “ button (33) and then the “ CD Play/Pause ” button (26) until the play indicator “ “ show on CDII CD Recorder operation display area (2). After few seconds, the CD Recorder operation display area (2) will show the time counter and now the system is start recording process.
  • Page 8 Although finalized CD-R disc may be played on ordinary CD players, remember that finalized CD-RW disc may not play on ordinary CD players. Owing to the variance of the compatibility of CD-R or CD-RW disc from the market. Please change to other one if you find the recording performance of existing one is not up to satisfaction.

  • Page 9: Aux In Connection

    This is recommended to take out the cassette tape from the system every times after listening and don’t leave the cassette tape inside the system when not under playback mode. Phono operation Remove the stylus protector. Be sure that the tone arm is being detached from the tone arm rest before operating and re-secured again afterwards.
  • Page 10 After step 2, press “ Skip down” button (12) again will go to the previous track and remain the play or pause mode. CD I If press and hold the “ Skip up/down button “ (12) during playback, the playing track will go fast forward or backward CD I until the button being released.
  • Page 11  Cassette encoding Set the unit in cassette mode by press the “ Tape “ function button (19). Place the cassette tape to the cassette slot to get ready playback. Press “ USB/SD Record “ button (16) once, USB/SD operation display area (2 ) will show “USB” then press “ CD I /USB/SD Record “...
  • Page 12 7N” 4. Then press “ “ button to select “ Y “. CD I /USB/SD skip forward or skip backward 5. Press the “ /USB/SD REC “ button again to confirm the format. CD I E-10 Remark : All the files inside the USB storage media or SD card will be deleted completely after confirming to “ Yes “ mode. Removing of USB / memory card To remove the USB / memory card, turn off the power or switch the function mode to either Tape or Phono first.

  • Page 13: Specifications

    CDII CDII recording Press to perform the recording operation button CD I CD I /USB/SD Press to operate the /USB/SD playback/encode operation button E-11 RE-ATTACHING THE TURNTABLE DRIVE BELT STEP 1 Use a screwdriver to remove the black iron ‘C’-clip (iron binder) and lift the turntable off the Turntable mechanism.
  • Page 14 E-12...
