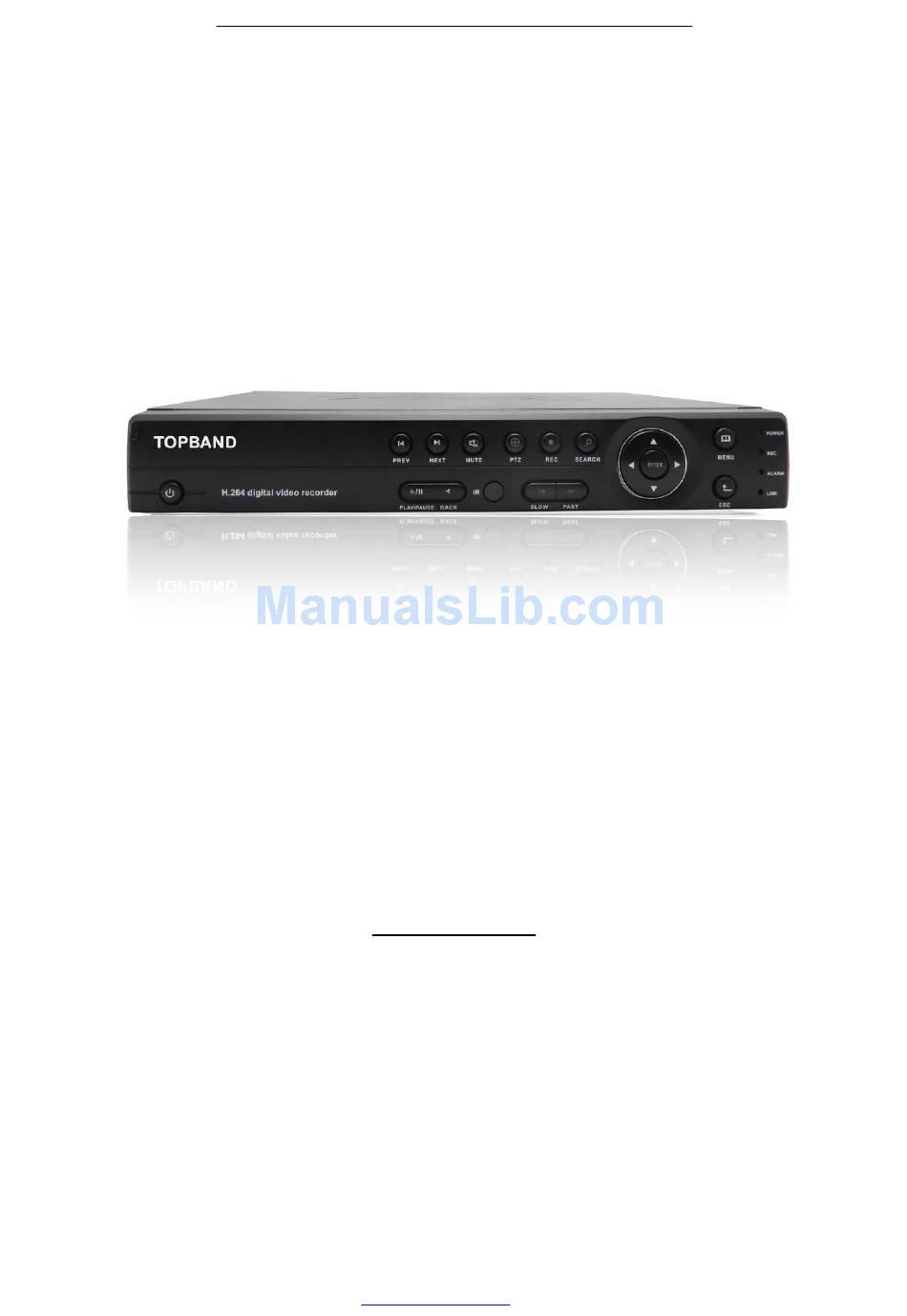

- Page 1 4/8/16 channel DVR Quick User Manual 5000SA Series 5000 series DVR User Manual TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com...
-
Page 2: Table Of Contents
6.8chs & 16chs special function ..........................23 6.1Channel type select ..........................223 6.2Standard HDMI output ..........................223 Appendix 1.Remote Controller Operation.......................23 Appendix 2.Mouse Operation..........................24 Warranty Card ................................TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com... -
Page 3: Part One: Basic Operation
“Admin” is the super user purview; “Guest” is the user for preview and playback. User can modify the password of Admin and Guest, but can not modify the authority of them. TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China... -
Page 4: Login
[Record Config] to set. The system’s default set is 24 hours continuous recording. Note: There is at least one read-write hard disk if the DVR records normally.(refer to chapter 4.5.1 HARD DISK Manage) Pic 2 Recording Config TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com... -
Page 5: Snapshot Storage(Partial Model Support)
Please refer to “6 record settings”. 8. Playback There are two methods for you to play the video files in the hard disk. 1. In the desktop shortcut menu. TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com... - Page 6 Accurate playback Input time (h/m/s) in the time column and then click playback. Local zoom: When the system is in single-window full-screen playback mode, you can drag your TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com...
-
Page 7: Network
LAN equipment such as operating image surveillance in the public network remote access equipment for monitoring. Detail setup refer to “Network setup reference”. 10. Alarm 10.1 Motion Detect Pic 6 Motion Detect TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com... -
Page 8: Video Analysis
Step 1: [Main Menu]>[Alarm ]>[Video Analysis], enter video analysis setting interface, enable this function. Step 2: click rule to enter the rule setting interface, see pic 8: TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com... - Page 9 The intelligent analyze function mainly including below 4 facets: 1. Perimeter detection（PEA） (1). touch line detection: bidirectional touch line, single-direction touch line (2). Area detection: enter alarm, leave alarm TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com...
- Page 10 3. Flowmeter count (CPC) The head count of people passing in and out of duty room, which is fit for flow statistic in simple indoor narrow passage . TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com...
-
Page 11: Ptz Control
If you are first time to use this, please start here (or follow the introduction in chapter 12.3 to login), if not, please skip directly. (1)Login cloud service website: http://xmeye.net TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com... - Page 12 4/8/16 channel DVR Quick User Manual 5000SA Series (2)Follow the guide to install it step by step (3) Click“next”, search IP address, as below pic: (4)Click” Next”, see picture as below: TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com...
- Page 13 (6)Click” Next”, to enter the interface of user registration, see below pic: (7)Click” Next”, show the device serial no. (8)Click” Next”, enter the interface to finish registration, see below pic: TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com...
-
Page 14: Login By User
(1)Enter www.xmeye.net, choose”by user”, input user name and password to login. (2)After login, you can click “add device” to add more devices. (3)Enter “my devices” interface, double click device name, can see the monitor image. TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com... -
Page 15: Login By Device
, suggest user to use it. Browser is kernel browser in PC itself, such as IE, etc. TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China... -
Page 16: Cms
Step 2: connect with device, open browser, input the IP address of device, for example, the IP is 10.2.2.88, then input http://10.2.2.88 at the address column, will enter below page: TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com... -
Page 17: Screen Split
Below pic 9 is the interface after successfully login. Pic.9 WEB interface 2．Basic remote control operation To do remote control at the interface of pic 9 2.1 Screen Split To choose the mode of preview TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com... -
Page 18: Playback
Here specially introduce encode setting, multi-channel playback, mobile monitor settings. 1.Encode To set encode parameter, in order to achieve high quality of playback and remote monitor effect.. TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com... -
Page 19: Encode Of Separated Channel Setting
2. Multi-channel playback at the same time 4ch device can achieve 4ch playback at the same time, 8ch device can achieve 8ch playback at the same time, channel no. can combine freely. TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com... -
Page 20: Multi-Channel Realtime Transfer Via Network
Step 3: after add related device, choose window, select related channel at device list, right click, choose to connect all the video (can choose main stream or extra stream, base on network environment to choose) 4. Mobile Monitor TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com... - Page 21 Port: 34567 (Remark: the port no. for vMEyeSuper is default with 34567). After added device, click yes, will see pic 14, choose the channel you want to monitor, the preview image will be displayed. TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com...
-
Page 22: File Storage
DVD-RW. DVR introduces the newest real-time storage technique, supporting video file which are burnt real-time to CD. Real-time remote storage. DVR supports video files real-time storing to computer devices(Disk C/D/E/F) at the remote client. TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com... -
Page 23: Standard Hdmi Output
6.2 Standard HDMI output ( For 8chs & 16chs DVR) The product is standard configured with HDMI output, no need add additional HDMI module. Appendix 1. Remote controller operation Name Function TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com... -
Page 24: Appendix 2.Mouse Operation
Choose the widget or move the item in the widget Drag mouse Set the motion detect area Set the cover area PRODUCT WARRANTY CARD Product Name Model No. TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com... - Page 25 3. Please return the product together with warranty card and invoice to the assigned service center, shipping freight changed by user. 4. Please take card of this card, we can not issue if you lost it. TOPBAND industrial Park, Shiyan Liyuan, Industrial zone Bao’an District, Shenzhen, China www.topband-e.com...
