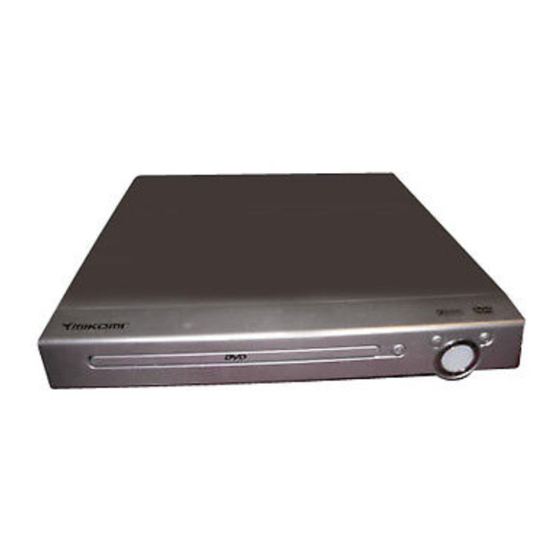

Summary of Contents for Mikomi DS-306
-

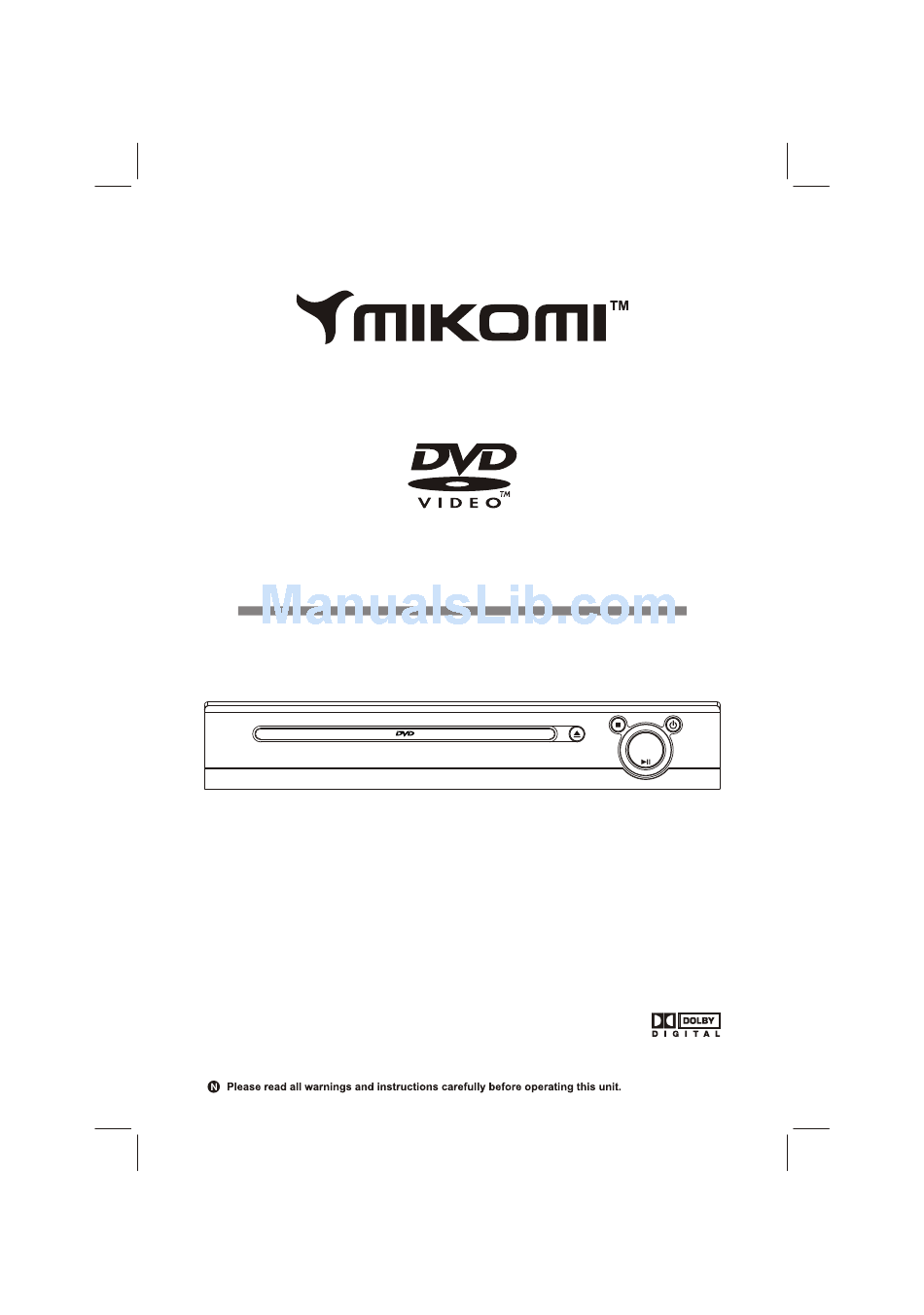

Page 1: User Manual
USER MANUAL MODEL: DS-306 PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor... -
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS 01-02 IMPORTANT SAFETY INSTRUCTIONS NOTICE PLAYABLE DISCS PANEL BASIC CONNECTION 06-07 ACCESSORIES and REMOTE CONTROL BASIC PLAYBACK ADVANCED PLAYBACK 10-11 SPECIAL FUNCTION PLAYBACK SYSTEM SETUP 12-14 TROUBLE SHOOTING SPECIFICATIONS CONTACT DETAILS PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS The lightning flash with arrowhead symbol, within an equila- teral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage " within the product's en- closure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS This product incorporates copyright protection technology that is protected by method claims of certain U. S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. -
Page 5: Important Safety Instructions
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE. This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. -
Page 6: Notice
PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor... -
Page 7: Playable Discs
Getting Started Disc types Disc size 12cm Audio & single side, single layer / single side, double layer PAL and NTSC DVD disc Video Playback time 135min / 240min max. Disc size 12cm / 8cm Audio CD disc Playback time 74min/20min max. JPG format disc JPEG Picture... -
Page 8: Panel
CR / PR 216;4,819,098 CB / PB of Dolby Laboratories. and 4,907,093 Confidential licensed for Unpublished works. limited Model no.: DS-306 Copyright 1992-1997 CAUTION viewing uses Dolby Laboratories. POWER SOURCE: 110V-240V~ 50/60Hz 15W RISK OF ELECTRIC SHOCK COAXIAL VIDEO S-VIDEO only. - Page 9 BASIC CONNECTION Connecting to a TV with Audio/Video cable 2-CH AUDIO OUT VIDEO OUT / DIGITAL AUDIO OUT CB / PB CR / PR COAXIAL VIDEO S-VIDEO To video input(yellow) To audio inputs(red, white) To S-video output To S-video input If the TV has a S-video input, connect the DVD player with a S-video cable.
-
Page 10: Accessories And Remote Control
ACCESSORIES and REMOTE CONTROL REMOTE CONTROL Function Function 1. OSD(On Screen Display) 14. MUTE STANDBY MENU OPEN/CLOSE 2. STANDBY/ON 15. REPEAT V.MODE 3. V.MODE 16. MENU SUBTITLE 4. SUBTITLE 17. OPEN/CLOSE TITLE/PBC 5. TITLE/PBC 18. DIGITS AND 10+ BUTTONS PROG SEARCH 6. -
Page 11: Basic Playback
BASIC PLAYBACK Preparations Fast forward and Fast reverse When you want to view a disc, turn on the TV and 1. Press F.FWD to fast forward through the disc. select the video input connected to the DVD player. Each time the F.FWD button is pressed, the fast forward motion speed changes. -
Page 12: Advanced Playback
ADVANCED PLAYBACK IMPORTANT NOTE: THE FOLLOWING FUNCTIONS ARE APPLICABLE ONLY TO DVD DISCS. IF OTHER DISC FORMATS ARE PLAYED, SCREEN DISPLAY AND OPERATION WILL BE DIFFERENT. PROGRAM Press this button and the screen will display some Press this button and the screen will display info information about disc, such as : "... -
Page 13: Special Function Playback
SPECIAL FUNCTION PLAYBACK AUDIO CHANNEL CHOOSE REPEAT Follow this operation : Press this button on remote control to change the first Chapter mode of audio. twice Title For example: Audio 1/2: AC 3 2 CH English third Audio 2/2: AC 3 5.1 CH English the fourth pressed will cancel repeat. -
Page 14: System Setup
SYSTEM SETUP When you press SETUP key on the remote control, 1.2 ANGLE MARK the setup menu will be displayed. 1.Within the setup menu, you can use UP, DOWN, ANGLE MARK: Users can select a particular camera LEFT and RIGHT buttons on the remote control angle when playing a DVD that offers multiple angles. -
Page 15: Video Setup Page
SYSTEM SETUP DOWNMIX MODE: Sets front speakers to LT/RT 3.1 DUAL MONO STEREO. DUAL MONO: If your amplifier / decoder has The first 2 settings (LT/RT, STEREO) downmix Dolby Digital output, you may select stereo, left mono, right mono, or mixed mono mode for your the sound Signal for 2-Speakers. -
Page 16: System Setup
SYSTEM SETUP 5.2 AUDIO 4.4 BRIGHTNESS AUDIO: Sets the preferred audio language as the BRIGHTNESS: Sets the brightness level of video default when playing DVD. (If the DVD supports the output. languages) Press right button the TV will display below. Press LEFT/RIGHT button to adjust, then press ENTER/PLAY button to confirm and return upon menu. -
Page 17: Trouble Shooting
TROUBLE SHOOTING Please check the following guide for the possible cause and solution for a problem before contacting the nearest service center or dealer for repairs. SYMPTOMS AND CORRECTIONS SYMPTOMS CORRECTIONS Check to make sure that the power connection is secure. No power Make sure the connection between the player and the TV is secure. -
Page 18: Specifications
SPECIFICATIONS System and Outputs VF Signal NTSC/PAL system CD: 20Hz-20KHz(EIAJ) Frequence DVD: 20Hz-44KHz(96KHz)(Sample result) response 20Hz-22KHz(48KHz)(Sample result) Audio S/N ratio > 90 dB MPEG1 V2.0; Video/Picture Audio MPEG LAYER2 standard Audio output Electric level output: 1.8 0.2V Resistance: 10KS (analog audio) Audio output Electric level output: 0.5Vp--p esistance: 75S... -
Page 19: Contact Details
CONTACT DETAILS CONTACT DETAILS We trust you are completely satisfied with this product from Argos Ltd., however please feel free to contact us if you experience any difficulties, or if you would like to express your views regarding our products. Please write to: Customer Services Argos Ltd... - Page 20 PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor...
- Page 21 1-3090-A210-0000-R PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor...
