This manual has been designed and created for use as part of WinSystems Technical
NOTE:
Manuals CD and/or the WinSystems website. If this manual or any portion of the manual
is downloaded, copied or emailed, the links to additional information (i.e. software, cable
drawings) may be inoperable.
WinSystems reserves the right to make changes in the circuitry

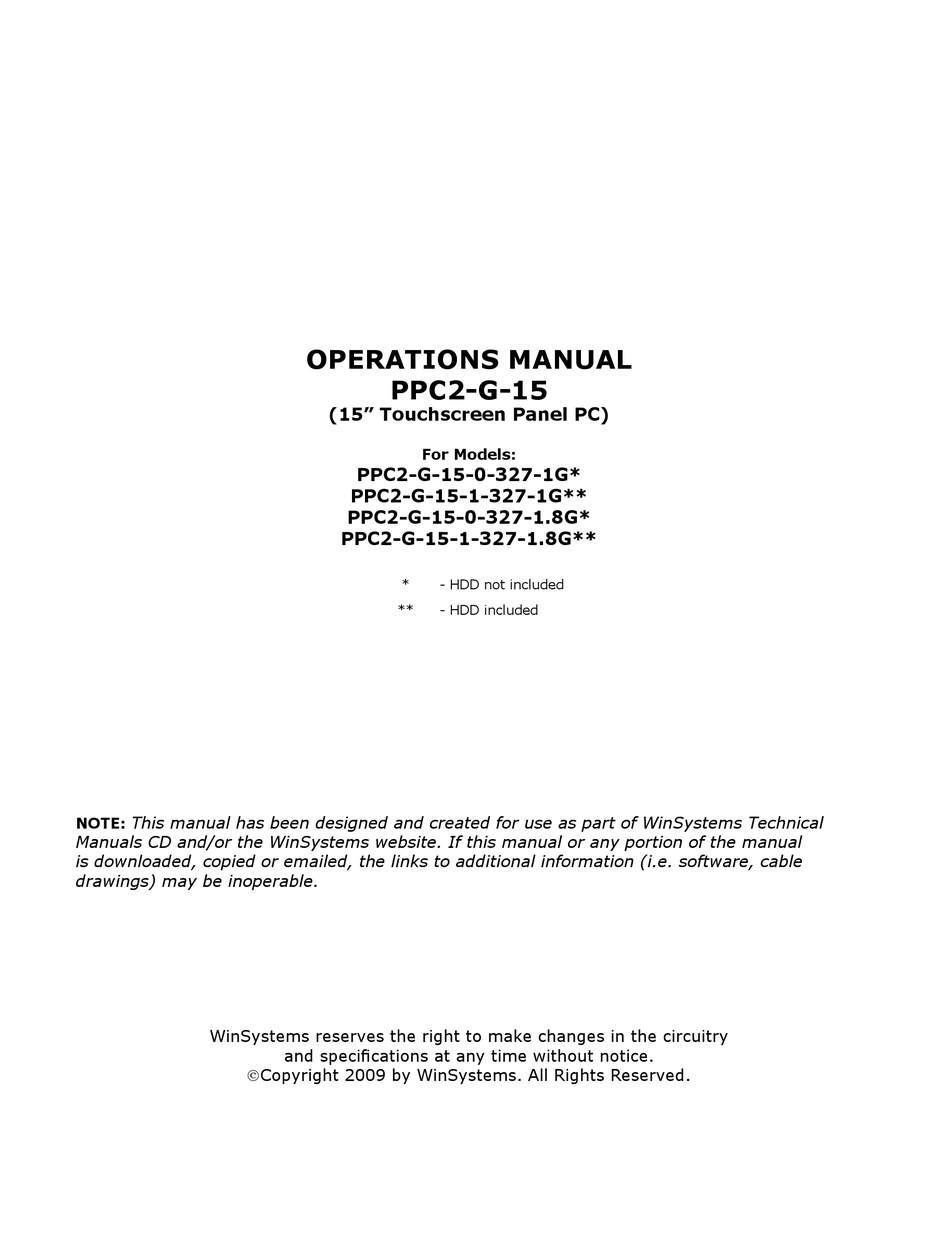

OPERATIONS MANUAL
PPC2-G-15
(15" Touchscreen Panel PC)
PPC2-G-15-0-327-1G*
PPC2-G-15-1-327-1G**
PPC2-G-15-0-327-1.8G*
PPC2-G-15-1-327-1.8G**
*
**
and specifications at any time without notice.
Copyright 2009 by WinSystems. All Rights Reserved.
For Models:
- HDD not included
- HDD included
Advertisement
Table of Contents
Summary of Contents for WinSystems PPC2-G-15-0-327-1G
- Page 1 This manual has been designed and created for use as part of WinSystems Technical NOTE: Manuals CD and/or the WinSystems website. If this manual or any portion of the manual is downloaded, copied or emailed, the links to additional information (i.e. software, cable drawings) may be inoperable.
-
Page 2: Table Of Contents
Table of Contents Introduction General Information Panel PC Series Versions Packing List Safety Precautions PPC2-G-15 Panel PC Series Models PPC2-G-15-0-327-1G PPC2-G-15-1-327-1G PPC2-G-15-0-327-1.8G PPC2-G-15-1-327-1.8G System Specification Front/Rear View Panel PC Block Structure Touchscreen Glass Flat Panel Display Single Board Computers (SBC) - Page 3 REVISION HISTORY G500-5000-061A (PPC2-15”) ECO Number Date Code Rev Level ORIGINATED 090401 Preliminary 091028 A (Documentation OS update)
-
Page 4: Introduction
Refer to the invoice detail that shipped with this product for specific information on your shipment. If any items are damaged or missing from your shipment, contact your WinSystems sales representative. 091028 OPERATIONS MANUAL PPC2-G-15... -
Page 5: Safety Precautions
Safety Precautions Please use the following safety precautions when handling the PPC2 Series Panel Caution This product is static sensitive. Use care when handling to avoid electrostatic discharge. Figure 1-1 High Voltage The Backlight Inverter shipped with this product generates a high voltage. Never touch the inverter directly. -
Page 6: Ppc2-G-15 Panel Pc Series Models
PPC2-G-15 Panel PC Series This Human Machine Interface (HMI) is a compact system based on Winsystems single board computer (SBC). Feature sets of the Panel PC vary based on which SBC is used in the specific configuration. PPC2-G-15-0-327-1G PPC2-G-15-1-327-1G PPC2-G-15-0-327-1.8G PPC2-G-15-1-327-1.8G... -
Page 7: System Specification
Following are the front (Figure 1-3) and rear (Figure 1-4) views of the PPC2-G-15 Panel Note: The rear diagram of the Panel PC may or may not be exact depending on the PPC2 model purchased. Figure 1-3 WinSystems SBC Hard Drive Backlight Inverter... -
Page 8: Panel Pc Block Structure
(3) Single Board Computer (SBC) (* mounted to rear of chassis) (4) Hard Drive Disk (HDD) (* not included with certain PPC models) (5) Touch panel control board (6) Backlight Inverter WinSystems Single Board Computer (SBC) ® Hard Drive *not included with certain PPC models Taiyo Yuden ®... -
Page 9: Touchscreen Glass
Touchscreen Glass The PPC2-G-15 Panel PC series touchscreen glass (Elo Part# E055550 or equivalent) utilizes the AccuTouch five-wire resistive technology. Manufactured by Elo TouchSystems , this touchscreen is made of a stable glass layer, provides drift-free ® operation and can be sealed against contamination. The primary specifications for the touchscreen are listed below (Table 1-1). -
Page 10: Flat Panel Display
Flat Panel Display The PPC2-G-15 Panel PC is equipped with a flat panel display (Optrex Part# T-51863D150J-FW-A-AA ® or equivalent). The Optrex flat panel display is a TFT-LCD module. The specifications are listed below ® (Table 1-2). For more information regarding the LCD’s specifications, please visit http://www.optrex.com. -
Page 11: Single Board Computers (Sbc)
Single Board Computers (SBC) The PPC2-G-15 Panel PC uses WinSystems EBC-855 SBC. The EBC-855 is based upon ® the 1 GHz ZCD™ and the 1.8 GHz Pentium M™ Intel processors. ® PPC2-G-15-X*-327-1G PPC2-G-15-X*-327-1.8G - either 0 or 1 depending on model purchased) For more information regarding the EBC-855 SBC’s specifications, please visit... -
Page 12: Touchscreen Controller Board
Touchscreen Controller Board The PPC2-G-15 Panel PC uses the Elo TouchSystems E271-2210 AccuTouch serial controller ® (Elo Part# 055165-000) for its touchscreen controller board. The controller board uses the EIA RS-232C serial interface. Note - Touchscreen controller board is wired to COM2 port on the CPU board. -
Page 13: Ppc2-G-15 Installation
PPC2-G-15 Installation Panel PC Dimensions View the following Mechanical Drawing for more information on the appropriate cut-out dimensions to use when installing the PPC2-G-15 Panel PC series. See Figure 1-6. 15” Cut-Out Dimensions Figure 1-6 091028 OPERATIONS MANUAL PPC2-G-15... -
Page 14: Powering The Panel Pc
Powering the Panel PC Power is supplied to the PPC2-G-15 Panel PC through a power terminal strip, which is comprised of two parts: a plug (Part# WECO 302-NSLW-HDS/08) and a socket (Part# WECO 302-NFLW-DS/08). For more details on the power terminal strip, visit http://www. -
Page 15: Software Drivers & Examples
Windows XP http://www.winsystems.com/software/EloTouchscreen_XPe_serial.exe Embedded http://www.winsystems.com/software/EloTouchscreen_XPe_usb.exe Windows CE http://www.winsystems.com/software/EloTouchscreen_CE6.zip Linux http://www.winsystems.com/software/EloTouchscreen_Linux.zip WinSystems Single Board Computer Visit the section entitled, “Software Drivers & Example” in the links below for the various drivers associated with the appropriate SBC. http://sbc.winsystems.com/products/EBC-855.cfm#software 091028 OPERATIONS MANUAL PPC2-G-15... -
Page 16: Specifications
Specifications 15” PPC Display Viewable Image Size :15” diagonal Display Type :Active Matrix color LCD TFT Pixel Format :1024 x 768 (maximum) Dot Size :0.240 mm (H) x 0.240 mm (V) Colors :262,144 6-bit digital via LVDS Brightness :250 cd/m2 (nits) (without touchscreen) Contrast Ratio :450:1... -
Page 17: Memory Installation
Memory Installation The PPC2-G-15 Panel PC can support up to 1028 MB of PC2700 DDR SDRAM in a 200-pin DIMM socket. The locations for installing memory and CompactFlash are below (Figure 1-7). EBC-855 DIMM Memory Socket CompactFlash Socket Figure 1-7 091028 OPERATIONS MANUAL PPC2-G-15... -
Page 18: Warranty Repair Information
Notwithstanding anything herein to the contrary, this warranty granted by WinSystems to the Customer shall be for the sole benefit of the Customer, and may not be assigned, transferred or conveyed to any third party. The sole obligation of WinSystems for...
