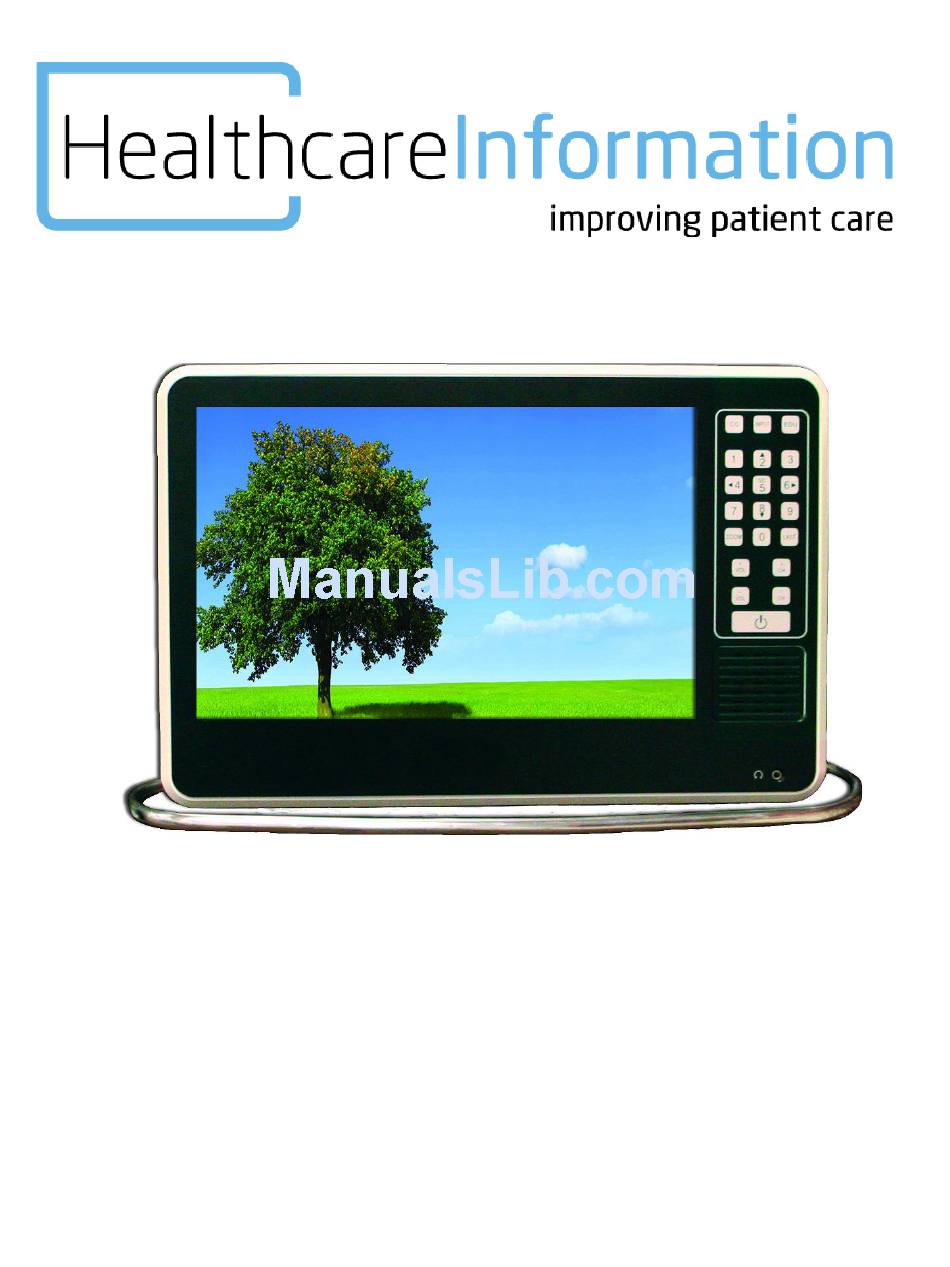

- Page 1 13.3” LOW VOLTAGE BedMate II DTV Operations Manual MODEL# BM13II 5320 REVISION 3.1...
-
Page 3: Table Of Contents
Wireless Audio KEY DEFINE Tuner Mode BANKS Channel Scan Manual Scan VIRTUAL CHANNELS Range Scan Single Channel Scan Source Roll Power Roll SPECIFICATIONS 26, 27 Audio Language WARRANTY Channel Number Display Real Channel Number Virtual Channel Number HealthCare Information, LLC... -
Page 4: Regulatory Information
1. Increase the separation between the equipment and receiver. 2. Consult the dealer or an experienced radio/TV technician for help. CAUTION Do not attempt to modify this product in any way without written authorization from HealthCare Information, LLC. Unauthorized modification will void the warranty of the product. CAUTION Danger of explosion if battery is incorrectly replaced. -
Page 5: Safety Instructions
FOLLOWING SAFETY POINTS WHEN INSTALLING AND USING YOUR NEW PRODUCT, AND SAVE THEM FOR FUTURE REFERENCE. OBSERVING THE SIMPLE PRECAUTIONS DISCUSSED IN THE MANUAL CAN HELP YOU GET MANY YEARS OF ENJOYMENT AND SAFE OPERATION THAT ARE BUILT INTO YOUR NEW PRODUCT. HealthCare Information, LLC... -
Page 6: Package Contents
PACKAGE CONTENTS After opening, carefully check the package contents: 13.3” BedMate II Low Voltage LCD-TV IR Remotes are shipped per order. Manuals are shipped per order* *The latest version of this manual can be downloaded from www.hci-tv.com HealthCare Information, LLC... -
Page 7: Product Introduction
LAST GREEN YELLOW BLUE NO FUNCTION NO FUNCTION OSD BACK OK (ENTER) NAVIGATION FUNCTION CODE SETUP MENU STATUS BANK CONTROL SYSTEM MENU PAUSE PLAY REWIND FAST FORWARD REWIND CHAPTER FORWARD CHAPTER CLONE NO FUNCTION STOP VERSIONS INFO HealthCare Information, LLC... -
Page 8: Product Introduction
----------------------------------------------------------------------------------BedMate II OPERATIONS MANUAL PRODUCT INTRODUCTION FRONT PANEL RIGHT SIDE PANEL REAR I/O PANEL HealthCare Information, LLC... - Page 9 Remove the safety retainer nut and safety retainer from the stem at the top of the TV. NOTE: You can not pass the safety retainer and nut over the cable connectors. Remove the side panels from the nose of the arm. There are two screws holding each side panel in place. HealthCare Information, LLC...
- Page 10 DO NOT OVER TIGHTEN. 1/16 TO 1/8 TURN PAST FINGER TIGHT IS ENOUGH. The power cable and Cat5e cables are not used with the BedMate II and do not need to be connected. HealthCare Information, LLC...
- Page 11 ----------------------------------------------------------------------------------BedMate II OPERATIONS MANUAL If present connect the CAT5 and power cables. (BedMate III only) Arrange the cable(s) into the nose. Reinstall the Nose covers. Plug in the power supply and proceed to setup. HealthCare Information, LLC...
-
Page 12: Basic Connections
Press “ENTER” to tune to the selected channel. After channel is tuned press “ENTER” again to display information about the channel if available. FUNCTION Display TV status and enter function codes. Exit OSD displays. Bank editing reset. GREEN Bank editing clear. YELLOW Bank editing copy. BLUE Bank editing paste. HealthCare Information, LLC... -
Page 13: Ir Remote Control
4. When finished (about 2 minutes) remove the USB flash drive. 4. When finished (about 2 minutes) remove the USB flash drive. NOTE: USB flash drive must be formatted FAT. The clone files can be copied to multiple flash drives using a PC or laptop computer. HealthCare Information, LLC... -
Page 14: Function Codes
Improves the quality of pictures Settings are: Reduction Off - Low - Med – Strong Note: Use lowest setting possible for all noise reduction settings. Setting to a level higher than needed may cause a reduction in picture quality. HealthCare Information, LLC... -
Page 15: Auto
Turns keypad beep on or off. When on a beep is heard when a button is pressed. Use Mode left/right arrow keys to turn on/off. Pair Wireless Pairs the TV to a Blue Tooth audio device. Select and press the “ENTER” button to pair. Audio HealthCare Information, LLC... -
Page 16: Auto Scan
Turns source roll on or off. When turned on, television will loop through channels and sources. Power Roll Turns power roll on or off. When turned on, television will power off after changing the highest or lowest channel number in the lineup. HealthCare Information, LLC... -
Page 17: Audio Language
Virtual Channel Number. NOTE: Virtual channel numbers allow digital channels to be assigned a whole number which can be used with pillow speakers that do not have a “.” Or “-“ button for digital channel tuning. HealthCare Information, LLC... -
Page 18: Clock
NOTE: The set will give a warning and count down starting 2 minutes before Turn Off Time is reached. During off time, the set can be turned on for two minutes. During this two minutes enter Function Code 10086 to disable timer. HealthCare Information, LLC... -
Page 19: Hdmi
Off – Lock 1 – Lock 2 All buttons function. Lock 1 Only power button functions. Lock 2 Only power, Vol +/- and CH +/- function. NOTE: Keypad Lock does not affect IR remotes or pillow speakers. HealthCare Information, LLC... -
Page 20: I/O Panels
NOTE: Mute command can only come from IR Remote or pillow speaker control. CC and Mute CC button controls both CC and Mute. Each press cycles to the next selection. Selections are: CC On-Mute On, CC On-Mute Off, CC Off-Mute On, CC Off- Mute Off, CC On Mute HealthCare Information, LLC... -
Page 21: Keypad
Reads clone files from USB flash drive From USB. NOTE: See page 13for full cloning procedure. Service Reset Intended for factory use only. Resets all OSD menu items to factory default values. Clears all channel information and sets all analog channels as active. HealthCare Information, LLC... -
Page 22: Parental Control
13 asn+ 13 years of age and older Parental Guidance 16 ans+ 16 years of age and older Over 14 years of age. 18 ans+ 18 years of age and older Adults over 18 years of age. HealthCare Information, LLC... - Page 23 ----------------------------------------------------------------------------------BedMate II OPERATIONS MANUAL MENU TREE HealthCare Information, LLC...
-
Page 24: Video
See pages 19 to disable the TV’s internal speakers or turn on pillow speaker sound. The BM13II has a ¼” jack for pillow speaker connection. A one button analog pillow speaker, digital pillow speaker set for Zenith or Philips code, HCI Visitor station or a Sip and Puff device can be used. -
Page 25: Key Define
Bank setup. Available sources for the 13.3 inch set are TV, SD/USB, FM and VGA. If a source is not in the lineup for the current Bank (box unchecked) that input source will not be available when the Input or Source buttons are pressed. HealthCare Information, LLC... -
Page 26: Virtual Channels
Tune to the channel you wish to add. Press the EDU button Press the down arrow button until the selection box is below the last channel showing. Skip this step if this is the first channel being added. Press the “OK” button. HealthCare Information, LLC... -
Page 27: Specifications
----------------------------------------------------------------------------------BedMate II OPERATIONS MANUAL SPECIFICATIONS DIMENSIONS HealthCare Information, LLC... -
Page 28: Brightness
Password protected (remote required) Keypad Disable Off, Power Only, Power Channel and Volume Cloning Copy All Settings from one TV to Another via USB Flash Drive Power on /off time Approvals FCC (B), C-UL Warranty Two Years Parts & Labor HealthCare Information, LLC... -
Page 29: Warranty
HCI’s liability under this warranty is limited to repair or replacement of defective products and parts as provided above. HCI shall not be liable for incidental or consequential damage HealthCare Information, LLC... - Page 30 HCI ALSO OFFERS 22”, 26”, 32, & 42” SIZES ©Copyright 2011, HealthCare Information,...
