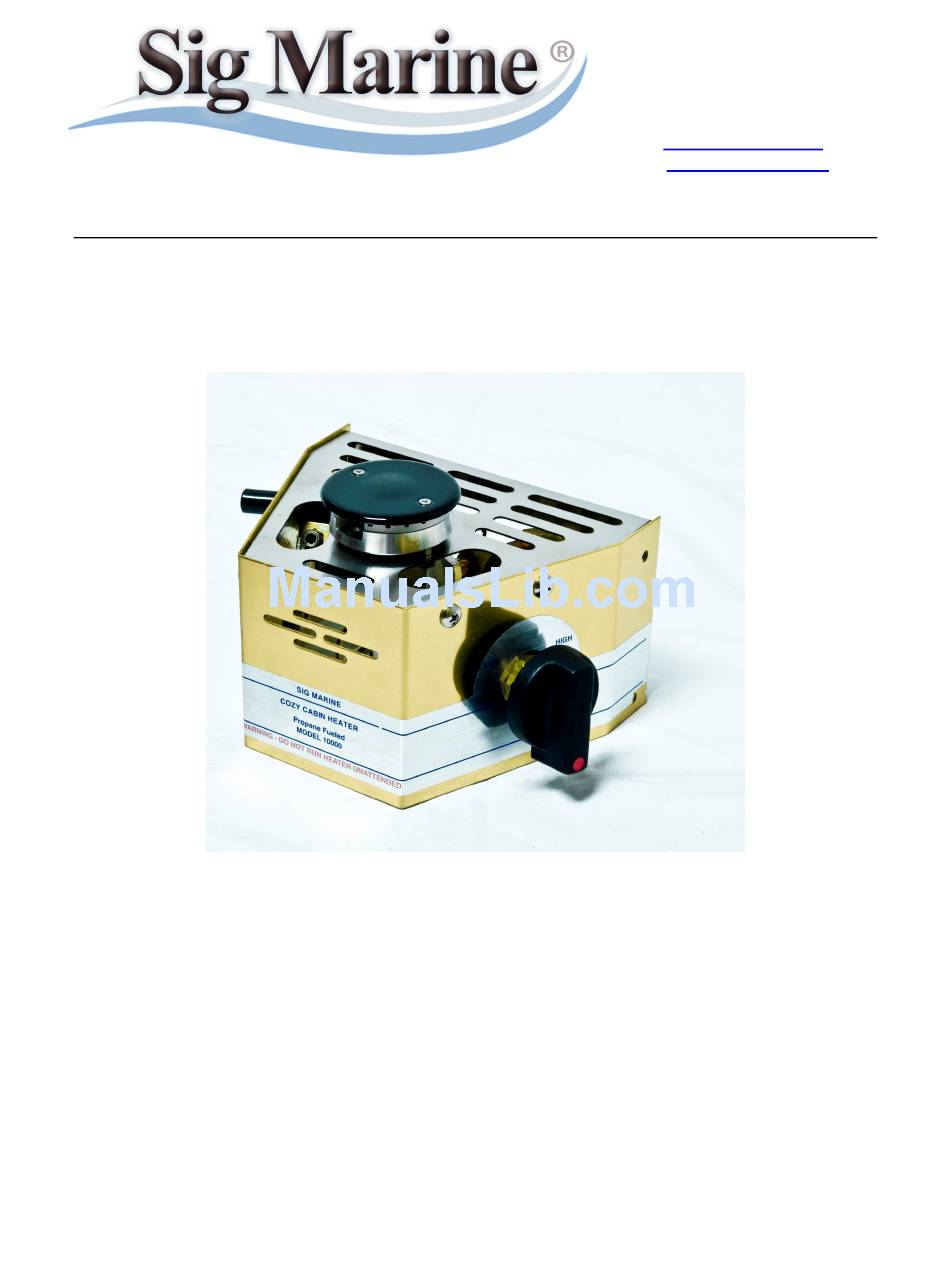

Cozy Cabin Heater Propane Bottom Assembly
Instruction Manual
This manual must be read and the requirements carried out
to ensure satisfactory performance.
SIG MARINE RESERVES THE RIGHT TO MAKE CHANGES TO PRODUCTS
#10400
OR DOCUMENTS AT ANY TIME
Sig Marine Products
#101-17728 66 Ave
Surrey B.C.
Canada V3S 7X1
www.sigmarine.com
info@sigmarine.com
Advertisement
Table of Contents
Summary of Contents for Sig Marine 10400
- Page 1 Cozy Cabin Heater Propane Bottom Assembly #10400 Instruction Manual This manual must be read and the requirements carried out to ensure satisfactory performance. SIG MARINE RESERVES THE RIGHT TO MAKE CHANGES TO PRODUCTS OR DOCUMENTS AT ANY TIME...
- Page 2 SEPARATE 11” W/C LOW PRESSURE REGULATOR INSTALLED CORRECTLY OR OPERATION WILL RESULT IN A DANGEROUS FIRE AND WILL DAMAGE YOUR UNIT. **PLEASE READ YOUR INSTRUCTION MANUAL BEFORE USE OF THIS APPLIANCE** SIG MARINE PROPANE BOTTOM ASSEMBLY www.sigmarine.com info@sigmarine.com Form#7.2-69 Issue#2...
-
Page 3: Safety And Installation
SAFETY AND INSTALLATION General The Cozy Cabin Heater Bottom Assembly # 10400 is manufactured for the Model 10000, and is designed to be fuelled only by low pressure liquid propane gas (LPG). compressed natural gas (CNG) is used in this heater the burner flame will be inadequate for heating. - Page 4 Locate the cylinder and regulator in a locker vented to the open air (preferably on the deck or cabin top) isolated from the hull interior by a vapor tight enclosure. Refer to local codes or Coast Guard requirements for details. Propane is heavier than air.
-
Page 5: Fuel System Testing
Recommended LPG System Installation ** In some cases the solenoid valve is installed on the low pressure side of the system (i.e. after the LPG regulator). See solenoid manufacturers' instructions for proper installation. Starting from the propane tank itself, the fuel line attachments should occupy the following positions: (a) the tank shut-off valve, (b) the solenoid valve, (c) the pressure gauge, (d) the regulator, and (e) the range itself. -
Page 6: Operating Instructions
The leak(s) should be located by applying a mixture of liquid of detergent and water to all connections and other suspect points and checking for bubbles. Do not attempt to locate leaks by using an open flame. Repair and re-test the system before putting it into operation. -
Page 7: Troubleshooting
When the oxygen depletion pilot flame comes on, you must hold the knob in for 10 to 20 seconds. During this time the pilot flame heats up the thermocouple. When the thermocouple is hot it generates a small amount of voltage, which will energize a small solenoid coil inside the gas valve. - Page 8 4. LPG gas will not flow as readily if the outside temperature is very low, i.e. below freezing. There is not much you can do about this condition until the propane cylinder locker warms up. Ignition System Fails to Spark 1.
-
Page 10: Limited Warranty
LIMITED WARRANTY Sig Marine Company warranties new products to the original consumer to be free from defective material(s) and workmanship while under normal use and service. This limited warranty extends for one year. Terms and Conditions During the warranty period, Sig Marine Company will, at its option and without charge, repair and/or replace but not remove or re-install the faulty product The buyer will return defective products to the address stated on the warranty form.
