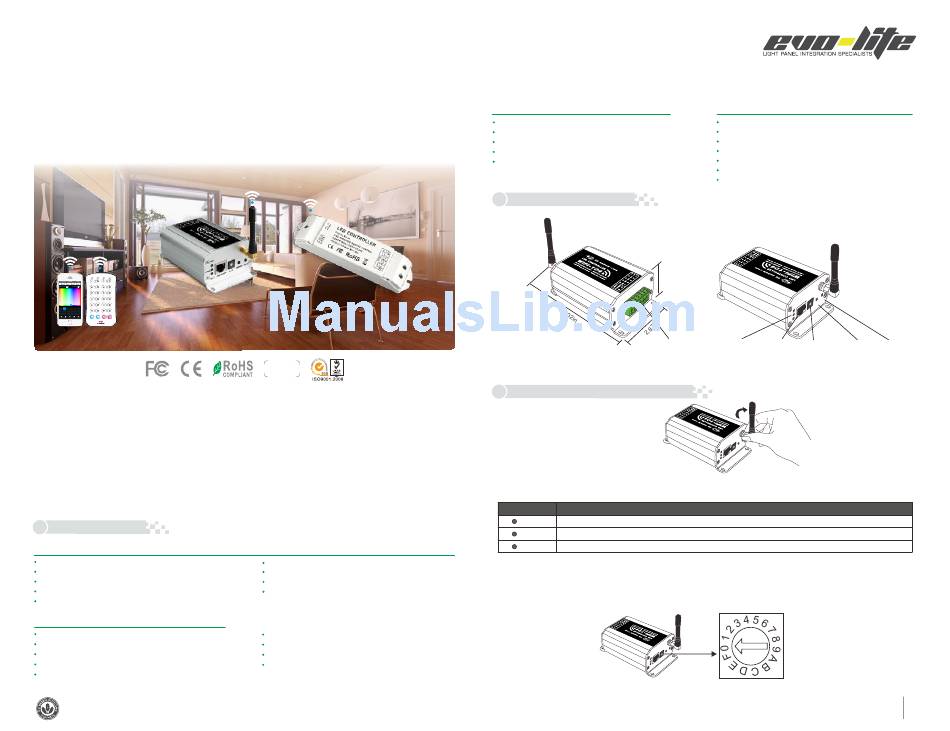

Evo-lite WIFI-104 Product Overview

PRODUCT OVERVIEW
WIFI-104
RGB WiFi Lighting Control System
R 255 G 255 B 255 W 255
80% 80%
W
WiFi-104
WiFi-104
CONTROLLER1
Long press to turn off single zone or group
RGB RGBW CT1 CT2 DIM RGB
1 2 3 4 5 6
DIM 7 RGBW 8 RGBW 9 10 RGBW RGBW 11 DIM 12
Group1 Group2 Group3
Device Group Mode Scene On/off
Not Included
Included
The WiFi-104 is a versatile lighting control system utilizing WiFi connectivity of mobile devices to control various types of LED
lighting products. Free software downloads for iOS & Android phones as well as tablet PCs allows the user to connect and
control.
The WiFi-104 lighting control system integrates with four functional controls including dimming, color temperature adjustable,
RGB and RGBW, which could be set as single color, color temperature(nature white + warm white and nature white + warm
white + cool white), RGB and RGBW.
Supports a max of 12 separate zones.
WiFi-104 control system supports connection directly or through an existing router.
Direct connection: WiFi-104 and R4-5A/R4-CC can be controlled directly by a mobile phone or tablet without any the third
party network equipment.
1. Product P arameter:
WiFi-104 Controller
Communication Standard: 2.4GHz Wi-Fi, 802.11b/g/n Protocol
Input Voltage:
DC12V~DC24V
Max Current Load: 4A x4CH Max 16 A
Max Output Power: 192W/384W(12V/24V)
WiFi Control Distance: 10 9yd (Distance of cross-eyed)
R4-5A Constant Voltage Zone Receiver
Wireless Frequency: 2.4GHz
Input Voltage:
DC5V~DC24V
Max Current Load 5A × 4CH Max 20 A
100W/240W/480W(5V/12V/24V)
Max Output Power:
Remote Distance: 55yd (Distance of cross-eyed)
R4-5A
R4-5A
Sold
Seperately
warranty
5 years
Working Temperature:
-4ºF~122ºF
Product Size: L5.02×W2.87×H1.75 in
Package Size: L5.31×W3.15×H1.97 in
Weight(G.W.): 0.64lbs
Working Temperature: -4ºF~122ºF
L6.89×W1.73×H1.81 in
Product Size:
Package Size: L7.01×W1.89×H1.30 in
Weight(G.W.): 0.24lbs
1 3 9 3 S o u t h S a n ta F e D r , D e n v e r , C o 8 0 2 2 3 • 1 - 8 8 8 - 8 8 7 - 2 9 8 0 • i n F o @ e v o - l i t e . C o m • w w w . e v o - l i t e . C o m
M12 Remote Control
Working Voltage:
DC 3V(CR2032 button battery)
Transmitting Frequency:
2.4GHz
Remote Distance: 32.8yd (Distance of cross-eyed)
Dimensions:
L4.09 × W2.36 × H0.35 in
Weight (G.W):
0.09lbs
2. Configuration Diagram
5 i n
1 . 7
Power Input / LED Output
Side A
3. Controller Operating Instructions
(1) Install / Uninstall ANT
clockwise to install the WiFi ANT,
counterclockwise to take off
(2) Indicator Light Instructions
Indicator light
RUN It flashes quickly about 25s during the electric initialization. Flashes once per second after initialization
LINK It keeps on when the mobile device connects to WiFi-104, and turns off when disconnected.
RX/TX It turns on when the controller receives or transmits the WiFi data. Turns off in the free time.
(3) SSID Number Setting
Use code switch to set the controller's SSID Number--WiFi-104-SSID-X, X stands for a certain No. ranging from 0-F, totally 16 options.
which means our product could set 16 isolated LAN in the same area. WiFi-104 will initialize each time the SSID NO. changed. Run LED
indicator quick flashes about 25s, mobile device need to search and connect WiFi again after Initialization finished.
E
EN
SC
AT CH
N M
RU
SS ID
Y
NK T KE
LI EX
X
/T
RX
Software Technology Parameters
Operation Platform: No Lower Than Android 2.2 or iOS5.1
Screen Resolution: Above 960*640
WiFi Function: Must Have WiFi Function
Byte: Android Edition (919K); iOS Edition (2.9MB)
Language: English
Category:
Appliance
Other: Free, No Plug-ins
E
E N
S C
H
T C
M A
N
R U
S S ID
K E Y
K T
L IN E X
X
R X /T
Indicator SSID Code Learning ID
Manufacturer
switch
Interface
Side B
N
FU
C H
N M AT
R U
S S ID
Y
K E
N K E X T
LI
/T X
R X
ANT installation instruction
Instructions
Scene
Key
