LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8

LK Room Temperature Control ICS-RF8

Design

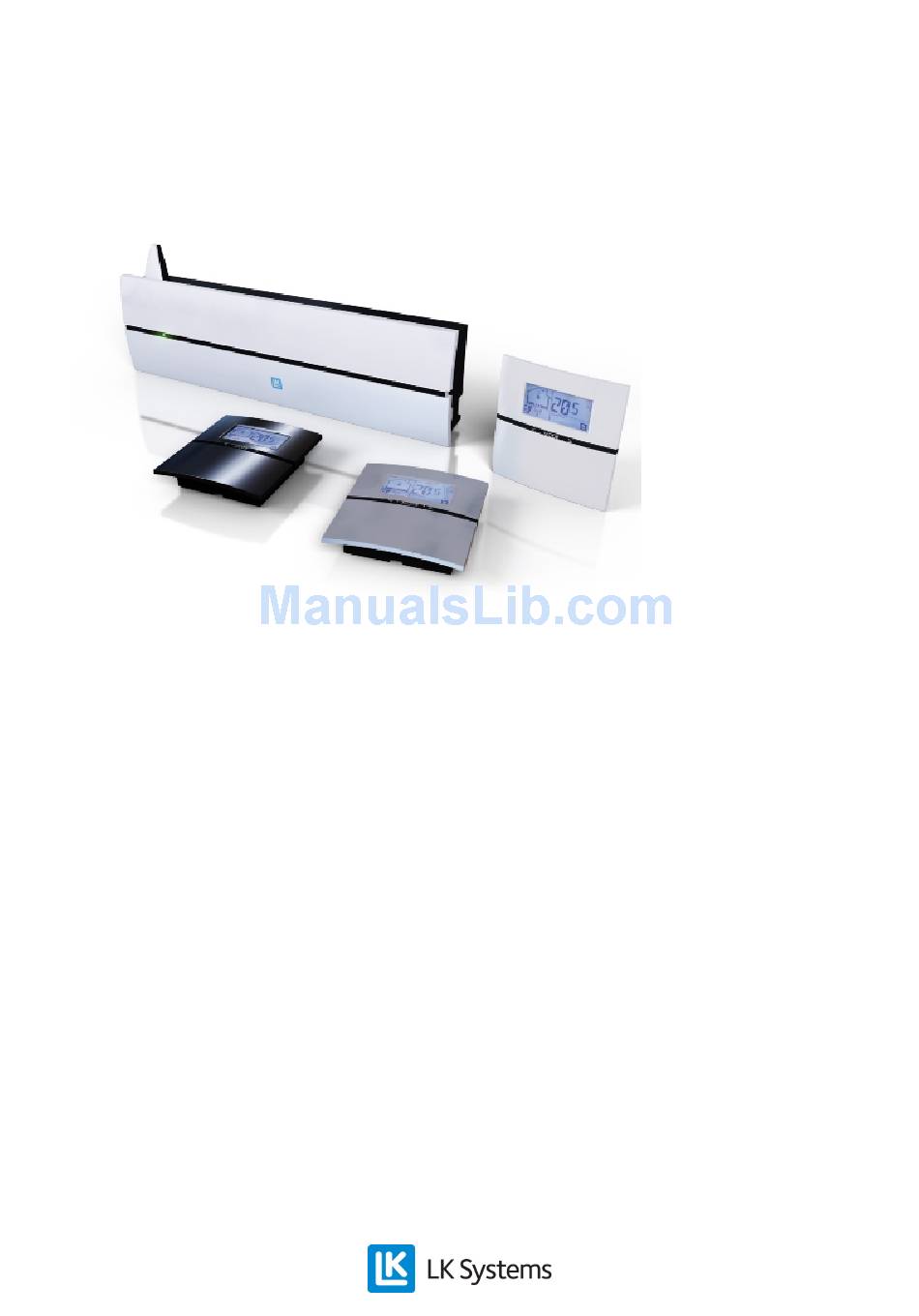

LK Room Temperature Control ICS-RF8 is a wireless control system designed for LK Floor Heating. LK ICS-

RF8 consists of LK Room Thermostats ICS-RF, an LK Receiver unit ICS RF8 and LK Actuators.

Function

Room thermostats regulate the temperature of each room (zone) via wireless signal transmission to the receiving

control unit. The actuators for each room/zone are controlled by the receiver unit.

The system has several "smart features" such as adaptive weekly programming, holiday functions, the ability

to connect external sensors, external temperature set back via GSM switches, and more. For further information,

please see the In-depth description for LK ICS-RF8.

The system benefits from:

EN.33.C.891008

Table of Contents

Need help?

Do you have a question about the ICS-RF8 and is the answer not in the manual?

Questions and answers

Summary of Contents for LK ICS-RF8

Page 1 LK Room Temperature Control ICS-RF8 Design LK Room Temperature Control ICS-RF8 is a wireless control system designed for LK Floor Heating. LK ICS- RF8 consists of LK Room Thermostats ICS-RF, an LK Receiver unit ICS RF8 and LK Actuators. Function Room thermostats regulate the temperature of each room (zone) via wireless signal transmission to the receiving control unit.
Page 2: Installation Instructions
Install the receiver adjacent to the Manifold. Ensure there is enough space below the unit to remove the lid and that it is possible to connect LK ICS MEM Stick vertically downwards. If the receiver is mounted in a steel cabinet it is recommended that the radio link is placed outside the cabinet. This is easily done with LK Antenna Cable ICS (accessories).
Page 3 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Quick Guide – programming the thermostats Check that the radio link cable is connected to the receiver's RF input Press the L key on the receiver unit for at least 3 seconds, the L-LED will light green.
Page 4: Holiday Function
When on vacation, the temperature of the heating system can be lowered for the duration; this is easily done from any thermostat in the system by activating the built-in holiday mode. LK ICS then keeps track of how many days the system should have a lower temperature and makes sure that the house is again warmed on return from vacation.
Page 5: Function Description
LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Function description The LK Receiver unit ICS RF8 has eight channels, allowing up to eight LK Thermostat ICS-RF to be connected to the unit. The receiver collects data from each room thermostat and sends control signals to LK actuators. One thermostat can control more than one channel.
Page 6 ICS thermostats can be easily set for more than one channel/actuator output. Please see the Quick Guide. LK Actuators are opened once every 24 hrs. to prevent the manifold valves from sticking in the closed position (essential long term maintenance).
Page 7 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Pump relay (illus. 9) Circulation pumps (i.e. the pump in a shunt pack) can be controlled through the unit’s pump relay. The relay is located under the lid of "high voltage side" of the receiver unit.
Page 8 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 NOTE: the relay contact is "potential free" (volt free), which means that the boiler relay contacts must be powered from an external source and NOT from the receiver unit. The boiler/heat source will fire approximately 6 minutes after any one channel calls for heat.
Page 9 The receiver is equipped with a MEM port that is used primarily when there is to be a system log maintained. Measurement data is sent to LK ICS MEM Stick once per minute. With the help of measurement data and LK ICS Analyzer software, the installer can easily verify/analyze the installation.
Page 10 The thermostat, as standard, monitors internal room temperature. It is also possible to equip the thermostat with LK External Sensor ICS. Additionally the thermostat can control/check the floor temperature alone, or the floor temperature in combination with the room temperature. NOTE: for further information, please see the section entitled External sensors.
Page 11 NOTE: for further information, please see the section entitled: Weekly Programming. LK ICS has a so called "holiday function" which can be activated from any thermostat in the system. The holiday function enables lower the temperatures for extended periods, such as during a vacation. When activated, the feature lowers the temperature of all thermostats to 12 degrees.
Page 12: Description Of Display
LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Description of display Heat on/off and minimum and maximum limit Number of the receiver unit and error code Room temperature measurements enabled OK symbol Indicates constantly disconnected weekly program...
Page 13 If necessary, the signal can be improved by placing the thermostat closer to the receiver unit, if possible. Alternatively, the radio link can be moved by using the LK Antenna Cable. If the problem persists, the signal is strengthened by use of LK Repeater.
Page 14 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 NOTE: The system clock must be set accurately for this feature to work properly. Weekly program - temperatures The units are supplied with the following default temperature values:...
Page 15 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 WK04 = stop time comfort/start time eco days 6-7, select the time with the left/right arrow, confirm with Mode. NOTE: The above settings apply to all the thermostats in the system.
Page 16 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Increase/decrease the temperature by using the +/- key Press Mode once when the temperature is flashing. Symbol for constantly disconnected weekly programs appear on the display, see illus. 5 in the display above.
Page 17 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 NOTE: Observe that the "countdown" starts from the moment the "activation" occurs which means that the next day at the same time of the initial activation a day has disappeared.
Page 18 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Press Mode until flashes, confirm with Mode. Press the right arrow until LOCK is shown in the display, confirm with Mode. Select ON/OFF with the left/right arrow, confirm with Mode.
Page 19 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 The external sensor, LK External Sensor ICS is connected as follows: The external sensor is installed in a protective conduit; see separate instructions in the External sensor – location in different heating systems section.
Page 20 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Thermometer only flashes = room temperature only. Confirm with Mode. The external sensor is not active. The thermometer and MAX flashes = room temperature with the floor set at maximum limitation.
Page 21 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Resistance table Temperature Resistance kΩ +- 5% 0 °C 32,66 5 °C 25,40 10 °C 19,90 15 °C 15,71 20 °C 12,49 25 °C 10,00 30 °C 8,05 35 °C...
Page 22: Delete Channels
End the sequence by pressing the L key on the receiver unit, following which the L-LED goes out. Battery replacement LK Room Thermostat RF ICS comes with three 1.5 volt LR03 batteries (AAA). The batteries have a life expectancy of two years. Life expectancy is affected by the user's choices, such as activated background lighting.
Page 23 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 BUS (Network for the control of common pumps and/or heat sources) In cases where multiple receiver units signal/control a common pump and/or heat source, the receiver units are connected together, in parallel, through the input marked BUS.
Page 24: Troubleshooting
LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 4. BUS – naming the receiver units Each receiver unit must be named or numbered in order for communication to work. Name the receiver units, as follows: Press the L key for at least three seconds on optional receiver unit The unit’s L-LED lights up green.
Page 25 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Error Description Action No signal Automatic reset transmission has occurs when the occurred for 60 signal arrives. minutes. Check the signal strength. Short circuit of The device actuator.
Page 26 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Error Description Action No communication Check the in the BUS (from connection points the network). Taken from the info.txt file Receiver unit is not numbered (from the network). Taken from the info.txt...
Page 27 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 LK Repeater ICS LK Repeater ICS is used to increase the transmission distance between the LK Room Thermostat ICS RF and the LK Receiver unit ICS-RF. The repeater consists of a radio link with receivers and transmitters. A transformer that plugs into a 230V outlet comes with the repeater.
Page 28: System Limitations
LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Switch the repeater off (if it is powered up). Press the L key for at least 3 seconds on the receiving device. The L-LED should light green. Connect the repeater to a 230 volt outlet.
Page 29 LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Limitations Notes Number of thermostats per ICS RF8 Number of actuators per ICS Number of actuators per It is possible to physically connect two per channel ICS contact.
Page 30: Technical Data
LK Floor Heating | Assembly Instructions | LK Room Temperature Control ICS-RF8 Article overview Article number Name Comments 2417302 LK Thermostat ICS-RF High gloss white 2417303 LK Thermostat ICS-RF High gloss black 2417304 LK Thermostat ICS-RF Silver grey 2417307 LK Receiver Unit...
