Summary of Contents for Cotell IH2510E-A-WM
-

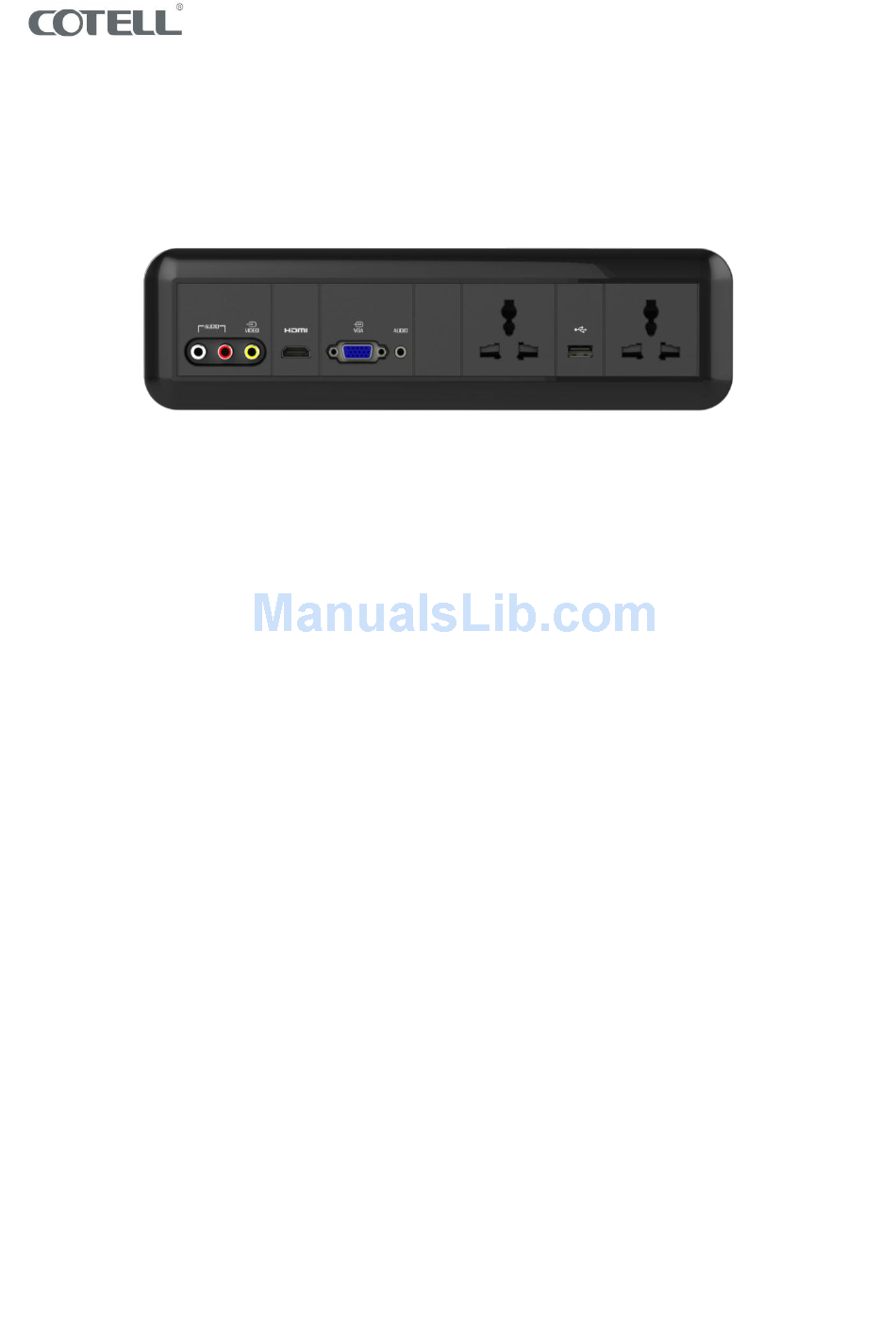

Page 1: Installation Guide
IH2510E-A-WM IH2510E (Wall-Mount) Installation Guide... - Page 2 IH2510E-A-WM IH2510E-A-WM Infotainment Connectivity Panel Accessories HDMI Cable User guide Screws Brackets IH2500E-M-WM FEATURES Wall-mount Ergonomic design with stylish outlook High quality casing Dual universal power sockets (110VAC or 220VAC) +5V universal charger ...
- Page 3 IH2510E-A-WM IH2510E-A-WM DIAGRAM ITEM FEATURE DESCRIPTION Audio & Video Audio & Video input HDMI HDMI input VGA input Universal Power Socket Universal power supply(110VAV or 220VAC) +5V USB charger +5V charger Universal Power Socket Universal power supply(110VAV or 220VAC) IH2510E-A-WM MEASUREMENT...
- Page 4 IH2510E-A-WM BRACKET DIAGRAM （in mm） INSTALLATION PROCEDURE Remove the bracket; Create depression in the wall according to the size of the junction box (in mm).
- Page 5 IH2510E-A-WM 1. Fasten the bottom of the junction box to the wall 2. Place the universal power cord through the junction box 3. Insert all the cables through the Junction box and ensure that they are securely fastened. Connect the other end of the cables to the relevant connections (Power, Internet & TV outlets)
- Page 6 IH2510E-A-WM 4. Place the IH2510E-A-WM core into the junction box and fasten the 4 screws provided. Clip in the upper faceplate. 5. Test all function to ensure they are workable. OPERATION General 1. Turn the TV to Appropriate HDMI channel using the TV remote control 2.
- Page 7 IH2510E-A-WM IMPORTANT SAFETY INSTRUCTIONS WHEN USING YOUR INFOTAINMENT CONNECTIVITY PANEL, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS. INCLUDING THE FOLLOWINGS: 1. READ AND UNDERSTAND ALL INSTRUCTIONS IN THIS MANUAL.
- Page 8 8. Damages in transit. 9. Any damage resulting from unauthorized modification or repair of the Infotainment connectivity panel. COTELL PRODUCT SUPPORT If you need technical assistance with this product, please contact COTELL INTERNATIONAL LIMITED : Telephone : 86-755-2583 1520 : 86-755-8885 9899 Email Sales@cotell.cn...
