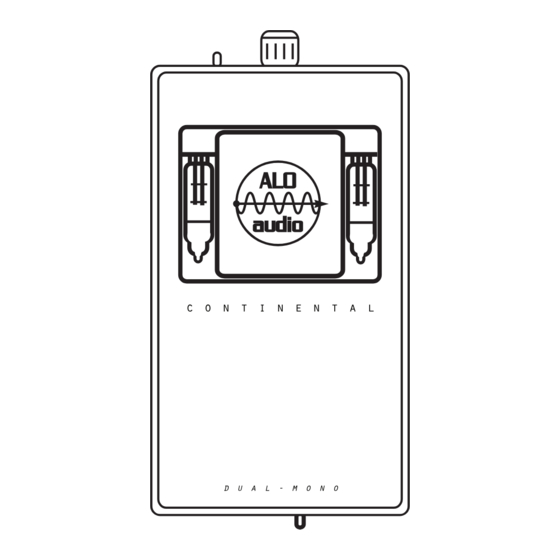

ALO Audio Continental Dual-Mono User Manual

S p e c i f i c a t i o n s
Single Ended
80mW into 32 ohms
95mW into 50 ohms
75mW into 150 ohms
60mW into 300 ohms
Balanced
125mW into 32 ohms
145mW into 50 ohms
110mW into 150 ohms
95mW into 300 ohms
Input impedance SE: 10k
Input impedance BAL: 50k
Output impedance SE and BAL: < 1 Ohm
W a r r a n t y
Continental Dual Mono includes a 1 year
limited liability product warranty covering
defects due to manufacturing and assembly.
For more information visit ALOaudio.com/warranty
U s e r G u i d e
Turn on the continental by rotating the volume
/ power knob clockwise until the power indicator
light illuminates.
Set your gain level; High for headphones and low
for earphones and custom IEMs.
Select your source via the input selection
switch on the back panel of the unit.
Connect your earphones or headphones to the
amplifier with the volume at a low level.
Once connected gradually increase the volume to
find a comfortable listening level for you.
Remember that prolonged listening sessions at
high volumes can potentially damage your
hearing.
The unit will heat up during use. When using
the DAC the unit will run at a higher tempeture
than using the amp section alone. The parts
used in the Continental are all rated to
withstand this heat. Keep the unit well
ventilated when using both the DAC and Amp
sections.
Learn more at:
www.aloaudio.com/continental-dual-mono
Continental
Dual Mono
Designed in Portland, Oregon USA
Made in Portland, Oregon USA
Green Line USB cable
Designed in Portland, Oregon USA.
Assembled in Taiwan
from components made in USA and Taiwan.
12.6 V Wall Charger
Made in China.
Packaging
Designed in Portland, Oregon USA.
Made in Portland, Oregon USA.
Continental Dual Mono
and ALO audio names and Logos are
protected by USA
trademark and copyright
Visit us at
ALOaudio.com
