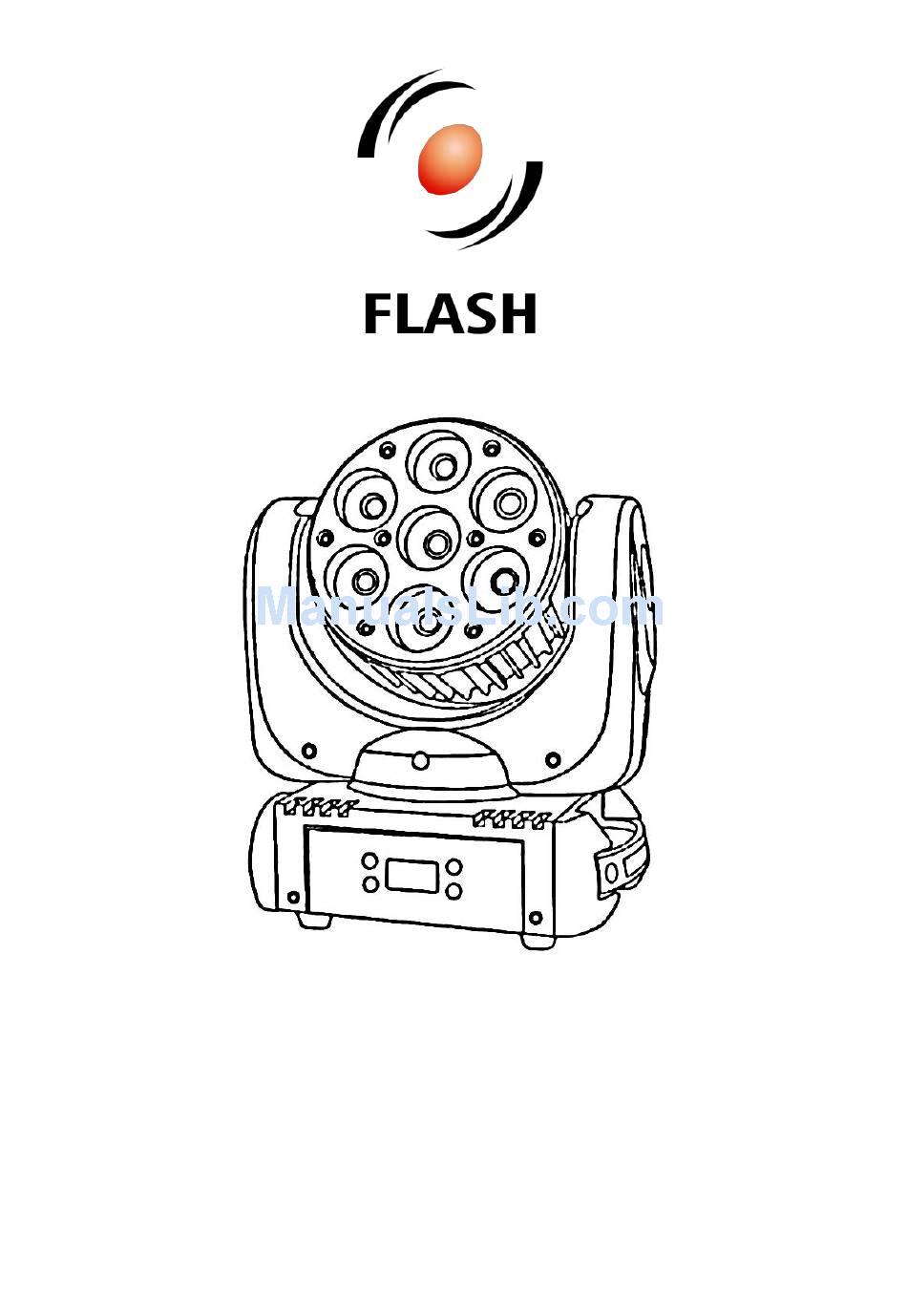

- Page 1 LED MOVING HEAD BEAM 7x15W RGBW 4in1 OSRAM 5°/25° F7000563a USER MANUAL...
-
Page 2: Table Of Contents
LED MOVING HEAD BEAM 7x15W RGBW 4in1 OSRAM 5°/25° F7000563a Table of Contents Introduction ..............................2 Safety information ............................2 Product information ............................3 Features ............................... 3 Specification ..............................3 Installation ................................ 4 Connections ..............................6 Connecting DMX signal..........................6 Voltage specification .......................... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing this LED MOVING HEAD. For safety reasons and to ensure the trouble-free operation, carefully read the instructions before installing the device. Please install and operate the fixture with following instructions. SAFETY INFORMATION This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. -
Page 4: Product Information
LED MOVING HEAD BEAM 7x15W RGBW 4in1 OSRAM 5°/25° F7000563a PRODUCT INFORMATION This Fixture is made of a new type of high temperature strength of engineering plastics and cast aluminum casing with nice outlook. The fixture is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol. -
Page 5: Installation
INSTALLATION When installing the unit please comply with the following rules: The moving head is for wash effect for on-site decoration purpose. Don’t turn on the fixture if it’s been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature. - Page 6 LED MOVING HEAD BEAM 7x15W RGBW 4in1 OSRAM 5°/25° F7000563a Clamp Mounting: The LEDBEAM 12oF provides a unique mounting bracket assembly that integrates the bottom of the base, the included “Omega Bracket,” and the safety cable rigging point in one unit (see the illustration below).
-
Page 7: Connections
CONNECTIONS The device is equipped with the following interfaces: DMX (in/out): XLR 3-pin socket Power (in/out): powerCON socket Connecting DMX signal The connection is performed using cable with XLR-female -> XLR-Male plugs. Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. -
Page 8: Voltage Specification
LED MOVING HEAD BEAM 7x15W RGBW 4in1 OSRAM 5°/25° F7000563a Voltage specification Input Voltage Total Power Frequency 90~260V 100W 50/60Hz Connecting power supply The connection is performed using power cable with PowerCon connector (included). The device must be operated by qualified personnel. Make sure that the power grid supply parameters are consistent with device parameters and limitations are not exceeded. -
Page 9: Operation Manual
OPERATION MANUAL Control panel The control panel is equipped with LCD display and 4 control buttons with the following functions: MENU – go to next menu option DOWN – edit value UP – edit value ENTER - confirm changes Menu Menu diagram: DMX-MODE →... -
Page 10: Dmx Channel List
LED MOVING HEAD BEAM 7x15W RGBW 4in1 OSRAM 5°/25° F7000563a DMX channel list 17CH mode Channel Function Effect CH 1 0-255 CH 2 TILT 0-255 CH 3 PAN fine 0-255 CH 4 TILT fine 0-255 CH 5 PAN/TILT speed 0-255... - Page 11 40CH mode Channel Function Effect CH 1 0-255 CH 2 TILT 0-255 CH 3 PAN fine 0-255 CH 4 TILT fine 0-255 CH 5 PAN/TILT speed 0-255 CH 6 Dimmer 0-255: 0-100% CH 7 Strobe 0-255:1-20Hz CH 8 Section 1 - Red 0-255: 0-100% CH 9 Section 1 - Green...
- Page 12 LED MOVING HEAD BEAM 7x15W RGBW 4in1 OSRAM 5°/25° F7000563a 0-74: No function 75-84: Program 01 85-94: Program 02 95-104: Program 03 105-114: Program 04 115-124: Program 05 125-134: Program 06 135-144: Program 07 145-154: Program 08 CH 37 Program...
