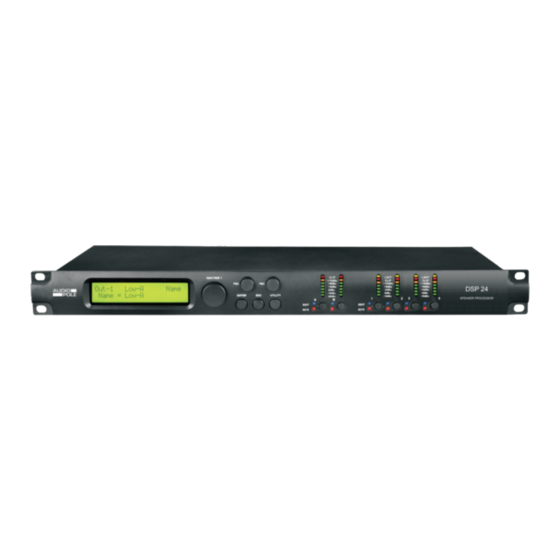

Summary of Contents for Audio Pole DSP 24

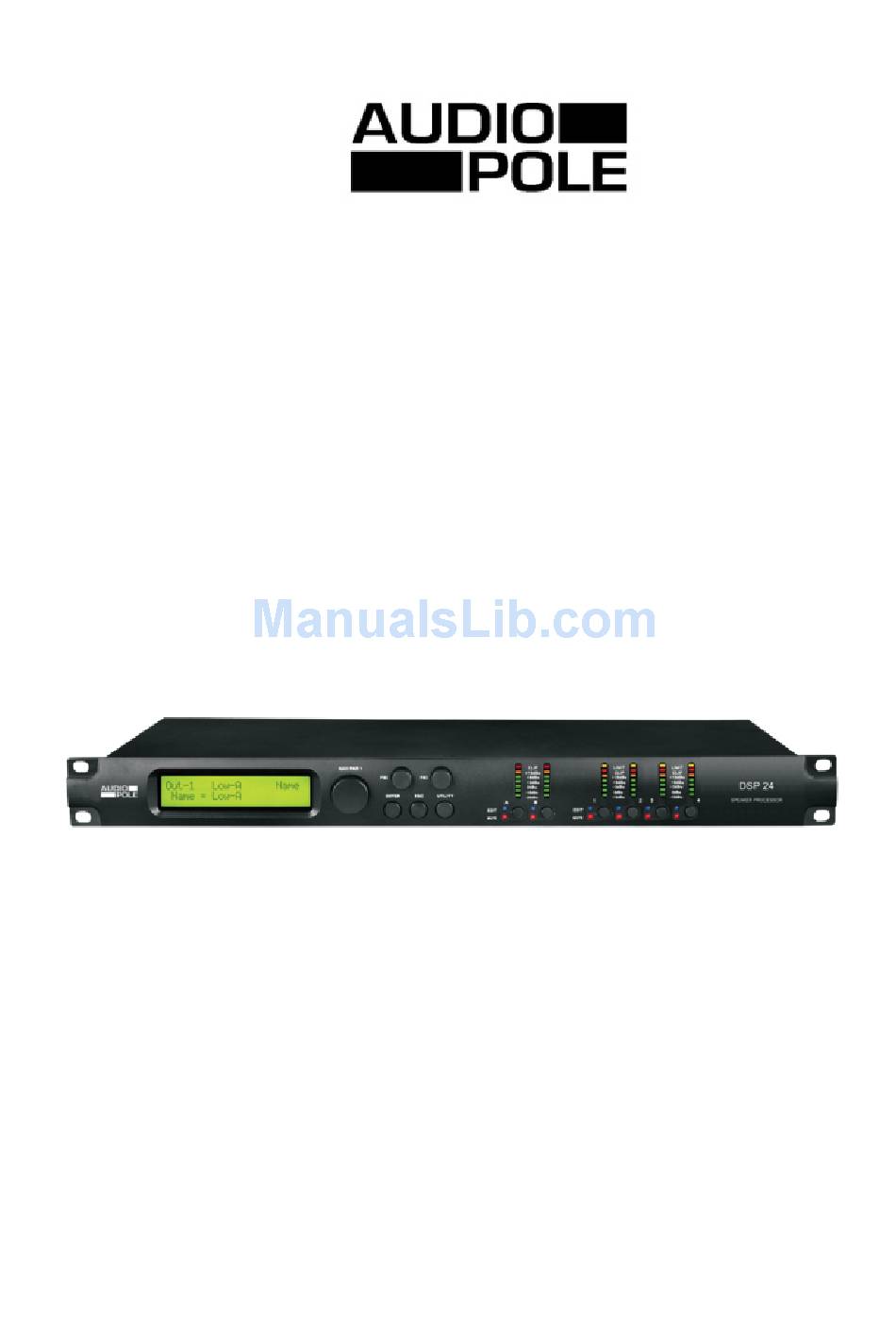

- Page 1 Speaker Management Processor DSP 24 USER’S MANUAL ...
-
Page 2: Safety Instructions
Safety Instructions READ CAREFULLY THE FOLLOWING INSTRUCTIONS This symbol indicates the presence of a dangerous voltage. This made symbol refers to information in the instructions manual. POWER SUPPLY Connect the appliance only on a current corresponding to the characteristics listed in the back of the device. Failure to observe this precaution could result in fire or electric shock, or a failure not covered by the warranty. -
Page 3: Table Of Contents
INDEX I- OPERATING MENU ............page 1 A- MODE SELECTION . -
Page 4: I- Operating Menu
Press (quick push) the button of the input, the blue Led lights. NOTE: It is possible to adjust two inputs simultaneously: press the button of one other input. The first one has priority on the others. UWER’S MANUAL DSP 24 page 1... -
Page 5: Delay
NEXT PARAMETER: A- without delay modification: press NAV/PM1 B- after a delay modification: press ESC then press NAV/PM1 The DSP 24 features 5 bands EQ on every input, named EQ-1 to EQ-5 EQ-1 Press ENTER then adjust the parameters: (idem EQ-5) Variable frequency from 20Hz to 20,000Hz with NAV/PM1 •... -
Page 6: Source
B- after the delay change: press ESC and press NAV/PM1 POLARITY: Press ENTER then adjust with GO TO THE NEXT PARAMETER: A- without having changed the polarity: press NAV/PM1 B- after the polarity change: press ESC and press NAV/PM1 USER’S MANUAL DSP 24 page 3 ... -
Page 7: Hi-Pass Filter
A- without having changed the LPF: press NAV/PM1 B- after the LPF change: press ESC and press NAV/PM1 The DSP 24 features a 7 band EQ on every output: EQ-1 to EQ-7. EQ-1 Press ENTER then adjust the parameters: (idem EQ-5) Variable frequency from 20Hz to 20,000Hz with NAV/PM1 §... -
Page 8: C- Presets Management
Press UTILITY and use NAV/PM1 to display: Press ENTER and use NAV/PM1 to display: The DSP 24 features 24 user presets Press ENTER: use PM2 or PM3, the display indicates “Empty Memory", for instance : Press ENTER to valid the preset number, the display indicates:... -
Page 9: 2- Presets Recall
Press ENTER and browse the preset list with PM2 and PM3. Confirm by pressing ENTER, the display indicates: Confirm the preset choice by pressing ENTER, the display indicates: NOTE: Delete a Preset is irreversible. USER’S MANUAL DSP 24 page 6 ... -
Page 10: D- Lock
Press ENTER and use NAV/PM1 to display: Press ENTER to display: The factory password is « 000000 ». Select the data with PM2 and PM3 and browse with NAV/PM1. New Password Press ENTER to display: USER’S MANUAL DSP 24 page 7 ... -
Page 11: 3- Display Lock
« Parameter will not be shown » for display locking, « Parameter will be shown » for display Press ENTER. unlocking. The current status is indicated with an asterisk on the right corner of the screen. USER’S MANUAL DSP 24 page 8 ... -
Page 12: Ii- Appendix
Press UTILITY and use NAV/PM1 to display «System Utilities» • Press ENTER and use NAV/PM1 to display «Software Version». • Press ENTER: the firmware version is displayed. • Press ESC to escape this function display. • USER’S MANUAL DSP 24 page 9... -
Page 13: 6- User Interface Selection
• 7- RESET PROCEDURE If the DSP 24 has been locked with a password and the password is lost or forgotten the device cannot be unlocked with the programmed parameters anymore. The device needs to be reset to the factory parameters status. In this case all parameters and presets will be definitively deleted and lost. -
Page 14: Iv- Back Panel
22, rue Édouard Buffard, Z.A.C. de la Charbonnière, Montévrain - 77771 Marne-la-Vallée Cedex 4 - France Tél : + 33 (0)1 60 54 32 00 - Fax : + 33 (0) 1 60 54 31 90 - www.audiopole-pa.com - www.audiopole.fr USER’S MANUAL DSP 24 page 11...
