Summary of Contents for grandfire BPH-100

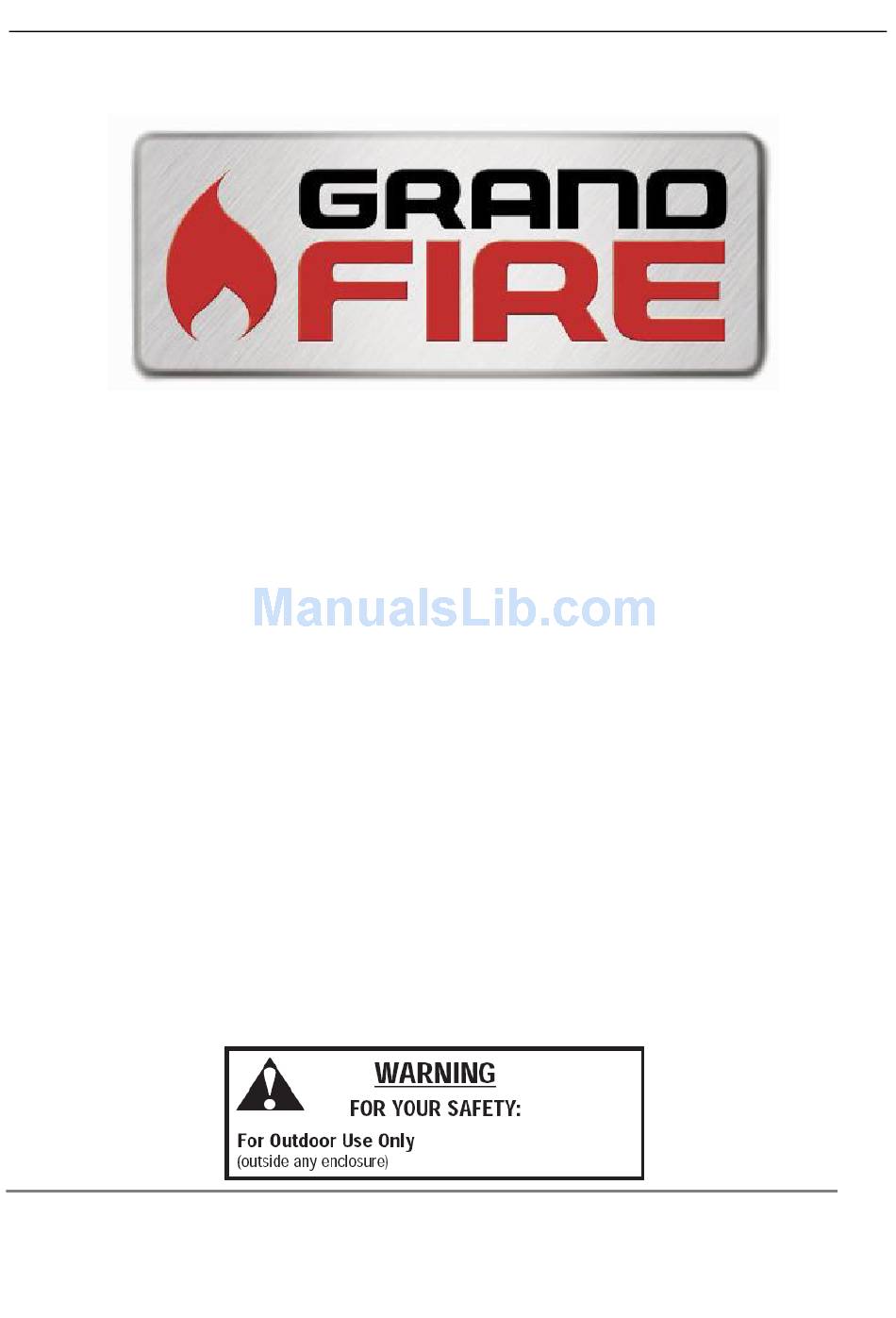

- Page 1 OUTDOOR RADIANT HEATER OWNER’S MANUAL Ver. 03.2015...
- Page 2 A MESSAGE TO OUR CUSTOMERS Thank you for selecting A GRANDFIRE Patio Heater. Your grill has been designed and built with meticulous attention to detail and it offers unique and powerful features. We have developed this Users’ Manual to assist you on use and maintenance. It contains valuable information on how to properly install, operate and maintain your new appliance for optimum safety and performance.
- Page 3 ASSEMBLY & OPERATION INSTRUCTION PRIOR TO USE: IMPORTANT: Hazardous fire or explosion may result if these Read the instructions before using the instructions are ignored. appliance. It is the user’s responsibility to see that this appliance Only to be used outdoors is properly assembled, installed, and taken care of.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Information…………………………………………………………………………………………………………………4 Important Safeguards……………………………………………………………………………………………………..5 Exploded View & Parts list ………………………………………………………………………………………………8 Locating Your Appliance……………………………………………………………………...…………………………12 Assembly Instruction……………………………………………………………………………………………….14 Installing LP Gas Tank………………………………………………………………………………………………16 Operating Instructions………………………………………………………………………………………………….…17 Checking for Leaks…………………………………………………………………………………………………..17 Before lighting………………………………………………………………………………………….……………17 Lighting………………………………………………………………………………………………………………18 When Heater is ON…………………………………………………...……………………………………………18 Cleaning and Care………………………………………………………………………………………………………..19 Cleaning Surfaces……………………………………………………………………………………………………19 Maintenance…………………………………………………………………………………………………………19 Storage………………………………………………………………………………………………………………20 Heating Features…………………………………………………………………………………………………….……21 Benefits……………………………………………………………………………………………………………………21 Specifications…………………………………………………………………………………………………………….22... -
Page 5: Information
INFORMATION Manufacturer HAULAND LIMITED Product Name GRANDFIRE Model Number BPH-100d (BPH-100)/BPH-200 ULPG Propane 3B/P(30) 3B/P(50) BE, CY, DK, EE, FR, AT, CH, DE, SK Australia and New Australia Country code GB, HU, IT, LT, NL, Zealand NO, SE, SI, SK, RO,... -
Page 6: Important Safeguards
IMPORTANT SAFEGUARDS DANGER: WARNING For Your Safety: If You Smell Gas Do not store spare LP cylinder within 10 feet Shut off gas to the appliance. Extinguish any open flame, avoid using any (3.05m) of this appliance. ... - Page 7 Your heater connections have been checked at the each use. Clean and inspect the hose before each use factory for leaks. Recheck all connections, as of the appliance. If there is evidence of abrasion, movement in shipping can loosen. wear, cuts, or leaks, the hose must be replaced prior ...
- Page 8 Keep sprinklers and other water sources away from heater. Holding in the control knob for more than 10 burner and controls. seconds before igniting the gas will cause a ball of Do not hang clothing or other flammable materials flame upon ignition.
-
Page 9: Exploded View & Parts List
EXPLODED VIEW Model: BPH-100d... -
Page 10: Parts List
PARTS LIST Model: BPH-100d (BPH-100) ITEM PART NO DESCRIPTION BPH-100d BPH100dP01 TOP REFLECTOR BPH100dP02 IGNITER PROTECTOR BPH100dP03 IGNITER WIRE 320mm BPH100dP04 IGNITION DEVICE BPH100dP05 FLEX TUBE - PILOT 325mm BPH100dP06B COVER ASSEMBLY FOR INFRARED BURNER BPH100dP07 WIRE MESH BPH100dP08 INJECTOR —Φ1.0... - Page 11 EXPLODED VIEW Model: BPH-200...
- Page 12 PARTS LIST Model: BPH-200 ITEM PART NO DESCRIPTION BPH-200 BPH200P01 TOP REFLECTOR BPH100P06 IGNITER PROTECTOR BPH100P09 IGNITER WIRE BPH100P04 IGNITION DEVICE BPH100P05 FLEX TUBE- PILOT BPH200P10A COVER ASSEMBLY FOR INFRARED BURNER BPH200P10B WIRE MESH BPH200P08 INJECTOR —Φ1.2 3B/P(30) —Φ1.05 3B/P(50) —Φ1.3 ULPG —Φ1.3...
-
Page 13: Locating Your Appliance
LOCATING YOUR APPLIANCE Most importantly, this is an outdoor appliance. Ensure your appliance is positioned safely away from anything that can catch fire. Outdoor Use Only: Under no circumstances is this appliance to be used indoors. This includes garages or any other enclosed area. - Page 14 Any enclosure with walls on all sides, but at least one permanent opening at ground level, and no overhead cover. A common example is an enclosed back yard. Typically, the walls are less than 3m high. If they are higher, there is a danger of gas build up.
-
Page 15: Assembly Instruction
Note: You must follow all steps to properly assemble heater. Typical assembly: approximately 15 minutes STEPS FIGURE DISPLAY Step 1: Open the base and take out all the parts inside. BPH-200 BPH-100d (BPH-100) Step 2: Put the gas hose through the SS support. - Page 16 Step 3: Install the SS support onto the bottom of control box with the screws provided. You will not need any nuts- the screws feed directly into pre-threaded holes on the bottom of control box. Step 4 Install the Tank Housing onto the base with the hex screws and locking washer provided.
-
Page 17: Installing Lp Gas Tank
Step 6: Rubber Hose Connect the regulator to the gas hose. Tighten with a wrench. LP regulator Installing LP Gas Tank To operate you will need (1) precision –filled standard LP Gas Tank (20lbs.) with external valve threads. Note: An empty standard grill LP gas tank weighs approximately 18bls. -
Page 18: Operating Instructions
OPERATING INSTRUCTIONS Checking for leaks WARNING: Failure to inspect the connections or follow these instructions could cause a fire or an explosion which can cause death, serious bodily injury, or damage to property. Make 2-3 oz. of leak solution by mixing one part liquid dishwashing soap with three parts water. Make sure control knobs are “OFF”. -
Page 19: Lighting
LIGHTING Note: THE HEATER MUST BE IN 0-80mm POSITION DURING OPERATION. IMPORTANT NOTE! The first time connect the gas cylinder after completion of assembly; make sure all appliance control valves are OFF. Take 1 minute to purge the line of air in the pipe before you lighting the heater: ... -
Page 20: Cleaning And Care
CLEANING AND CARE CAUTION: All cleaning and maintenance should be done when radiant heater is cool and with the fuel supply disconnected. CAUTION: DO NOT clean any heater part in a self cleaning oven. The extreme heat will damage the finish. Notices 1. -
Page 21: Storage
Note: In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal. Frequently check for corroded areas and repair them promptly. Tip: Use high-quality automobile wax to help maintain the appearance of your heater. Apply to exterior surfaces from the pole down. -
Page 22: Heating Features
HEATING FEATURES Specially crafted side leaner panels for patrons Made from stainless steel and height adjustable Stylish yet sturdy design Electronic ignition for easy start Highly efficient radiant heat gas burner with ceramic tiles Heats objects and not empty spaces Solid nylon wheels making it easy to move on most surfaces Operates on a 9kg,12kg or 18kg LPG gas bottle BENEFITS... -
Page 23: Specifications
SPECIFICATIONS Model Number BPH-100d (BPH-100) BPH-200 For residential and medium space use For residential and medium space use Usage ULPG/PROPANE ULPG/PROPANE Total Height 2245mm Max 2375mm Max Burner Design 2 Ceramic burner 4 Ceramic burner Burner Size 195x136mm 389x136mm Heating Surface... -
Page 24: Troubleshooting
Positioned out of high traffic areas Extra table top Large cost savings Additional benefits --------------------- Lower emissions per hour used Looks great TROUBLESHOOTING If the problem is: And this condition exists: Then do this Tank valve is closed Open valve Blockage in orifice Clean or replace orifice... - Page 25 Cylinder turned off Turn on Cylinder empty Install full cylinder Poor gas supply Trace supply back to source where Main burner will not light necessary Gas control inoperative fully Inspect valve, rectify Insufficient gas Install full cylinder/rectify gas supply ...
-
Page 26: Limited Warranty
LIMITED WARRANTY Hauland Limited (Vendor) Warrants to the original retail purchaser of this product, and to no other person, that if this product is assembled and operated in accordance with the printed instructions accompanying it, then for a period of two (2) years from the date of purchase, all parts in such product shall be free from defects in material and workmanship and 10 years warranty on stainless steel body. -
Page 27: For Customer Reference
FOR CUSTOMER REFERENCE (File in a safe place) Purchased from Date Purchased Serial No. Sales docket must be kept as proof of purchase date FOR MORE INFORMATION Need more information or assistance in any way? Please visit our website at: www.hauland.co.nz Or send Email to us: info@hauland.co.nz...
