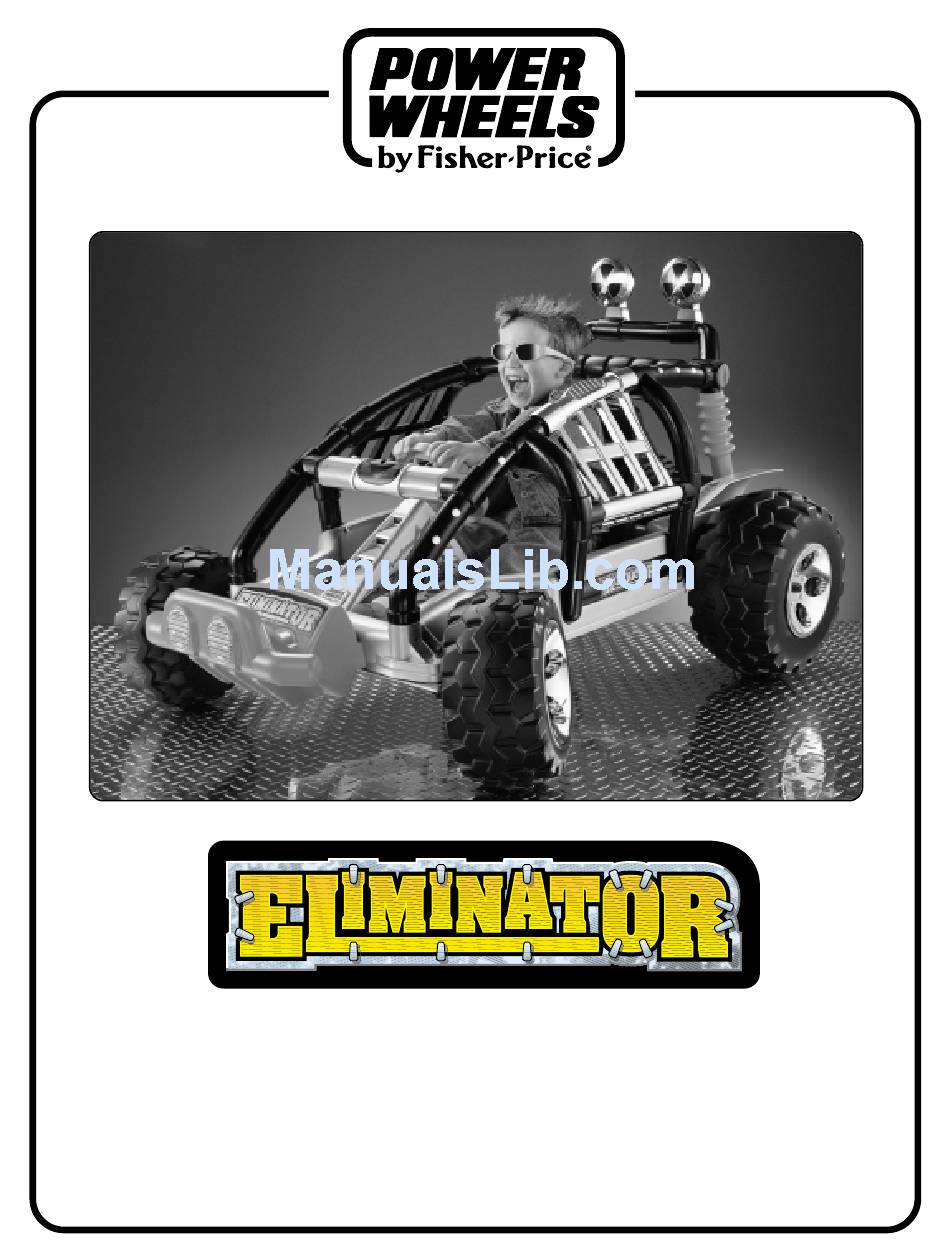

Product features may vary from the picture above.
Owner's Manual
with Assembly Instructions
Please read this manual and save it with your original sales receipt.
For Model 73180
Tools needed for assembly: Phillips Screwdriver, Hammer, Pliers, and Safety Scissors (not included).
Use only with a Power Wheels
®
12 Volt Battery with Built-in Thermal Fuse
and a Power Wheels
®
12 Volt Charger (all included).
Requires three "AA" (LR6) alkaline batteries (not included) in sound bar.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eliminator 73180 and is the answer not in the manual?

Questions and answers

Related Manuals for Power Wheels Eliminator 73180

Summary of Contents for Power Wheels Eliminator 73180

  • Page 1 Please read this manual and save it with your original sales receipt. For Model 73180 Tools needed for assembly: Phillips Screwdriver, Hammer, Pliers, and Safety Scissors (not included). Use only with a Power Wheels ® 12 Volt Battery with Built-in Thermal Fuse and a Power Wheels ®...

  • Page 2: Table Of Contents

    Please see Battery Charging begin- • If you have any questions about your Power Wheels ® ning on page 8 for detailed instructions. vehicle, please call our toll-free service lines at 1-800-348-0751 from 8 AM to 6 PM (EST) Monday •...

  • Page 3: Warnings And Cautions

    - Use of the wrong type battery or charger could cause a fire or explosion resulting in serious injury. - Use of Power Wheels ® components in products other than Power Wheels ® vehicles could cause overheating, fire or explosion.

  • Page 4: Parts

    Parts • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
  • Page 5 Parts Roll Cage - Right Side Roll Cage - Left Side Door Handle ™ Light Cover - 2 Door Hinge Shock Set - 2 (Left and Right) Door Sound Bar Battery Clamp Light Rack Steering Wheel Collar Steering Wheel Cap Brush Guard Steering Column Steering Wheel...

  • Page 6: 12 Volt Charger

    Parts Radio Knob - 3 Key Assembly 12 Volt Battery 12 Volt Charger Hex Bushing - 6 Not Shown: Label Sheet - 2 #8 x " Screw - 24* #8 x " Screw - 2 #8 x 1 " Screw - 4 "...

  • Page 7: Parts Diagram

    Parts Diagram Note: Some parts shown are assembled Steering Column/Brush Guard Assembly on both sides of the vehicle. Door Hinge Steering Linkage Bar Vehicle Body Door Handle Front Axle - 2 Steering Column Sound Bar .354 (Small Diameter) Cap Nut Front Wheel - 2 Light Rack Rear Axle...

  • Page 8: Battery Charging

    • Use only a Power Wheels ® 12 volt charger with type “12V” connector (120 VAC 60 Hz 28W with an output of 12 VDC 1200mA) to charge your Power Wheels ® rechargeable 12 volt battery.

  • Page 9: Assembly

    Battery Charging Assembly WARNING Battery Children can be harmed by small parts, sharp edges and sharp points in the vehi- cle’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the bat- tery, or help in assembly of the vehicle.
  • Page 10 Assembly Door Assembly Right Fender Left Roll Cage Connector Post Cross Support Left Fender • Position the left roll cage with the connector post facing up. • Using safety scissors, separate the right and left fen- • Fit the cupped end of the door against the cross support ders from the plastic connector.
  • Page 11 Assembly Door Left Roll Cage Right Roll Cage Door Hinge • Place the right roll cage on a flat surface with the inside facing up. • Insert two #8 x " screws through the holes in the door hinge and into the door. •...
  • Page 12 Assembly Light Rack Light Rack Assembly Right Roll Cage Left Roll Cage Left Inner Shock Half Button Front View • Insert two #8 x " screws into the inner half of the shock set. • Tighten the screws with a Phillips screwdriver. Do not Sound Bar over-tighten.
  • Page 13 Assembly Roll Cage Assembly Light Rack Assembly Sound Bar Vehicle Body Motors • Insert four #8 x " screws through the roll cage and into the light rack assembly and sound bar. IMPORTANT! • Tighten the screws with a Phillips screwdriver. - The front axles have been placed in the motors for Do not over-tighten.

  • Page 14: Hex Bushing

    Assembly Rear Axle .437 Cap Nut • Insert four #8 x " screws through the vehicle body and into the roll cage assembly, as shown. • Tighten the screws with a Phillips screwdriver. Do not • Position a .437 cap nut on a flat surface and fit one end over-tighten.
  • Page 15 Assembly Driver Rear (Large) Wheel Bushing Rear Driver Ribs Driver Driver Rear Barrel Side Motor Axle Hubcap Gearbox Teeth .437 Cap Nut Hex Bushing Hint: You may want the help of another adult to complete rear axle assembly steps 19 - 21. •...
  • Page 16 Assembly Barrel Ring Side Side Steering Large Large Washer Washer Hex Bushing Pivot Pivot Short Short Steering Linkage Front Axle Front Axle Front Axle Bushing Large Washer • Position the steering linkage with the pivots on the Hubcap bottom of the steering linkage. Make sure the pivots are positioned exactly as shown above.
  • Page 17 Assembly Light Covers Light Rack Brush Guard • Align the tabs on the insides of the KC ™ light covers with the notches on the light rack housings and snap the light covers to the housings. • Hold the brush guard in place and position the vehicle body upright.

  • Page 18: Lock Nut

    Assembly Brushguard Hole Square Opening Lock Nut #8 x " screws Steering Linkage Assembly Lock Nut Steering Column Bottom View • Holding the brush guard and bolts in place, carefully Bottom View position the vehicle body on its side. • Hand-tighten a lock nut on the end of each bolt. •...
  • Page 19 Assembly .354 Cap Nut Steering Steering Wheel Wheel Cap Steering Wheel Collar Steering Column • Fit the steering wheel cap into the center of the steering wheel. • Insert two #8 x " screws into the steering wheel cap. “UP” •...
  • Page 20 Assembly 12 Volt Battery Battery Clamp Looped Arms Battery Compartment Slots • Once the battery is charged, it is ready to be installed in Slots your vehicle. • Place the battery between the motors. Make sure that the motor harness connector is not under the battery. Battery Square Slot Clamp...
  • Page 21 Assembly • Seat your child in the vehicle to check foot to pedal dis- tance to make sure the seat is positioned correctly for your child. • Once the seat is correctly positioned, insert two #8 x “ screws through the holes in the seat and into the vehicle body.

  • Page 22: Washer

    Assembly 1.5V x 3 “AA” (LR6) SHOWN ACTUAL SIZE Rear Battery Press Compartment Here Rear Slot Sound Bar Slot Decorative Battery Engine Compartment Door • Press down to fit the tabs on the rear of the decorative engine into the slots in the back of the vehicle body. Note: To disassemble the decorative engine and access •...

  • Page 23: Label Decoration

    Label Decoration Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •...

  • Page 24: Battery Care And Disposal

    • Return exhausted batteries to a federal or state approved • Charge a new battery for at least 18 hours before first lead-acid battery recycler, such as a Power Wheels ® use. Never charge the battery longer than 30 hours.

  • Page 25: Rules For Safe Driving

    Rules for Safe Driving RIDING HAZARD WARNING Prevent Injuries and Deaths • Direct Adult Supervision Required • Keep Children Within Safe Riding Areas These areas must be: - away from swimming pools and other bodies of water to prevent drownings - generally level to prevent tipovers Use vehicle on generally level ground ONLY! - away from steps, driveways, roads...

  • Page 26: How To Operate Your Vehicle

    How to Operate Your Vehicle Beginner Use - Low Speed Drive To Back Up As assembled, your vehicle is ready to roll in low speed mph, maximum). It has been pre-set so it will only operate in low speed. After your child has mastered the basic skills of driving and understands the rules for safe driving, it’s time to disconnect the high speed lock-out to allow the vehicle to operate in low or high speed.

  • Page 27: Caring For Your Vehicle

    • To ensure that your vehicle stays in good operating driver. order, we recommend that you periodically have your • Remove the screw. vehicle checked by a Power Wheels authorized service ® • Insert the lock-out screw into the hole in the outside center.

  • Page 28: Problems And Solutions Guide

    Problems and Solutions Guide IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Consumer Relations, toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday. Or, contact your local Power Wheels authorized service center.
  • Page 29 Do not drive up hills or run into fixed objects, which can cause the wheels to stop spinning while power is still being supplied to the motors. If a thermal fuse continually trips, contact your local Power Wheels ® authorized service center.
  • Page 30 Loose wire or connector Check all wires around the motors and all connectors to run, but other times it does make sure they are tight. Motor or electrical switch damage Contact your local Power Wheels ® authorized service center for diagnosis and repair.
  • Page 31 If, after reviewing the Problems and Solutions Guide, the vehicle still fails to operate, please contact your nearest authorized service center (see page 32) or contact Power Wheels ® Consumer Relations toll-free at 1-800-348-0751.

  • Page 32: M Statement Of Limited Warranty

    Bumper-to-Bumper* Limited Warranty *One year limited warranty from the date of purchase on the Power Wheels ® vehicle. Six month limited warranty on the 12 volt battery. For the original purchaser, this one year limited warranty covers the Power Wheels ride-on vehicle (purchased from ®...
  • Page 33 Authorized Service Centers TIFTON - Western Auto, 354 South Main Street, 31794, DELAWARE KANSAS (912) 382-5767 SELBYVILLE - Ahern & Son, Inc., #2 S. Dupont Hwy Rt. 2, COLBY - Gavon’s Electronics, 1870 South Range, 67701, VALDOSTA - Harry B. Anderson, Inc. Western Auto, 19975, (302) 436-4100 (785) 462-6601 31601, (912) 242-5945...
  • Page 34 Authorized Service Centers SEA CLIFF - Shabra Electronics, 400 Glen Cove MICHIGAN MONTANA Avenue, 11579, (516) 671-2218 ALMONT - Almont Do It Center #421, 4545 Van Dyke, BILLINGS - Radio Equipment Company, 1205 Monad STATEN ISLAND - Springstead Lumber, 4255 Amboy 48003, (810) 798-8922 Rd., 59101, (406) 256-9778, (800) 711-4024 Road, 10308, (718) 984-0300...

  • Page 35: Puerto Rico

    Authorized Service Centers OKLAHOMA DARLINGTON - Hobbies and More, 1570 South Main UTAH Street, 29532, (843) 393-0355 MC ALESTER - Quality Upholstery, 803 E. Gene Stipe OREM - The Mending Shed, 1735 South State Street, EASLEY - Trails End Bicycles, 110 Pendleton Street, Blvd., 74501, (918) 423-4747 84058, (801) 225-8012, (800) 339-9297 29640, (864) 306-1684...
  • Page 36 For the location nearest you, refer to the Authorized Service Center list in this manual. ® Fisher-Price and Power Wheels by Fisher-Price are U.S. trademarks of Mattel, Inc. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2000 Mattel, Inc. All Rights Reserved.
