Page 1 Beijing TRACEBoard Technology Co., Ltd. TRACEBoard Interactive Touch Monitor User Manual TD-Series...

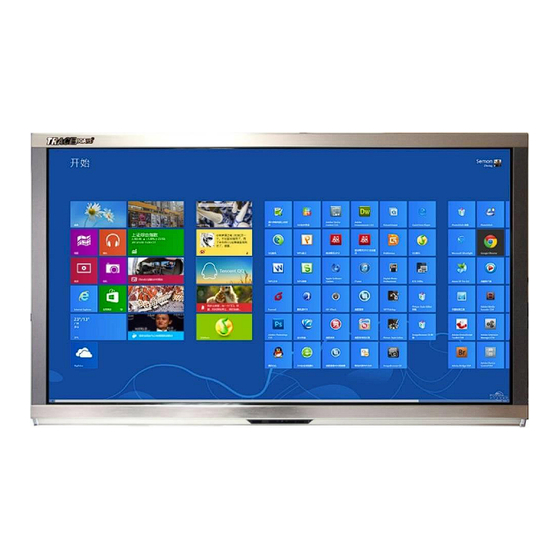

Page 2 Interaction in Life Interactive Touch Monitor-TD Series Product Figure Certificate Models: TD-xxL (interactive touch monitor) TD-xxLE(interactive touch monitor with embedded computer) xx=32/42/55/65/70...
Page 3: Table Of Contents
Interaction in Life Interactive Touch Monitor-TD Series Content Precautions ..............................3 Installation ..............................5 Hardware Instruction ............................ 6 Appearance diagram & Port instruction .................... 6 Romote Control ............................. 8 Basic Operation ............................9 Connection and Set-up ..........................9 Backlight automatic shut down ......................9 Resource automatic switch .......................
Page 4: Precautions
Interaction in Life Interactive Touch Monitor-TD Series Precautions Please read the following precautions before using the product for your personal safety. Any improper use may cause personal injury, property loss and product damage. Symbol description Symbols listed below are the ones used in this manual or on the device. Please make a full sense of the symbols before reading the content.
Page 5 Interaction in Life Interactive Touch Monitor-TD Series  Please do not place anything on touch screen. Please keep it clean.  Please do not drop the remote control.  To keep LED screen long life and normal work, do not leave monitor keep light on without operation over 2 hours.
Page 6: Installation
Interaction in Life Interactive Touch Monitor-TD Series Installation Machine drawing Wall mount installation Machine installation...
Page 7: Hardware Instruction
Interaction in Life Interactive Touch Monitor-TD Series Hardware Instruction Appearance diagram & Port instruction front bottom A-1: Remote control sensor A-2: Indicator of TV power A-3: Indicator of PC power A-4: Distance sensor-sender A-5: Distance sensor-receiver B: PC Port(only for model with build-in PC) B-1: 19V input, for testing only B-2:USB 2.0 *4 B-3:VGA output...
Page 8 Interaction in Life Interactive Touch Monitor-TD Series C-7: Signal Source C-8: LED backlight on/off button C-9:Power switch D-1:Power switch E-1: AC power in E-2:USB(multi-media) E-3: HDMI iuput*2 E-4: VGA input E-5: Audio input E-6:Coaxial audio output E-7: Audio output(earphone) E-8:AV output F-1: Component video input F-2: Component audio unput F-3:AV input...
Page 9: Romote Control
Interaction in Life Interactive Touch Monitor-TD Series Romote Control Remote control range Remote control can work well in the area of 8 meters to remote control sensor and 30 degree between left and right side.
Page 10: Basic Operation
Interaction in Life Interactive Touch Monitor-TD Series Basic Operation Please follow instructions as below when you use interactive touch monitor. Power on After plug with power, indicator in front panel is red. To press POWER button, red indicator with flash for 5 seconds, and then TV and PC will be power-on.
Page 11: Resource Automatic Switch
Interaction in Life Interactive Touch Monitor-TD Series Resource automatic switch For model with build-in PC, HDMI on build-in PC and preposed HDMI are using HDMI 1. HDMI1 will be automatically switch from build-in PC to preposed HDMI when connect external PC. If need resource from build-in PC, to disconnect external PC.
Page 12: Connect Video & Audio Device
Interaction in Life Interactive Touch Monitor-TD Series also can connect by VGA cable and audio cable. But only support one connection way. 2. Connect external to USB-Touch port at front panel by USB cable. 3. Open interactive touch monitor and PC, choose right resource by remote control or button. set resolution as 1920*1080, when connect external PC some cables may need provide by users Connect video &...
Page 13 Interaction in Life Interactive Touch Monitor-TD Series HDMI 1. Connect video & audio device by HDMI cable 2. After correct connection, open interactive touch monitor and video & audio device. 3. Choose HDMI in resource list. video & audio device can connect to preposed HDMI port, the resource is HDMI1, and HDMI resource will be switch to external device automatically.
Page 14 Interaction in Life Interactive Touch Monitor-TD Series AV output 1. Connect AV input supported device to AV output port by AV cable. 2. After correct connection, open interactive touch monitor and video & audio device. Note: AV can ouput only under AV IN/TV channel Need 3.5mm AV tieline when AV output from TV Connect TV antenna 1.
Page 15: Software
128M/USD interface Software installation Steps 1. Power on the computer. After booting the operating system, insert TRACEBoard setup disc contained in product package into your CD-ROM driver. 2. Double click the CD-ROM icon on your computer to open CD-ROM folder, and then double-click the setup file (TRACEBoard-ITM) to run it manually, see fig 2.1.1...
Page 16 Interaction in Life Interactive Touch Monitor-TD Series 3. Installation window show is preparing to install, just wait a while, see fig2.1.2 Fig 2.1.2 4. It is ready to install, and click next to continue, see fig2.1.3 Fig 2.1.3 5.Click install to continue, see fig 2.1.4...
Page 17 Interaction in Life Interactive Touch Monitor-TD Series Fig 2.1.4 6. Waiting a while for complete installation, see processing fig2.1.5 Fig 2.1.5 7. During installation, TRACEdriver installation pop up, click next to continue, see fig 2.1.6...
Page 18 Interaction in Life Interactive Touch Monitor-TD Series Fig 2.1.6 8. Installation finish, click finish to quit TRACEdriver installation program, see fig 2.1.7 Fig 2.1.7 9. Installation finish, click finish to quit whole installation program, see fig 2.1.8...
Page 19: Software Functions
Interaction in Life Interactive Touch Monitor-TD Series Software Functions TRACE driver 1. Installation After TRACEdriver installation, there is icon on desktop. Double click TRACEdriver, icon will shown Windows task bar. If icon is in grey, it means not connected, please check the driver and connection. Until the icon is in blue color , it means good connection, touch monitor can use.
Page 20 Interaction in Life Interactive Touch Monitor-TD Series c. Calibrate Option Don’t choose “Custom” and “Senior” option, it will be the normal mode. “TouchPanel” used for monitor display, “TouchBoard” use to Project display, it support non-rectangle display. Calibrate Position 1 means the calibrate marks near the corner, 2 means marks near center, normally we suggest choose “1”.
Page 21 When completely installed, there are two icons on desktop, TRACEBoard. Double click TRACEBoard icon to start when TRACEdriver is running. 2. Interface TRACEBoard software interface shows as fig.3.1.2 Fig.3.1.2 3. TRACEBoard Software Application There is a TRACEBoard toolbar at side, including 13 functional buttons. Toolbar can be placed on any...
Page 22 Thumbnail: preview all pages TMK: TMK is special file of TRACEBoard software, TMK is format file can be created and saved as .tmk file, which can be used timely in courseware. How to create a TMK file? Edit the objects in writing area, which includes text, sound, pictures, animation, image, etc.
Page 23 Interaction in Life Interactive Touch Monitor-TD Series Pen button , see menu as fig3.2.2, choose different pen and set up Fig 3.2.2 Rubber button , see menu as fig3.2.3, choose different rubber and set up Fig3.2.3...
Page 24 Interaction in Life Interactive Touch Monitor-TD Series Shape button ,see menu as fig3.2.4, choose different shape and set up Fig3.2.4 Hand writing recognition , see menu as fig 3.2.5 Fig 3.2.5 Hand writing recognition: in writing area, words and numbers can be transformed to text. Set up: can set up words format and size Page button , see menu as fig3.2.6...
Page 25 Interaction in Life Interactive Touch Monitor-TD Series Fig 3.2.6 Add page: to create new page Delete page: to delete current page Last page: turn to last page Next page: turn to next page Undo button , can cancel last operation, max 20 steps 10) Resume button , can resume last undo operation, max 20 steps Background button...
Page 26 Fig 3.2.9 Screen capture Full screen capture: capture all contents of current screen and paste it into TRACEBoard. Region capture: select a rectangle area with mouse and paste it into TRACEBoard. Irregular capture: use mouse to draw a certain chosen region(must be a closed region), this region will be automatically captured in TRACEBoard.
Page 27 Interaction in Life Interactive Touch Monitor-TD Series the bottom of window are Play, Forward, Backward, Full Screen, and Progress Bar. Click “Full Screen” button to switch to full screen mode. There are two buttons at the left and the right bottom respectively during full screen mode, which can switch back to window mode when you click it.
Page 28 Save as Picture: save current thumbnail as picture (.JPG). Import: can import format Print: print TRACEBoard presentation file Send mail: send TRACEBoard presentation file by e-mail About: click to see TRACEBoard software information Help: open User Manual ( PDF format) Quit: close current TRACEBoard file.
Page 29 Note: After writing and other operations on desktop, when click whiteboard button , a popup window “save annotation?” will show up. If do not save, click “no”, if save, click “yes”. Saved page will be the first page in TRACEBoard presentation software.
Page 30: Specification Of Touch Screen
Interaction in Life Interactive Touch Monitor-TD Series Specification of Touch Screen Touch technology Non-contact Infrared Sensing Technology Sensing Object Non-transparent object (like pen, finger etc.) ≥ Ø5mm Size Sensing Object Single Touch：click：8ms writing：3ms Response Time Multi-Touch：click：8ms writing：8ms Cursor Speed Up to 300dots/second Touch Resolution 4096×4096 ≤±2mm...
Page 31: Simple Troubleshooting
Interaction in Life Interactive Touch Monitor-TD Series Simple Troubleshooting Panel Remote control can not use 1. check if there is any object between remote control and sensor 2. check if battery is installed well or battery needs to replace 3. check if use remote in the correct range Automatically power off 1.
