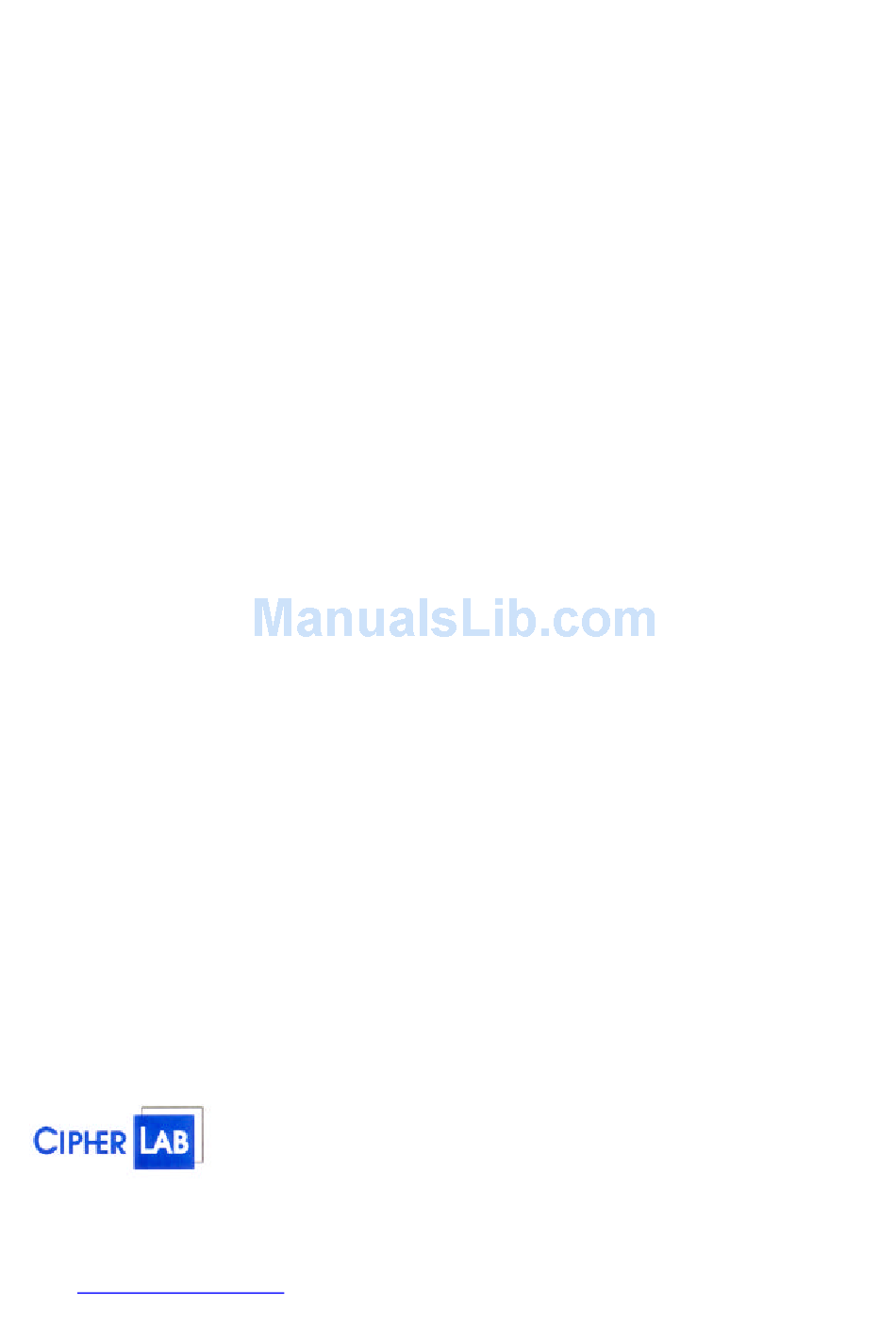

CipherLab 8300 Series
Copyright © 2002 Syntech Information Co., Ltd.
SYNTECH INFORMATION CO., LTD.
Head Office: 8F, No.210, Ta -Tung Rd., Sec.3, Hsi-Chih, Taipei Hsien, Taiwan
Tel: +886-2-8647-1166
e-mail:
support@cipherlab.com.tw
User's Guide
Version 1.03
Fax: +886-2-8647-1100
http://www.cipherlab.com.tw
i
Advertisement
Table of Contents
Summary of Contents for Syntech Information CipherLab 8300 Series
- Page 1 CipherLab 8300 Series User's Guide Version 1.03 Copyright © 2002 Syntech Information Co., Ltd. SYNTECH INFORMATION CO., LTD. Head Office: 8F, No.210, Ta -Tung Rd., Sec.3, Hsi-Chih, Taipei Hsien, Taiwan Tel: +886-2-8647-1166 Fax: +886-2-8647-1100 e-mail: http://www.cipherlab.com.tw support@cipherlab.com.tw...
-
Page 2: Table Of Contents
Table of Contents Table of Contents .........................ii Preface ..........................1 General Features and Characteristics ............... 2 Electrical ........................2 Environmental ......................2 Physical ........................2 ..........................2 Memory ........................2 Reader ........................2 Display ........................3 Keypad ........................3 Indicator ........................ -
Page 3: Preface
1. Preface The 8300 series are rugged, versatile, high performance data terminals designed for all-day, everyday use. It is powered by a Li-ion rechargeable battery with working time longer than 100 hours. It is supported by a rich set of development tools, including a Windows-based application generator, “C”... -
Page 4: General Features And Characteristics
2. General Features and Characteristics Basic characteristics of the 8300 Series Terminal are listed below, 2.1 Electrical Ÿ Operation battery: 3.7V Li-ion rechargeable battery, 700mAH. Ÿ Backup battery: 3.0V, 7mAH rechargeable Lithium battery for SRAM & calendar Ÿ Working time: over 100 hours for 8300 (batch model); over 20 hours for 8310 (433MHz RF model) and 8 hours for 8350 (2.4GHz RF model) 2.2 Environmental Ÿ... -
Page 5: Display
Ÿ Scan angle: 42°nominal Ÿ Minimum print contrast: 20% absolute dark/light reflectance at 670nm Ÿ Depth of field: 5 ~ 95 cm, depends on barcode resolution 8300C / 8310C / 8350C (CCD) Ÿ Resolution: 0.125mm ~ 1.00mm Ÿ Depth of field: 2 ~ 20cm Ÿ... -
Page 6: Software
Ÿ Type: Frequency Hopping Spread Spectrum Transceiver Ÿ Frequency Control: Direct FM Ÿ Data Rate: 19200 bps Ÿ Programmable Channels: Ÿ Coverage: 1000M line-of-sight Ÿ Maximum Output Power: 100mW Ÿ Maximum Terminals / Base: Ÿ Maximum Terminals / System: Ÿ Compliance: CE and FCC RF Base (3510 / 3550) -
Page 7: Rf System Configuration
3. RF System Configuration 3.1 IDs and Groups An ID to a terminal / base is just like a name to a person. Each terminal / base in the same RF system should have a unique ID. If the IDs are duplicated, the system may not work properly. So before running your RF system, please make sure that every terminal / base has a unique ID. -
Page 8: Rf Bases
3.3 RF Bases The connection from the host computer to the base is RS-232, while the connection between bases is RS-485. Up to 16 bases can be connected together in one RF system. If two or more bases are connected together, the one connected to the host computer should be set to master mode, and the others in slave mode. -
Page 9: Software Architecture
4. Software Architecture The 8300 Series Terminal system software consists of three modules: the kernel & Application Manager module, the System module and the Application module. 4.1 Kernel & Application Manager The kernel is the innermost core of the system. It has the highest security and is always protected by the system. -
Page 10: System
terminal to be cloned without going through a PC. 4.2 System The system module provides the following services: Ÿ Information The system information includes hardware version, serial number, manufacturing date, kernel version, C library or BASIC run-time version, application program version and hardware configurations. - Page 11 Code 128 UPCE UPCE with ADDON 2 UPCE with ADDON 5 EAN8 EAN8 with ADDON 2 EAN8 with ADDON 5 EAN13 EAN13 with ADDON 2 EAN13 with ADDON 5 Other barcodes must be enabled through programming. 2. Buzzer To test the buzzer with different Frequency/Duration. Press ENTER key to start and then press any key to stop the test.
-
Page 12: Application
1. The Application Generator 2. The “BASIC” Compiler 3. The “C” Compiler For detailed information, please contact Syntech Information Co., Ltd. 4.5 Programming the communication cradle The communication cradle of the 8000 Portable Data Terminal supports serial IR interface only. -
Page 13: Operations
5. Operations Batteries must be fresh and properly loaded before start operation. 5.1 Keypad operations The 8300 Series Terminals have two keyboard layouts: 24 rubber keys and 39 rubber keys. The functions of some special keys are as follows: SCAN Scan a barcode. -
Page 14: System Mode
5.3 System mode To enter the system menu, you need to press the 7, 9 and POWER keys simultaneously upon power up the terminal. For details of the services provided by the system, please refer to section 4.2. 5.4 Kernel mode To enter the kernel menu, you need to press 7, 9 and POWER keys simultaneously to enter the system menu first, then power off the unit and press 1, 7 and POWER key simultaneously. -
Page 15: Troubleshooting
6. Troubleshooting Does not power up after pressing POWER key. Ø Make sure the battery is loaded. Ø Charge the battery and check the charging status. If no charging information shown on the display, reload the battery and check if the battery is properly installed then try again. Ø...
