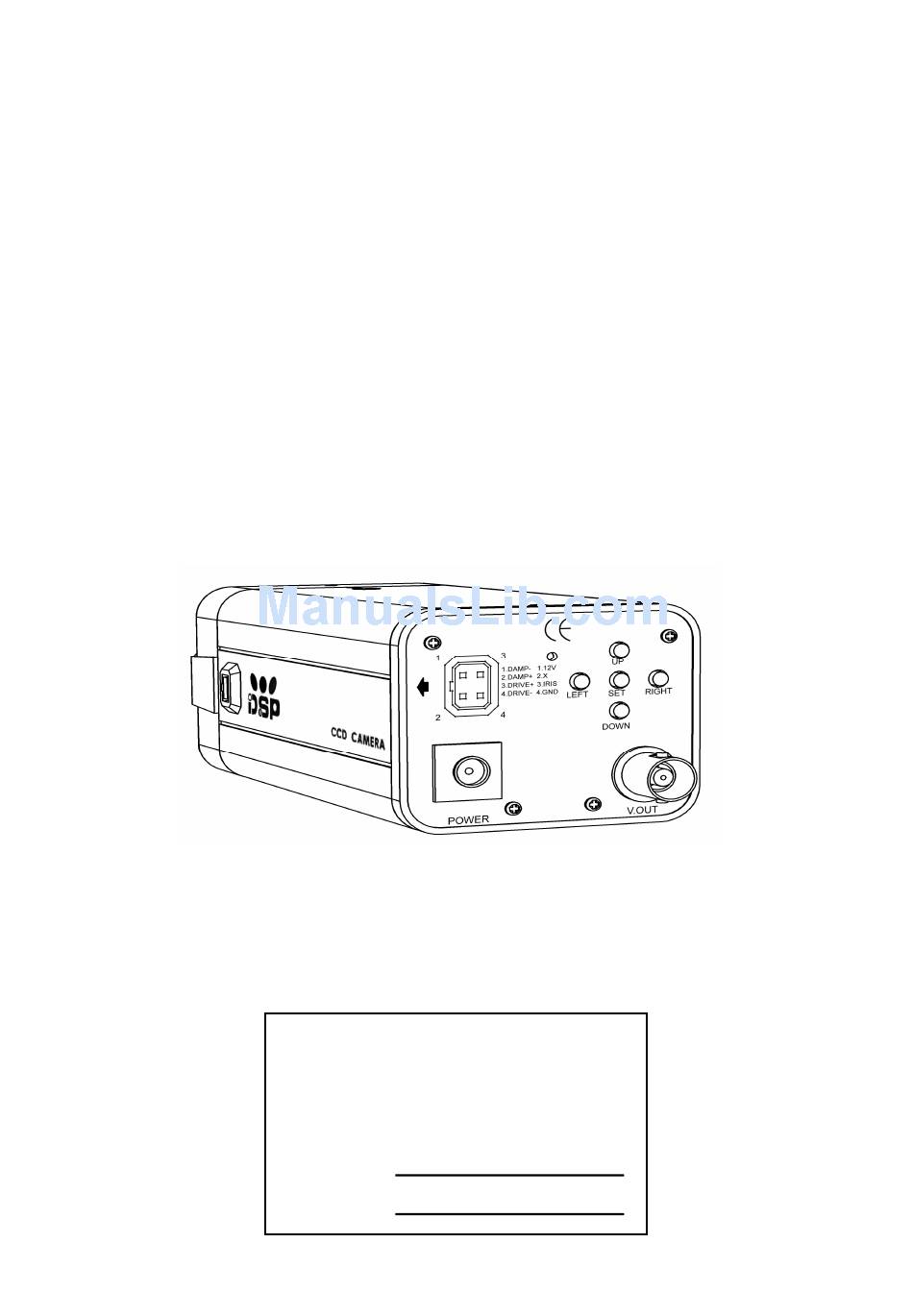

SERVICE MANUAL
1/3" SONY DSP COLOR CCD CAMERA
OVER 650TVL SERIES
The serial number of this product may be found
on the bottom of the unit.
You should note the serial number of this unit in
the space provided and retain this instruction as a
permanent record of your purchase to aid
identification in the event of theft.
Model No.
Serial No.
V.2E_W
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for DSP OVER 650TVL SERIES
- Page 1 SERVICE MANUAL 1/3” SONY DSP COLOR CCD CAMERA OVER 650TVL SERIES The serial number of this product may be found on the bottom of the unit. You should note the serial number of this unit in the space provided and retain this instruction as a permanent record of your purchase to aid identification in the event of theft.
-
Page 2: Safety Warning
① CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is interned to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 3: Main Features
Main Features Color camera with high resolution SONY 1/3” Super HAD CCD II image sensor. Employs SONY Effio-E DSP chip-set for image control. Controlled by OSD (On Screen Display) menu in 7 languages. Horizontal resolution of over 650TVL. ATR (Adaptive Tone Reproduction). - Page 4 ③ Parts Names & Components Hole to fix lens Hex Screwdriver Auto Iris Plug C-Mount Ring (Option) Auto iris connector Manual Power LED Selection & setting buttons...
- Page 5 ④ Auto Iris Function DC DRIVE Pin 1 (Red) Drive - Pin 2 (N.C) Drive + Pin 3 (White) Damp + Pin 4 (Black) Damp - Plug in auto iris connector Screw the auto iris lens on CS mount...
-
Page 6: Installation Instructions
⑤ Installation Instructions (1) Remove the cap from the lens mount. (2) Select the C mount lens (with mount ring) or CS mount lens. (3) Screw and fasten the lens into the lens mount. (4) Connect the video output wire between monitor and camera through 75ohm type coaxial cable. -
Page 7: Switch Definition
⑥ Switch Definition UP button LEFT RIGHT button button button DOWN button SET button Press to display the menu. In the menu, this button functions as “ENTER”. UP & DOWN buttons Press to select the item of menu. LEFT & RIGHT buttons Press to change the item value. -
Page 8: Menu Operation
‧ Select the EXIT item and press the SET button to exit the menu. Advanced Functions High Color Reproduction Excellent color reproduction. Wide range ATW (1800°K~10500°K) Conventional Over 650TVL Series Color chart (Machbeth) Under halogen lamp Still-life object Under artificial sunlight... - Page 9 ⑧ High Resolution Higher horizontal resolution of over 650TVL by SONY 1/3” Super HAD CCD II image sensor. Over 650TVL Series True captured image Resolution test chart Finer image after E-Zoom operation Over 650TVL Series Conventional Original image...
- Page 10 Excellent NR performance under low light condition NR OFF 2D-NR ATR (Adaptive Tone Reproduction) Gradation compensation to improve image contrast. Improvement of loss of dark detail and overexposure area. Conventional Over 650TVL Series ATR OFF ATR ON Overexposure area improvement Dark area improvement...
-
Page 11: Specification
High Resolution SONY 1/3" Super HAD CCD II EFFECTIVE PICTURE NTSC: 976*494 ELEMENTS (H*V) PAL: 976*582 SIGNAL PROCESSOR DSP (Digital Signal Processor) RESOLUTION Over 650 TV lines (700 TV lines in B/W mode) MIN. ILLUMINATION 0.1Lux / F1.2 (0.03Lux / AGC ON) S/N RATIO...
