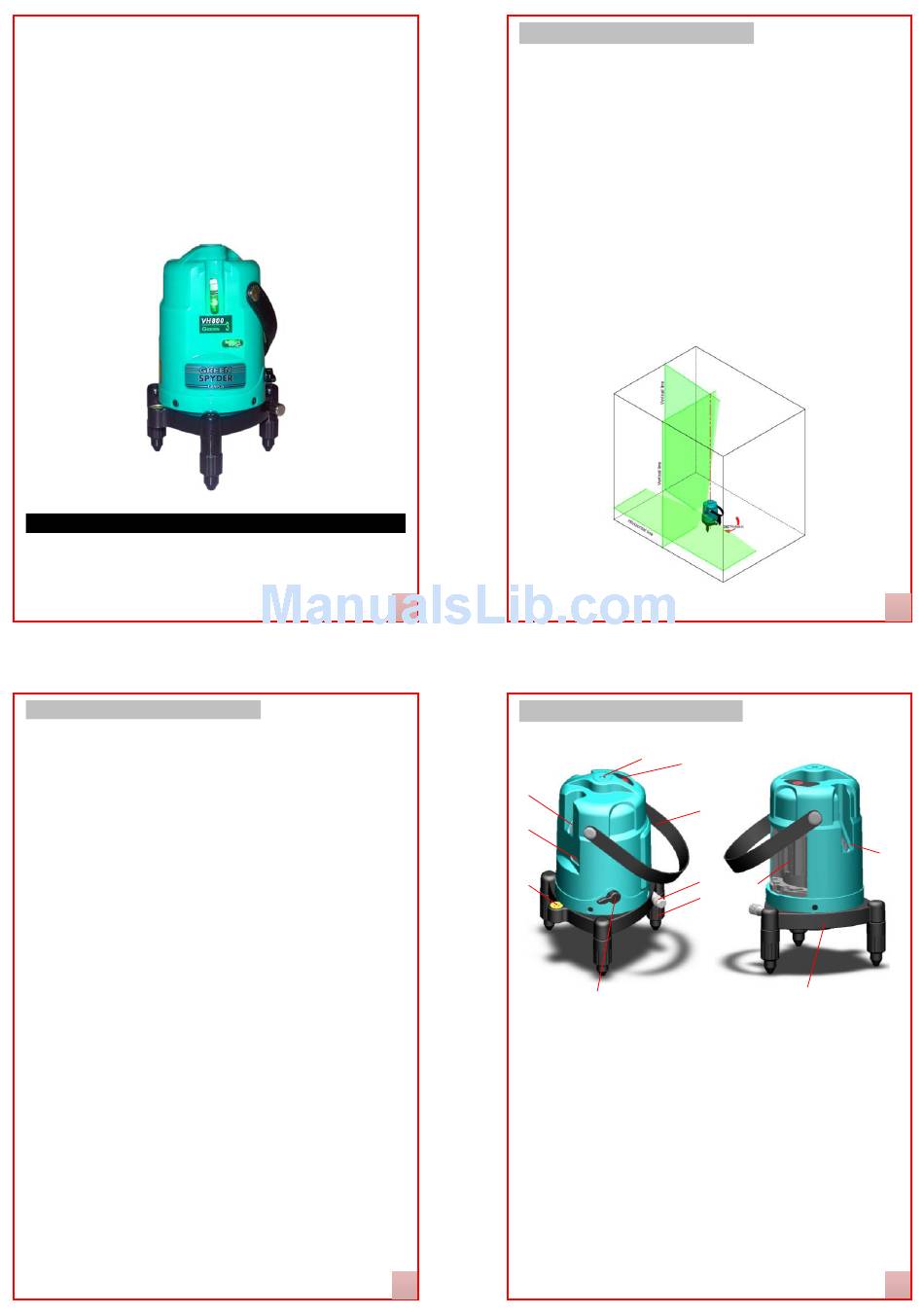

Danpon VH800 Instruction Manual

MULTI-FUNCTIONAL LASER LEVEL
(1 Horizontal line+ 2 Vertical lines+ Up & Down dot)
VH800
(GREEN BEAM)
TYPE:VH800
BRIGHTER, BETTER FOR EYE VISIBILITY
Thank you for choosing our product. In order to
correctly use this product, please read the
manual carefully before use.
TECHNICAL SPECIFICATION
Lens type
Output Power
Wavelength
Accuracy
Angle accuracy
Angle of projection
Self-leveling range
Out of Range
Brake mode
Function
Power Supply
Duration
Operating temperature
Weight
Exterior Size
Base
Instruction Manual
: Single glass lens
: <5mw
: Line Beam - 532nm
Point - 650nm
: ±1.0mm/5M
: 90° ±0.02°
: Vertical>120°
Horizontal>100°
: ±3°
: Flashing
: Magnet
: 1 Horizontal Beam,
2 Vertical Beam,
Up dot and Down dot
: 4AA Batteries (DC6V)
: 12 hours for a single line
: 10℃ ~ +40℃
: 0.89 kg(excl. batteries)
: φ130x186mm
: 360° Rotary and Precise
Adjustable Aluminum
Alloy Base
RANGE OF APPLICATION
Suspended ceiling construction.

Partition construction.

Installation of electricity, air-conditioner

and water pipes.
 Marble and floorboard paving.
OA-related office decoration and

measuring-related work where leveling
and plumbing is needed.
1
EXTERIOR STRUCTURE
3
2
1
1. Level bubble
2. Horizontal line projecting aperture
3. Vertical line projecting aperture
4. Up dot projecting aperture
5. Operating switch
6. Belt
7. Adjustable knob for line
8. Adjustable foot for bubble
9. Lock switch
10. Vertical line projecting aperture
11. Battery compartment
12. Rotary base (360°)
3
4
5
6
7
11
8
9
2
10
12
4
