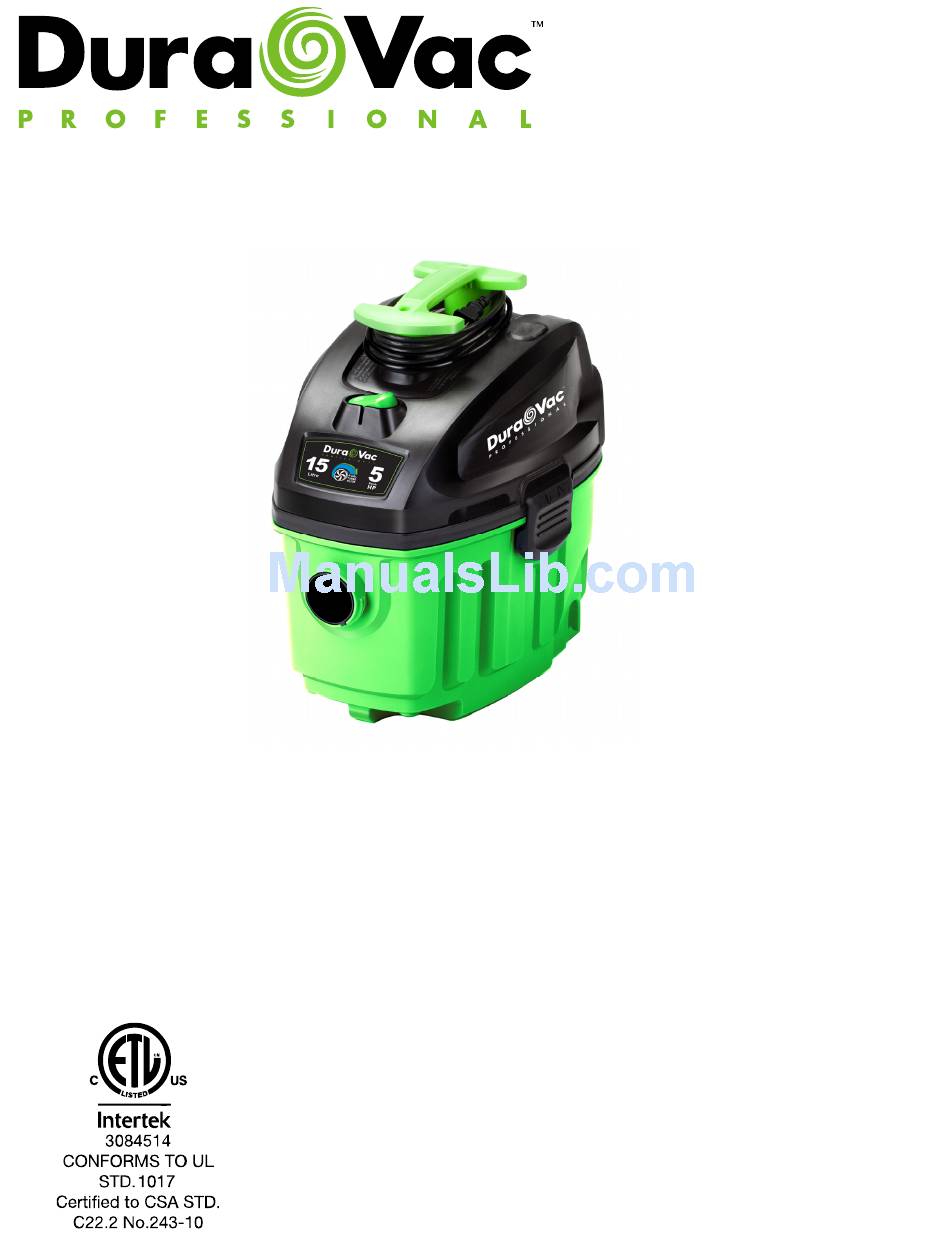

Wet/Dry Vacuums OPERATOR’S MANUAL 15 Litre Model No VF410P 0501 FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. www.duravac.ca Cleva North America 601 Regent Park Court Greenville, SC 29607...
SAFETY INSTRUCTIONS & WARNINGS IMPORTANT SAFETY INSTRUCTIONS Read and understand all instructions before using this vacuum. Read and understand this owner’s manual and all labels on the Wet/Dry Vacuum cleaner before operating. Safety is a combination of common sense, staying alert and knowing how your vacuum works. Use this Wet/Dry Vac only as described in this manual.
DOUBLE INSULATION INSTRUCTIONS This Wet/Dry Vac is double-insulated, eliminating the need for a separate grounding system. Use only identical replacements parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacs before servicing. Use this Wet/Dry Vac as described in this manual. Observe the following warnings that appear on the motor housing of your Wet/Dry Vac.
GENERAL ASSEMBLY INSTRUCTIONS WARNING: DO NOT PLUG IN POWER CORD TO POWER OUTLET. MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC. UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY 1. Verify that the power cord is disconnected from the outlet. (fig. 1) 2.
DRY - VACUUM OPERATION DRY VACUUMING WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.
LIQUID VACUUM OPERATION LIQUID VACUUMING WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.
BLOWING OPERATION This Wet/Dry Vac has blowing capabilities only when the hose is inserted into the blowing port. To use the blower feature follow the instructions listed. WARNING: ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH CSAZ94.3 (IN THE UNITED STATES, ANSI Z87.1) BEFORE USING BLOWER. CAUTION: KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.
IMPORTANT! Clean or change the dust filter regularly for best performance. ALWAYS USE DUST FILTER FOR DRY VACUUMING. If the machine is used without the cartridge filter, the motor will burn out and the warranty will be voided. Always keep spare filters on-hand. NOTICE! The filters included are made of high quality material designed to stop small dust particles.
Cleaning Foam Sleeve Filter 1. With the removed power head in the upside down position, carefully remove foam sleeve filter. (fig. 4) 2. Use a mild soap and water solution to wash foam sleeve filter and rinse with clean water. (fig. 5) 3.
Page 13
Aspirateur pour échets secs et humides MANUEL D’UTILISATION 5 Litre Modèle n˚ VF410P 0501 POUR VOTRE SÉCURITÉ Veuillez lire attentivement et comprendre ce manuel d’utilisation avant d’utiliser l’aspirateur. Conservez ce manuel pour référence ultérieure. www.duravac.ca Cleva North America 601 Regent Park Court...
Page 14
TOUTES LES INSTRUCTIONS. GARANTIE Dura Vac™ est fière de fabriquer des produits durables de qualité supérieure. Ce produit Dura Vac™ est accompagné d’une garantie limitée de trois (3) ans à compter de la date d’achat contre tout vice de fabrication ou de matériel pour un usage domestique normal. Si le produit est utilisé à des fins commerciales, industrielles ou de location, la garantie s’appliquera pour une période limitée de 90 jours.
Page 15
Utiliser uniquement l’aspirateur tel que décrit dans le présent manuel. Afin de minimiser le risque de lésions corporelles et de dommages matériels, utiliser uniquement des accessoires recommandés par Dura Vac™. Type Ménager CONSERVER CE MANUEL POUR RÉFÉRENCE ULTÉRIEURE.
• Utiliser l’appareil avec beaucoup de précautions au moment de nettoyer des escaliers afin de minimiser les risques de chutes. Utilisation de la soufflante : • Diriger l’air évacué uniquement en direction de l’aire de travail. • Ne pas utiliser l’appareil en tant que pulvérisateur. •...
CORDONS PROLONGATEURS Au moment d’utiliser un cordon prolongateur avec l’aspirateur d’atelier, consulter le tableau suivant afin de déterminer le calibre (A.W.G.) requis. Utiliser exclusivement des cordons prolongateurs à trois fils dotés d’une fiche à prise de terre et d’une prise triphasée compatible avec la fiche de l’appareil. Avant d’utiliser ce dernier, s’assurer que les cordons prolongateurs et d’alimentation sont en bon état.
Déballez le contenu et vérifiez avec la liste du contenu du carto Liste du contenu du carton Rèf. Description…………………………….. Ensemble aspirateur ………………..Tuyau ……………………………...…. Buse utilitaire …………….……….…. Suceur plat……..….…..……………... Filtre à cartouche ……………………. Retenue de filtre …………..…………. Sac collecteur ……..……………….… Filtre à...
AVERTISSEMENT: AVANT TOUS LES TRAVAUX AU APPAREIL, DÉBRANCHER TOUJOURS LE CORDON D’ALIMENTATION ! DÉBALLEZ L’ASPIRATEUR SEC/HUMIDE AVEC TOUTES CES PARTIES 1. Vérifiez que l’aspirateur n’est pas connecté au réseau de courant. (figure 1) 2. Ouvrez les verrous. (figure 2) 3. Enlevez l’unité motrice du récipient. (figure 3) 4.
Page 20
ASPIRATION À SEC AVERTISSEMENT: ASSUREZ-VOUS DE LIRE, COMPRENDRE ET PEUVEZ APPLIQUER LES AVERTISSEMENTS DE SÉCURITÉ. N’UTILISEZ PAS L’ASPIRATEUR SEC/HUMIDE À PROXIMITÉ DE VAPEURS, GAZES INFLAMMABLES OU POUSSIÈRES EXPLOSIVES. GAZES INFLAMMABLES BRENNBARE GASE COMPRENNENT MAIS NE SONT PAS LIMITATIVE: ESSENCE OU AUTRES COMBUSTIBLES, DÉTERGENTS, PEINTURES À HUILE, GAZ NATUREL, HYDROGÈNE, POUSSIÈRES EXPLOSIVES COMME LES POUSSIÈRES DE CHARBON, DE MAGNÉSIUM, DE GRAIN OU DE POUDRE CANON.
UTILISATION DE L’APPAREIL POUR ASPIRER DES LIQUIDES ASPIRATION DE LIQUIDES AVERTISSEMENT: ASSUREZ-VOUS DE LIRE, COMPRENDRE ET PEUVEZ APPLIQUER LES AVERTISSEMENTS DE SÉCURITÉ. N’UTILISEZ PAS L’ASPIRATEUR SEC/HUMIDE À PROXIMITÉ DE VAPEURS, GAZES INFLAMMABLES OU POUSSIÈRES EXPLOSIVES. GAZES INFLAMMABLES COMPRENNENT MAIS NE SONT PAS LIMITATIVE: ESSENCE OU AUTRES COMBUSTIBLES, DÉTERGENTS, PEINTURES À...
L’aspirateur de détritus secs et de liquides peut fonctionner comme une soufflante. Pour utiliser la fonction soufflante, suivre les instructions décrites ci-dessous. AVERTISSEMENT : TOUJOURS PORTER DES LUNETTES DE SÉCURITÉ CONFORMES À LA NORME CSAZ94.3(OU LA NORME ANSI Z87.1 AU ÉTATS-UNIS) AVANT D’UTILISER CET OUTIL COMME SOUFFLANTE AVERTISSEMENT : S’ASSURER QUE PERSONNE N’EST À...
AVERTISSEMENT : NE PAS BRANCHER LE CORDON D’ALIMENTATION DANS LA PRISE DE COURANT ET S’ASSURER QUE LA FICHE EST DÉBRANCHÉE AVANT DE PROCÉDER AU REMPLACEMENT ET AU NETTOYAGE DES FILTRES. 1. Vérifiez que le cordon est déconnecté de la prise de courant. (figure 1) 2.
Montage de filtre à mousse 1. Vérifiez que le cordon est déconnecté de la prise de courant. (figure. 1) 2. Enlevez l’unité motrice et mettez-la en position renversée (serrage l’unité entre votre cuisse). Suivez les instructions pour enlever le filtre. 3.
