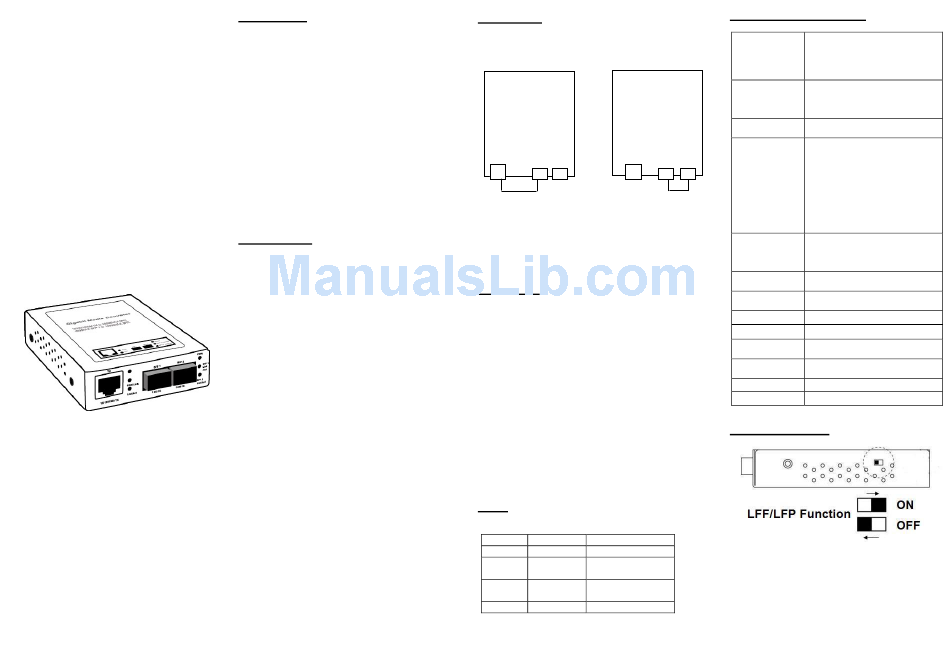

Conrad 975360 User Manual

10/100/1000BaseT to
1000BaseSX/LX
Media Converter Series
User's Manual

Introduction

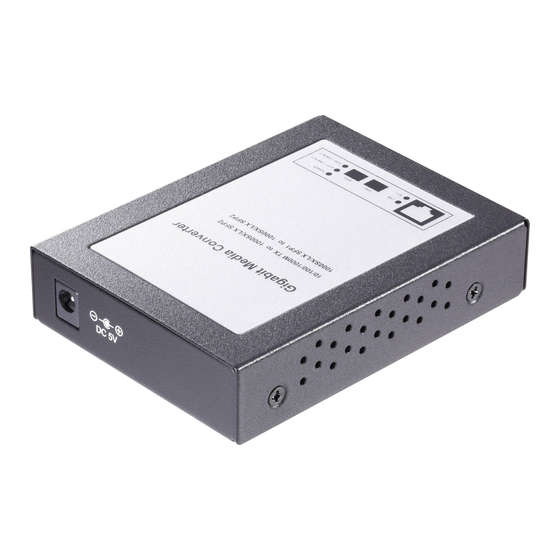

This Gigabit Ethernet Media Converter Series is
designed to bridge a 10/100/1000BaseT(X)
signal to a 1000BaseSX/LX signal. It's used to
extend the distance connection between two
Gigabit Ethernet twisted-pair devices via the
fiber cable transparently with no performance
degradation.
This Media Converter Series is based on the
switching hub design. It can
Auto-Negotiation and Flow Control function on
the twisted-pair port. There are two SFP open
slots for multi-mode or single-mode SFP
modules.

Key Features

Compliant with IEEE 802.3 10BaseT, IEEE
802.3u 100BaseTX, IEEE 802.3ab 1000BaseT
and IEEE 802.3z 1000BaseSX/LX Standards
 2x 10/100/1000BaseT(X) Ethernet TP Port
and 1x 1000BaseSX/LX Gigabit Ethernet
Fiber Port
 2x 1000BaseSX/LX Fiber Port can support
either Multi or Single Mode
 TP Port can support Half/Full-Duplex,
Auto-MDI/MDI-X and Auto-Negotiation
Providing 19" Converter Chassis for up to 16
slots with redundant power supply for optional
expansion use.

Application

RJ45 to SFP mode
RJ45 SFP
support
SM
MM

Installation

DC Input & External Power Adapter
The External Power Adapter specification:
The device DC Input is +5VDC 2A.

The TP Port

The device TP port
Auto-Negotiation and Flow Control functions. It
can work in the 10BaseT, 100BaseTX or
1000SX/LX environment and the cable length up
to 100 meters is for Cat5, Cat5e or Cat6
shielded/unshielded twisted-pair cable.

2 x SFP open slots

There are two SFP open slots for SFP modules.
Both multi-mode and single-mode are supported.

LEDs

LED Indicators of Media Converter
LED Status Operation
Power On Power is on.
Port is
TX Flashing
transmitting data
Port is
RX Flashing
transmitting data
LINK On Port is connected

Technical Specifications

Standards
SFP to SFP Mode
Features
Data
Transfer Rate
Transmission
RJ45 SFP
Media
SM MM
SM SM
MM MM
LED Indicators
MM SM
Power
Requirement
Power
Consumption
Dimensions
Weight
Operating
Temperature
Storage
support Auto-MDIX,
Temperature
Humidity
Certifications
LFF/LFP Function
Link fault forwarding and link fault passing
through.
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3x Flow Control
Number of Ports:
1x10/100/1000BaseT(X) TP port
2x1000BaseSX/LX SFP open
slots
20/200/2000Mbps/Full-Duplex
TP: 10/100/1000BaseT(X) Cat. 5,
5E, 6 UTP/STP, up to 100 m
1000BaseSX:
50/125μm Multi Mode Fiber optic
cable, up to 220 m 62.5/125μm
Multi Mode Fiber optic cable, up to
550 m
1000BaseLX:
9/125μm Single Mode Fiber optic
cable
Per Port:
(TX): Link, TX
(FX): Link, RX
Per Unit: Power
DC5V/2A
10 Watts (Max)
102 x 74 x 22 mm (L x W x H)
240 g
0 to 45℃
-20 to 90
10 to 90% RH (non-condensing)
FCC Class B, CE
