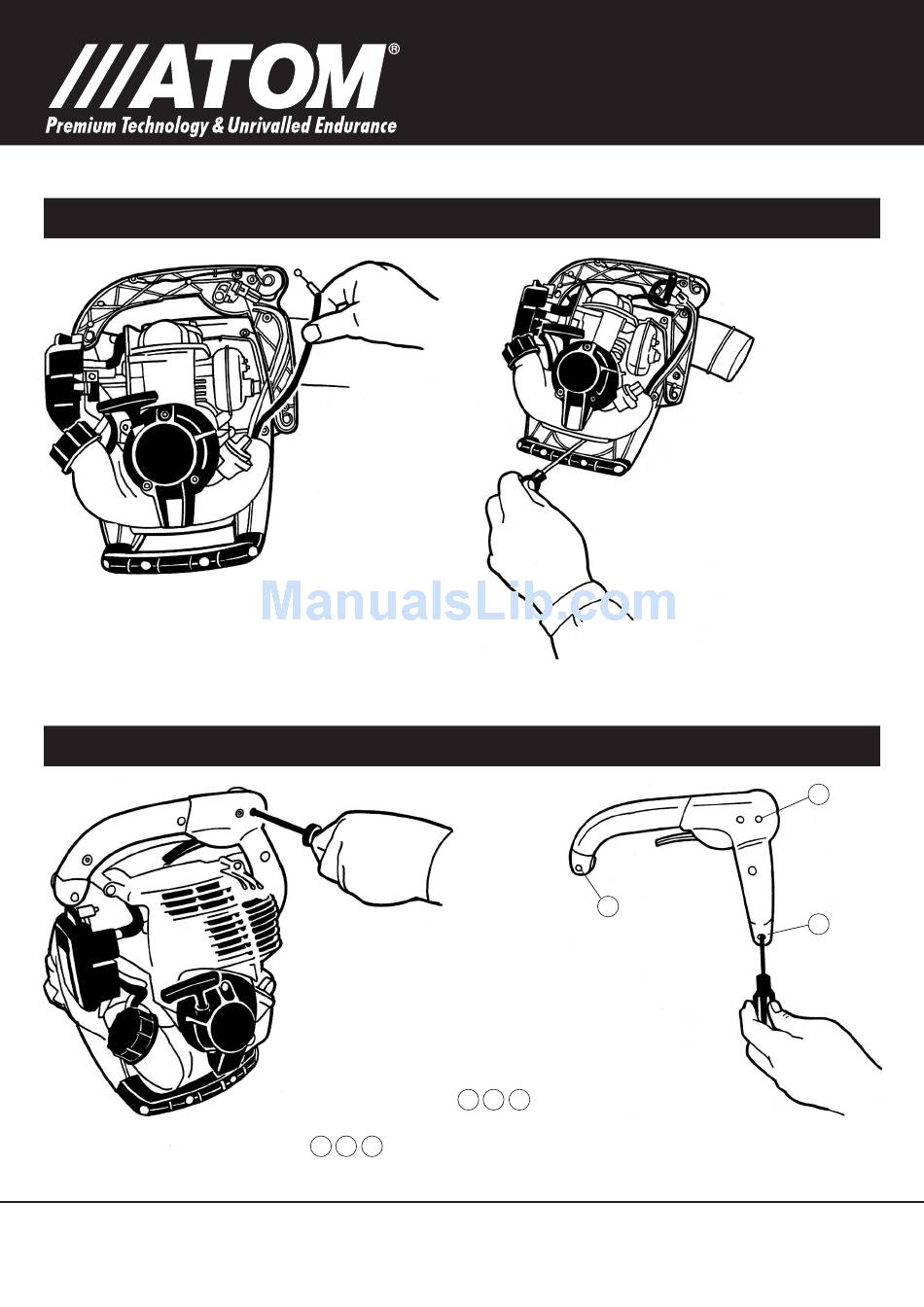

Atom 831 Workshop Manual

To replace throttle cable, switch or switch wires

Remove cylinder cover 3 Torx-20 screws. For GX-25, place
blade screwdriver under base of cover (above recoil starter)
and click cover off.
Remove handle cover by undoing 5 Torx-20 screws.
Lift out cable, or switch and switch wire.
For more details visit our Atom website:
For all Atom Blower models
Fig. 101

To remove handle assembly

Fig. 103
Use Torx-20 screwdriver, or long T-20 powered bit, which
fits into 3 recessed handle holes to undo 3 captivated
screws which attached the AV springs to casings.
Unscrew in sequence
When refitting handle assembly, screw up in sequence
for easier completion.
1 2 3
www.atomindustries.com
Phone: (02) 9810 0194
Email: info@atomindustries.com.au
HAND BLOWER
WORKSHOP MANUAL
MANUAL 780
3
.
1 2 3
Fax: (02) 9810 6691
ACN 000 583 924
Fig. 102
Remove bracket holding cable
and wire (bracket not fitted on
# 831 model 2-Stroke Blower)
Reverse procedure to instal
new cable, or switch and
switch wire.
Hint: When refitting cylinder
cover, screw up lowest screw
first.
2
Fig. 104
1
