PageFlip Lite User Manual

Automatic page turner
Hide thumbs Also See for Lite:
Table of Contents

Advertisement

Quick Links

Download this manual
PageFlip Lite
Automatic Page Turner
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PageFlip Lite

Summary of Contents for PageFlip Lite

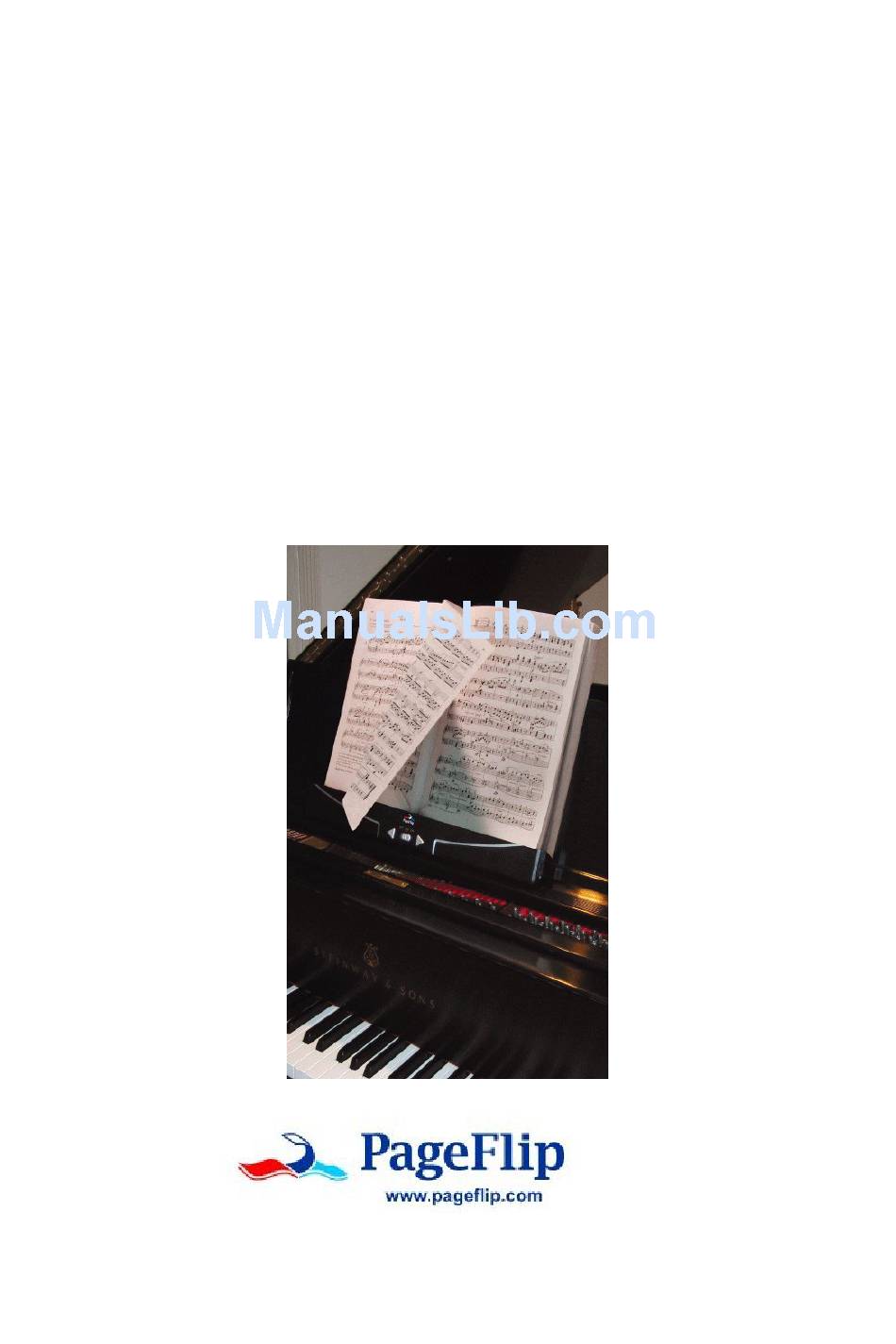

  • Page 1 PageFlip Lite Automatic Page Turner User Guide...
  • Page 3 PageFlip Lite User Guide Legal Notice Copyright c 2009 PageFlip Inc. All rights reserved. Information in this document is subject to change without notice. All statements, information, and recommendations in this manual are believed to be accurate but may include inadvertent technical inaccuracies or typographical errors.
  • Page 4 Safety Notice / Warning Please read the following safety instructions carefully to safely and correctly operate this device. PageFlip assumes no responsibility for property damage or personal injury. 1. Do not place any container filled with liquid on the device.

  • Page 5: Table Of Contents

    4 BASIC OPERATION 4.1 Battery Installation: PageFlip Lite ....4.2 Battery Installation: Wireless Pedal ... . .

  • Page 6: Welcome

    PageFlip Lite is compact, portable, reliable, and easy to use. It features 100% reliability in turning one page at a time. Just pull any book off the shelf, mount it on the PageFlip Lite book clamp, and slide ten sheets through mechanical arms to begin hands-free reading.

  • Page 7: Features

    2. FEATURES 2 FEATURES Ease of Use Simply attach a bound book to the PageFlip Lite book clamp, snap the book clamp to the PageFlip Lite casing, turn the power on, and begin reading. Just press either end of the wireless pedal to turn a page forwards or backwards.
  • Page 8 2. FEATURES Advanced Wireless Feature An advanced frequency pairing feature allows as many as 32 users to wirelessly trigger their own PageFlip Lite units in the same room without interference. Collapsible Support Stand A collapsible support stand allows the page turner to sit on a table while supporting a large book at various tilt angles.
  • Page 9 PageFlip Lite User Guide 2. FEATURES Technical Support Additional information and video tutorials can be found at www.pageflip.com PageFlip, Inc. www.pageflip.com...

  • Page 10: Package Contents

    3. PACKAGE CONTENTS 3 PACKAGE CONTENTS This package contains the following items. If any items are miss- ing, please contact the dealer where you purchased the product. 1. PageFlip Lite Page Turner 2. Collapsible Support Stand 3. Book Clamp 4. Wireless Pedal 5.
  • Page 11 PageFlip Lite User Guide 3. PACKAGE CONTENTS Figure 1: Package contents shown from top to bottom: PageFlip Lite, col- lapsible support stand, book clamp, wireless pedal, universal adapter with three replaceable plugs (for US/China/Japan, Eu- rope/Korea, and UK), and carrying case with shoulder strap.

  • Page 12: Basic Operation

    4. Slide the battery covers back on. Note: To conserve battery power, turn off device when not in use. The unit automatically turns off after 30 minutes of inactivity. Figure 2: Battery covers are located at the rear of the PageFlip Lite unit. PageFlip, Inc. www.pageflip.com...

  • Page 13: Battery Installation: Wireless Pedal

    PageFlip Lite User Guide 4.2 Battery Installation: Wireless Pedal 4.2 Battery Installation: Wireless Pedal 1. Turn off wireless pedal before inserting the batteries. 2. Remove battery cover on the bottom of wireless pedal (Fig. 3). 3. Install three new AA batteries.

  • Page 14: Ac Adapter

    (Fig. 4). Figure 4: (a) Side view of PageFlip Lite; (b) Insert universal AC adapter in topmost outlet. The package includes three plugs (shown left to right): US/China/Japan, Europe/Korea, and UK.

  • Page 15: Powering On The Unit And Pedal

    50 feet away. As many as 32 users can uniquely pair their page turners and pedals within the same 50-foot range. Figure 5: Power switches and LED lights on the (a) PageFlip Lite and (b) wireless pedal. PageFlip, Inc.

  • Page 16: Triggering The

    Flip does not supply plug adapters or auxiliary switches. Consult assistive technology vendors for more information about switches. Figure 6: (a) A sip-and-puff switch can connect to the PageFlip Lite aux- iliary outlet via a 1/8" (3.5mm) stereo plug. (b) A Jelly Bean is a large pushbutton switch.

  • Page 17: Setting Up The Book Clamp

    Fig. 7(a). Each arm has a tip that includes a page restraint to block loose pages from turning freely. Each tip also includes a peg that slides into a rear slot on the PageFlip Lite to secure the book clamp into place. Before setting up the book clamp, it must first be detached from PageFlip Lite by pulling it out...
  • Page 18 flexed arms and supporting plate. (c) Front and (d) rear view of book clamp with mounted book; (e) Front and (f) rear view of book/clamp assembly mounted on PageFlip Lite. Notice that clamp snaps into rear slots of PageFlip Lite.

  • Page 19: Setting Up The Support Stand

    4.7.1 Table or Desk If the workspace is a table or desk, you will need to use the support stand to prop up the PageFlip Lite and the attached book. Unfold the collapsible support stand (Fig. 8) and rest the PageFlip Lite in the bottom groove (Fig.
  • Page 20 PageFlip Lite User Guide 4.7 Setting Up the Support Stand Figure 9: (a) PageFlip Lite and the attached book clamp mounted on the support stand; (b) Front and (c) side view of PageFlip Lite mounted on support stand. PageFlip, Inc.

  • Page 21: Music Stand Or Piano

    Fig. 10(b). PageFlip assumes no responsibility for any damage due to an imbalance of the book or page turner during setup. Figure 10: PageFlip Lite clipped to (a) bottom and (b) top of book. PageFlip, Inc. www.pageflip.com...

  • Page 22: Loading Pages Into Arms

    4.8.1 Method 1 1. Move all forked arms to the right side for loading 2. Attach clamped book onto PageFlip Lite (Fig. 7(e)) 3. Release up to ten sheets from under page restraint 4. Lay them between forked arms and page restraints (Fig. 11(a)) 5.
  • Page 23 PageFlip Lite User Guide 4.8 Loading Pages into Arms Figure 11: (a) Release sheets from under page restraint; (b) lift corner of topmost page and feed it into forked-arm slot; (c) slide page into slot and flatten; (d) turn page and repeat process.
  • Page 24 PageFlip Lite User Guide 4.8 Loading Pages into Arms Method 2 has the benefit that the arms do not have to be ad- vanced during loading, nor moved back to their original position while rewinding the pages. It has the disadvantage that the num- ber of sheets released from under the page restraint in step (3) must precisely match the number of sheets to be turned.
  • Page 25 PageFlip Lite User Guide 4.8 Loading Pages into Arms It should be clear from Fig. 12 that some of the ten arms may not be usable if the book width is too narrow. The example in that figure, for instance, only used seven forked arms. This problem may be solved by attaching Post-It notes to the edge of the page to extend its effective width.

  • Page 26: Product Specification

    PageFlip Lite User Guide 5. PRODUCT SPECIFICATION 5 PRODUCT SPECIFICATION Item Specifications Model Name PageFlip Lite Model Number PFLITE-001 Dimensions PageFlip Lite: 18.5 x 4.3 x 1.5 inches (469 x 108 x 39 mm) (W x H x D) Wireless Pedal: 5.9 x 3.4 x 1.2 inches (150 x 87 x 31 mm)

  • Page 27: Maintenance

    1. Turn off the power 2. Unplug the power cord 3. Take out the batteries Gently wipe the PageFlip Lite surface with a soft, dry, lint-free cloth. Caution: Do not use water, liquid detergent or solvents for cleaning. Liq- uids might drip into the device’s mechanical or electronic parts and cause damage to them.

  • Page 28: Warranty

    PageFlip offers a 90-day warranty on the PageFlip Lite automatic page turner. The warranty commences on the date of purchase. Should a unit fail during the warranty period, PageFlip will, at its option, repair or replace the damaged unit. Repaired or replaced units will be covered for the remainder of the original warranty pe- riod.

  • Page 29: Guarantee

    PageFlip Lite User Guide 8. GUARANTEE 8 GUARANTEE PageFlip offers a 30-day money back guarantee if our products do not meet your needs or expectations. Products must be returned postage paid in new condition in the original packaging to honor this service.

  • Page 30: Frequently Asked Questions

    ON to OFF and back to ON. Does PageFlip Lite turn pages at timed intervals? No. PageFlip Lite turns a page only when the user triggers it by pressing a button, tapping a pedal, or activating an external switch.
  • Page 31 When reading on a table or desk, the clamp must be attached to the bottom of the book. When using PageFlip Lite on a music stand or piano, it is best to attach the clamp to the bottom of lightweight books and to the top of heavy books.
  • Page 32 flatten the pages. Does PageFlip Lite work with looseleaf binders? Yes, PageFlip Lite can turn loose pages that are inserted in a thin looseleaf binder. Use looseleafs with 1 inch binding rings to hold up to 275 sheets.
  • Page 33 PageFlip Lite User Guide 9. FREQUENTLY ASKED QUESTIONS Please visit http://www.pageflip.com for additional information, including manuals, videos, and updates. Please send email to support@pageflip.com with any technical questions or comments. PageFlip, Inc. www.pageflip.com...
