Related Manuals for Avantco KEGRTRBLK
Summary of Contents for Avantco KEGRTRBLK

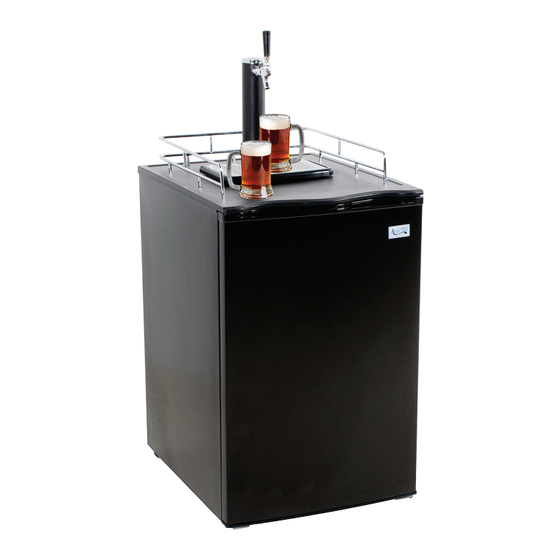

- Page 1 User Manual Beer Keg Dispenser User’s Manual 09/2015 Beer Kegs KEGRTRBLK, KEGRTRSS Recommended for household use only. Please read the manual thoroughly prior to equipment set-up, operation and maintenance - 1 -...
-
Page 2: Table Of Contents
User Manual Table of Contents Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Unpacking and Setup . -
Page 3: Important Safety Instructions
User Manual IMPORTANT SAFETY INSTRUCTIONS WARNING: Please read all instructions before using this unit . FOR YOUR SAFETY • DO NOT store or use gasoline, or other flammable liquids in the vicinity of this or any other appliance. Read product labels for warnings regarding flammability and other hazards. •... - Page 4 User Manual PROPER DISPOSAL OF YOUR APPLIANCE RISK OF CHILD ENTRAPMENT Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old appliance, please follow the instructions below to help prevent accidents.
-
Page 5: Unpacking And Setup
User Manual WARNING CANISTER SAFE HANDLING • CO2 canisters must be handled with extreme care. They contain potentially hazardous high pressure compressed gas. Make sure you read and understand all of these instructions before installation. • Never attempt to refill a CO2 cylinder yourself. They can be refilled at locations such as welding supply shops, party stores, fire supply shops, or where kegs are purchased. -
Page 6: Features At A Glance
User Manual FEATURES AT A GLANCE Features may vary according to model Standard Keg Sizes for this Cooler - 6 -... -
Page 7: Assembly And Installation
User Manual ASSEMBLY AND INSTALLATION This Use and Care Guide provides specific operating instructions for your model. Use this unit only as instructed in this Use and Care Guide. Before starting the unit, follow these important first steps . LOCATION •... - Page 8 User Manual LEVELING All four casters of your unit must rest firmly on a solid floor. Use adjustable wrench to adjust leveling screws. CAUTION: do not attempt to move or relocate the keg cooler with a keg inside . REGULATOR INSTALLATION •...
- Page 9 User Manual CO2 CANISTER TO CABINET INSTALLATION • Lift and place the CO2 canister (12) with the CO2 regulator (6) on the shelf at rear right hand corner of cabinet. It is important that the canister be kept in an upright position to operate efficiently. Hook one end of retaining strap (3) over metal bracket at rear, then stretch around canister and hook other end over front bracket.
- Page 10 User Manual OPERATING YOUR KEG COOLER • Make sure that the keg cooler is plugged in properly to a 115V, 60Hz AC only electrical outlet. • Make sure that the drip tray and sump are secured under the faucet. • Start with a clean beverage glass that has been wetted in cold water. Place the glass at a 45º angle, 2.5 cm (1 in.) below the faucet.
-
Page 11: Temperature Controls
User Manual TEMPERATURE CONTROLS COOL DOWN PERIOD For proper operation, allow the unit to operate with the door closed for at least 12 hours before placing the keg inside. KEG COOLER CONTROLS Temperature control This rotary control is the primary control for the refrigerated compartment temperature. If the unit is too warm, adjust this control in the “Max”... -
Page 12: Helpful Hints
User Manual HELPFUL HINTS PARTS OF A CO2 REGULATOR (A) Low Pressure Gauge (B) Adjustment Knob (C) Adjustment Lock Set Screw (D) Shut-off Valve (E) CO2 Nut (used to connect to CO2 canister) (F) High Pressure Gauge BEER STORAGE TEMPERATURE 38°F (3°C) 38°F (3°C) •... -
Page 13: Vacation And Moving Tips
User Manual VACATION AND MOVING TIPS VACATION AND MOVING TIPS Short Vacations - Leave keg cooler operationg during vacations (3) weeks or less. - Use all perishable items from keg cooler compartment. Long Vacations - Remove all food and ice if you will be gone one month or more. - Turn controls to the OFF position and disconnect power. -
Page 14: Care And Cleaning
User Manual CARE AND CLEANING Keeping your keg cooler clean maintains appearance and prevents odour build-up. Wipe up any spills immediately and clean the keg cooler at least twice a year. When cleaning, take the following precautions: • Never use CHLORIDE or cleaners with bleach to clean stainless steel. •... -
Page 15: Before You Call
User Manual BEFORE YOU CALL - 15 -... - Page 16 User Manual - 16 -...
- Page 17 User Manual DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair Manual/Owner’s Guide Before Attempting To Service This Product. All Safety Precautions Must be Followed CAUTION –...
-
Page 18: Warranty Information
Failure to contact the designated location prior to obtaining equipment service may void your warranty . Avantco Refrigeration will not warrant coverage for component failure or other damages that arise under the following conditions: - Failure to install and/or use unit within proper operating conditions specified by Avantco Refrigeration - Failure to properly maintain the unit.
