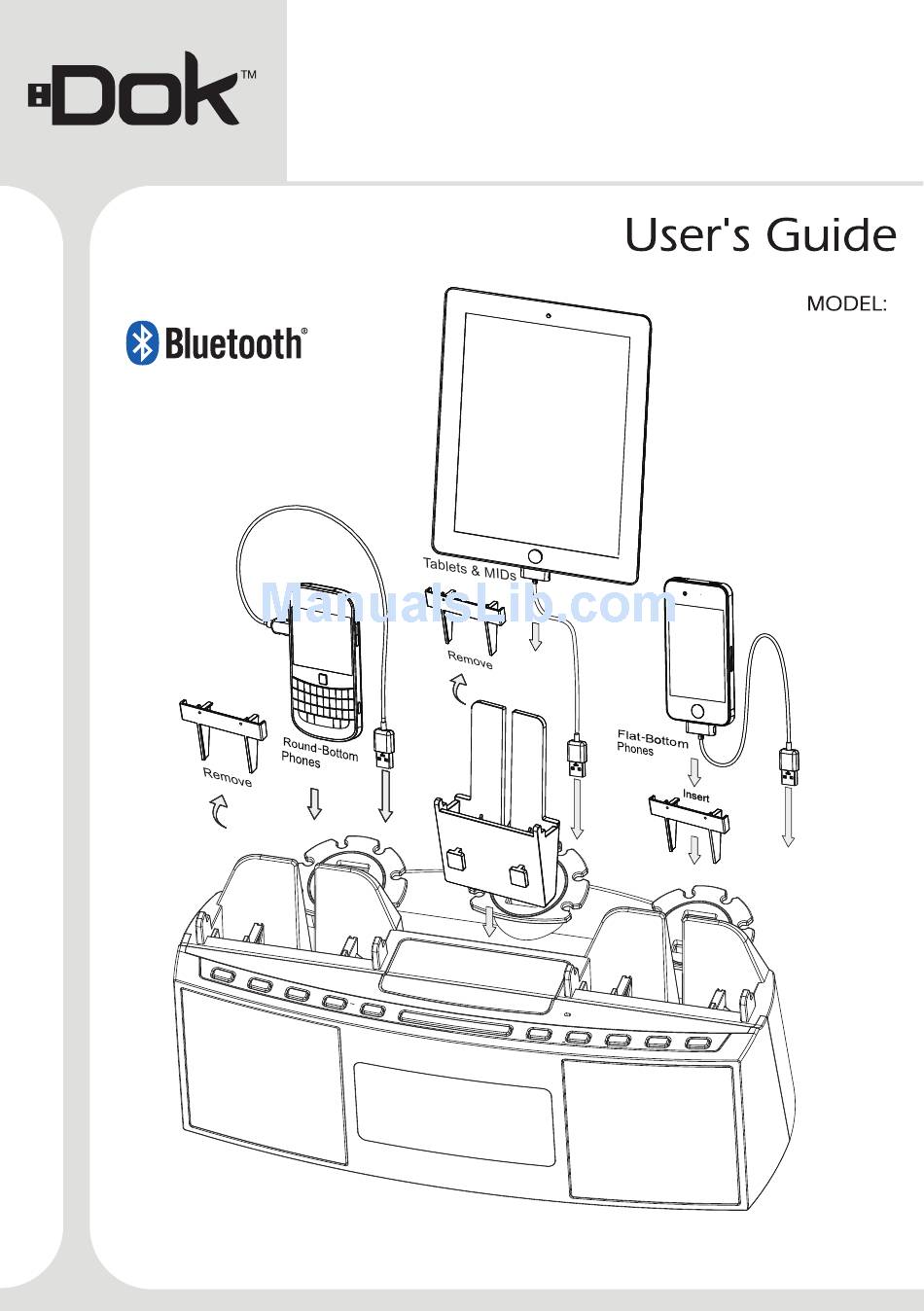

- Page 1 Universal Multi- Charging Station CR28 „ „ Charges and Holds 3 Devices in Cradle Holders SCD (Smart Current Detection) Technology „ Wirelessly Plays Music and Answers Calls „ FM Clock Radio With Alarm „ Tidy-Cable Organizer...
-
Page 3: Table Of Contents
Contents Thank you for purchasing our product. For operation and security, read this manual carefully and keep it handy for future reference. Contents............................01 Features............................01 Warnings and Precautions......................02 Important Safety Instructions......................03 Quick Start On Charging Your Device..................04-08 What’s in the Gift Box........................09 Location of Functions........................10 Operation..........................1 1-14 Troubleshooting..........................15... - Page 4 MOISTURE AND CONDENSATION WARNING: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture. If the unit is exposed to moisture and extreme cold temperatures and moved to a warm CAUTION: Use of controls or adjustments or environment, condensation may form on the units performance of procedures other than those internal components.
- Page 5 1. Read These Instructions: All way. If any damage occurs, consult 18. Replacement Parts and Safety safety and operations manual should with a trained technician for repair. Check: When replacement parts are be read before the product is required, be sure the service 11.
-
Page 6: Quick Start On Charging Your Device
Quick Start On Charging Your Device Remove Items from Package Connect Unit to Power Outlet Plug the small end of included AC/DC power adapter into the DC POWER INPUT on the rear of unit and connect power adapter to an AC power outlet to power the unit. - Page 7 Quick Start On Charging Your Device 2. Connect your device to 1 of the 3 USB Charging Ports, as per below: For smart phones and small devices, all 3 USB Charging Ports may be used. Please use the RED USB Charging Port for use with Tablets and/or smart devices requiring DC 5V/2.1A.
- Page 8 Quick Start On Charging Your Device 4. Your smart device 's shape will determine if an insert is needed. Use the insert for flat-bottom phones. Round-bottom phones do not need the insert; Optional Insert For FLAT-BOTTOM phones For ROUND-BOTTOM phones 5.
- Page 9 Quick Start On Charging Your Device c. For TABLETS & MIDs; • USE WITH FIXED CRADLES: Insert Charging Cable and place smart device to the 2 FIXED cradles (Vertically or Horizontally). • USE WITH DETACHABLE CRADLE (included): 1. PUSH 2. LOCK...
-
Page 10: Quick Start On Charging Your Device
Quick Start On Charging Your Device 6. Disconnect the smart device from the USB Charging Cable and leave Charging Cable plugged into the Charging Station for easy re-connection. -
Page 11: What's In The Gift Box
What’s in the Gift Box 1 Device Cradle & CR28 Base Unit 3 Cradle Inserts 3.5mm Headphone Jack AC Adapter AUX-IN Cable Connector „ Charges and Holds 3 Devices in Cradle Holders „ SCD (Smart Current Detection) Technology „ Wirelessly Plays Music and Answers Calls „... -
Page 12: Location Of Functions
Location of Functions Front View MIDDLE CRADLE (DETACHABLE) RIGHT CRADLE LEFT CRADLE RIGHT SPEAKER LEFT LCD DISPLAY SPEAKER Top View MICROPHONE TUNING & PREV. ALARM 1 SLEEP VOLUME DOWN SOURCE VOLUME UP BUTTON TUNING & NEXT TIME SETTING & DISPLAY ALARM2 PHONE CALL/ PAIRING &... -
Page 13: Operation
Operation „ Charging Your Smart Phone or Other Personal Devices: • Cradle and hold up to 3 smart devices. • Charge and view up to 3 smart devices simultaneously with 3 Vertical USB Charging Ports. Your smart device will determine if an INSERT is needed. Use the INSERT for Flat-Bottom devices. - Page 14 Operation (continued) Setting Up Your Smart Devices „ 1. Push the end of USB cord into a slot: 2. Wrap the USB cord around the Tidy Cable Organizer: 3. Leave an ample amount of cord to cradle and plug into your smart device: 4.
- Page 15 (This unit can only be connected to one device at a time, if the other personal device needs to connect to CR28 when it paired, press and hold PAIRING/PRESET button until Bluetooth icon flashes, then do Step 2 and 3 on your personal device again.) STEP 4 - Playing Audio Via Bluetooth After Pairing: A.
- Page 16 Operation (continued) „ Using the Audio Input/Line Input (AUX-In) Jack Cable (included): You can play your portable audio device and/or smart device with a standard 3.5mm headphone jack audio patch cord/speaker cable (included) using the AUX-In Jack. 1. Plug one end of a standard Aux-In cord into the Aux-Out/Headphone Jack of your device and the other end into the unit's Aux-In Jack, located on the back of the unit.
-
Page 18: Troubleshooting
Troubleshooting SYMPTOM POSSIBLE PROBLEM SOLUTION Unit does not Power cord does not plug into the wall Plug the power cord into a working wall turn on: socket. socket. Power cord disconnected or loose. Check the connection or the power cord. Pair the Bluetooth. - Page 20 Mini USB Micro USB Price: $5.00 Price: $5.00 Sku: UCMV3 Sku: UCMV8 Buy Now q Buy Now q Make Checks or Money Orders Payable to: DOK Solution, LLC. Add $3.00 S&H. PLEASE PRINT CLEARLY Name: Address: State: Zip: City: Phone:...
