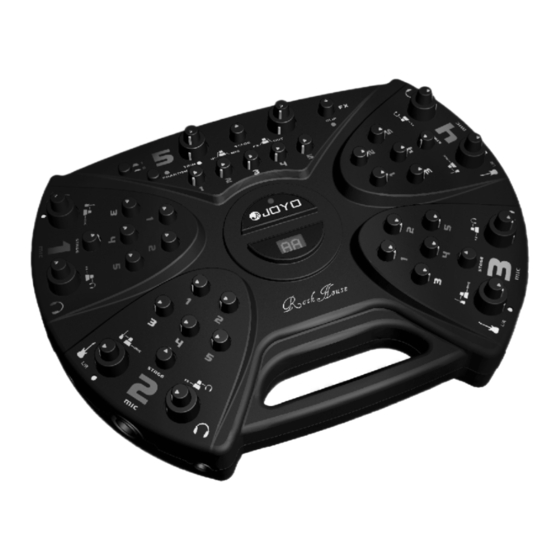

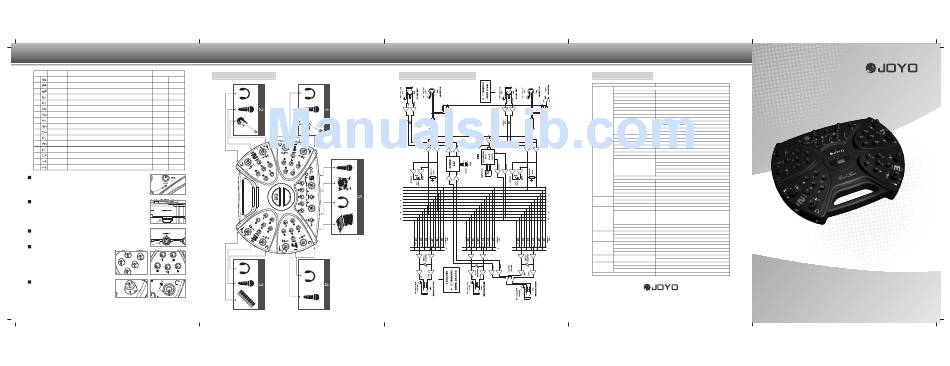

Joyo Rock House User Manual

Rock House noiseless rehearsal studio
NO. Type Description Parameter
01
Slap Back A mono delay with double effect Delay time 10-100ms
02
Ping Pong A full stereo delay Delay time 10-100ms
03
Big Ambiance
A big room with enough reflections Reverb time 2.1s
04
Early Reflections A delay with a series of early reflections Reverb time 80-100ms
05
Echo An attenuative repeat of the original signals Delay time 225ms
06
Gate A gate reverb effect resulting from cutting off the Hall reverb Reverb time 0.8-1.2s
07
Med Reverb with short early reflections Reverb time 1.8s
08
Hall 2.8 seconds of reverb with enough late reflections Reverb time 2.8s
09 Small Hall
1.5 seconds of reverb with early reflections Reverb time 1.5s
10
Chorus A "stronger" sound from modulation of signal and delay time 0.15-0.4Hz
Frequency
11
Flanger An enhanced tonal scale of the original signals Frequency 0.15-0.5Hz
12
Phaser Phase shifting effect Frequency 0.05-0.5Hz
13
Church 6 seconds of reverb with plenty of late reflections Reverb time 6s
14
Chapel A reverb with a lot of late reflections Reverb time 3.5s
15
Rotary Speaker 180 degrees phase shift and peak modulation Frequency 0.1-5Hz
16 Reverse Reverb
A reverse reverb with 1.2 seconds of reverb time Reverb time 1.2s
FX CLIP Indicator
When the FX Clip LED blinks, it indicates the strong
mic input to the effect engine. When the LED light turns
red, it indicates the mic input signal will be overdriven.
Please turn down the mic trim control to weaken the
FX CLIP Indicator FX CLIP Indicator
mic input signal.
REMOTES Connector
The REMOTES connector connects a Moni Mixer-5. Moni
Mixer-5 is a separate channel, and it can set the other
sections' level by controlling the corresponding 1-5
controls. The REMOTE connector is a HDMI port, and it
can only connect to our Moni Mixer-5 for power and audio
frequency transmission. REMOTES Connector REMOTES Connector
POWER Connector
Power connector is a 4 PIN port, and you can only use the
power adapter provided with the Rock House.
POWER Connector POWER Connector
1-5 Moni Mixer control
Each Moni Mixer control section is like an individual
mixer, and you can get to create the mix that is right
for you while the other band members do the same.
Everyone in the band can use their Moni Mixer
controls to balance others' level in their
headphones by turning up or down the control
marked the corresponding "1"or "2"or "3" or 1-5 Moni Mixer control 1-5 Moni Mixer control
other on their Moni Mixer section.
FX control
The FX control lets you have complete control of
your mix effect, and create the mix that is right for FX control FX control
you. Also you can monitor your own mic input effect
and your band members in other channels.
⑥
Connection Schemes
⑦
Functional Block Diagram
⑧
Product Parameters
Type The noiseless rehearsal studio
Mono Channels(Ch1-Ch5)
Microphone Input XLR,Balance,Unbalanced
Sensitivity -50dB
Frequency Response 20Hz ～ 22kHz, +/-2dB
Distortion( THD&N) 0.05% At 0dB, 1kHz A-Weighted
Gain Range Off to 0dB +/-3dB
SNR ( Signal to Noise Ratio )
80dB A-weighted
Phantom Power +45V ～ +52V With Switch Control
Green / Yellow (Green/Red) / Red
Meters
( 53dB ) Ch1 Input→Phones Output1
( 53dB ) Ch2 Input→Phones Output1
Maximum Voltage Gain Load:32 Ohms ( 53dB ) Ch3 Input→Phones Output1
( 53dB ) Ch4 Input→Phones Output1
( 53dB ) Ch5 Input→Phones Output1
Stereo Channels(Ch1-Ch5)
"1/4" TRS，Unbalanced
Stereo Input
Input Channels
Gain Range Off to 0dB +/-3dB
SNR( Signal to Noise Ratio ) 90dB A-weighted
Frequency Response 20Hz ～ 22kHz, +/-2dB
Sensitivity -40dB
Distortion (THD&N) 0.05% At 0dB, 1kHz A-weighted
( 40dB ) Ch1 Input→Phones Output1
( 40dB ) Ch2 Input→Phones Output1
Maximum Voltage Gain Load:32 Ohms ( 40dB ) Ch3 Input→Phones Output1
( 40dB ) Ch4 Input→Phones Output1
( 40dB ) Ch5 Input→Phones Output1
USB Channel
SNR( Signal to Noise Ratio ) 80dB A-weighted
Frequency Response 20Hz ～ 22kHz, +/-2dB
Sensitivity 0dB
Distortion (THD&N) 0.05% At +0dB, 1kHz A-Weighted
( 6dB ) USB→Phones Output5
Maximum Voltage Gain Load:32 Ohms
Microphone Input 3.3k Ohms
Impedance Stereo Input 22k Ohms
Phones Output 32 Ohms
A/D And D/A Converters 24 bits
Slap-Back,Ping-Pong,Big Ambiance,Early
Reflections,Echo,Gate,Med Room,Hall,Small
Type Of Effects
Hall,Chorus,Flanger,Phaser,Church,Chapel,Rotary
Dsp Section
Speaker,Reverse Reverb
Presets 16-Posistion Preset Selector
Display Character / Clip LED
-70dB @ 1KHz ( Channels Gain Min ) A-weighted
Adjacent Input
Crosstalk Input → Output -75dB @ 1KHz ( Mix Knob Min ) A-weighted
Channels → Channels -70dB @ 1KHz A-weighted
-80dB @ 20Hz～22KHz ( Channels Gain Min ) A-weighted
Noise (Bus noise)
Mix Phones Phones Max Output +6dB Unbalanced "1/4" Jacks
Section Off to 0dB +/-3dB
mix Range
Phones Range Off to 0dB +/-3dB
AC100～240V 50Hz～60Hz Fuse: T1.6A 250V ( Switch Power )
Power Supply Main Voltage
DC +/-15V 1A +48V 0.2A
Dimension (W D H) 275*240*59mm
Physical Net Weight 3.7kg
Gross Weight 4.3kg
Rated Power Consumption 25W
JOYO TECHNOLOGY CO., LTD
Address: 2/F, Lushi Industry Building, 28th District, Bao'an, Shenzhen, 518101 China.
www.joyoaudio.com Email:jack@joyoaudio.com Tel: 0086-755-29765381
