Summary of Contents for Gama Garden GCS-2200E

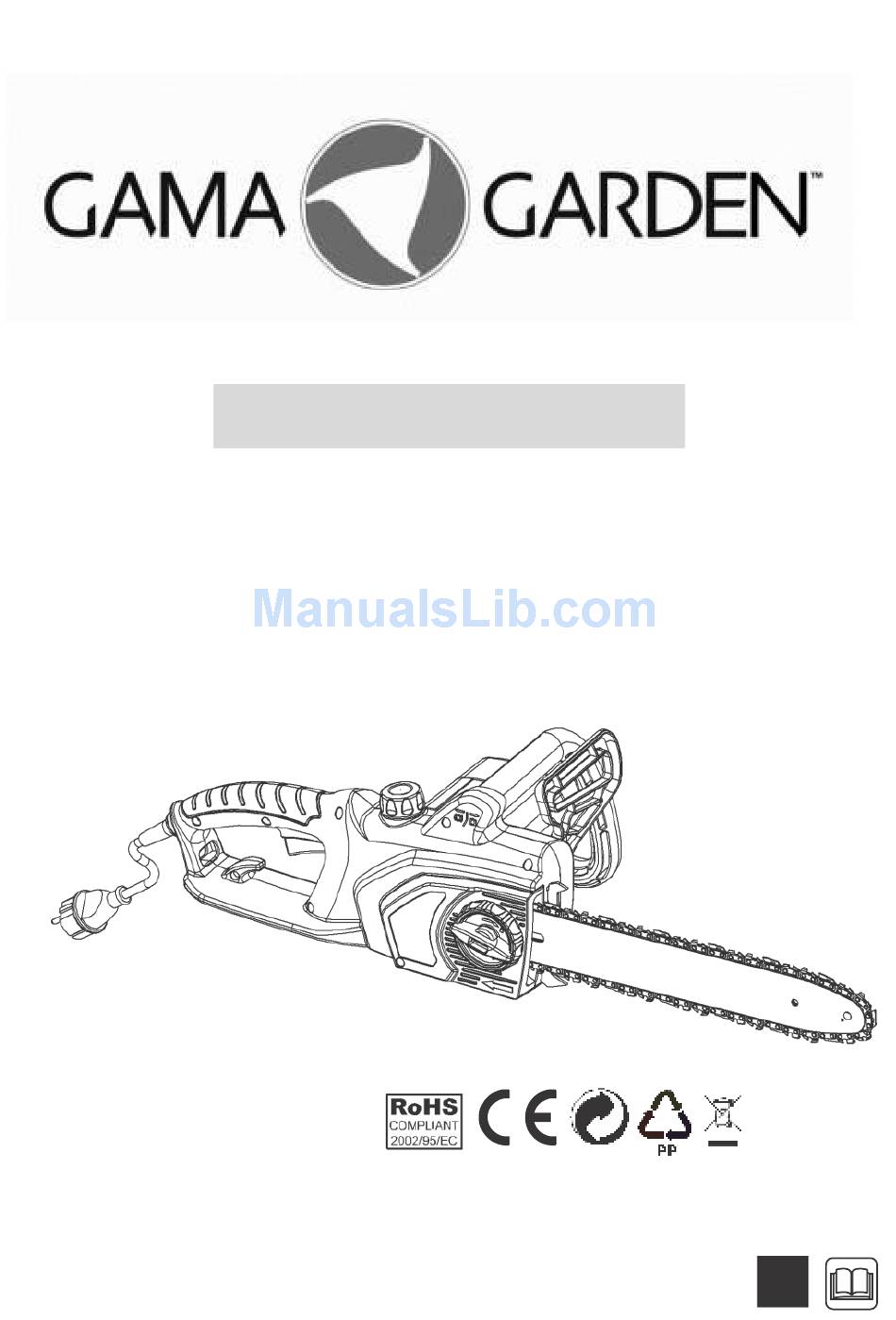

- Page 1 Electric Chain saw Instruction manual GCS-2200E...
-
Page 7: Safety Instructions
to saw wood or objects made of wood. Any other Pictogram and explanation types of use are at your own risk and could be dangerous. The manufacturer cannot be held Caution! Read the instruction manual and liable for damage caused by improper or incorrect follow the warning and safety instructions! usage. - Page 8 it starts up. Never carry your electric tool by its cable. Do Hold the chainsaw firmly in both hands when not use the cable to pull the plug out of the • working with it. socket. Protect the cable from heat, oil and •...
-
Page 9: Before Starting Up
• Do not use the chainsaw to remove or similar time! When lopping off branches, be careful objects. not to touch any other branches. When lopping off branches, the chain saw When cross-cutting, pay attention to trunks • • should be supported wherever possible against standing very close to each other. -
Page 10: Chain Lubrication
contents of the oil tank during sawing work by mm. Tighten the lock knob (F) securely. checking the oil gauge (C). Close the oil tank cap When warm, the saw chain will expand and tightly and wipe away any spills. slacken and there is a danger of it jumping off the rail altogether. -
Page 11: Sharpening The Saw Chain
Releasing the chain brake clearance of at least 20 cm. If you now see growing traces of oil, the chain lubrication system To be able to use your chain saw again, you must is working correctly. If there are no traces of oil at release the saw chain again. - Page 12 wood or wooden objects. When sawing, make Chainsaw protection sure that no stones or nails are touched as these Never use the chainsaw in the rain or in damp could be thrown out and damage the saw chain. conditions. Avoid bringing the running saw into contact with If the extension cable is damaged, pull the wire fences or the ground.
-
Page 13: Maintenance And Cleaning
The chain saw may be used to fell only trees • If the direction of fall cannot be reliably which are smaller in diameter than the length of estimated owing to wind or gusts of wind. the motor still running. If the saw chain gets Felling work on sloping ground, black ice, jammed, release it using a wooden wedge. -
Page 14: Technical Data
• Remove the retaining ring (A) and chain wheel Technical Data (B) from the shaft. Replace the chain wheel with a new one. • Mains : 230V-50Hz Power rating : 2200 W Storage Cutting lenght max. : 400 mm This application should be stored in a dry and Cutting speed : 14 m/s clean room and out of reach of children. -
Page 15: Troubleshooting
Troubleshooting Fault Cause Remedy Motor does not run No electricity Check socket, cable and plug. Damaged cable: Have repaired by Customer Service. It is prohibited to patch the cable with insulating tape . Damaged switch have to be replaced by a Customer Service workshop. -
Page 16: Explosion Drawing
Explosion drawing... -
Page 17: Parts List
Parts list Pos. Description Pos. Description Ventilator housing Chain wheel Front finger guard Retaining ring 10 Housing left section Claw stop Power cable Oil tank cap complete Cable protective sleeve Oil tank Cable clip Housing right section Capacitor Locking block complete Safety switch lift level Guide bar cover Rear bearing seat...
