INSTALLATION AND
OPERATION INSTRUCTIONS
Innovative Hearth Products

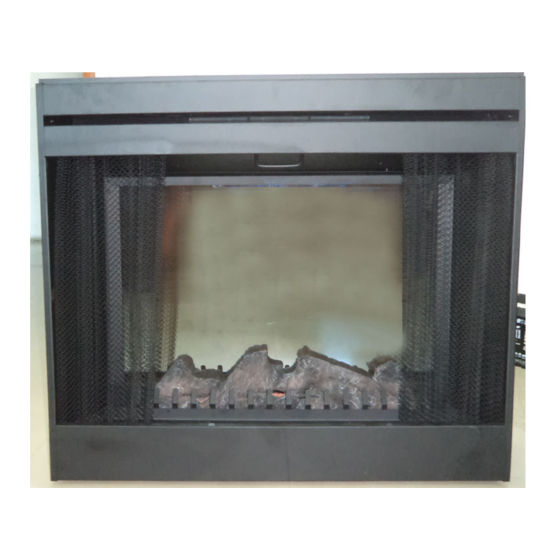

33" Electric Fireplace
Publication:506009-10
MODEL:
2
MPE33-2,ERT3033,Capella 33
This manual will enable you to obtain a safe, efficient and dependable
installation and operation of your electric fireplace. Please read and
understand these instructions before beginning your installation.
Do not alter or modify this fireplace or its components under any circum-
stances. Any modification or alteration of the fireplace system, including
but not limited to the fireplace and accessories, may void the warranty,
listings and approvals of this system and could result in an unsafe and
potentially dangerous installation.
IMPORTANT! IF OPTIONAL gLASS DOORS ARE PURCHASED, TO
ASSURE PROPER ALIgNMENT, INSTALL THIS FIREPLACE IN A
SqUARE AND PLUMb CONDITION, USINg SHIMS AS NECESSARy
AT SIDES. THIS APPLIANCE IS MOUNTED ON RUbbER FEET TO
ENSURE ADEqUATE AIR CIRCULATION bENEATH FIREPLACE.
DO NOT bLOCK AIRFLOW AT THE bOTTOM AIR INTAKES.
INSTALLER: DO NOT DISCARD THIS MANUAL
PLEASE LEAVE FOR THE HOMEOWNER
FOR yOUR SAFETy
DO NOT STORE OR USE gASOLINE OR OTHER FLAMMAbLE
VAPORS AND LIqUIDS IN THE VICINITy OF THIS OR ANy OTHER
APPLIANCE.
electric fireplaces are designed for use as a decora-
tive appliance and/or as a supplemental heater.
They are
SAVE THESE INSTRUCTIONS
not intended for continuous use as a primary heat source.
FOR FUTURE REFERENCE
A French manual is available upon request. Order P/N 850,032CF
Ce manuel d'installation est disponible en francais, simplement en
faire la demande. Numéro de la pièce 850,032CF.
®
Report # C1482763
C
US
Advertisement
Table of Contents
Related Manuals for Innovative MPE33-2
Summary of Contents for Innovative MPE33-2
-
Page 1: Operation Instructions
INSTALLATION AND OPERATION INSTRUCTIONS Innovative Hearth Products 33" Electric Fireplace Publication:506009-10 MODEL: MPE33-2,ERT3033,Capella 33 This manual will enable you to obtain a safe, efficient and dependable installation and operation of your electric fireplace. Please read and understand these instructions before beginning your installation. -
Page 2: Important Safety Information
IMPORTANT SAFETy AND UNDER NO CIRCUMSTANCES SHOULD IMPORTANT THIS FIREPLACE bE MODIFIED. PARTS WARNIINg INFORMATION HAVINg TO bE REMOVED FOR SERVIC- These fireplaces are designed INg MUST bE REPLACED PRIOR TO as supplemental heaters. There- OPERATINg THE FIREPLACE AgAIN. READ THIS MANUAL IN ITS fore, it is advisable to have an ENTIRETy AND UNDERSTAND DO NOT USE THIS APPLIANCE OUT-... -
Page 3: Table Of Contents
CONgRATULATIONS! Power Supply Wire gage Voltage Wire gage Fuse In selecting this Merit electric fireplace, you have chosen the finest and most dependable fireplace found anywhere. A beautiful and prestigious addition to 120 V 14 gA. 15 AMP the finest homes. Welcome to a Family of hundreds of thousands of satisfied 240 V 14 gA. -
Page 4: Framing Specifications
FRAMINg SPECIFICATIONS 25-5/8 " (651 mm) 36-1/4 " (921 mm) 35-1/4 " (895 mm) 51-1/4 " (1302 mm) Electrical Junction Electrical 32 " Junction 35-1/4 " (812 mm) (895 mm) (left side) Corner View 4 " (102 mm) 15-1/8 " Front View Note: Framing dimensions are calculated for a nailing flange depth of 1/2"... -
Page 5: Clearances
(120 V - 15 Amps or 240 V - 20 Amps). before you Start A dedicated circuit is required to prevent Check appliance for any concealed damage. Model: MPE33-2,ERT3033.Capella 33 overloading a house circuit in cases of having Description: Merit Electric Fireplace, multiple appliances on the same circuit. -
Page 6: Final Finishing
FINAL FINISHINg Note: Ensure the circuit breakers for the power Main Power ON/OFF Switch When the main power switch is turned on, power supply are turned on. is supplied to the fireplace. This switch must be Materials such as brick and tile can be on for all other switches to operate. -
Page 7: Remote Control Operation
REMOTE CONTROL OPERATION: 4. To increase the brightness, press and The functions identified on the remote (see Figure 6) are as follows: release the light brighten button (see E). Each time you press this button you will REMOTE CONTROL hear a beep, and the brightness will increase A. -
Page 8: Maintenance
MAINTENANCE 4. OPTIONAL: To ensure that the brick panel b. Turn the power and heater switches on isn't accidentally scratched, you may wish and check for proper operation. This appliance has been designed to provide to remove it before proceeding: c. -
Page 9: Wiring Diagrams
WIRINg DIAgRAM - 120 VOLT Wiring diagrams are provided here for reference purposes only. This information is also provided on schematics attached directly to the appliance on the left side. CAUTION: LAbEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICINg CONTROLS. WIRINg ERRORS CAN CAUSE IMPROPER AND DAN- gEROUS APPLIANCE OPERATION. -
Page 10: Warning
WIRINg DIAgRAM - 240 VOLT Wiring diagrams are provided here for reference purposes only. This information is also provided on schematics attached directly to the appliance on the left side. CAUTION: LAbEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICINg CONTROLS. WIRINg ERRORS CAN CAUSE IMPROPER AND DAN- gEROUS APPLIANCE OPERATION. - Page 11 WALL THERMOSTAT & WALL SWITCH WIRINg DIAgRAMS (optional kits, see Page 17) INSIDE OUTSIDE POWER ON/OFF SWITCH POWER ON/OFF SWITCH (ON CONTROL PANEL) (OPTIONAL WALL SWITCH) gREEN gROUND • When using the manual control panel power on/off switch, the outside power on/off switch (optional wall switch kit) must be in the OFF position.
-
Page 12: Fireplace
Installing Wall Thermostat (optional kit, see Page 17) Wire the wall thermostat prior to installing the fireplace. WALL THERMOSTAT WIRINg (24 VAC): Install Wall Thermostat per instructions provided with kit and per the following information: 1. Turn off circuit breaker. 2. -
Page 13: Figure 26
Power On/Off Wall Switch Installation (optional kit, see Page 17) Wire the wall switch prior to installing the fireplace. WALL SWITCH WIRINg (24 VAC): Install Wall Switch per instructions provided with kit and per the following information: 1. Turn off circuit breaker. 2. -
Page 14: Troubleshooting
TROUbLESHOOTINg Symptom Possible Causes Who Performs Corrective Corrective Action Action 1. Fireplace turns off and will not Fireplace has overheated. Homeowner The appliance is protected with a safety turn on and an audible beeping device to prevent it from overheating. If noise can be heard. -
Page 15: Replacement Parts
REPLACEMENT PARTS MPE33-2,ERT3033,Capella 33 ITEM DESCRIPTION CAT. NO. PCb LED-M1 Led strip embers bed H9106 Side Frames, 1 Left And 1 Right H1942 H9107 Cb3336 Circuit board LED 33 and 36 Nailing Flange Kit, (4 Each) H1626 H9108 gP mirror glass Panel 33 glass Retaining bracket Kit: Left, Right, &... - Page 16 REPLACEMENT PARTS COMPONENT DIAgRAMS - MPE33-2,ERT3033,Capella 33 POWER ON/OFF DISPLA ON/OFF Dimmer righter EM ERS HEATER ON/OFF TEMP. CONTROL HIgH MED. LOW FLAME bLUE yELLOW Front View NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
-
Page 17: Optional Accessories
Please contact your Superior dealer for any questions or concerns. H3433 gEP-33Pb glass Enclosure Panel, brass on bronze H3434 gEP-33bS glass Enclosure Panel, Stainless on bronze Innovative Hearth Products 1508 Elm Hill pike Suite 108 Nashville, TN 37210 NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. - Page 18 NOTES NOTE: THIS PAGE LEFT BLANK INTENTIONALLY NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
- Page 19 The manufacturer reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products. Innovative Hearth Products Consult your local distributor for fireplace code information. 1508 Elm hill Pike Suite 108 Printed in U.S.A. © Innovative Hearth Products Nashville.TN 37210 506009-11...
