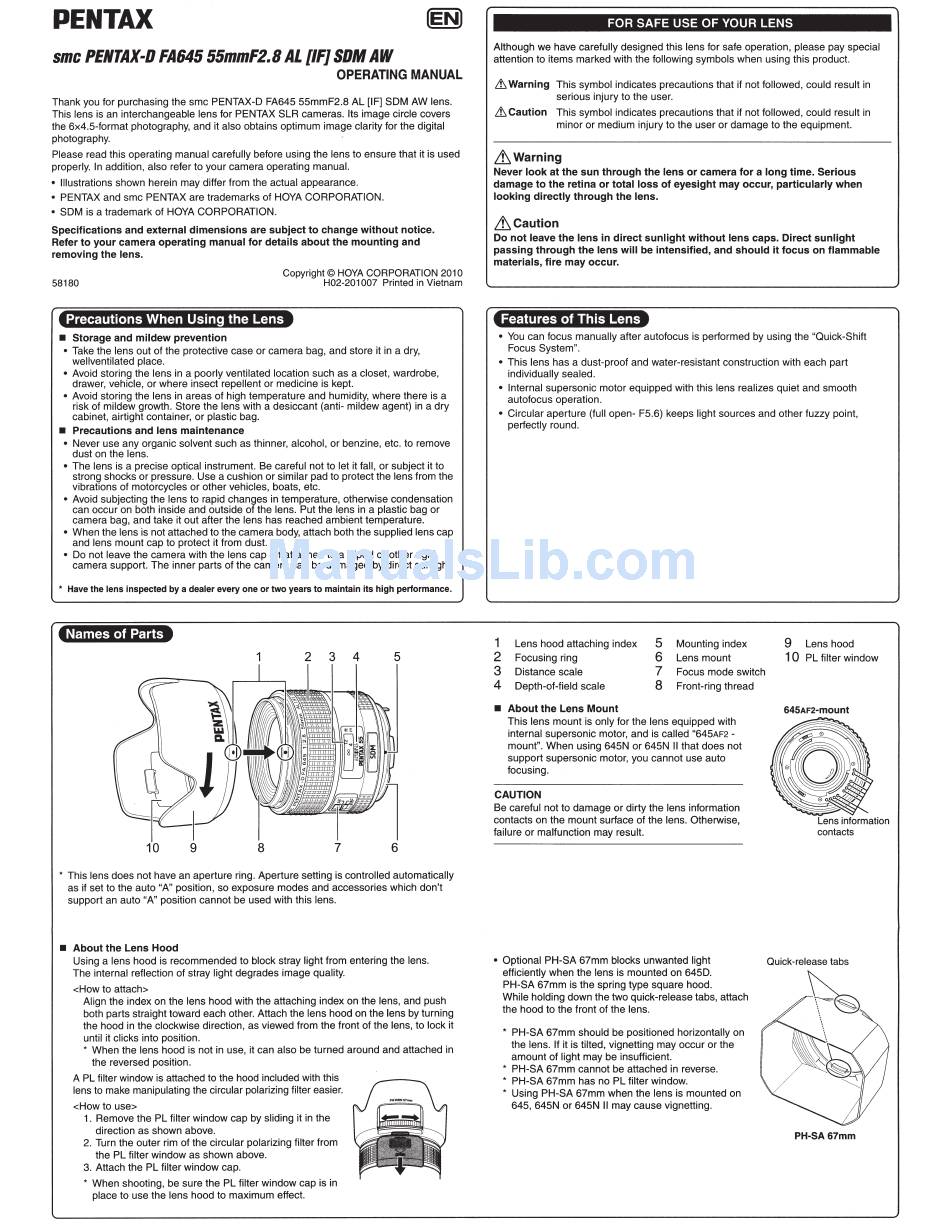

Pentax FA645 Operating Manual

PENT AX

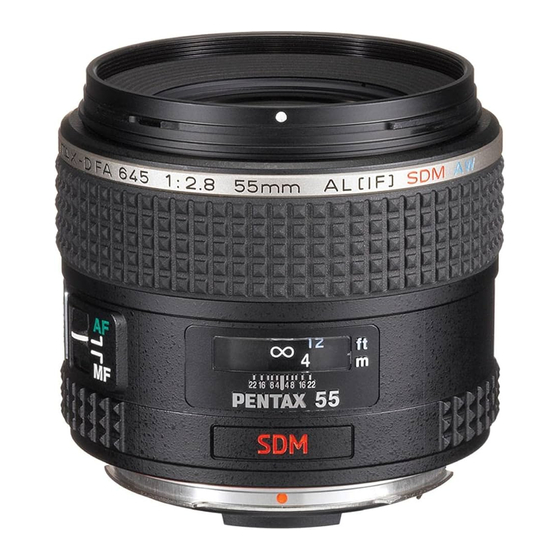

smc PENTAX-0 FA645 55mmF2.8 AL [IF] SOM AW
OPERATING MANUAL
Thank you for purchasing the smc PENTAX-D FA645 55mmF2 .8 AL [IF] SDM AW lens.
This lens is an interchangeable lens for PENTAX SLR cameras. Its image circle covers
the 6x4.5-format photography, and it also obtains optimum image clarity for the digital
photography.
Please read this operating manual carefully before using the lens to ensure that it is used
properly. In addition, also refer to your camera operating manual.
• Illustrations shown herein may differ from the actual appearance.
• PENTAX and smc PENTAX are trademarks of HOYA CORPORATION .
• SDM is a trademark of HOYA CORPORATION.
Specifications and external dimensions are subject to change without notice.
Refer to your camera operating manual for details about the mounting and
removing the lens.
58180
Copyright© HOYA CORPORATION 201 0
H02-201 007 Printed in Vietnam
Precautions When Using the Lens
• Storage and mildew prevention
• Take the lens out of the protective case or camera bag, and store it in a dry,
wellventilated place.
• Avoid storing the lens in a poorly ventilated location such as a closet, wardrobe,
drawer, vehicle, or where insect repellent or medicine is kept.
• Avoid storing the lens in areas of high temperature and humidity, where there is a
risk of mildew growth. Store the lens with a desiccant (anti- mildew agent) in a dry
cabinet, airtight container, or plastic bag.
• Precautions and lens maintenance
• Never use any organic solvent such as thinner, alcohol, or benzine, etc. to remove
dust on the lens.
• The lens is a precise optical instrument. Be careful not to let it fall, or subject it to
strong shocks or pressure. Use a cushion or similar pad to protect the lens from the
vibrations of motorcycles or other vehicles, boats, etc.
• Avoid subjecting the lens to rapid changes in temperature, otherwise condensation
can occur on both inside and outside of the lens. Put the lens in a plastic bag or
camera bag, and take it out after the lens has reached ambient temperature.
• When the lens is not attached to the camera body, attach both the supplied lens cap
and lens mount cap to protect it from dust.
• Do not leave the camera with the lens cap off attached to a tripod or other rigid
camera support. The inner parts of the camera can be damaged by direct sunlight.
• Have the lens inspected by a dealer every one or two years to maintain its high performance.
Names of Parts
2 3 4 5
• This lens does not have an aperture ring. Aperture setting is controlled automatically
as if set to the auto "A" position, so exposure modes and accessories which don't
support an auto "A" position cannot be used with this lens.
• About the Lens Hood
Using a lens hood is recommended to block stray light from entering the lens.
The internal reflection of stray light degrades image quality.
<How to attach>
Align the index on the lens hood with the attaching index on the lens, and push
both parts straight toward each other. Attach the lens hood on the lens by turning
the hood in the clockwise direction, as viewed from the front of the lens, to lock it
until it clicks into position.
• When the lens hood is not in use, it can also be turned around and attached in
the reversed position.
A PL filter window is attached to the hood included with this
lens to make manipulating the circular polarizing filter easier.
<How to use>
1. Remove the PL filter window cap by sliding it in the
direction as shown above.
2. Turn the outer rim of the circular polarizing filter from
the PL filter window as shown above.
3. Attach the PL filter window cap.
• When shooting, be sure the PL filter window cap is in
place to use the lens hood to maximum effect.
FOR SAFE USE OF YOUR LENS
Although we have carefully designed this lens for safe operation, please pay special
attention to items marked with the following symbols when using this product.
Lt.
Warning This symbol indicates precautions that if not followed, could result in
serious injury to the user.
Lt.
Caution This symbol indicates precautions that if not followed, could result in
minor or medium injury to the user or damage to the equipment.
Lt.
Warning
Never look at the sun through the lens or camera for a long time. Serious
damage to the retina or total loss of eyesight may occur, particularly when
looking directly through the lens.
it,
caution
Do not leave the lens In direct sunlight without lens caps. Direct sunlight
passing through the lens will be intensified, and should It focus on flammable
materials, fire may occur.
Features of This Lens
• You can focus manually after autofocus is performed by using the "Quick-Shift
Focus System".
• This lens has a dust-proof and water-resistant construction with each part
individually sealed.
• Internal supersonic motor equipped with this lens realizes quiet and smooth
autofocus operation.
• Circular aperture (full open- F5.6) keeps light sources and other fuzzy point,
perfectly round.
1
Lens hood attaching index
5
Mounting index
2
Focusing ring
6
Lens mount
3
Distance scale
7
Focus mode switch
4
Depth-of-field scale
8
Front-ring thread
• About the Lens Mount
This lens mount is only for the lens equipped with
internal supersonic motor, and is called "645AF2 -
mount". When using 645N or 645N II that does not
support supersonic motor, you cannot use auto
focusing.
CAUTION
Be careful not to damage or dirty the lens information
contacts on the mount surface of the lens. Otherwise,
failure or malfunction may result.
9
Lens hood
1 0
PL filter window
645AF2-mount
Lens information
contacts
• Optional PH-SA 67mm blocks unwanted light Quick-release tabs
efliciently when the lens is mounted on 645D.
PH-SA 67mm is the spring type square hood.
While holding down the two quick-release tabs, attach
the hood to the front of the lens.
• PH-SA 67mm should be positioned horizontally on
the lens. If it is tilted, vignetting may occur or the
amount of light may be insufficient.
PH-SA 67mm cannot be attached in reverse.
• PH-SA 67mm has no PL filter window.
• Using PH-SA 67mm when the lens is mounted on
645, 645N or 645N II may cause vignetting.
PH-SA67mm
