Summary of Contents for Prosonic DFT-2615

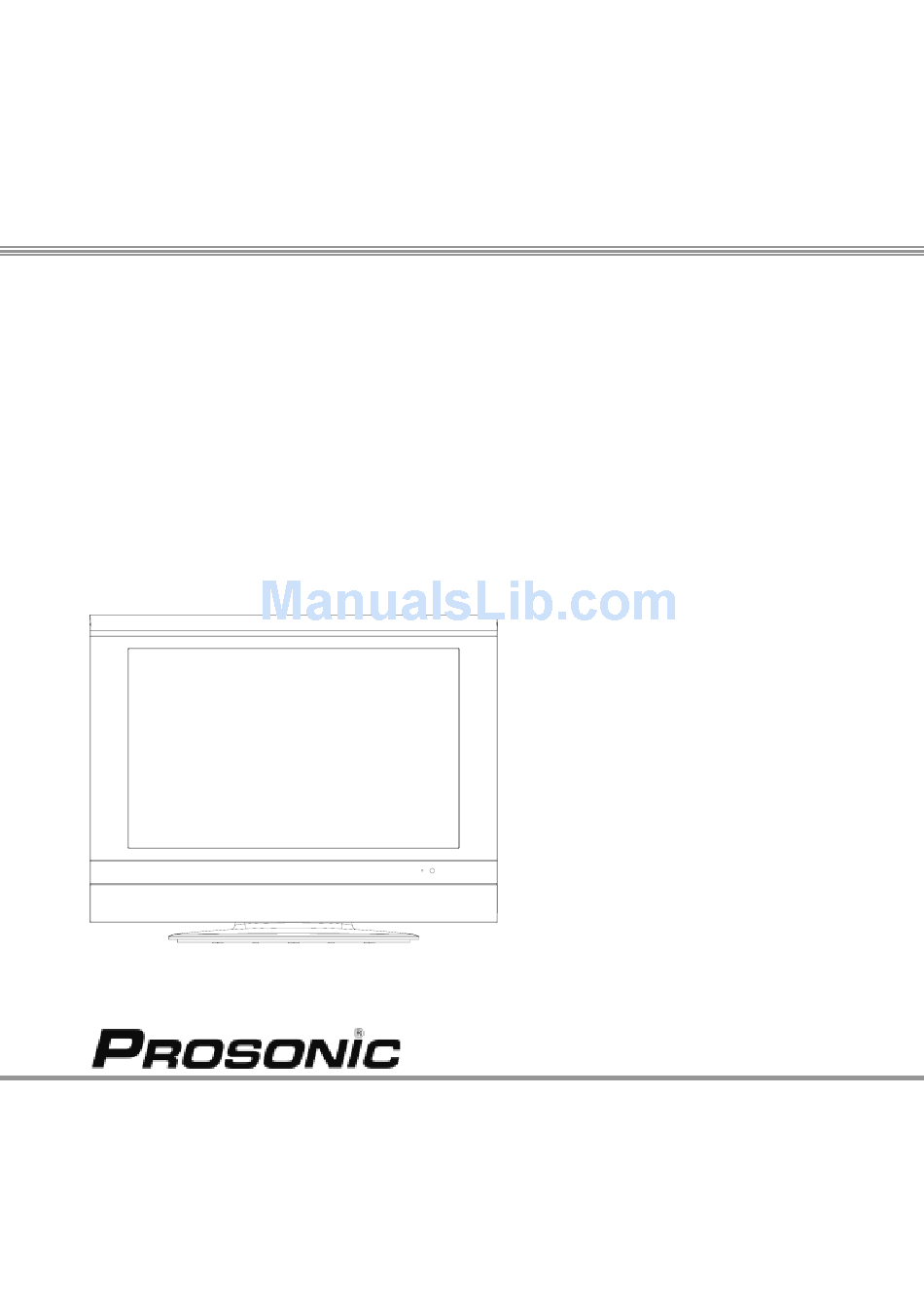

- Page 1 User’s Manual LCD Color TV DFT-2615 To enjoy your set to the full from the very beginning, read this manual carefully and keep it handy for future reference.
-
Page 2: Table Of Contents
Thank you very much for your purchase of our LCD TV products. To enjoy your set to the full from the very beginning, read this manual carefully and keep it handy for future reference. Contents Safety Instructions............3 How to use “SET UP” ·······························11 TIMER.............. -
Page 3: Safety Instructions
Safety Instructions To place Place the TV on a horizontal, stable surface, do not block the ventilation holes, avoid placing the TV in direct sunshine, or in high temperature, damp, dusty or causticity environment, otherwise the internal components will be damaged. When you install the base-stand, be sure to install it according to the installation instruction strictly. -
Page 4: Maintenance
Maintenance Maintenance * First, please confirm that the power is turned off and the plug is pulled out. * Do not use benzene, petrol or oil thinner, etc. to clean the TV. * Clean the cabinet with a soft and dry cloth. If the cabinet is very dirty, use a soft and wet cloth, then dry it. * Clean the LCD panel with soft and dry paper or cloth. -
Page 5: Installation
Installation Confirm that the power switch is OFF before you plug the Signal Cables and Power Cords. Part of the TV set’s back cover To connect the antenna Connect the antenna or the CATV signal cable directly to the antenna input terminal located on the back cover, otherwise it will cause inferior image. -
Page 6: Control Panel
Control Panel MENU TV/AV Power indicator Panel on the side Infrared sensor Button on the Function Key on the Remote Control Control Panel ON/STANDBY POWER TV/AV AV/TV TV/AV EXIT EXIT MENU Activate menu window MENU P- / P+ TV channel selection CH- / CH+ V - / V+ Volume adjustment... -
Page 7: Remote Control
Press this key repeatedly; you can select the sleep time. “Off” indicates the sleep function is off. Picture effect selection. Select Dynamic, 19.PMODE Standard, Mild, User respectively. TELETEXT keys, for detail, see “TELETEXT DFT-2615 Operation”. - 7 -... -
Page 8: Basic Operation
Basic Operation All the functions can be conducted by pressing the keys on the remote control. For some functions you can also press the buttons on the control panel of the TV set. Please check the table on Page 6 for details. Power On/Off 1.Turn on the POWER button on the back cover, the TV is at STANDBY status, press <POWER>... -
Page 9: Using Menus
Using Menus PICTURE There are nine menu items in the “PICTURE”: Picture Mode, Contrast, Brightness, Saturation, Tint, Sharpness, Color Temperature, DNR and Advanced. The user can get the picture effect you needed by adjusting the above menu items. How to enter “PICTURE” 1.Press <MENU>... -
Page 10: Sound
Using Menus SOUND There are five menu items in the “SOUND”: Volume, Sound Mode, Bass, Treble and Balance Mode. How to enter “SOUND” 1.Press <MENU> to display the OSD main menu. 2.Press < > to select “SOUND”. ◄ / ► 3.Press <ENTER>, when the menu item lights, it indicates you have entered the menu. -
Page 11: Auto Tuning
Using Menus SET UP There are six menu items in the “SET UP”: Laguage, Country, Auto Tuning, Manual Tuning, Program Label and Program Edit. How to enter “SET UP” 1.Press <MENU> to display the OSD main menu. 2.Press <◄ / ►> to select “SET UP”. 3.Press <ENTER>, when the menu item lights, it indicates you have entered the menu. - Page 12 Using Menus Manual Search Manual search option allows you to preset channels one by one, in the order of your choice. Program Label This option allows you to name for a selected channel, you can also rename the program which you have named. 1.Select a channel which you would like to operate for it.
-
Page 13: Timer
Using Menus TIMER There are four menu items in the “TIMER”: Sleep Timer, Off Timer, On Timer and On Time Program. How to enter “TIMER” 1.Press <MENU> to display the OSD main menu. 2.Press <◄ / ►> to select “TIMER”. 3.Press <ENTER>, when the menu item lights, it indicates you have entered the menu. -
Page 14: Function
Using Menus FUNCTION There are three menu items in the “FUNCTION”: Video Size, Blue Screen and Key Lock. How to enter “FUNCTION” Press <MENU> to display the OSD main menu. Press <◄ / ►> to select “FUNTION”. Press <ENTER> to enter the menu. How to use “FUNCTION”... -
Page 15: How To Use "Position" In Ypbpr Mode
Using Menus How to use “YPbPr Position” in YPbPr mode When you enter “SET UP” menu, please operate according to the following steps: 1.Press <▲ / ▼> to select “YPbPr Position”(fig.1). 2.Press <◄ / ►> to enter the sub menu (fig.2). This option allows you to adjust the position in YPbPr mode. -
Page 16: Teletext Operation
Teletext Operation Select Teletext Mode Press <CH+>/<CH-> to select the channel providing the Teletext service. Press <TEXT> to enter TELETEXT mode. By this key, mode will be changed as: Teletext→Teletext+TV→TV. The overview station page or the last page viewed (in case you already watched TELETEXT at this channel previously) appears. -
Page 17: Connection Of External Equipment
Connection of External Equipment Socket Location Y U V Connecting your DVD/VCR PC AUDIO IN YPbPr/YCbCr Connecting your output PC audio output TV back cover terminals EARPHONE SCART2 AV AUDIO IN Connecting your Connecting Connecting your Connecting your Connecting earphone outdoor DVD/VCR by DVD/VCR... -
Page 18: Basic Connection
Connection of External Equipment The power should be turned off when you plug the connecting line in. Please read the instruction of the equipment, which you want to connect. Basic Connection Before you receive different source signal programs, please enter <AV/TV> button to choose the right source of signal. -
Page 19: Trouble Shooting
Trouble Shooting When a problem occurs, you can check the table below and find some solutions before call for service. Problem Solving Symptom 10 11 12 No picture, no sound • • • • Poor sound, normal picture • • •... -
Page 20: Specifications
Specification and Accessory Specifications 1. Receiving system: PAL B/G Video input: PAL NTSC 2. Number of Pixels: 1366x768 pixels 3. Active screen size: 16:9 TFT-LCD display panel The min. diagonal size of the image: 66cm. 4. Power voltage: AC 220V-240V 50Hz 5. - Page 21 ENGLISH Instructions on environment protection Do not dispose of this product in the usual household garbage at the end of its lifecycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods for disposal.
- Page 22 Reference: Purchase date: Model No.: Dealer: S/N:...
