INSTRUCTION MANUAL
C-PH200
OUTDOOR PAN/TILT HEAD
Thank you for purchasing TOA's Outdoor Pan/Tilt Head. Please carefully follow the instructions in this
manual in order to ensure long, trouble-free use of your pan/tilt head.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-PH200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Toa C-PH200

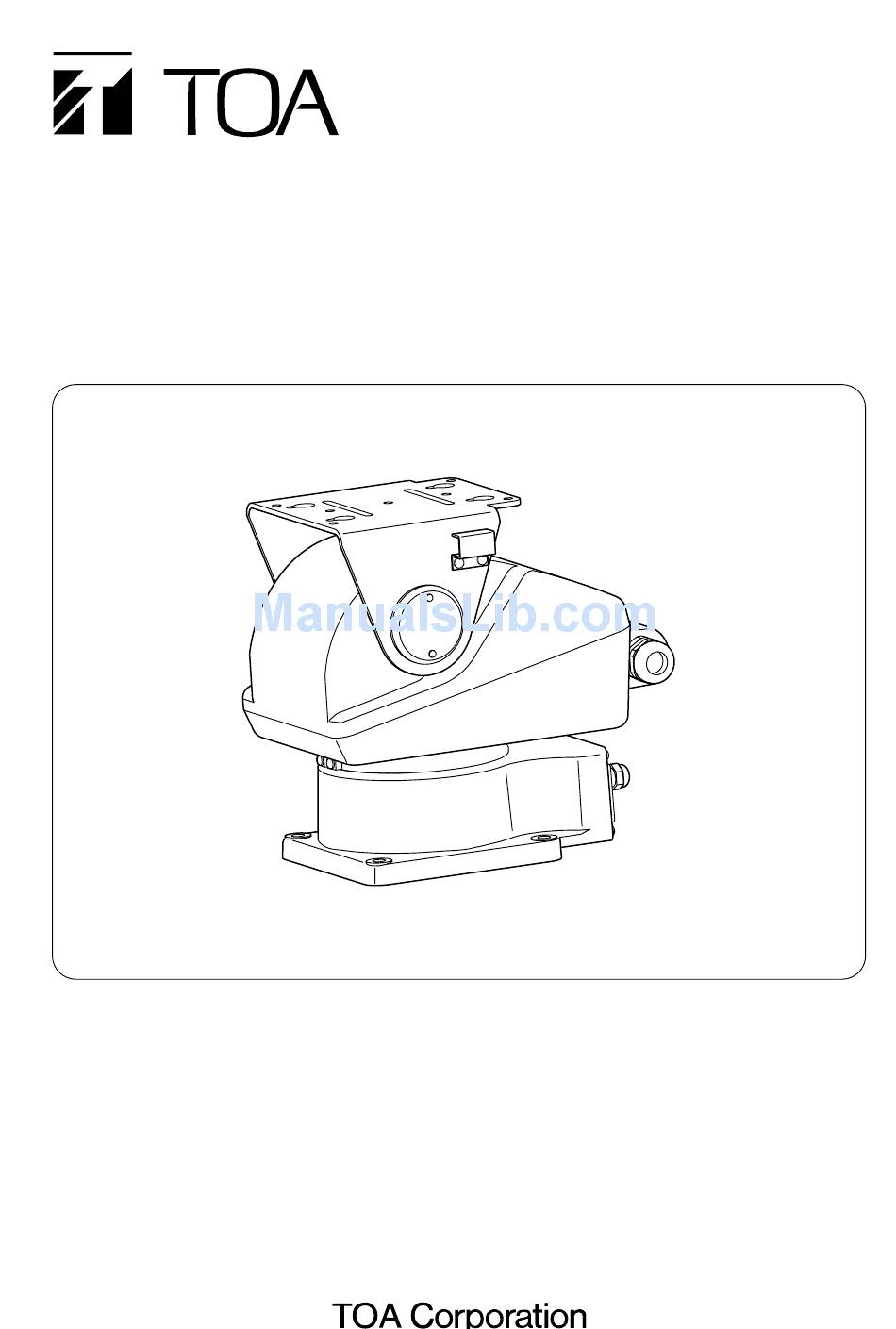

  • Page 1 INSTRUCTION MANUAL C-PH200 OUTDOOR PAN/TILT HEAD Thank you for purchasing TOA’s Outdoor Pan/Tilt Head. Please carefully follow the instructions in this manual in order to ensure long, trouble-free use of your pan/tilt head.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ................3 2. GENERAL DESCRIPTION ................5 3. HANDLING PRECAUTIONS ................5 4. NOMENCLATURE AND FUNCTIONS ............6 5. INSTALLATION 5.1. About the Center of Gravity of Mounted Components ........7 5.2. Housing Front End and Its Surrounding Impediments ........7 5.3.
  • Page 3: Safety Precautions

    (angle of under 45 degrees) of the lightning conductor. Lightning may cause a fire, electric shock or personal injury. • Leave the installation of the unit to your TOA dealer because the installation requires expert knowledge. If an inexperienced installer installs the unit, the unit may fall, possibly causing personal injury.
  • Page 4 • Do not open the unit’s case for modification. Since there are high voltage components inside the unit, opening or modifying the case may result in fire or electric shock. Refer all servicing to your TOA dealer. Indicates a potentially hazardous situation which could result in...
  • Page 5: General Description

    2. GENERAL DESCRIPTION The TOA C-PH200 is a rainproof and dustproof motorized pan/tilt head designed for both indoor and outdoor applications. Mounted with a camera housing (TOA’s C-CH100, C-CH100FH and C-CH200 Series) containing television camera and zoom lens, etc., the C-PH200 pan/tilt head can be rotated vertically and horizontally by...
  • Page 6: Nomenclature And Functions

    4. NOMENCLATURE AND FUNCTIONS Camera mounting plate Attach a camera housing (C-CH200 Series, C-CH100 and C-CH100FH) to this plate. Refer to p. 11. Housing mounting slot Used to mount a camera housing. Refer to p. 11. Cable clamp Fixes housing cables. Refer to p. 11. Cam fixing screw Pan/tilt head (for horizontal rotation angle adjustment)
  • Page 7: Installation

    5. INSTALLATION 5.1. About the Center of Gravity of Mounted Components When mounting components, adjust their center of gravity (G) to within the permissible range of tolerance shown below. Note If the center of gravity is set outside the tolerance range, the pan/tilt head may not be able to move on its own, even if the mounted component is within the permissible weight limit.
  • Page 8: Rotation Angle Adjustment

    • Use a Phillips screwdriver to adjust rotation angles. Note • The C-PH200 does not come with a graduated angle plate for setting rotation angles. Therefore, be sure to check the unit’s full rotation angle with an operation test. • If the C-PH200 is suspended (i.e. is mounted “upside-down”), then throughout this manual the word “left”...
  • Page 9: Control Input Cable And Coaxial Cable Connections

    5.4. Control Input Cable and Coaxial Cable Connections 1. Remove bushing plate fixing screws (4 pieces) to pull out the terminal chassis that is integral with the bushing plate. Bushing plate fixing screw (4 pieces) Control input cable Bushing 2. Install the control input and coaxial cables by routing both cables through the bushing.
  • Page 10: Coaxial Cable End Processing

    3. Connect lead wires to the terminal. Terminal (下) (上) AC POWER (COMMON) DOWN AC POWER RIGHT CAM POWER Video connection terminal LEFT DEFROST COMMON WIPER AUTO PAN LENS COMMON IRIS LAMP 1 FOCUS ZOOM LAMP 2 BODY Bushing plate Control input cable Coaxial cable Bushing for control input cable...
  • Page 11: Camera Housing Mounting (Upright Installation)

    5.6. Camera Housing Mounting (Upright Installation) TOA’s C-CH200 Series, C-CH100 and C-CH100FH Outdoor Camera Housings can be used for the C-PH200 Pan/Tilt Head. Mount the camera housing on the C-PH200 first. Camera housing 1. Install M6 hexagonal head bolts on the camera housing.
  • Page 12: Camera Housing Mounting (Suspended Installation)

    Note: Since a waterproof function is disabled, avoid suspending such housings outdoors. 1. Using the housing suspension slots, attach the camera housing to the C-PH200 Pan/Tilt Head. Note: Housings do not come with their mounting bolts. Prepare the following nuts and bolts: •...
  • Page 13: Notes On Operations By Auto-Pan Control

    Open the C-RB100’s case and perform settings for the SW3 Pan/Tilt Head Installation Setting switch. Set the switch to “0,” “7,” “8,” or “9” when installing the C-PH200 unit upright, and to “1” when installing it in a suspended (upside-down) position. (Factory-preset to “0.”) For more information about this, refer to the section “Settings”...
  • Page 14: Dimensional Diagram

    6. DIMENSIONAL DIAGRAM Unit: mm 7 x 80 housing suspension slot (for suspension) Rightward 11.5 rotation 175° Ø16 Front Housing mounting hole Leftward rotation 175° Housing mounting hole Note: Use the housing suspension slots when suspending. Downward rotation 70° 131.6 Ø10 pan/tilt head mounting hole (4 pieces for M8 bolt)
  • Page 15: Specifications

    190 (W) x 282 (H) x 313 (D) mm Weight 10.2 kg Applicable Model Camera housing : C-CH200 series, C-CH100 series Option Wall mounting bracket : C-BC200K Note: Specifications and external view of the C-PH200 Pan/Tilt Head are subject to change without notice.
