Instruction manual
General information ......................................................2
1.
Safety instructions ................................................3
2.
Intended purpose ................................................4
3.
Product description ..............................................5
3.1
Display and operating elements ......................................5
3.2
Interfaces ........................................................................6
3.3
Voltage supply ................................................................6
4.
Commissioning ....................................................7
5.
Operation ............................................................7
5.1
Connecting probes..........................................................7
5.2
Switching on / off ............................................................8
6.
Setting instrument ................................................8
6.1
Instrument configuration..................................................8
6.2
Measurement configuration ..........................................10
6.3
Degree of emission ......................................................13
6.4
Storing measurement protocols ....................................13
6.5
Printing measurement protocols....................................14
6.6
Printing current readings ..............................................14
6.7
Reading memory full ....................................................14
7.
Programming ....................................................15
7.1 Installing software ..............................................................15
7.2 Connecting testo 845 to a PC ............................................15
7.3 Setting up connection ........................................................15
7.4 Opening connection............................................................16
7.5 Programming testo 845 ....................................................16
7.6 Disconnecting ....................................................................17
8.
Measuring ..........................................................18
9.
Care and maintenance ......................................21
10. Questions and answers ......................................22
11. Technical data ....................................................23
12. Accessories / spare parts ..................................24

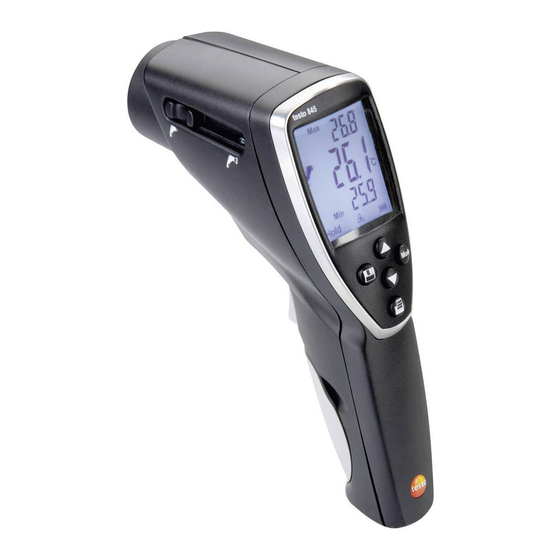

Infrared measuring instrument
Contents
testo 845
en
Advertisement
Table of Contents
Related Manuals for TESTO 845
Summary of Contents for TESTO 845
-
Page 1: Table Of Contents
Printing measurement protocols........14 Printing current readings ..........14 Reading memory full ............14 Programming ............15 7.1 Installing software ..............15 7.2 Connecting testo 845 to a PC ..........15 7.3 Setting up connection ............15 7.4 Opening connection............16 7.5 Programming testo 845 ............16 7.6 Disconnecting ..............17 Measuring ............18... -
Page 2: Testo
General information General information This chapter provides important information on the use of this documentation. This documentation contains information which must be observed in order to ensure safe and efficient application of the product. Read this document carefully and familiarize yourself with the operation of the product before putting it to use. -
Page 3: Safety Instructions
Laser radiation! Do not look into the laser beam. Laser class 2. Correct disposal Hand in defective rechargeable batteries / empty batteries to the correct collecting points. Send the product back to Testo if it is no longer to be used. We will dispose of it ecologically. -
Page 4: Intended Purpose
The product may not be used in the following areas: · In areas where there is a danger of explosion. · For diagnostic measurements in medicine. For reasons of Patent Law, the testo 845 may not be used in Great Britain in combination with the humidity module. -
Page 5: Product Description
USB interface Button functions Button Functions Change configuration settings Printout of values on Testo IR printer Instrument configuration: activate adjustment Store a measurement protocol Measurement and instrument configuration menu: apply values and jump to next setting menu Switch between possible display images... -
Page 6: Interfaces
6 3. Product description Display Display Functions + °C/°F Temperature reading IR + °C/°F Temperature reading contact probe Ambient humidity value in % relative humidity + °C/°F Ambient temperature reading + °Ctd Ambient dewpoint + °C Δtd Dewpoint distance 3.2 Interfaces USB interface The mains unit (accessory) for the voltage supply of the instrument can be connected via the USB interface on the underside of the instrument. -
Page 7: Commissioning
4. Commissioning Commissioning This chapter describes the handling steps necessary for commissioning the instrument. Batteries / rechargeable b b atteries Open the battery compartment cover in the handle. Fit batteries / rechargeable batteries (2 x Mignon) into the battery compartment. Observe polarity! Close the battery compartment cover. -
Page 8: Switching On / Off
5. Operation 5.2 Switching on / off Switching i i nstrument o o n: Press measurement trigger and hold down - The measurement display is opened: The current measurement value and the min. / max. values are displayed Switching i i nstrument o o ff: The instrument switches off automatically after 10 s if no button is pressed. - Page 9 6. Setting instrument Setting d d isplay i i llumination: The configuration menu is open, °C is displayed. Display illumination On/Off with Go to menu Select the desired option with and confirm with . Continue with SET CONTINUOUS MEASUREMENT Setting c c ontinuous m m easurement (see also Chapter 8. Measuring): The configuration mode is open, °C is displayed.
-
Page 10: Measurement Configuration
12 hours. To calibrate the humidity module in the test container, carefully pull the humidity probe out of the testo 845. The test container can be stored horizontally during calibration. - The minimum assimilation time for checks with the probe inserted into the test container is 15 minutes. - Page 11 6. Setting instrument ε Setting d d egree o o f e e mission ( ( The configuration mode is open. Set value with and confirm with Continue with ELECTION OF ALARM VALUE TO BE MONITORED Selection o o f a a larm v v alue t t o b b e m m onitored ( ( dtd, Ir, rH Surface): The configuration mode is open.
- Page 12 12 6. Setting instrument Setting l l imit v v alue ( ( dtd) (only in combination with the humidity module): The configuration mode is open Set the limit value with and confirm with When monitoring dewpoint distance, only one limit value can be selected If the set limit value is exceeded, the limit value is displayed in the top line.
-
Page 13: Degree Of Emission
6.3 Degree of emission Materials have different degrees of emission, i.e. they produce different quanti- ties of electromagnetic radiation. The degree of emission of the testo 845 is set at 0.95 ex-works. This is optimal for measurements of non-metals, plastics and food (paper, ceramics, plaster, wood, paints and lacquers). -
Page 14: Printing Measurement Protocols
View further stored measurement protocols with Start printout with Return to memory menu with The IR diode is situated on the front of the testo 845. Point the testo 845 at the printer. Return to measurement menu with The configuration menu can be exited at any time. To do this, press . -
Page 15: Programming
USB driver in the instruction manuals for testo ComSoft and the USB driver. After successfully installing the software, connect testo 8 8 45 t t o t t he P P C. 7.2 Connecting testo 845 to a PC Connect the USB connection cable to your PC. -
Page 16: Opening Connection
7.4 Opening connection Double-click on the connection to be opened in the window Archive. If a measurement protocol has been stored in the testo 845, the protocol symbol and the short title of the protocol appear under the opened connec- tion. -
Page 17: Disconnecting
To adjust press the buttons 11.3% and 75.3%. Close window 7.5.2 Ending programming Click on Apply to apply the programming carried out to testo 845. 7.6 Disconnecting In the window Archive , click on the connection you want to disconnect with the right-hand mouse key. -
Page 18: Measuring
8. Measuring Measuring This chapter describes the handling steps required to carry out measurements with the product. Measurement p p oint, d d istance Depending on the distance between the measuring instrument and the object to be measured, a certain measurement point is recorded. Measurement optics (Ratio distance : measuring point) Close f f ocus m m easurement Set close focus measurement in the instrument. - Page 19 8. Measuring Carrying o o ut m m easurements: Scrolling through the measurement menus is possible with the measure- ment trigger pressed down as well as in the Hold mode. Hold m m ode In the hold mode the last recorded measurement readings are frozen . Continuous m m easurement s s witched o o ff The instrument measures as long as the measurement trigger is pressed.
- Page 20 The surface moisture is measured from 0 to 1.0 (0 = dry, 1 = very damp). According to DIN EN ISO 13788, the danger of mould on surfaces exists if the moisture level rises above 0.8 over several days. The testo 845 calculates the surface moisture from the surface temperature (IR) and the dewpoint of the air.
-
Page 21: Care And Maintenance
9. Care and maintenance Care and maintenance This chapter describes the handling steps which contribute to maintaining the functionality of the product and to extending its useful life. Cleaning t t he h h ousing: If dirty, clean the housing with a damp cloth (soap solution). Do not use any aggressive cleaning products or solvents! Changing b b attery / / r r echargeable b b attery: The instrument is switched off. -
Page 22: Questions And Answers
Err EE or Err HSEE Send instrument to Testo Customer Services appears If we were not able to answer your question, please contact your dealer or Testo Customer Service. For contact data, see back of this document or web page www.testo.com/service-contact... -
Page 23: Technical Data
Housing ABS (black, grey), metal cover Display three-line with backlight Dimensions testo 845 in mm (LBH) 155 x 58 x 195 Dimensions case in mm (LBH) 405 x 340 x 93 Weight testo 845 without humidity module 455 g... -
Page 24: Accessories / Spare Parts
Waterproof surface probe, TC Type K 0602 0693 Robust air probe, TC Type K 0602 1793 Testo report printer with wireless IRDA and infrared interface 0554 0547 Spare thermal paper for printer (6 rolls) 0554 0569 Spare thermal paper for printer (6 rolls), long-term legible (10 years) 0554 0568 External charger incl. - Page 28 0977 8450 en 04...
