Eye3 Mobile Eye3WitnessView User Manual

Bodycam
Hide thumbs

Advertisement

Quick Links

Download this manual
Eye3WitnessView
BodyCam
User Manual
Copyright 2014, MAI Media Group, LLC d.b.a. Eye3Data
All Rights Reserved

Advertisement

loading
Need help?

Need help?

Do you have a question about the Eye3WitnessView and is the answer not in the manual?

Questions and answers

Summary of Contents for Eye3 Mobile Eye3WitnessView

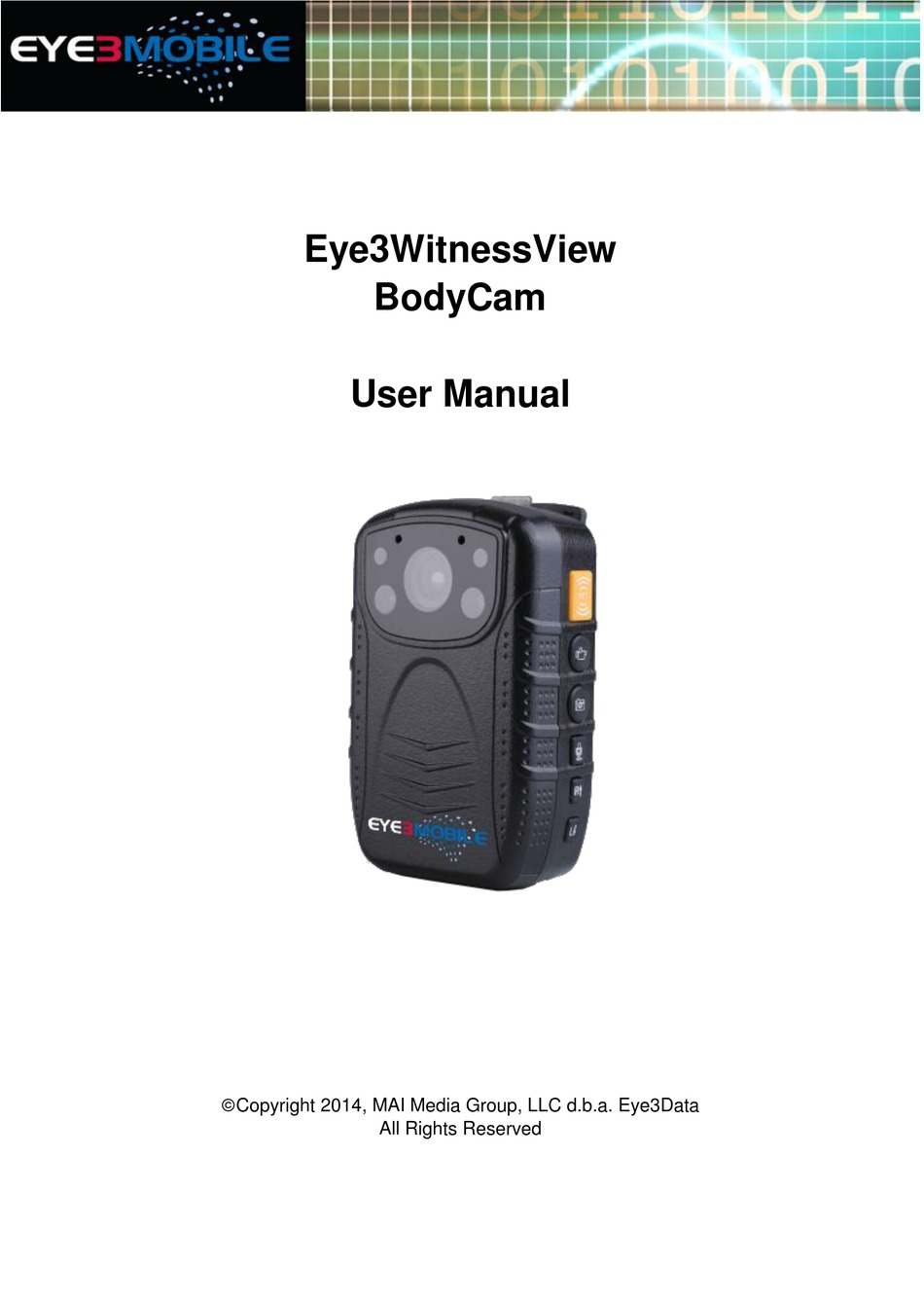

  • Page 1 Eye3WitnessView BodyCam User Manual Copyright 2014, MAI Media Group, LLC d.b.a. Eye3Data All Rights Reserved...
  • Page 2 LEGAL NOTICE Copyright ©2014 Eye3Data. All rights reserved. Eye3Data, VTracker, WitnessPro, WitnessPro-HR, Eye3Connect, Eye3Dispatch, Eye3Evidence, Eye3WitnessView are registered trademarks of MAI Media Group – LLC. Acrobat is a registered trademark of Adobe Systems Incorporated. Microsoft and Microsoft Windows registered trademarks of Microsoft Corporation.

  • Page 3: Table Of Contents

    Eye3WitnessView BodyCam User Manual Table of Contents 1. Overview ................... 4 2. Specifications ................5 3. Getting Started ................. 7 4. Recording ................. 8 5. Playback ................... 9 6. Settings .................. 12 This document contains proprietary and copyrighted information subject to change without notice. The information in this document shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data ©...

  • Page 4: Overview

    Eye3WitnessView a truly portable video recording system. It features many of same benefits of an in-vehicle video recording system but with complete mobility. Due to its unique versatile design, the Eye3WitnessView BodyCam System is the perfect surveillance solution not only for law enforcement and military but also for personal, commercial, insurance, and many other industries.

  • Page 5: Specifications

    Eye3WitnessView BodyCam User Manual 2. Specifications ○ Laser Sight ○ LED Fill light ○ IR LED Light ○ Metal Clip ○ Return/Instant Playback ○ Display off/Fill-in Light ○ Confirm/Playback ○ Reset ○ Menu ○ AV In/Audio ○ HDMI ○ Mini USB ○...
  • Page 6 Eye3WitnessView BodyCam User Manual RECORDING Sensor 5MP CMOS Multiple Recording Resolution 1920x1080P(30 FPS)/ 1280x720(30 FPS)/ Video Resolution 848x480(30 FPS) Video Format H.264 .AVI/MPEG4 Fast forward 2X, 4X, 8X, 16X, 32X, 64X 2X, 4X, 8X, 16X, 32X, 64X Audio High Quality Built-in Microphone.

  • Page 7: Getting Started

    Eye3WitnessView BodyCam User Manual OTHERS Password protection Requires admin password to allow video deletion Pre-record function 5 seconds pre-record. Post-record function 5 seconds last-record Burst 1/3/5 Shot burst picture taking 94 mm *61 mm *31mm (2.91” * 1.83” *0.93”) Dimensions Weight 175g (6.17oz)

  • Page 8: Recording

    Eye3WitnessView BodyCam User Manual 4. Recording 1) Video Recording: a. To record a video, press the “Record” button on the left side of the device (second button with a video recorder symbol on it) the unit will give two short vibrations.

  • Page 9: Playback

    Eye3WitnessView BodyCam User Manual 3) Sound Recording: a. To record audio only, press the “Microphone” button (located below the Camera button with a microphone symbol on it). The unit will vibrate twice briefly and a recording timer will appear on the LCD screen display.
  • Page 10 Eye3WitnessView BodyCam User Manual b. Use the “IR/Up/Zoom In” or the Laser/Down/Zoom Out” button to select the Camera/Photo Icon, and then press the “Confirm/Playback” button to display all saved photos. c. Select the photo to view by using the “Up/Down” buttons. After selecting the photo, press the “Confirm/Playback”...
  • Page 11 Eye3WitnessView BodyCam User Manual c. Select the video file to view by using the “Up/Down” buttons. After selecting the video file, press the “Confirm/Playback” button to see the recorded video in full screen. d. To return to the Playback Menu, press the “Return/Instant Playback” button.

  • Page 12: Settings

    Eye3WitnessView BodyCam User Manual 6. Settings To go to the SET UP Screen, press the “Menu” button ( located below the LCD monitor display). 1) Resolution 1. In the SET UP Menu select “Resolution” and press the “Confirm/Playback” button. 2. There are four resolution options to select from: a.
  • Page 13 Eye3WitnessView BodyCam User Manual 2) There are three options to select from: a. Fine b. Normal c. Super Fine 3) Select the video quality you prefer and press the “Confirm/Playback” button. 4) Press the “Instant/Playback” button to return to the previous menu.
  • Page 14 Eye3WitnessView BodyCam User Manual d. 30 minutes 3) Select the time interval you prefer and press the “Confirm/Playback” button. 4) Press the “Instant/Playback” button to return to the previous menu. 4) Photo Size 1) In the SET UP Menu select “Photo Size” and press the Confirm/Playback” button.
  • Page 15 Eye3WitnessView BodyCam User Manual 5) Capture Capture means continuous photo shooting in a sequence. 1) In the SET UP Menu select “Capture” and press the Confirm/Playback” button. There are three options to select from: a. Off-no continuous photo shooting b. 3fps (frames per seconds) c.
  • Page 16 Eye3WitnessView BodyCam User Manual 2. Select the volume setting you prefer and press the “Confirm/Playback” button. 3. Press the “Instant/Playback” button to return to the previous menu. 7) Pre-Recording 1. In the SET UP Menu select “Pre-Recording” and press the “Confirm/Playback”...
  • Page 17 Eye3WitnessView BodyCam User Manual 8) Post-Recording 1. In the SET UP Menu select “Post-Recording” and press the “Confirm/Playback” button. 2. There are two options to select from: a. On- camera will record 5 seconds after the end of recording. b. Off- no post-recording.
  • Page 18 Eye3WitnessView BodyCam User Manual 2. Two options to select from: a. On- enables the prompt sound. b. Off- disables the prompt sound. 3. Select the Pre-Recording option you prefer and press the “Confirm/Playback” button. 4. Press the “Instant/Playback” button to return to the previous menu.
  • Page 19 Eye3WitnessView BodyCam User Manual CORPORATE HEADQUARTERS 9624 Cincinnati Columbus Road Cincinnati, Ohio 45241 Main: 513.779.0604 Toll Free: 888.777.9059 Fax: 513.898.0206 www.eye3mobile.com This document contains proprietary and copyrighted information subject to change without notice. The information in this document shall not be duplicated, used, or disclosed in whole or in part outside of Eye3Data © 2012. Any distribution of this material without...
