- Page 2 Auto shut-off feature pump for fountains 150-300 / 300-500 Congratulations on buying a Pennington water fountain pump. This fountain pump is designed with advanced technology, to run a wide variety of water features. The compact powerful motors are easy to maintain having a single moving part impeller system.
-
Page 3: Safety Instructions
FOR INDOOR AND OUTDOOR USE IMPORTANT SAFETY INSTRUCTIONS WARNING - To reduce The risk of elecTric shock, use only on porTable self-conTained founTains no larger Than 5 feeT in any dimension. WARNING - risk of elecTric shock - This pump is supplied wiTh a grounding conducTor and grounding Type aTTachmenT plug. -
Page 4: Table Of Contents
CONTENTS Getting to know your water fountain pump Parts Description/Spare Codes Pump Performance Flow Chart Technical Specifications Accessories Supplied Auto Shut-off Feature Installation Electrical Installation Pump Connection and Adjustment Maintenance and cleaning Cleaning Routine Maintenance Annual Maintenance & Winter Storage Troubleshooting Faults and Problems Procedure Guarantee... -
Page 5: Getting To Know Your Water Fountain Pump

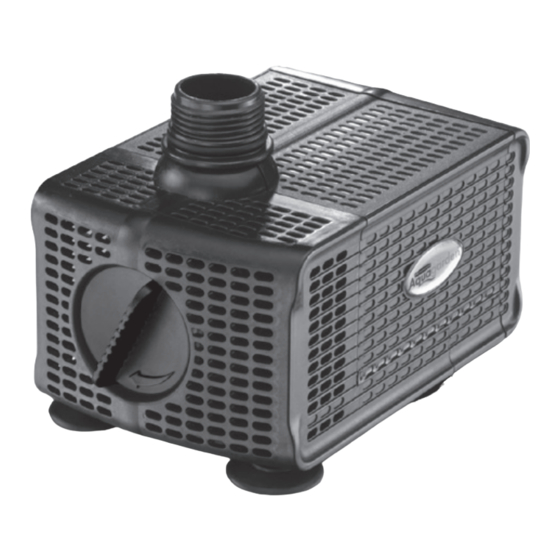

GETTING TO KNOW YOUR WATER FOUNTAIN PUMP AUTO SHUT-OFF FOUNTAIN PUMP 350/650 Fountain Pump Part Description Spare Code Pump motor Pump outlet Impellor complete 150-300 100521201 Impellor complete 300-500 100521202 Impellor cover Front pump cage Back pump cage Flow adjuster "-... -
Page 6: Pump Performance Flow Chart
GETTING TO KNOW YOUR WATER FOUNTAIN PUMP 150-300 300-500 TECHNICAL DATA TECHNICAL DATA •120 Volt •120 Volt •60Hz •60Hz •21 Watts •42 Watts •292 gal/hr •528 gal/hr •5’6” max head •6’2” max head •16 ft of cable •16 ft of cable... -
Page 7: Accessories Supplied
GETTING TO KNOW YOUR WATER FOUNTAIN PUMP Accessories supplied Auto shut-off turns off the pump when the water is low, preventing burnout Economical, compact motor Adjustable flow Reduced cleaning – high control valve surface area inlet pre-filter cage minimizes blocking For hose 1 / 2 ”... -
Page 8: Auto Shut-Off Feature
GETTING TO KNOW YOUR WATER FOUNTAIN PUMP Auto shut-off feature (prevents burnout) Sensors automatically turn off the pump when the water level is low Sensors automatically turn on the pump when the water is topped up WARNING - THE SENSORS CANNOT FUNCTION PROPERLY IF THE PUMP IS NOT LEVEL. -
Page 9: Installation
INSTALLATION ELECTRICAL SAFETY INFORMATION: Caution: Household indoor and outdoor use. WARNING - Risk of Electric Shock. Mount the unit at a height greater than 1 foot from the ground surface. Install only to covered Class A GFCI receptacle that has an enclosure that is weatherproof with the attachment plug cap inserted or removed. -
Page 10: Pump Connection And Adjustment
INSTALLATION Locating your Feature Pump The pump should be located on a firm and level base in the pond or water feature. The pump should be covered with water at all times. Make sure there is ample cable from the mains supply. -
Page 11: Maintenance And Cleaning
MAINTENANCE & CLEANING Warning - Failure to carry out routine maintenance will result in a shorter pump life and may invalidate the guarantee. Routine Maintenance Carry out routine maintenance when pump flow is visibly reduced. Switch off electricity. Remove the pump from the feature or pond (do not use the cable to lift the pump). Follow steps 1, 2 and 3. - Page 12 MAINTENANCE & CLEANING STEP 2 Remove yellow impellor cover by turning anti-clockwise to release lock. Then pull firmly away from pump motor. STEP 3 Remove impellor from the pump motor. Wash parts with fresh water carefully.
-
Page 13: Annual Maintenance & Winter Storage
MAINTENANCE & CLEANING Annual Maintenance Dismantle the pump and examine all parts for wear or damage, replacing any parts that show obvious wear and/or damage. See getting to know your pump for parts/description and replacement parts codes. Particular care should be taken to examine the cable entry point and the cable. If there is any sign of damage the pump should be discarded. -
Page 14: Troubleshooting
TROUBLESHOOTING Problem Low flow from the pump Ensure that the feature pump is fully submersed and not sucking air due to lack of water in your feature. Follow routine maintenance. Ensure pipe work is not blocked, leaking or is laid so that it gets crushed or kinked. -
Page 15: Faults And Problems Procedure
IMPORTANT FAULTS - PROBLEMS PROCEDURE Before returning your pump to your retailer, please carry out the following steps. This will solve most problems quickly and easily. Ensure electrical procedure has been followed fully. Check fuse and any cable connectors/switch boxes. NOTE: If the pump has overheated the thermal overload will temporarily switch off the pump. -
Page 16: Guarantee
GUARANTEE This product is guaranteed against defects in material and workmanship for 2 years from the date of purchase, under normal usage. The guarantee DOES NOT APPLY in case of improper use, negligence, lack of maintenance or accidental damage to the pump. If the pump fails due to a manufacturing fault within this period it will be either repaired or replaced free of charge.
