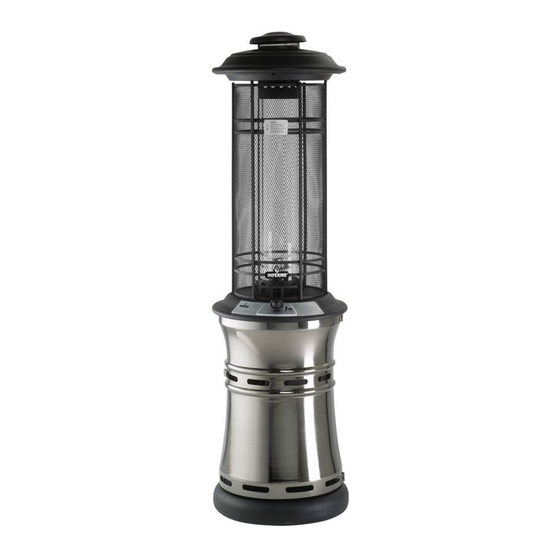

OUTDOOR PATIO HEATER
Instruction Manual & Parts List
Model: SRPH67
WARNING:
Read the instruction before installation
and use.
Keep the instructions for future reference.
For Outdoor use only!
These instructions are only valid if the
country
symbol
appears
on
the
instruction manual and on the appliance.
For gas adjustment refer to Appliance Marking!
Advertisement
Summary of Contents for Santorini SRPH67
- Page 1 OUTDOOR PATIO HEATER Instruction Manual & Parts List Model: SRPH67 WARNING: Read the instruction before installation and use. Keep the instructions for future reference. For Outdoor use only! These instructions are only valid if the country symbol appears instruction manual and on the appliance.
-
Page 3: Tools And Parts Needed For Assembly
TOOLS AND PARTS NEEDED FOR ASSEMBLY WARNING 1. For use outdoors or in amply ventilated areas. 2. An amply ventilated area must have a minimum of 25% of the surface area open. 3. The surface area is the sum of the walls surface. 4. -
Page 4: Parts List
PARTS LIST Chimney cover Weather resistant dome prevents water from entering the combustion zone and reflects heat down. Safety guard protects the full height of the heat exchanger tube. Heat exchange tube has a large heat-radiating surface. Gas control with electronic igniter is centrally positioned for easy access. - Page 7 PRECAUTIONS NOTE: PLEASE READ THE FOLLOWING SAFETY RULES Change the LPG cylinder in an amply ventilated area, away from any ignition source (candle, cigarettes, other flame producing appliances…). The appliance is designed to operate with a cylinder of size Ø 31.8 x 58 cm. Avoid twisting the flexible tubing while using.
-
Page 8: Technical Data
TECHNICAL DATA Product Name Outdoor Patio Heater SRPH67 Model BE, CY, DK, EE, FI, FR, HU, BE, CH, CY, CZ, ES, FR, AT, CH, DE, Country Code IT, LT, NL, NO, SE, SI, SK, GB, GR, IE, IT, LT, LU, RO, HR, TR, BG, IS, LU, MT LV, PT, SK, SI. - Page 9 ASSEMBLY Warning: This appliance requires installation by a competent person. Proper assembly is the responsibility of the installer. Step 1: To assemble unit-partially open gas chamber door. Carefully lift dome until entire heat exchange tube is exposed. Step 2: After heat exchange tube is fully extended, rotate counter-clockwise until stopped.
- Page 10 ASSEMBLY Warning: This appliance requires installation by a competent person. Proper assembly is the responsibility of the installer. Step 3: Locate the 2 holes to lock heat exchange tube in place. Insert the wing bolt in to the hole under the control panel and tighten.
- Page 11 ASSEMBLY Warning: This appliance requires installation Warning: This appliance requires by a competent person. Proper assembly is installation by a competent person. Proper the responsibility of the installer, assembly is the responsibility of the installer. Step 5: Place battery in compartment below control panel.
- Page 12 ASSEMBLY Warning: This appliance requires installation by a competent person. Proper assembly is the responsibility of the installer. Step 7: To check that the regulator seal is correctly fitted and able to fulfill its function. Fit the LPG Cylinder into the chamber taking care not to damage the hose or gas system.
- Page 17 LOCATING APPLIANCE FOR USE BE CAREFUL: WHEN MATERIALS OR ITEMS ARE LEFT UNDER THIS SPACE HEATER, THEY WILL BE SUBJECT TO RADIANT HEAT AND COULD BE SERIOUSLY DAMAGED. The appliance is primarily used for the heating of outdoor patios, decks, spas, pools and working areas.
