INSTALLATION AND SITE
INSTRUCTIONS
You have just bought your air compressor, it will
give you appreciable services.
Please ensure first that your compressor is powerful
enough, you may use it for:
- Inflating Tyres - Balloons - Swimming pools -
Rafts etc......
- Blowing / vacuum-cleaning / painting
- Using pneumatic tools :(ex. gun nailer, stapler,
screw driver, impact wrench, sand blasting, etc...)
Before use, it is imperative to read ENTIRELY the
present NOTE.
1 - INSTALLATION AND SITE
To obtain the best efficiency, please respect the
following indications:
- PLACE: Use the compressor indoors or under
shelter, do not expose it to the rain or near water
jets. Do not use the compressor in an explosive
atmosphere.
- VENTILATION: The compressor must be in a place
which allows ventilation, do not cover the ventilation
openings.
- TEMPERATURE: Use the compressor between
(+ 5°C and +35°C) (Otherwise, there are risks for
the electrical motor.)
- BLOCK OF COMPRESSION: Keep the
compressor at 50 cm at least from any wall to
ensure a correct circulation of air.
- TENSION: Check that the sector tension and
tension indicated on the label are the same :
(Single phase:230 Volts - 50 Hz)

Connect as near to the electrical meter as
possible (Less than 10 meters in order to avoid a
rise in intensity, the engine would not start in cold
weather):
- Of 16 Amps under 230V.
- Connected to the ground.
- Connected to a differential protection.
E L E C T R C I P R O T E C T O I N - D A T A
k W
P O W E R 1 5 , 2 2 , 3
S n i g e l
S L O W B L O W F U S E A
1 0 1 6
P h a s e
M n i m i u m m ² m
2 3 0 V 5 - 0 H z C A B E L S E C T O I N 2 5 , 2 5 ,
1
2 - INSTRUCTIONS, OPERATING ADVICE
- BEFORE USE:

Check that the compressor has not been damaged
during the transport.

The switch must be in position "Off". (Fig. 2)

Verify under the tank that the drain valve is closed
(fig. 3).
- USING AN ELECTRIC EXTENSION:

Please only use an extension if absolutely
necessary.
We recommend the following dimensions: 5 meters
maximum length with section of wire of 2,5mm ².

Too small diameter wire sections and big lengths
would cause serious damage to the engine.

It is better to extend the air pipe, which also will
give you stock of air.
- USING A PNEUMATIC EXTENSION:

For pressures higher than 7 bar, use pipes
reinforced with steel braid.
- ADJUSTMENT OF PRESSURE:

Adjust the pressure of use and the consumption of
air to the characteristics of the tools you wish to use.
(See the documentation provided with your tools).

The quantity of air consumed depends on the type
of tool used: do not use a tool consuming more than
60% of the possibilities of your compressor.

The pressure controller is adjusted in factory and
needs no re adjustment.

Pressure gauge A (Fig. 4) indicates the pressure
inside the tank.
To adjust the output of air pressure , it is necessary to
turn the button ( Fig. 4)
In clockwise direction to increase pressure, and
opposite to decrease it.
4 5 5 ,
The pressure gauge B (Fig. 4) indicates the useful
exit air pressure, you must use the tool only when the
pressure in the tank is higher than the pressure of use
of the tool.
PICTOGRAMS
GUARANTEE
1 - Producer 8 - Revolutions per minute
2 - Tank capacity 9 - Measured noise level
3 - Power 10 - Serial number
4 - Tension- Phase Qty 11 - Code model
and frequency. 12 - Reference
5 - Maximum pressure 13 - Year of manufacture
6 - Compressor weight
7 - Air delivery at 7 bar

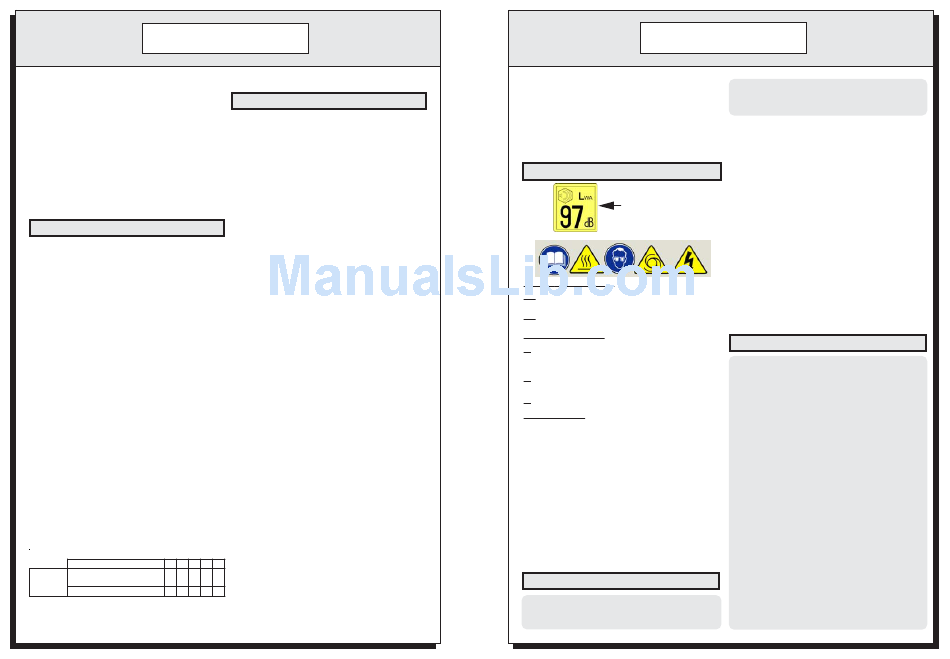

7 - PICTOGRAMS LEGEND
Acoustic power level
guaranteed.
1 3 2 4 5
OBLIGATION SIGNALS:
01: Read entirely the note before the startup or any
operation of maintenance on the compressor.
02: To use a sound protection in the event of
prolonged use.
WARNING SIGNALS:
3: Do not touch apparent hot surfaces (Cylinder
head, pipe between tank and cylinder head, non-
return valve).
4: Automatic restart of the compressor without
warning.
5: Risk of electric discharge.
SOME ADVICE:

To undertake the maintenance of this machine
before air pressure has completely fallen and
electricity has been disconnected.

Do not open the air valve before you have
connected the air pipe and the tool to the
compressor.

Do not breathe or project the compressed air of
the compressor towards a person .

Use a sound protection in the event of
prolonged use.

This equipment cannot be thrown as waste and
is subject to a selective collection for its
valorization or recycling.
8 - GUARANTEE ADVICE
Please keep this manual with the machine.
Please read entirely the safety requirements and
the instructions before using the compressor.
To obtain the best results, respect all warnings
and instructions.

The respect of the advice of use will preserve
the performances, the life expectancy as well as the
legal guarantee applicable to your compressor.

A compressor not maintained can be damaged
quickly.

If you do not use the compressor in accordance
with the contents of these instructions, we will refuse
any responsibility towards persons animals or objects
damaged.

The compressor presented in this note was
designed in the respect of the safety requirements in
agreement with the directives and texts in force within
the European Community. (See EC Declaration).

This note was written in respect with Machine
Directive 2006/42/CE.

All uses advice necessary are indicated there.
9 - GUARANTEE

The compressor is guaranteed for a period of 12
months starting from the date of purchase.
During this period, the manufacturer undertakes to
repair or to replace free of charge any defective
part, after an inspection has been completed at the
factory, in accordance solely with the judgement of
.
our technicians

The guarantee is restricted to manufacturing
defects and applies to equipment used under normal
conditions. The guarantee will not apply if the
machine has been dismantled or modified or if there
are missing parts.
It excludes any responsibility for direct or indirect
damage to persons, animals or objects: if there are
missing parts, if the material or subset were
dismounted or modified.

Parts which are subject to normal wear, e.g
pressure switches, piston rings, belts, air filters,
gaskets and valves, etc., do not fall within the
scope of the guarantee.
No return is accepted without prior authorization.
The carriage costs incurred in returning all part
of a machine, even under guarantee, will always
be charged to the user.
