Edaphic Scientific Pty Ltd
www.edaphic.com.au/hvac

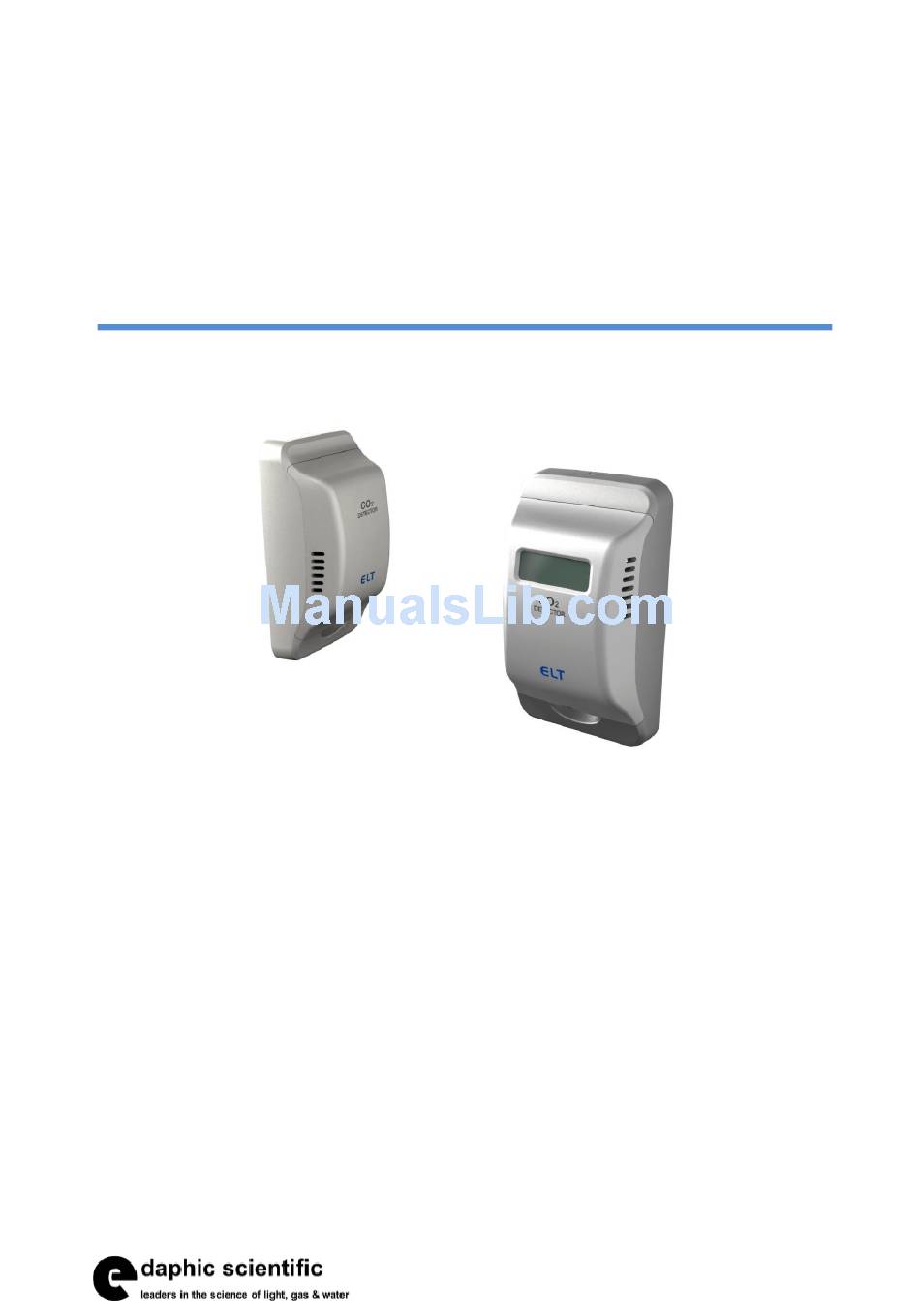

CD-200NL
(without LCD
Display)
General
CD-200 and CD-200NL are Transmitter type
models of CO2 Sensor, which are for 0-20mA ,
4-20mA Current output module or 0-10V,2-
10V Voltage output module(Jumper select).
They are 4+ 2 wired (2 Power lines, 2 signal
lines and 2 relay lines) .
Carbon Dioxide (CO₂)Transmitter
And Controller Operation Manual
CD-200 / CD-200NL
Features
•.Models available with SPST (Single Pole
Single Throw, normally open) relay output
•Output mode : Voltage output/Current output
•.Models available with LCD for sensor
readings and status information (CD-200).
• Non-Dispersive Infrared (NDIR) technology
used to measure CO₂ levels.
• Re-calibration function (of S-100H module)
. 7 days period Auto-Calibration software
could be installed in Sensor on Sale.
. 10min. Manual Recalibration is executable
with TRB-100 tool.
•Size : 123mmx69mmx40mm
Version1.2
DATA SHEET
CD-200
(with LCD
Display)
Advertisement
Summary of Contents for Edaphic CD-200
- Page 1 Single Throw, normally open) relay output General •Output mode : Voltage output/Current output •.Models available with LCD for sensor CD-200 and CD-200NL are Transmitter type readings and status information (CD-200). models of CO2 Sensor, which are for 0-20mA , • Non-Dispersive Infrared (NDIR) technology 4-20mA Current output module or 0-10V,2- used to measure CO₂...
-
Page 2: Specifications
Edaphic Scientific Pty Ltd www.edaphic.com.au/hvac Relay Output(available for CD-200) Specifications Contract Rating 1A/120VAC or 1A/24VDC General Performance Configuration SPST, Normally Open relay Operating Temperature range Relay Activated 0 ~ 50℃ On ≥ 1,000ppm, Operating Humidity range Relay Deactivated 0 ~ 95% RH (Non-condensing) Off ≤900ppm... -
Page 3: Wiring Method
JP2 Output Selection JP2 ppm range Selection Example JP1, JP2 Selection Wiring Method (For current output, 0~5,000ppm range, 4~20mA output selection) Relay Output V/mA Output Subject to change without notice. 2014 Edaphic Scientific. All rights reserved. 2014. April. Contact us: info@edaphic.com.au www.edaphic.com.au/hvac...
